Description

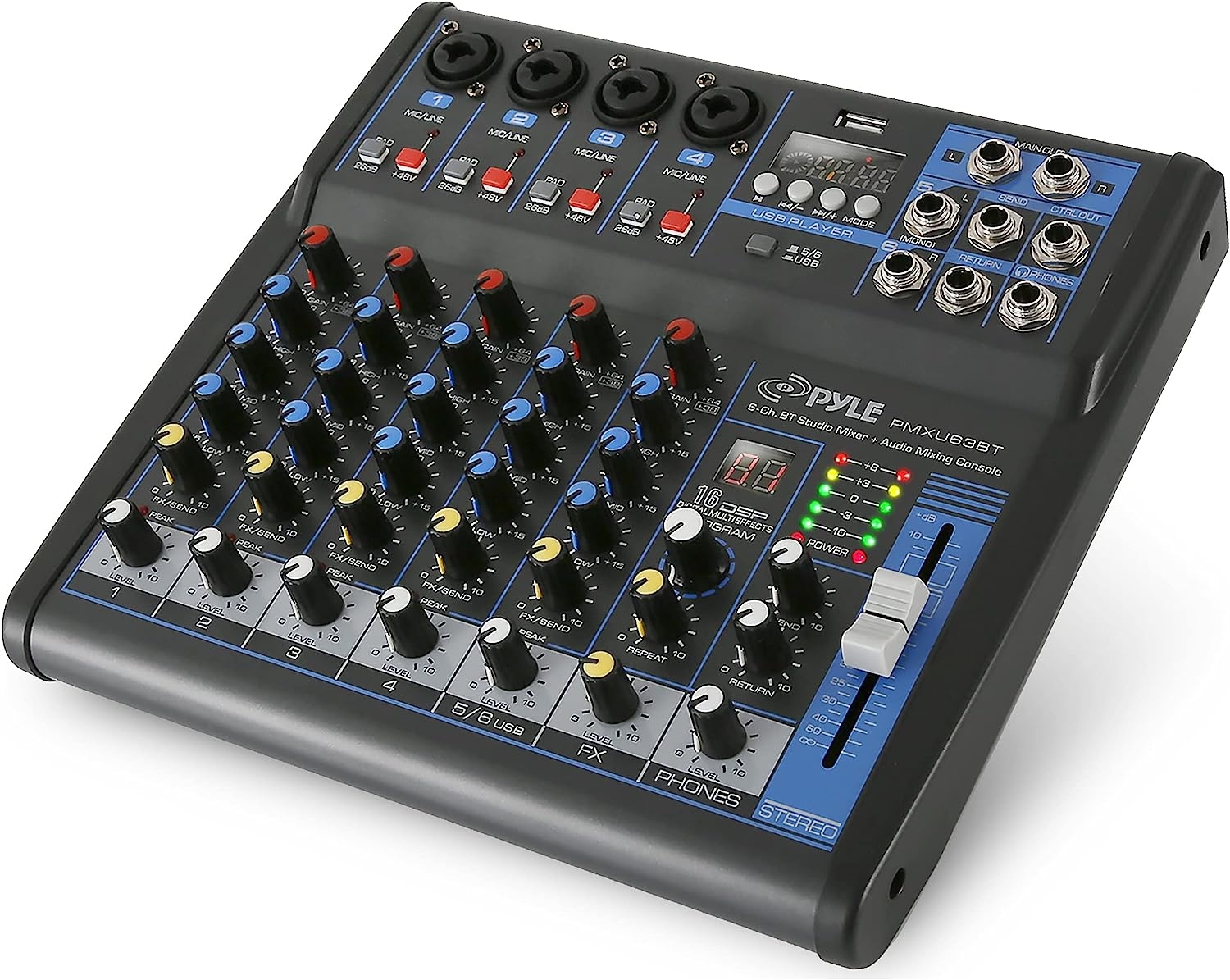

6-Ch. Bluetooth Studio Mixer – DJ Controller Audio Mixing Console System
Features:
DJ & Studio Console Mixer System
Multi 6-Channel Audio Source Mixing
Built-in Bluetooth Wireless Receiver
FX (Analog Effects) & 16 Bit DSP processor
Direct-to-Computer Connect & Sound Record Ability
LCD Digital Display & Front Panel Control Center
Rotary Adjustment Knobs & LED Indicator Lights
MP3 Digital Audio File Compatibility
USB Interface: MP3 Flash Drive Reader/Computer Connection
Connect & Stream Audio from External Devices
(2) 1/4’’ (L/R) MAIN Outputs
(4) XLR/14’’ Combo Audio LINE/Microphone Inputs
1/4’’ Mono + Stereo Inputs
1/4’’ Send + Return Inputs
1/4’’ Headphone Jack
Stereo Level Fader/Slider
Output Signal Level Indication

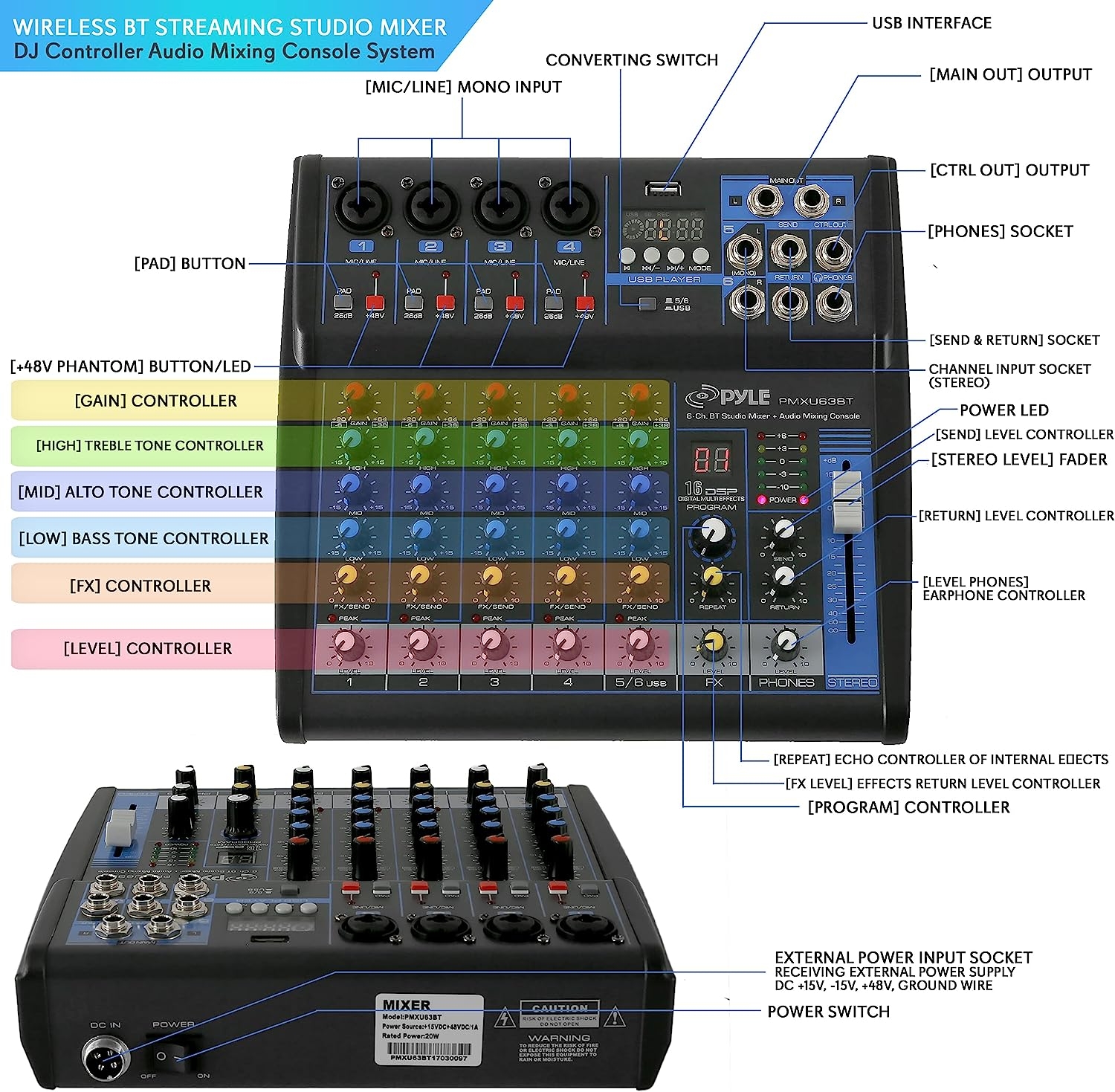

BUS Audio Control, Sound Routing
PAD Channel Source Input Switch
Independent Channel Input Audio Configuration
Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
+48V Phantom Power Control
Power ON/OFF Switch
Used for Professional Studio Applications & On-Stage Performances

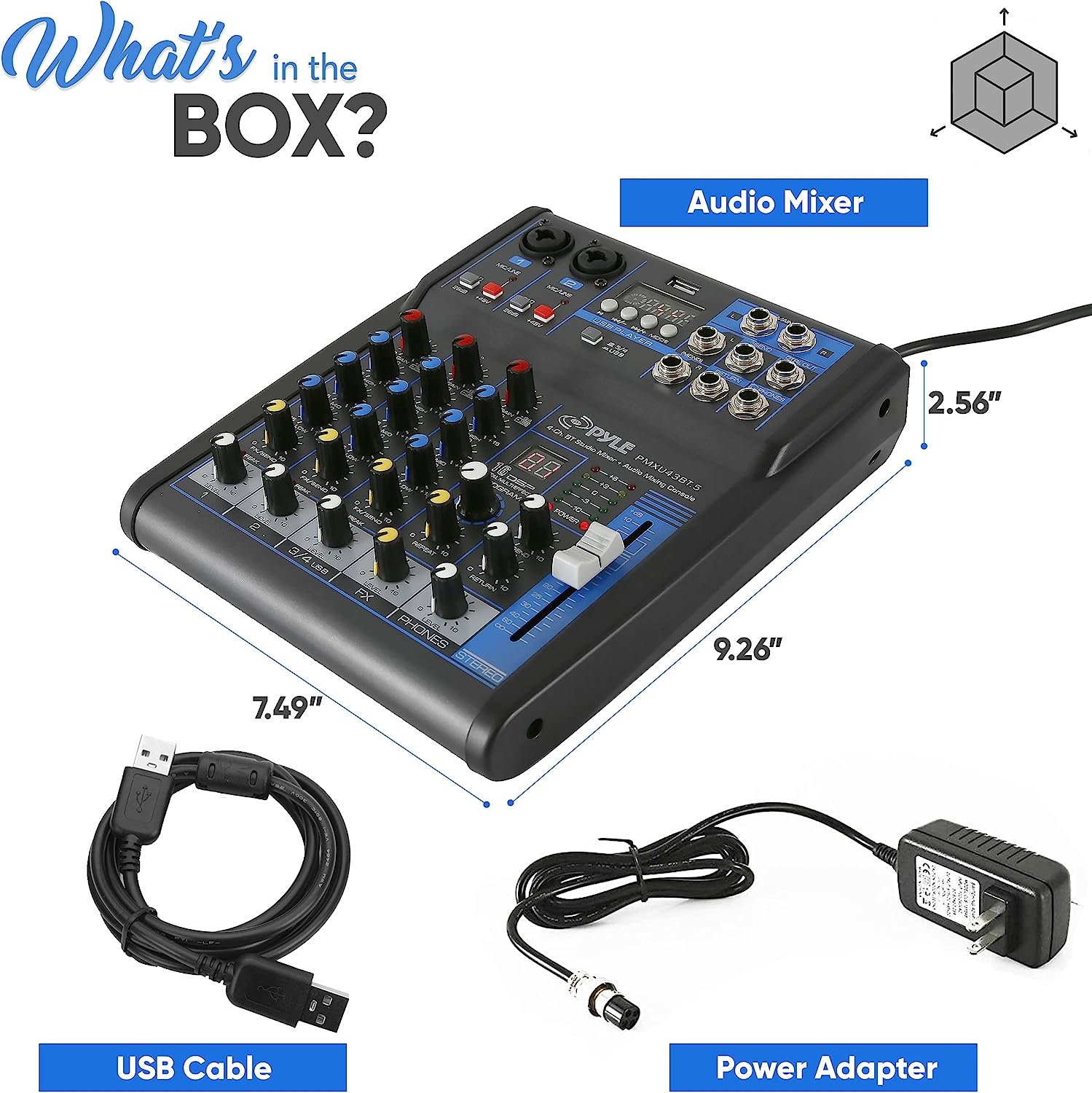

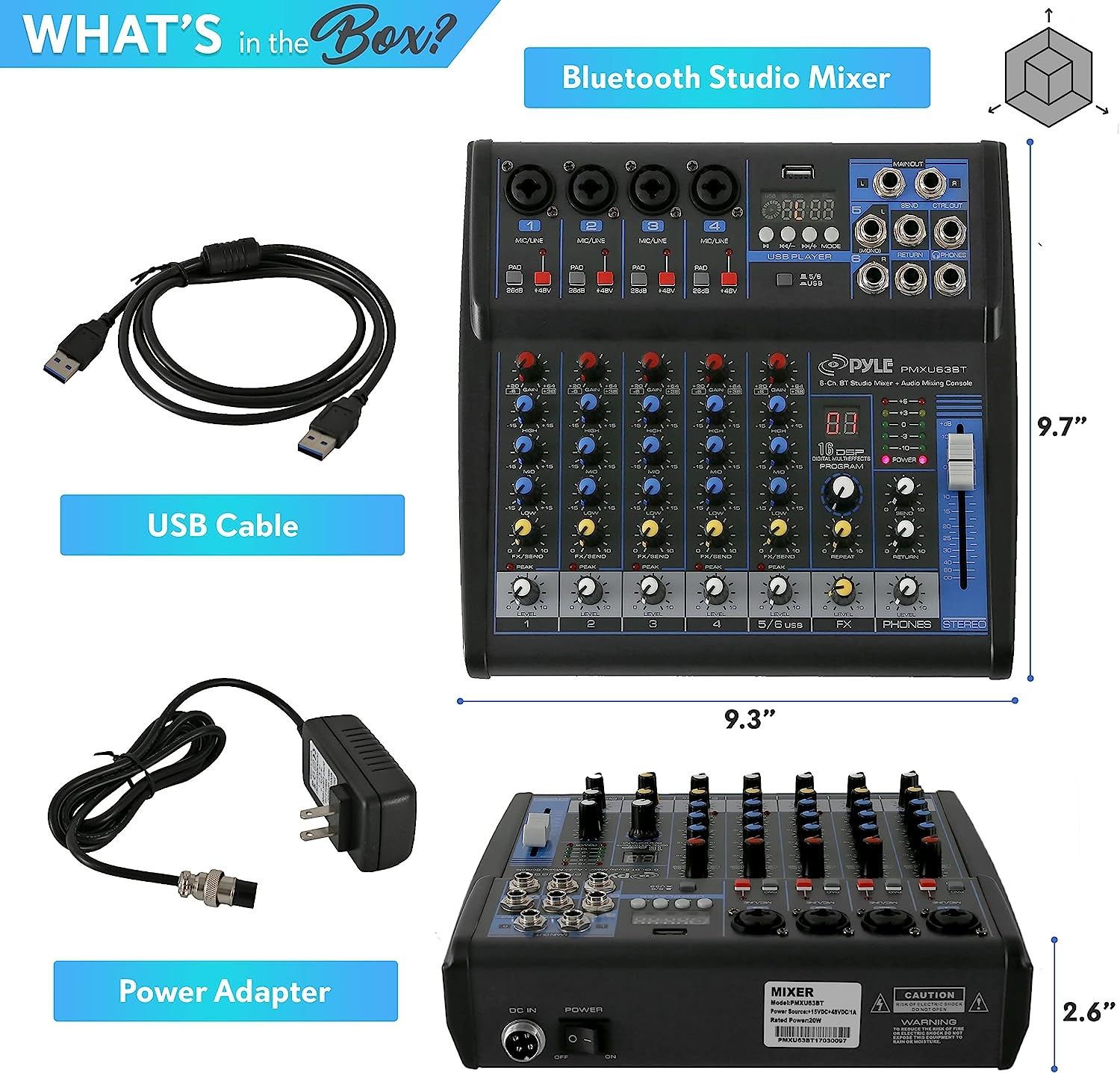

What’s in the Box:
Bluetooth Studio Mixer
Power Adapter Cable, 4-Pin
Wireless Bluetooth Connectivity:
Hassle-Free Audio Streaming Ability
Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Network Name: ‘KT-08UP’
Bluetooth Version: 4.0
Wireless Range: 15’+ ft.
Technical Specs:
Input Mixer Channels: 6-Ch. (+ FX/Headphones)
Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
Input Frequency Response: 20Hz-20kHz, +/-3dB
Input Distortion: 0.03%, 1kHz/150mV Input
Channel GAIN Adjustment: +20/+64 (-6/+38)
HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
LOW Gain: +/-15 dB, 80kHz Frequency Shelving
HIGH/MID/LOW Adjustment: -15/+15dB
Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
PAD Input Channel Adjustment: 26dB
Peak CLIP Level: <3dB
Phantom Power Voltage: +48V
Power Supply: 100/240V (+/-15V DC Power Adapter)
Digital Audio File Compatibility File-Types: MP3, WAV
Dimensions (L x W x H): 9.3’’ x 9.7’’ x 2.6’’
FEATURES
|
|
|
|
|
|---|---|---|---|
RECORD AND CONNECT TO PCThis personal mixer has a USB soundcard and audio interface to record and connect to MAC or PC and it has universal digital audio file compatibility. Can be used by beginners or studio professional applications |

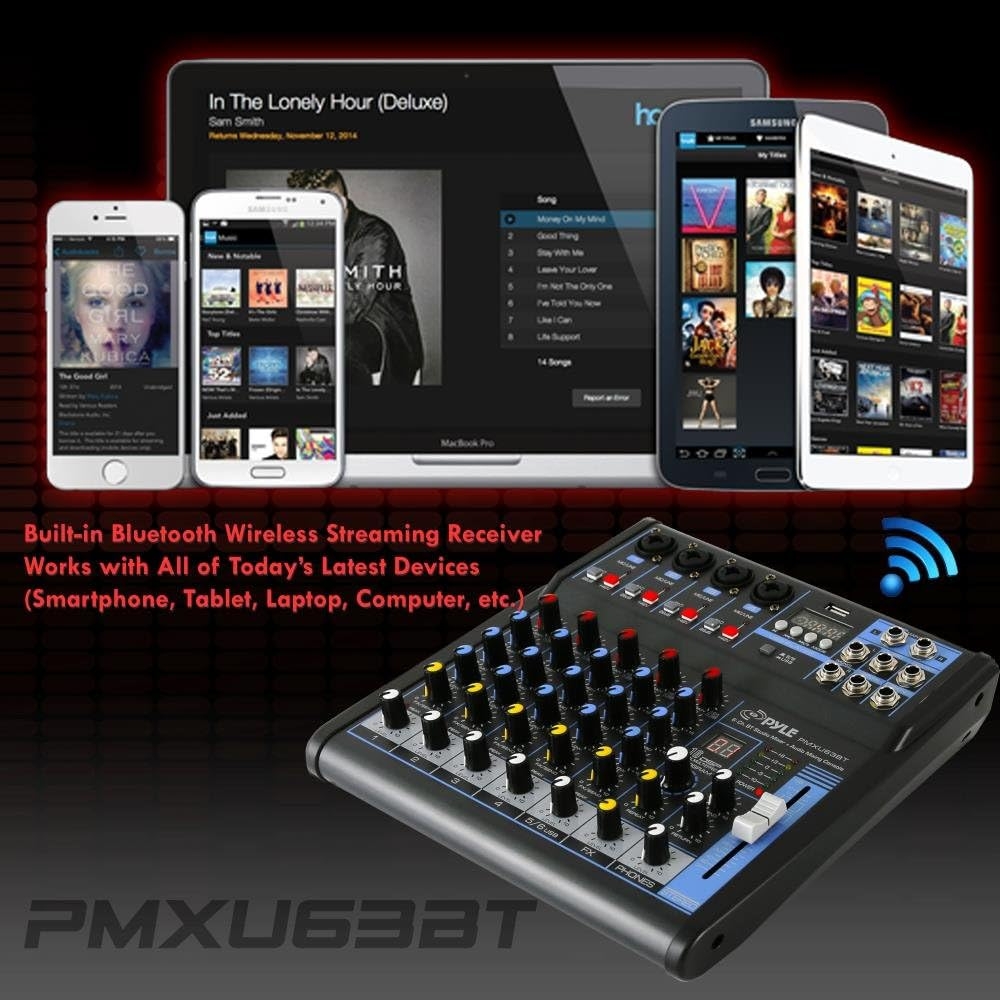

BLUETOOTH WIRELESS STREAMINGHassle and cable-free audio streaming ability directly to the console unit. This audio mixer can wirelessly stream music tunes from iPad, iPhone and Android Smart Phone with mixing board from Pandora or Spotify. |

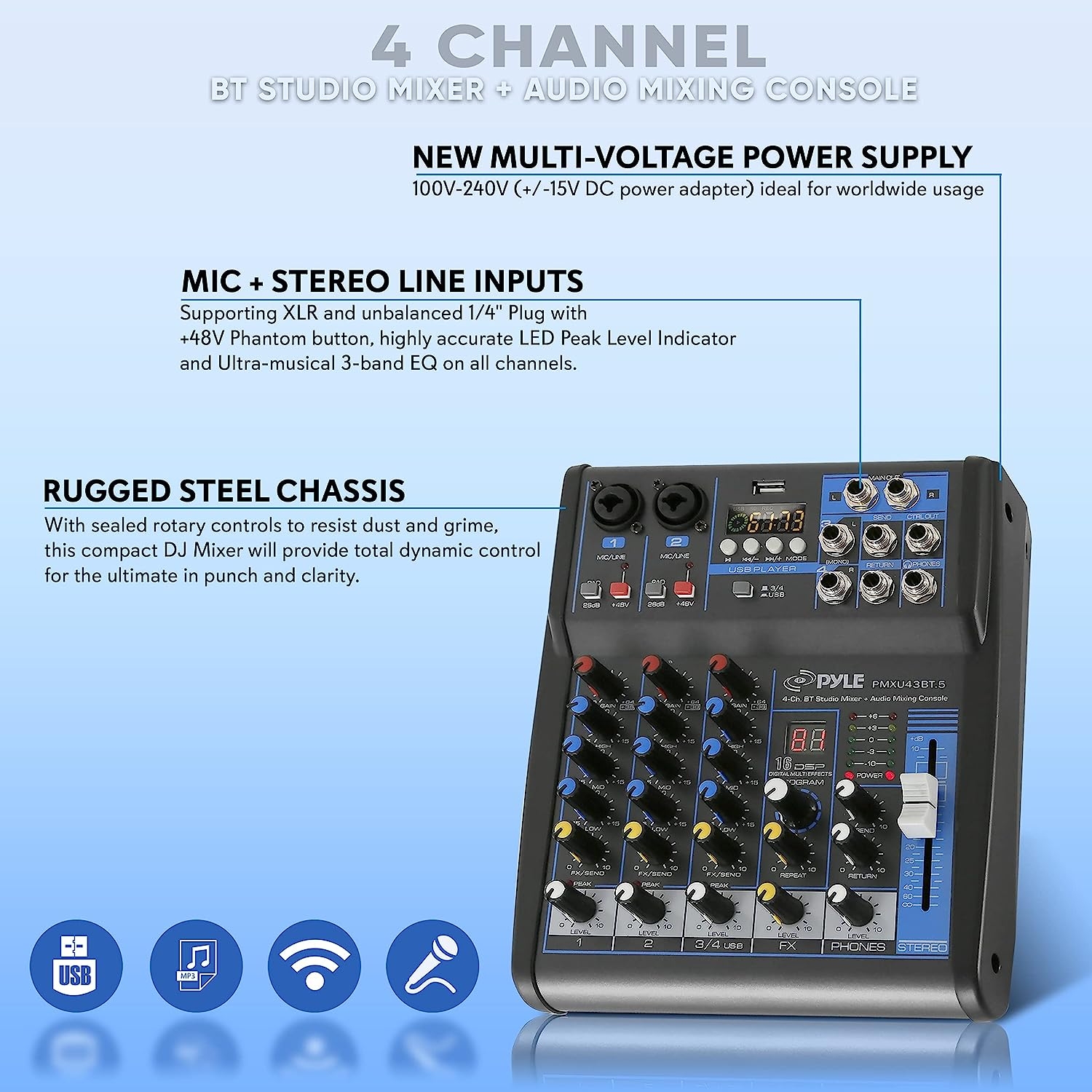

MIC AND STEREO LINE INPUTSSupporting XLR and unbalanced 1/4″ Plug with plus 48V Phantom button, highly accurate LED Peak Level Indicator and Ultra-musical 3-band EQ on all channels. Ultra-low noise, high headroom mixer with super easy functionality. |
NEW MULTI-VOLTAGE POWER SUPPLY100V-240V (+/-15V DC power adapter) ideal for worldwide usage. Enjoy a value packed mixing solution today with performances that sound great each time. |
- Input Mixer Channels: 6-Ch. (+ FX/Headphones)
- Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
- Input Frequency Response: 20Hz-20kHz, +/-3dB
- Channel GAIN Adjustment: +20/+64 (-6/+38)
- Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
Pyle Professional Audio Mixer Sound Board Console
Desk System Interface with 6 Channel, USB, Bluetooth, Digital MP3 Computer

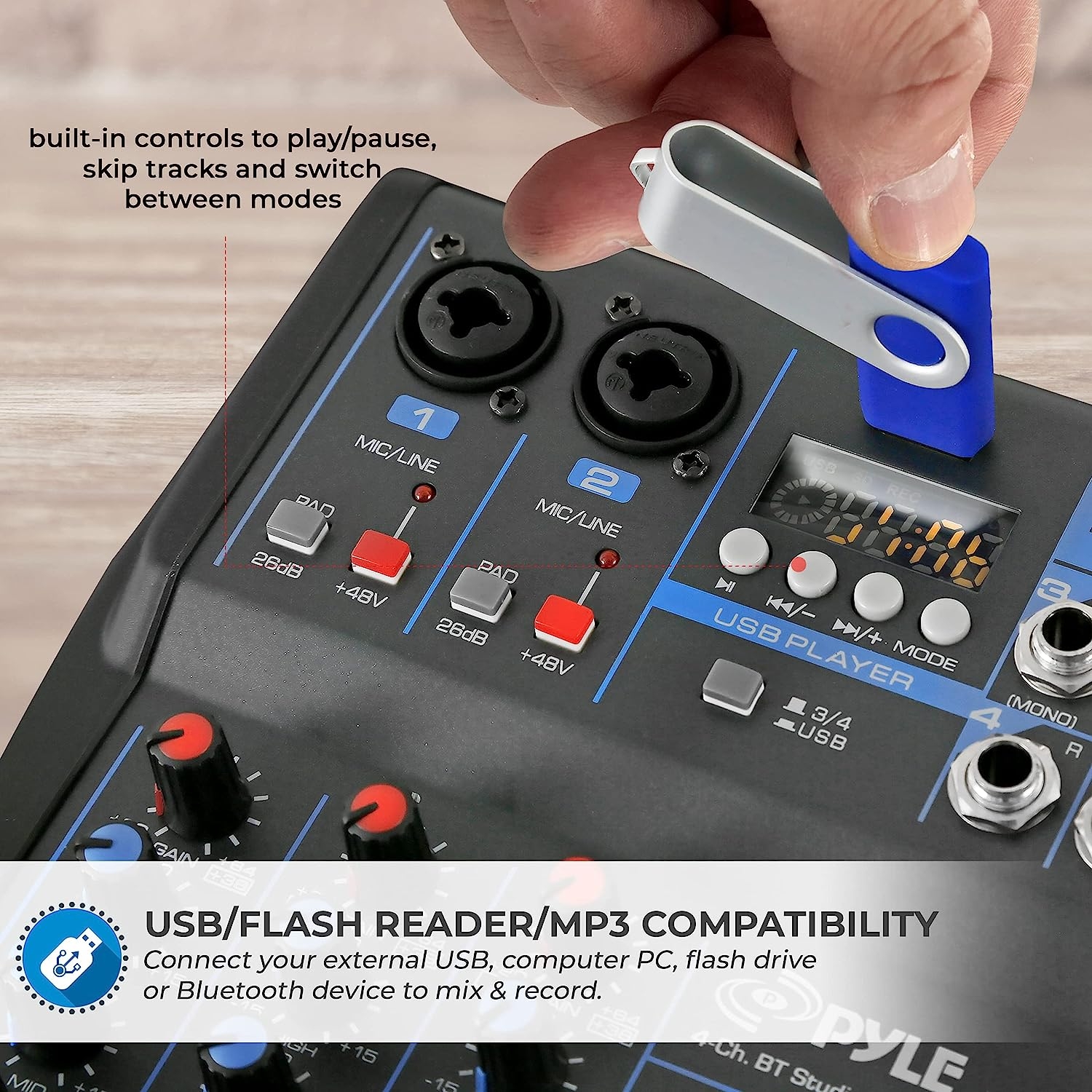

Connect your external USB, computer PC, flash drive or Bluetooth device to mix & record. Use the built-in controls to play/pause, skip tracks and switch between modes. Hassle and cable-free audio streaming ability directly to the console unit. This audio mixer can wirelessly stream music tunes from iPad, iPhone and Android Smart Phone with mixing board from Pandora or Spotify.
- USB/FLASH READER/MP3 COMPATIBILITY
- BLUETOOTH WIRELESS STREAMING
- MIC AND STEREO LINE INPUTS
- RUGGED STEEL CHASSIS
- NEW MULTI-VOLTAGE POWER SUPPLY
Amazon Customer –
Awesome bang for the buck
I recently purchased a 6-channel audio mixer and I am extremely pleased with its performance. The mixer offers excellent sound quality and allows me to easily control and adjust the audio levels of multiple sources. The intuitive layout and user-friendly interface make it a breeze to navigate and set up. I particularly appreciate the versatility it provides, as I can connect various devices and instruments simultaneously. Whether I’m using it for live performances or recording sessions, this audio mixer consistently delivers clear and balanced sound. It has truly elevated my audio production capabilities and I highly recommend it to anyone in need of a reliable and efficient mixing solution.
PAMELA ADAM –
Great Value for the Price!
Does exactly what more of its expensive counterpart do. I love how portable it is not too heavy, not too light. This is my second time buying it. I’ve had my other one for years but the ports need cleaned and I don’t wanna bother with it. I’ll just take care of this one better. With the price I can afford to get a new one. Order now you won’t be disappointed.
Christopher Spychalski –
Great Little Mixer
Needed a new mixer/interface, esp. for Zoom drum lessons…works great
Laura –
Good
I like the setup so far.
Balaji V –
Be the Star of your Karoake Party
I so wanted to do a video review of this one!!I had 4 mics connected (2 via wireless bridge, 2 via XLR cable), an iPad connected via bluetooth. This thing had 6 people crooning and I was the proud host at the end of the party!!Volume controls are very fine in adjustments. They probably have good quality potentiometers. I was able to finely adjust the singers’ volumes to the music very efficiently.Things I didnt like:FX is just darn echo and its not that great and the fanciness wears off after few usage. There is no rhyme or reason on what 1 or 2 or 5 does. Just echoes differently. What a wasted feature.USB button switches off Bluetooth. Yep. I mean, why? Yeah, nah why? (more about this later)Things I loved:For $100 you cannot get a better reliable unit than this one. You can be up and running in no time with this one.Easy to pack and carry. I got this packed in an old backpack along with the mics and wires.The power chard just doesnt plug in, it locks! I have had drunken friends tripping over it or trying to charge their phone with it. Yeah, you read it right. This thing held on nice!My Wish list for this $100 wonderMaybe the output XLR ports could be in the side/back? Makes it look cleaner while performing?Maybe include a small kickstand in the back that will raise up the unit?For few dollars more, lighted backpanel?Now finally the support.So I couldnt get the bluetooth to play but it was pairing and all. Just no volume. I googled and youtubed but no answer anywhere. Not even on their website, manual or any holy book. With only a week left for the party, I called their support and they called me back. After few back n forth and me sharing pictures and small video link of the issue, they put me on hold for 30 minutes and came back with this pearl of analysis: Your iPad Bluetooth is higher version than what we support. Please use an older device. (Oh, I still have that email)I burst into laughter on the call. I said this, “If what you say is true, then not a single bluetooth headset will work with newer phones. Google “Bluetooth downward compatibility”, love. And get back to me yeah?”So they sent it to Tier 2 and then sent me this nugget… “Our unit is not compatible with Mac – iOS”I replied to them, “Well, use your product first. Its the little button for USB that does the trick. When in USB mode, the bluetooth wont work.” No reponse though.
Daniel L –
Decent, solid, reliable
Pros: It does/has nearly everything you’d expect and they pack it all in rather neatly. The (to me) effortless BT pairing, USB storage manipulation, USB Computer Interfacing… all of it works as I’d hoped it would. Also, very low noise even when connected to a sketchy power supply.Neutrals: It doesn’t have an amp, which seems about right for the price.Cons: One thing that I was not aware of, was not properly documented, and DOES make a difference, is that the external FX send and receive is only mono. In fact, the built-in FX for the most part sounds monochromatic too – which I can’t confirm if it actually is or isn’t b/c it isn’t documented at all. For singular voices without a wide range, or _maybe_ a regular piano / acoustic guitar, it doesn’t make much of a difference. However when mixing musical instruments with wider ranges it’s the difference between sounding flat and sounding spacious. You’d literally have to intercept the stereo output of the entire mixer to get true stereo FX incorporated into the mix. I know this sounds niche… and it is… but it is important to know.TL;DR: This thing and it’s brethren are great, especially if you want something legit & reliable hooked up to your computer or want to incorporate an external bluetooth source such as a cell phone into a decent mixer – i.e. weddings or house parties. However, I would not recommend this for poly synthesizers or anything with stereo pickups, and you want to add effects that bend or manipulate L&R channels.
Amazon Customer –
Price value is great
Works fine at for the price is good
nelson –
Pyle mixer
Value for money. Sounds great as advertised!
Amazon Customer –
Great little mixer
It works well with phantom power on all tracks. It excels best in live production. The USB interface was a little bit finicky with cables and only recorded to track stereo. Overall great first mixer or for small live mixes.
Jonathan Escamilla –
First impressions and updates, great for start-ups
Have yet to use but once I test it I will update Amazon review. Delivery was great minimal damage to the box. Products feels good quality has some weight to it. I will test the product and I will update in what I have liked and disliked.*update*The overall build quickly is great not the best but you know it was made with quality material due to the weight of the mixer.Sound quality is nice, it pared well with our main sound system and did not hear any pops, static, or cutoffs. It’s important to note that you shouldn’t max any of the volumes on a sound system or mixer as that will cause the static and cutoffs to happen. All ports worked and Bluetooth connected but even though I was able to connect sound was not coming out while Bluetooth was in use, I will continue to check what it could be.On to the knobs, button and slider. The knobs felt smooth when being turned, although most people won’t like the friction when turning knobs I for one find it useful as it will prevent human error when raising the volume. For the buttons, they had a nice tactile, click sound with a bit of a springy jump back after being pressed. Some gain/pad buttons though are not aligned at the same level as the others, meaning there is a difference in hight compare to the other buttons when pushed or left un pushed. This could be due to the use of different manufactured gain/pad switches or a bent on the circuit board. This is something minor though. The slider is good, smooth and light. The only thing I’m not liking too much is the effect knob as there is no definite stop but it works out because every time the board is turned on and off the effect counter resets to one.Overall for the price and the quality build it is worth it for anything that you are starting be it a podcast, mixer for karaoke and even for church, just as long as you have speakers that have their own power as this mixer won’t be able to power them on its own.
