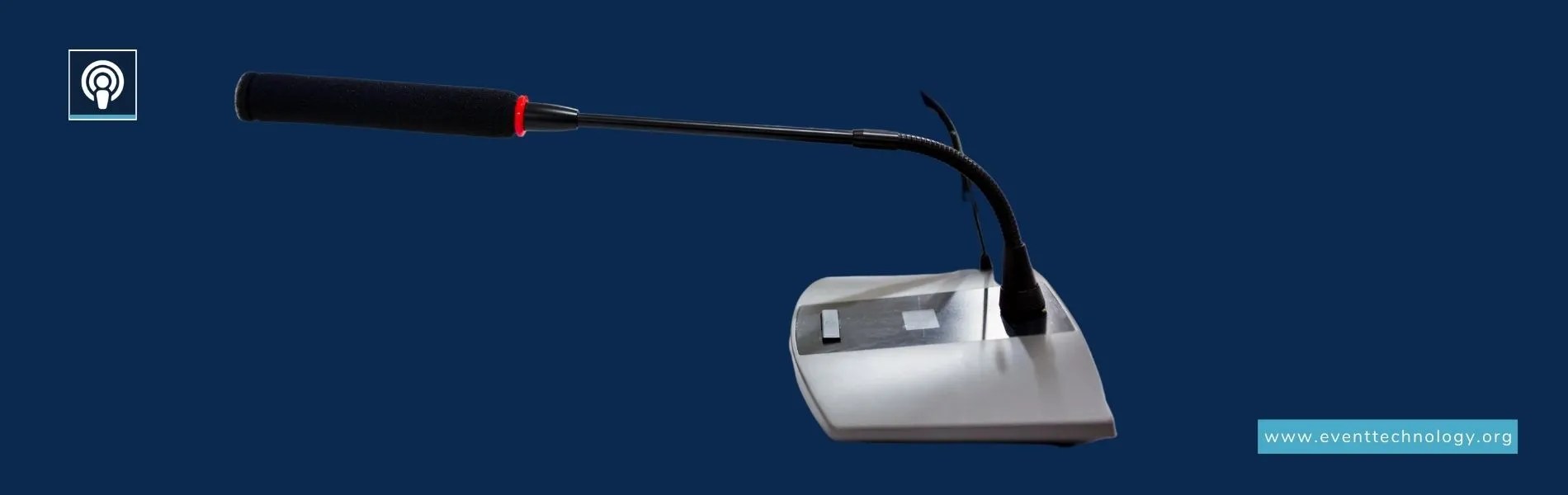

Conference Microphones

CM is a wired or wireless device that transmits audio from one or multiple speakers to an audio system. Conference Microphones use different transmission technology and hardware casing to provide the best support to the user(s). The audio system finally manages a set of microphones and distributes the sound publicly or via other transmission channels.

Types of Conference Microphones

For any type of conference, the quality of the conference microphone ensures the clarity of the speech and presentation, hence being critical to the success of the event. The microphone transmits and exchanges its signals with the control unit, while the amplifier embedded in the microphone translates the electrical signal to the voice. A conference microphone can be divided into two kinds, wired conference microphone, and wireless conference microphone.

Wired Conference Microphone

They use a cable to transmit their signal to perform communication tasks. The advantages of a wired conference microphone are that it is generally cheaper and more reliable. The individual does not have to worry about frequency or battery-related issues. The disadvantage is the inconvenience of the cable being attached. Should the individual be required to move about, the cable may hinder or restrict their movement.

Wireless Conference Microphone

They use Wifi or Infrared technology to communicate among microphones. The advantage of wireless conference microphones is the freedom of movement and the avoidance of cable problems. For example, if the cable becomes faulty due to stress, changing the entire cable may be a lengthy process. The disadvantages are that there may be certain specifications regarding the range of the microphone and the control unit. The usage life of the microphone is also subject to the constraint of the battery life. There may also be possible interference from other radio equipment/microphones, though models with many frequency-synthesized switch-selectable channels are now quickly becoming more popular and cost-effective. Typically, for Conference equipment, wireless microphones are used over wired microphones.

Handheld Microphones

Lapel Microphones

Preamplifier Output Clipping Level (1% THD)

−7 dB

Polarity

Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3

Power Requirements

11–52 V DC[4], 2.0 mA

Environmental Requirements

Operating Temperature Range: -18° C to 57° C (0° F to 135° F) Relative Humidity: 0 to 95%



Features

• Cardioid polar pattern with the tailored response for speech
• Dual-section gooseneck enables ease of positioning and placement options
• Available in 12″ (30.4 cm) and 18″ (45.7 cm) gooseneck lengths
• Black color • Included Flange Mount and available snap-fit windscreens (ACVG4WS-B – 4 pack)
• Available in three configurations* -With Inline Preamp (CVG12 / CVG18) -With Mute switch/LED, Inline Preamp (CVG12S / CVG18S) -With Light-ring, Mute Switch, Inline Preamp (CVG12RS / CVG18RS)
• Commshield® interference immunity -Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.) -gh resistance to intense nearby radio signals
• Superior Shure design and rugged, dependable construction

Available Options about CVG

• 12-B/C: 12″ Gooseneck Condenser Microphone, Inline Pre-Amp, Cardioid, Black
• 18-B/C: 18″ Gooseneck Condenser Microphone, Inline Pre-Amp, Cardioid, Black
• 12S-B/C*: 12″ Gooseneck Condenser Microphone, Inline Pre-Amp, Mute Switch, LED, Cardioid, Black
• 18S-B/C*: 18″ Gooseneck Condenser Microphone, Inline Pre-Amp, Mute Switch, LED, Cardioid, Black
• 12RS-B/C*: 12″ Gooseneck Condenser Microphone, Inline Pre-Amp, Mute Switch, Light-Ring, Cardioid, Black
• 18RS-B/C*: 18″ Gooseneck Condenser Microphone, Inline Pre-Amp, Mute Switch, Light-Ring, Cardioid, Black

MV5 Model

With an iconic design that inspires performance, the MV5 Condenser Microphone offers professional-quality audio, plus the flexibility of both iOS and USB connectivity. Plug it in and get to work right away, or take advantage of three onboard DSP presets to quickly dial in the right sound for your project.

For enhanced control over EQ, compression, and more, dive even deeper with the free ShurePlus™ MOTIV™ Mobile Recording App for iOS, which features recording, editing, and the option to share your recordings with the world. Zero-latency headphone monitoring with volume and mute, and an adjustable stand completes the recording experience.

Features

• 2-in-1 iOS and USB connectivity offers instant setup at home or on the go
• Record, edit, and share recordings from the free ShurePlus MOTIViOS app
• Compatible with all common iOS audio and video apps
• Angle-adjustable desktop stand and integrated ¼” thread mount provide flexibility
• Iconic, low-profile design
• Tuned to capture great recordings, built to last
• Zero-latency headphone output with mute and volume control
• Lightning® and USB cable included
• Compatible with iOS, Android**, Mac, and PC

MicroFlex Advance Model

Ceiling & Table Array Microphones. Versatile and elegant AV conferencing solutions that discreetly and precisely capture the richness of the human voice.

• MXA910 Ceiling Array features Steerable Coverage™ of up to 8 separate lobes to accurately capture sound sources from above
• MXA310 Table Array features an innovative toroid polar pattern, which rejects overhead HVAC and fan noise
• Proprietary IntelliMix® DSP Suite optimizes voice quality by reducing room noise and improving speech intelligibility
• ANI4 Network Interfaces route signals to and from the Dante network; available with block or XLR connectors

Features

• Available in 2 standard ceiling grid sizes (609.6 mm × 609.6 mm & 600 mm × 600 mm)
• Below-ceiling [free air] mounting option via a standard VESA-d mounting plate and wire rope
• Plenum-rated: certified compliant with the ul2043 standard
• Built-in mechanical vibration isolation
• A clear indication of mute status via led

ANI4OUT Model

Converts Dante™ digital audio signal to four discrete line/microphone analog signals

Features

• Single Ethernet port carries Dante audio, power (PoE – class 0)
• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
• Browser-based software control for all device parameters, per output channel:
• Mute control
• Digital gain
• Polarity control
• 1/3 Rack unit wide
• The Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
• Available in block connector and standard XLR variations

 ANI4IN Model

Converts up to four line/microphone analog signals onto a Dante network for easy audio routing and browser-based control.

Features

• Single Ethernet port carries Dante audio, power (PoE – class 0)
• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine input signals and send them over a single Dante™ channel
• Browser-based software control for all device parameters, per input channel: Preamp gain, Mute control, Digital gain, Polarity control, Phantom power
• 1/3 Rack unit wide
• The Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
• Available in block connector (audio + logic) and standard XLR variations

Click Here for more information

Braehler Conference Microphone Systems

SMic133 Multimedia Conference Microphone

With the smart DIGIMIC multimedia units SMic133 and SMic059 Brähler Systems have developed high-quality and modern conference units that, in conjunction with the new software solution brählerOS, create groundbreaking communication conditions. The display housing of the multimedia unit is milled from a single aluminum block and features an elegant and timeless design. The functions of a call station are based on the latest DIGIMIC technology. The 13.3-inch Full HD touch display from the SMic133 and the 5.9-inch Full HD display from the SMic059 enables conference participants to view all relevant conference documents and participate efficiently in the conference.

The Delegate App, part of the management software brählerOS, makes the SMic very powerful. It provides conference participants with updatable information about the conference activity while in use. Agendas, conference documents, film and photo material, participant lists, contact information, etc., can be viewed quickly and easily thanks to the intuitive user interface.

With the integrated language selector for up to 32 channels and volume control as well as a tuning function, with questions and results displayed on each individual call station, all settings and information can be done more quickly and more easily than ever before. And all this in 10 different operating languages. The size of the display provides participants with the best view of what is important – central information with a generous view.

• External dimensions : 233,0mm x 352,4mm x 199,9mm (HxBxT)
• Display : Native resolution 1920 x 1080px, Diagonale: 13,3“
• Touch surface: 293,4mm X 165mm, Capacitive 10-point Multitouch
• Brightness: 400 lumens, Contrast: 800: 1
• Aspect ratio: 16:9
• Casing : Display: Aluminium Unibody
• Deckel: Aluminium 1,5mm, Ground: Aluminium 2,0mm
• Colour : RAL 9003 Weißaluminium
• CPU : Amlogic ARM® Cortex®-A53(ARMv8) 1.5Ghz quad-core CPUs,
• GPU: Mali™-450 GPU (3 Pixel-processors + 2 Vertex shader processors)
• RAM: 8Gbyte eMMC Module
• Network: Gigabit Ethernet POE
• Display: HDMI 2.0 4K/60Hz display
• H.265 4K/60FPS and H.264 4K/30FPS capable VPU
• OS: Customized Android 5.1 Lollipop based on Kernel 3.14LTS
• Power supply: 12V/900mA over POE or external power supply
• Connections: 1x RJ54 (POE), 2x RJ45 Prev/Next Daisychain, 1x 4-Pol MiniXLR (Power), 1x Minicon (Microphone), 1x 3,5mm Jack (Headphones), RFID Card Reader
• Built-in speakers

Brahler DC10 – Conference Microphone

Building on the success of Digimic, the DC10 is a conference microphone unit designed for applications where portability and robustness are required to go hand-in-hand with a sleek design and broadcast-quality audio.
Multiple operating modes are possible in either stand-alone or software-controlled configurations. When used in combination with Brähler’s control software, it is possible to operate the system via a geographic layout showing individual microphones. Add a touch-screen control or remote camera control and you have a fully integrated, professional conference discussion system, says the company.

Each DC10 unit boasts a built-in loudspeaker, backlit on/off/request button, and 2.5m lead for connecting further units. There is even a ring LED on the gooseneck stem to indicate when a microphone is active. The microphone is available now by contacting Brähler ICS.

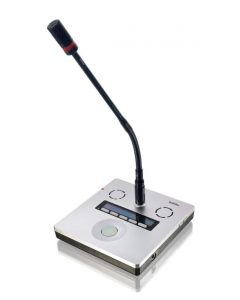

Brahler DigiMic

DIGIMIC classic is the classic of our DIGMIC family and a high-performance basic standalone conference system for large-scale discussions as well as for smaller groups if there are high demands for functionality. The entire system is controlled by the DCen central control console where the individual digital microphone stations, as well as the DDol digital interpretation console, converge. Translations are carried out from there on up to eight channels. Several hundred microphone stations can be switched in parallel through a cascading of the control consoles or alternatively by means of an additional power supply unit.

DIGIMIC classic is easy to use, is just as easy to set up, and can be remotely controlled via software. This plug-and-play technology with no additional time-consuming configurations makes installation particularly easy. The microphone stations stand out with an elegant, stylish design for which DIGIMIC was awarded the iF design award. The system can be expanded to include a voting function or even individually configured and assembled according to a customer’s desires and requirements. It is an investment in the future that is not only secure but also includes options for variable expansions. DIGIC can also be firmly integrated into the furnishings.

DIGIMIC – the most reliable conference and discussion system for over three decades now takes you beyond digital. With DIGIMIC you no longer need to decide, between wired or wireless. You can have either or both!  You determine what solution is most appropriate for your application. To convert a wired DIGIMC to wireless simply replace the cable with the docking unit; if a wireless system is not the best solution for your application simply re-connect the cable. It is as simple as that. The digital conference system provides a 100% standalone solution and is completely self-configuring. With DIGIMIC it is easier than ever before to set up even larger and complex conference systems.

Once a microphone unit is connected it is ready for use instantly. To adjust for different applications, all necessary settings are done via the user-friendly menu on the front side of the central control console. The delegate’s front – the microphone unit – offers a thoughtful ergonomic design enabling the delegate to concentrate on the conference.  Combined with the wireless radio transceiver DSpark all system parameters are controlled and displayed at the central control unit DCen. Several microphone operating modes are implemented and selectable, e.g. to limit the number of activated microphones at the same time up to 6 (e.g. AUT6 + Chairperson). All units are connected in single-cable technology. Up to 100 units may be connected to one central control unit.

System Components

• DCenCentral Control Unit: for controlling and supplying up to 100 wired system units
• DSparkRadio Transceiver Unit: to extend DIGIMIC to a wireless system
• DChairDelegates’ Unit: with PRIO functionality and additional mute all button
• DMic Del DMic egates’ Unit: with illuminated microphone button
• DDocDocking Unit for DMic/DChair
• TMD/01Conference Microphone: with ring-shaped live indicator and integrated windshield functionality, gooseneck
• TM58/6Conference Microphone: with ring-shaped live indicator, gooseneck
• D9 Connection cable D9: with lockable, robust S8G-connector

Taiden Conference Microphone Systems

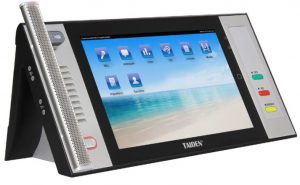

HCS-8348ACE – Paperless Multimedia Microphone

In 2010, TAIDEN developed the first paperless multimedia conference system in the world. The paperless conference, video service, conference services, etc. were successfully introduced into the conference system and promoted conference system technology to a new stage. Now, TAIDEN paperless multimedia conference system has been successfully applied to the United Nations Headquarters, the World Bank Headquarters, the Lombardy district government in Italy, the People’s Great Hall of Zhejiang Province, the Wuhan International Expo Center, and other high-end meeting places. The concept of paperless multimedia conference systems has also been widely recognized and followed by the global industry of conference systems and has become the representative of the fourth generation of conference system products.

In 2014, TAIDEN continued to lead the development of conference system technology and introduced a new generation of paperless multimedia conference systems. The new generation paperless multimedia terminals are equipped with a 10″ 1280X800 high-resolution LCD touchscreen, and the new experience of capacitive touch screen which supports multi-touch, make paperless experience and operation more convenient and efficient and can achieve a variety of HD video service, and a built-in 5-megapixel camera, and a video intercom function, and E-ink nameplate with the latest electronic ink technology, at the same time, it can also realize interactive conference control and management (discussion, vote, 64 channel simultaneous interpretation x 2), conference services, etc.

System Features :

• Specially designed for high-level meetings, such as Summits, congresses, conventions, parliaments, and city councils
• The first Paperless Multimedia Congress System in the world
• Based on TAIDEN independent intellectual property mMediaCongressTM platform, never subject to viral infection, hacker-proof, safe and reliable
• Paperless Multimedia Congress Terminal – equipped with a 10″ 1280X800 high-resolution LCD touch panel, realizes paperless meetings, various HD video services, interactive conference control functions (speech, voting, 64 CHs x 2), and conference services, etc.
• Capacitive touch panel supporting multi-touch, convenient and efficient for operation
• Built-in 5-megapixel camera with flashlight, ingenious video conversation function
• Based on TAIDEN-originated GMC-STREAM Gigabit Multimedia Congress Stream technology, all audio and video signals are transmitted via a Cat.6 Gigabit network cable. GMC-STREAM fully guarantees the real-time performance and stability of the important data stream of the meeting, such as audio, voting information, and control information



• Based on ingenious CongressMatrixTM technology, integrated n×8 audio matrix processor to realize 8 channels group output function
• Microphone-array technology for HCS-8315 series Congress Unit and HCS-8348 series Congress Terminal
• Built-in E-ink nameplate (HCS-8338-NP and HCS-8348-NP series)
• An optional printed nameplate (HCS-8338 and HCS-8348 series)
• Built-in fingerprint identification module (HCS-8338A and HCS-8348A series)
• Increased reliability with “Closed-Loop – Daisy Chain” connection topology
• 48 kHz audio sampling, 64 audio channels, each with a 30 Hz to 20 kHz frequency response for perfect sound quality
• Low power consumption design
• Supports Dante protocol to connect to peripheral digital devices without losing any sound quality
• Equipped with an optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
• Dual connection backup via optical fiber and Cat.5 cable between Congress Main Unit and Congress Extension Main Unit
• System power controllable by the central control system
• Supports combining and separating conference rooms
• Booth combination & share system
• Connectable to multi-channel audio input or output devices for versatile expansion of the system
• Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum
• Integrated USB interfaces in the Congress Main Unit for system upgrading and saving system parameters. Convenient for system maintenance
• Downward compatible with TAIDEN HCS-4100/50 Fully Digital Congress System

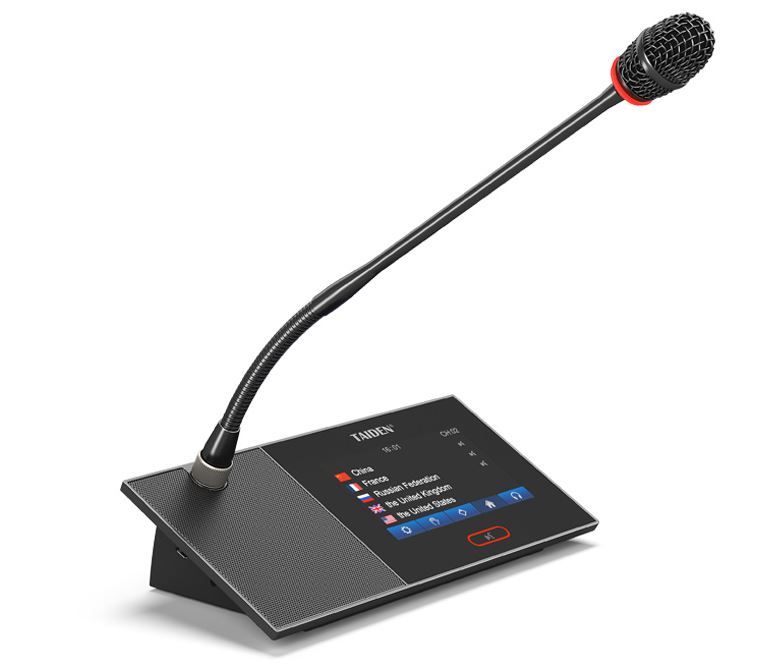

HCS-4890CVS/50 – Chairman Microphone with Voting and Channel Selection

By using TAIDEN-originated MCA-STREAM multi-channel audio digital transmitting technology, TAIDEN HCS-4100/50 Fully Digital Congress System (FDCS) revolutionizes conference systems technology by incorporating both the latest fully digital technologies and network techniques. Furthermore, with the perfect integration of the TAIDEN Conference Sign-in System and Intelligent Central Control System, HCS-4100/50 takes the lead in providing comprehensive and efficient digital conference system solutions.
“Closed Loop – Daisy Chain” connection technology, to connect all congress units and simplify installation, as well as dual connection backup has been opted for.
Supporting 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz.

System Features :

• Original MCA-STREAM digital audio processing and transmitting technology
• Up to 64 CHs audio signals are transmitted on a dedicated 6-pin cable
• Supporting a 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz
• Increased reliability with “Closed-Loop – Daisy Chain” connection topology, supports “PnP”
• Gain and EQ (5 bands) of each microphone are adjustable separately
• Equipped with an optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
• TCP/IP communication protocol in PC control
• Remote control, remote diagnosis, and remote update
• Built-in multi-channel intercom facility
• System power controllable by a central control system
• Supports combining/separating meeting rooms by split/merge function
• Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum

HCS-4891CVS/50 – Chairman Microphone with Voting and Channel Selection

By using TAIDEN-originated MCA-STREAM multi-channel audio digital transmitting technology, TAIDEN HCS-4100/50 Fully Digital Congress System (FDCS) revolutionizes conference systems technology by incorporating both the latest fully digital technologies and network techniques. Furthermore, with the perfect integration of the TAIDEN Conference Sign-in System and Intelligent Central Control System, HCS-4100/50 takes the lead in providing comprehensive and efficient digital conference system solutions.

“Closed Loop – Daisy Chain” connection technology, to connect all congress units and simplify installation, as well as dual connection backup has been opted for.
Supporting 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz.

• Original MCA-STREAM digital audio processing and transmitting technology
• Up to 64 CHs audio signals are transmitted on a dedicated 6-pin cable
  Supporting a 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz
• Increased reliability with “Closed-Loop – Daisy Chain” connection topology, supports “PnP”
• Gain and EQ (5 bands) of each microphone are adjustable separately
• Equipped with an optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
• TCP/IP communication protocol in PC control
• Remote control, remote diagnosis, and remote update
• Built-in multi-channel intercom facility
• System power controllable by the central control system
• Supports combining/separating meeting rooms by split/merge function
• Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum

HCS-5300 Series

HCS-5300 Series Digital Infrared Wireless Conference System has successfully equipped the United Nations Headquarters, the World Bank, the Business Roundtable Headquarters, the China National Convention Centre, the Ningxia International Convention Centre, Chongqing Municipal Government, and many other high-profile venues.

Compact Series Components of HCS-5335

• AC (Compact Digital IR Wireless Chairman Unit)
• AD (Compact Digital IR Wireless Delegate Unit)
• BD (Compact Digital IR Wireless Delegate Unit)
• M (Compact Digital Infrared Combo Unit)
• HPA-160D/02 2CHs Digital Audio Power Amplifier
• CHG/04 Intelligent Charging Station
• ZJ Stand
• KS Storage Case

Click Here for more information

Gonsin

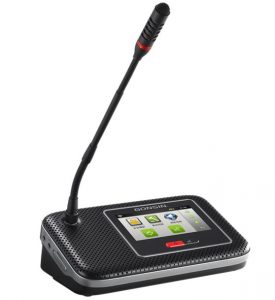

10000 Series Triple-band Wireless Congress System

Features

• Support 2.4 G/5.2G / 5.8G triple-band communication to ensure system stability;
• Microphone sensitivity can be adjusted from level 0 to 4;
• With an offline 8 in 1 out SD video tracking matrix, an HD camera is supported;
• Terminals can be uniformly shut down by the server after the conference;
• System capacity can be up to 450 terminals;
• CD-quality sound;
• Utilizes encryption algorithm to ensure data security;
• Multiple systems work simultaneously under the same environment without disturbing each other;
• Extendable to paperless conference function.

Sennheiser Conference Microphone

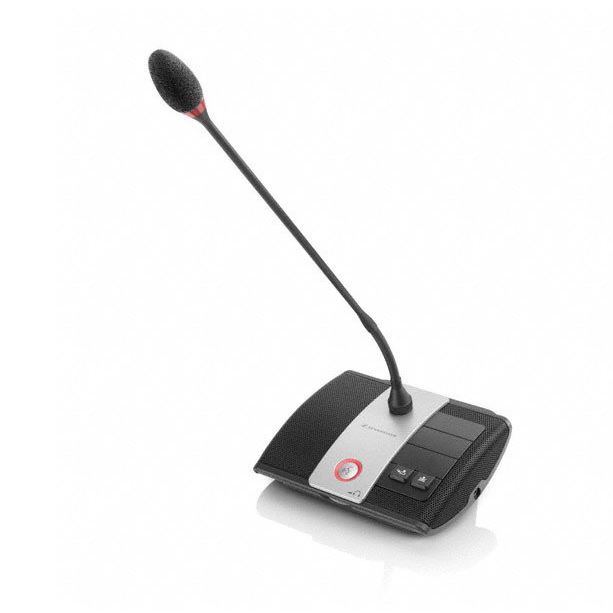

ADN-W C1 Wireless chairperson Microphone

The C1 wireless chairperson unit offers excellent speech intelligibility and ease of use. Powered by the exchangeable ADN-W BA battery pack, the unit offers more than 20 hours of operating time. The chairperson unit features a microphone key that functions either as an on/off switch or as a request-to-speak button, a Next key to grant speaking privileges, and a Priority key to deactivate all active conference units. The unit is equipped with a high-performance broadband twin loudspeaker system for decentralized sound reinforcement.

A screw-on microphone socket is provided to connect a super-cardioid ADN-W MIC gooseneck microphone (available in different lengths and frequency responses). The wireless chairperson unit with its battery pack can be charged in the ADN-W CASE UNITS or using the NT 12-50C DC power supply.

• Dimensions Width: 185 mm, Length: 180 mm, Height: 67 mm
• Frequency response 100 Hz to 14.5 kHz
• Weight approx. 940 g
• Charging time approx. 4 h
• Operating temperature 5° … +45° C
• RF output power 25 to 100 mW
• Operating time approx. 20 h with battery pack
• Power supply 7.4 VDC via ADN-W BA
• Antenna connector Inbuilt PCB antennas with pattern diversity
• Frequency range 2.4 / 5.1 – 5.9 GHz
• Headphone output level 50 mW / 16 Ω
• Max. coverage area 30 m to ADN-W AM
• Operating relative humidity 20 … 80%
• Audio quality 16 bit / 32 kHz

TeamConnect System

The TeamConnect conferencing system is the all-in-one audio conferencing solution for your meeting room. Whether via VoIP or landline – TeamConnect connects teams in meetings across all borders in the highest quality Sennheiser speech- and sound quality. Maximize your communication competence.

TeamConnect Ceiling

• Optimal microphone alignment: Automatic speaker identification thanks to dynamic beamforming focus and 29 Omni-directional, high-performance microphone capsules
• Seamless integration: Subtle design (metal housing), 3 flexible installation variants (installation/substructure / suspension) as well as invisible wiring in/on the ceiling
• Compatible: Easily connect to video and audio conferencing systems with analog audio output
• Easy, fast set-up: Thanks to the Beamforming Array technology, the ceiling microphone automatically adapts to any room layout without reconfiguration
• Expandable: A ceiling microphone covers an area of 60 m² and can be complemented by other microphones
• TeamConnect Central Unit & Combox

• Connectivity via landline and PC/VOIP for tele and web conferencing
• One solution with high flexibility for end-users
• Easy to use with an iOS app or any network device via a web server application
• Hassle-free operation with nearly any personal mobile device
• Sennheiser has well-known audio quality
• High efficiency of remote meetings because of high speech intelligibility and audio quality
• Complete audio solution for standard meeting rooms
• The minimum effort of administration and maintenance

MEB102

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed on surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility and is protected by rugged housing. Its -L variant features a bi-color LED ring for status indication.

Options: MEB 104, MAS 1, MEB 114-S

TeamConnect Wireless System

Features

• Online meeting solution for up to 12 or up to 24 people
• For flexible or dedicated meeting rooms
• Connect with any device (BYOD) – smartphone, tablet, or PC
• Wireless connectivity via Bluetooth or via USB or 3.5mm jack audio cable
• Supports multiple simultaneous audio channels
• Best speech intelligibility, for better and more effective online meetings

Speakerphone Series

• 10: Ideal for business professionals using PC/softphone for both personal and small group conferences.
• 20: Designed for mobile business professionals using PC/softphone, mobile phone, or tablet – for both personal and small group conferences.
• 220: Ideal for business professionals requiring flexible, scalable conferencing solutions for up to 12 participants. It instantly connects to a PC/softphone, mobile phone, or tablet.

ADN/ADN-W System

• Developed with a focus on maximum operational safety. The automatic frequency management of the wireless version ADN-W sets new standards, guaranteeing the greatest possible bandwidth for the available channels as well as a robust, fail-safe transmission.
• C1 wireless chairperson unit offers excellent speech intelligibility and ease of use.
•  The AM antenna module is designed to ensure reliable wireless bidirectional communication with the ADN-W D1 and C1 wireless conference units in both the 2.4 GHz and the 5 GHz frequency bands.
• D1 wireless delegate unit offers excellent speech intelligibility and ease of use.
• C1 offers high speech intelligibility in a modern design. The gooseneck microphone is equipped with a super-cardioid capsule. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room.
• ADN CU1 powers up to 40 (depending on cable length) and controls up to 400 (with ADN PS) connected delegate and chairperson units.
• ADN D1 offers high speech intelligibility in a modern design. The gooseneck microphone is equipped with a super-cardioid capsule. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room.
• ADN PS Power Supply allows the extension of the conference and discussion system to up to 400 conference units.
• ADN Installation Kit for flush mounting ADN D1 (Delegate Unit) or ADN C1 (Chairman Unit) in tabletops.

SpeechLine Wired Microphone System

Great for both meetings and presentations, the SpeechLine Wired microphone series has been developed especially to deal with the spoken word and guarantee top-class speech intelligibility.

SpeechLine Wired installation microphones provide versatile solutions for a variety of audio situations and can be integrated seamlessly into any environment where the spoken word counts.

Components

• Boundary Microphone
• Gooseneck Microphone
• Table Stands
• Microphone Activation
• Ceiling Microphone
• Accessories

SpeechLine Interpreter Desk

The SL Interpreter is a compact and stand-alone audio control center for the simultaneous interpretation of one or more languages. It allows one or two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to different outputs. Ideal for presentation-style conferences, where a floor and a single relay language are used. Recommended to be used with Sennheiser Tourguide 2020 or 1039.

Click Here for more information

Conference Microphones Bosch

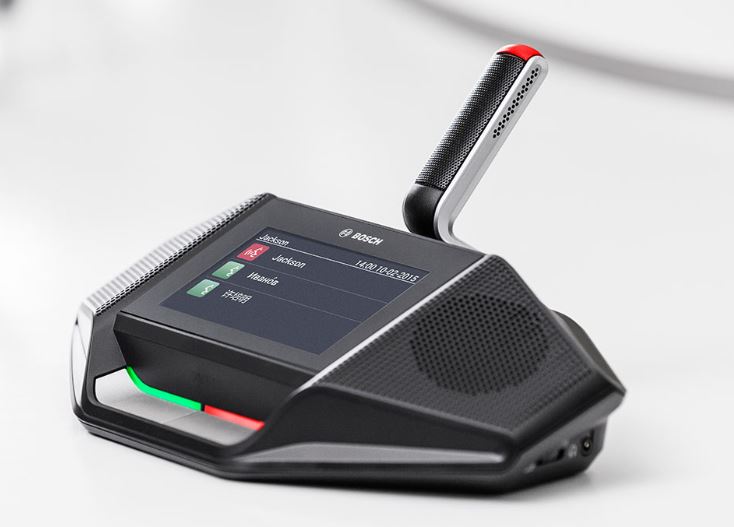

DICENTIS Wireless Conference System

The DICENTIS Wireless Conference System uses standard Wi-Fi and smart wireless management to ensure interference-free and highly flexible wireless conferencing.

Features

• Based on standard Wi-Fi for easy integration and use of standard tools, and co-existence with other Wi-Fi networks.
• Zero audio interference: Packet Loss Concealment, seamless frequency switching, Smart Wireless Management.
• Wireless WAP redundancy for meeting continuity.
• Government-grade security, using WPA2 encryption.
• OMNEO compatibility for future expansion.
• Unique and convenient, software configurable, interchangeable devices: delegate/chairperson and dual discussion with mute function for each participant.
• Superb sound and speech quality with a face-to-face meeting experience due to intelligent built-in Digital Acoustic Feedback Suppression.
• Easy identification via contactless smart card (NFC).
• Easy battery management: removable lithium-ion long-life battery packs (up to 24 hours) with short charging time.

CCS 900 Ultro Discussion System

The CCS 900 Ultron Discussion Unit delivers excellent ergonomics, improved acoustical characteristics, and a design that complements any interior, from new, ultra-modern buildings to traditional, centuries-old structures. It combines excellent acoustics, superior component design, and intuitive use with eye-catching aesthetic quality.

Features

• Advanced acoustic design with an attractive look and feel
• Unique, patent-pending “Possible-To-Speak” indicator
• Excellent speech intelligibility with genuine Bosch DAFS technology
• Built-in recording buffer and built-in digital (MP3) recording and playback
• Conserves SD card memory by only recording when the microphone is receiving audio
• Language-independent LCD user interface
• Full discussion control with four operating modes
• Highly flexible and customizable system supporting up to 150 units
• Easy plug-and-play installation: one-cable, daisy-chain connectivity
• Easy to use, no operator required

CCS 1000 D Digital Discussion System

The CCS 1000 D Digital Discussion System is compact, easy to set up, and easy to use. Yet it provides advanced features and exceptional versatility. Designed especially for quick, plug-and-play installation, it is ideal for small-to-medium-scale fixed meeting areas such as town halls, local business centers, and courtrooms as well as for rental companies who can use it for their day-to-day mobile set-ups.

Features (Discussion device)

• Enables participants to speak and listen to the proceedings
• Can be used either as a participant or chairperson device
• Enables chairperson to mute microphones of participants
• “Possible-To-Speak” indicator
• “Request-To-Speak” indicator
• Cable lock facility
• GSM immune
• Built-in loudspeaker
• Microphone: with microphone-LED indicators, flexible stem (either 38 or 48 cm length)
• Headphone socket with built-in volume control

Features (Control Unit)

• Supplies power to all system elements – up to 80 Discussion Devices per Control Unit
• Intuitive control of microphone operating mode and loudspeaker volume via front panel capacitive buttons
• Advanced configuration and control via built-in web browser and tablet
• Native support for automatic HD camera control
• Internal recording for up to eight hours
• External recording via USB up to 128 GB (>4,000 hours)
• Built-in Digital Acoustic Feedback Suppression (DAFS)
• Optimized for courtroom usage with four individual microphone outputs
• Built-in loudspeaker and headphone socket for monitoring the proceedings
• Energy-saving mode for cost minimization and prolonged lifetime

DCN Next Generation System

The DCN Next Generation is the distinctive showpiece of digital conference management offering advanced features to help meetings to be a real success in terms of efficiency and productivity.

Features

• Optimized structure and efficiency in meetings
• Proven in-the-field reliability
• State-of-the-art, award-winning design
• Very high speech intelligibility
• 31 interpretation channels, plus floor
• Full range of voting facilities
• Modular software solutions for complete conferencing management
• Flexible interfacing with 3rd party devices
• Easy system expansion with wired and wireless units
• Automatic Camera Control

Click Here for more information

Yamaha  CM:

Yamaha-conference-microphone

• Superior Audio Quality: Flat frequency response across the supported bandwidth for realistic sound capture.
• Wide Variety of Applications: Omnidirectional, Directional (Cardioid), and Gooseneck
  (Cardioid) versions available supporting a wide variety of
  environments and applications.
• Great Price, Stylish Design: Fortune 500 look at an SMB price provides a rich user
  experience.
• Revolabs RF Armor™: Protects against RF noise on the microphone and wiring.
  Audio Dependability
• Balanced output for increased immunity to noise over long
  cable runs.
• Easy Installation
• Microphones include 15-foot, 5-wire unterminated shielded
  wire.
• Matching Color Options: Available colors are Black, White, and Brushed Nickel
• Local Control: push-to-talk, push-to-mute, mute toggle.
• External Control: button press provides falling edge
  (mute toggle), or low level (push-to-mute, push-to-talk);
  bi-color LED light controlled by ground and +3.3 to +5V
