7 Band Graphic Equalizer, Dual Channel Car Equalizer with Output & 3.5mm Input, 12dB Digital Car Equalizer for Car Stereo Sound

Feature:
1. Control Range: 7 band equalization circuit control range ± 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
2. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.

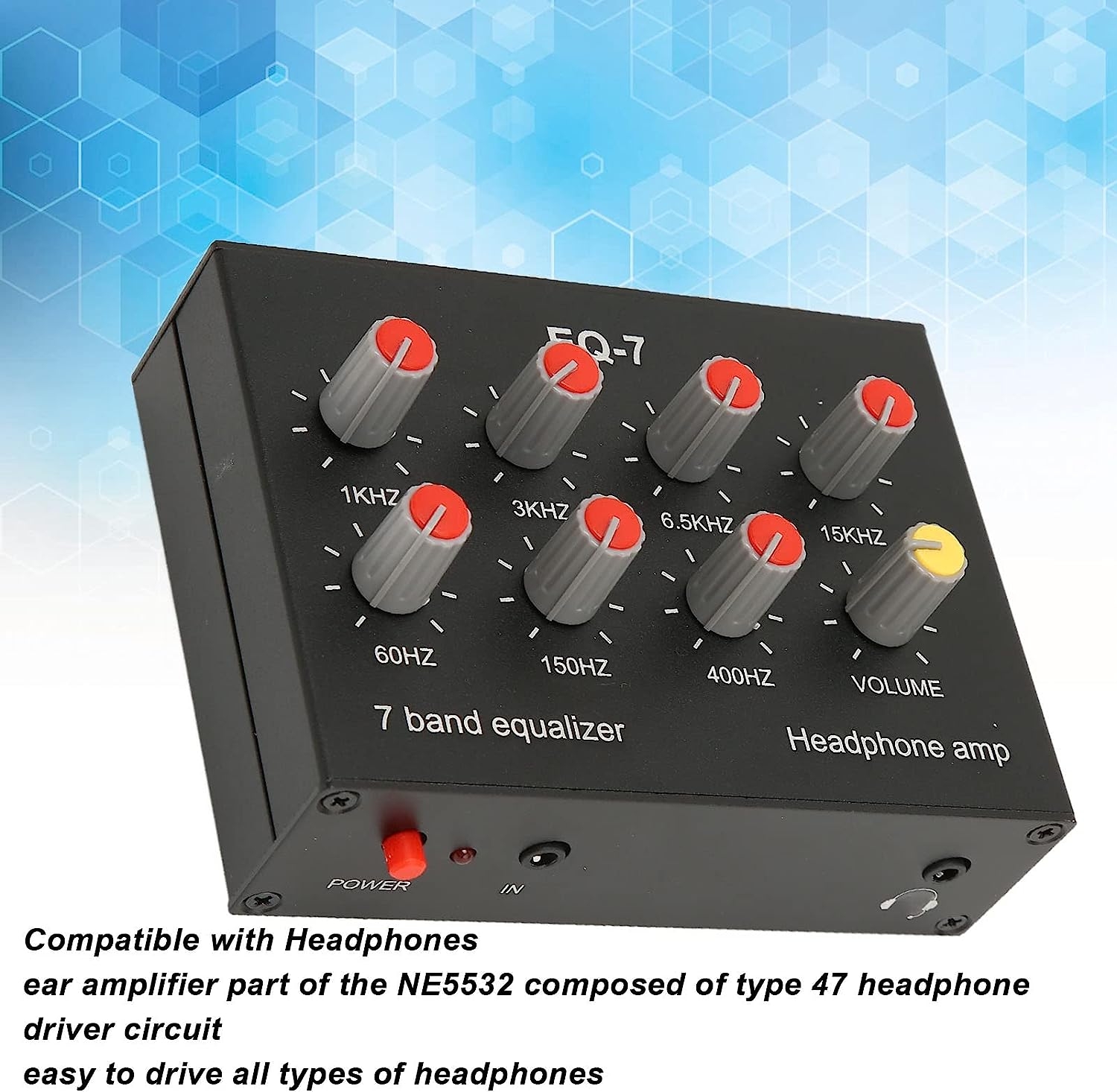

3. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, high and low.

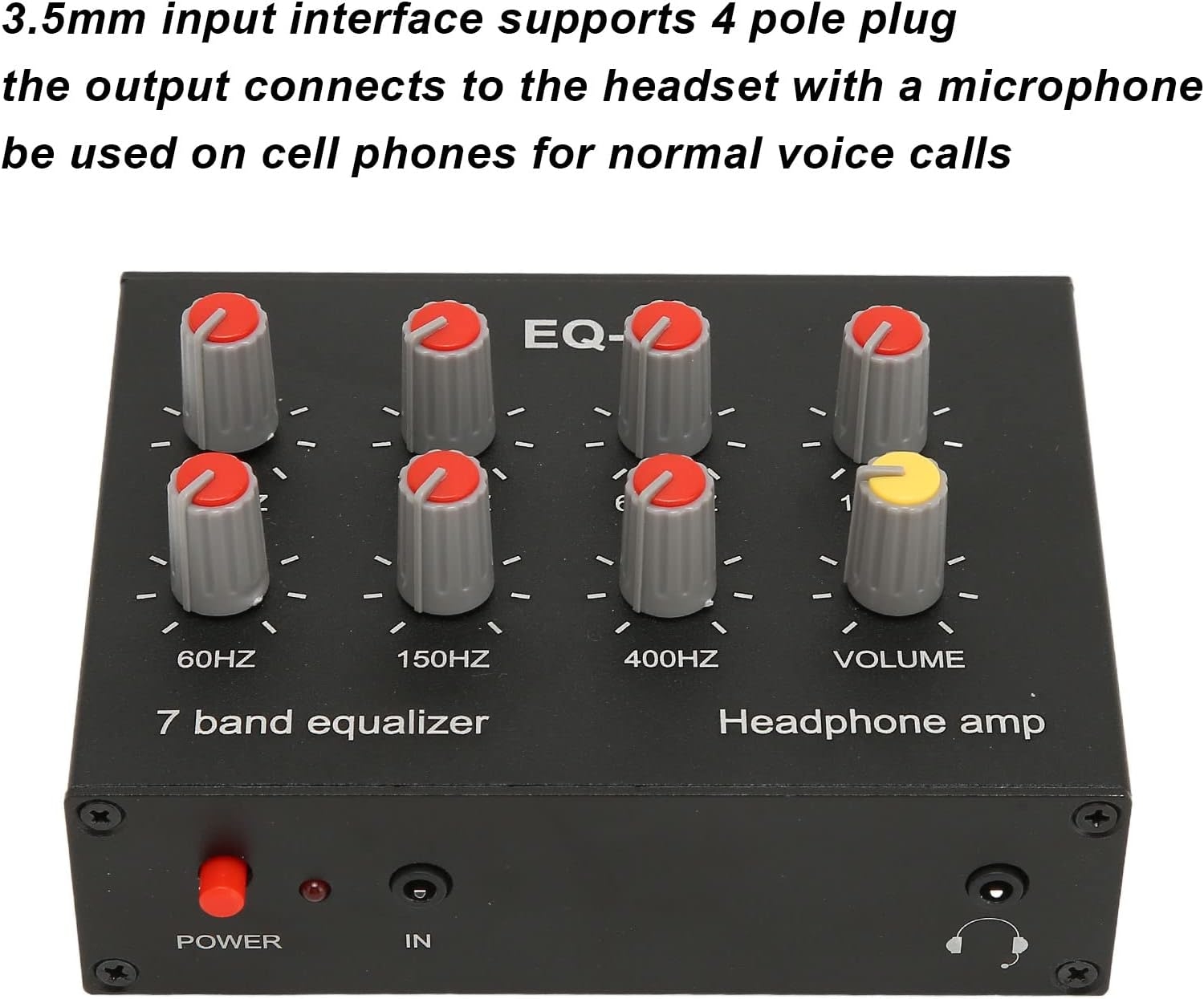

4. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group interface is available.
5. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V‑12V power supply, dual channel sound.

Specification:
Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Power Supply: DC5V-12V
Interface Specification: 5.5×2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: ±12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

How to Use:
Removetheproductanduseit

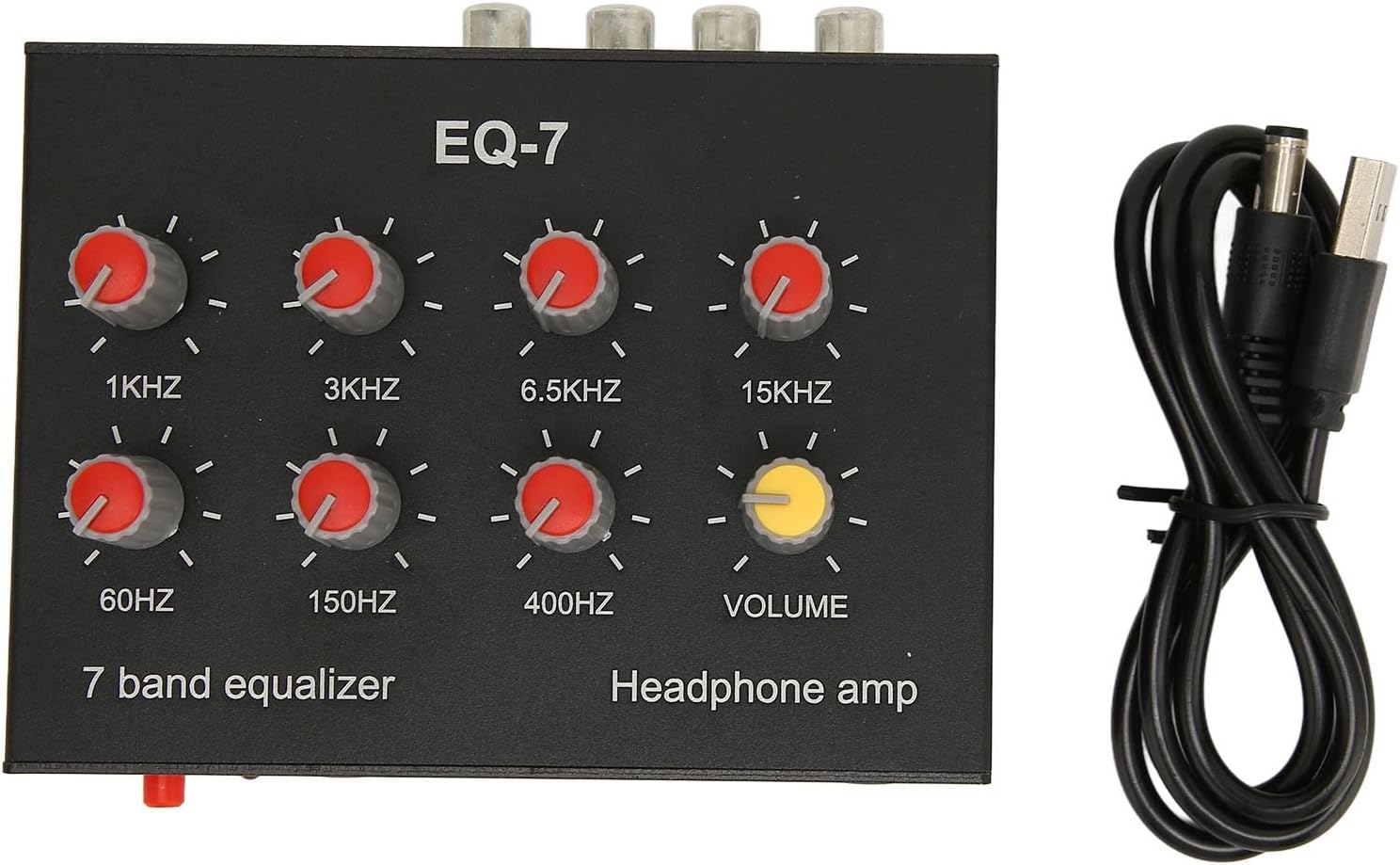

Package List:
1 x 7 Band Sound Equalizer
1 Supply Cable
