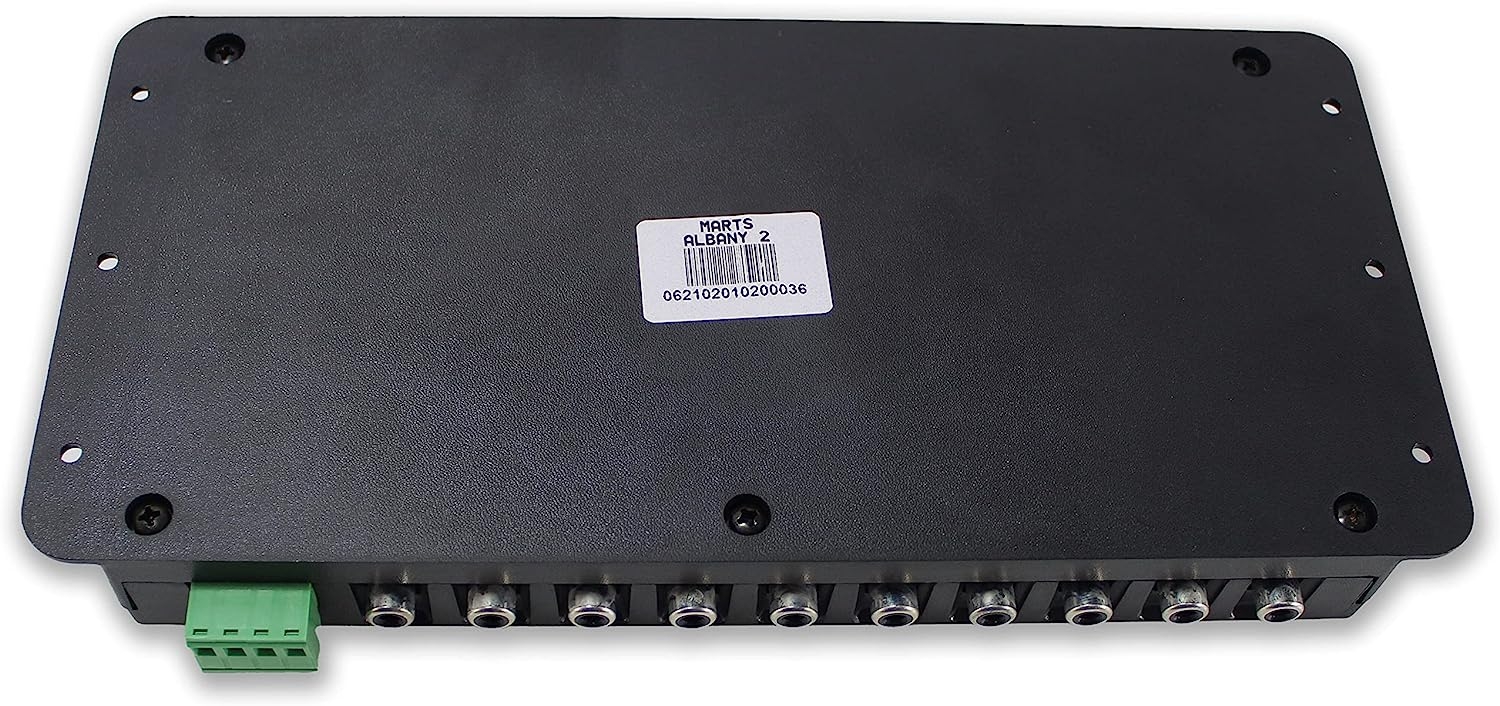

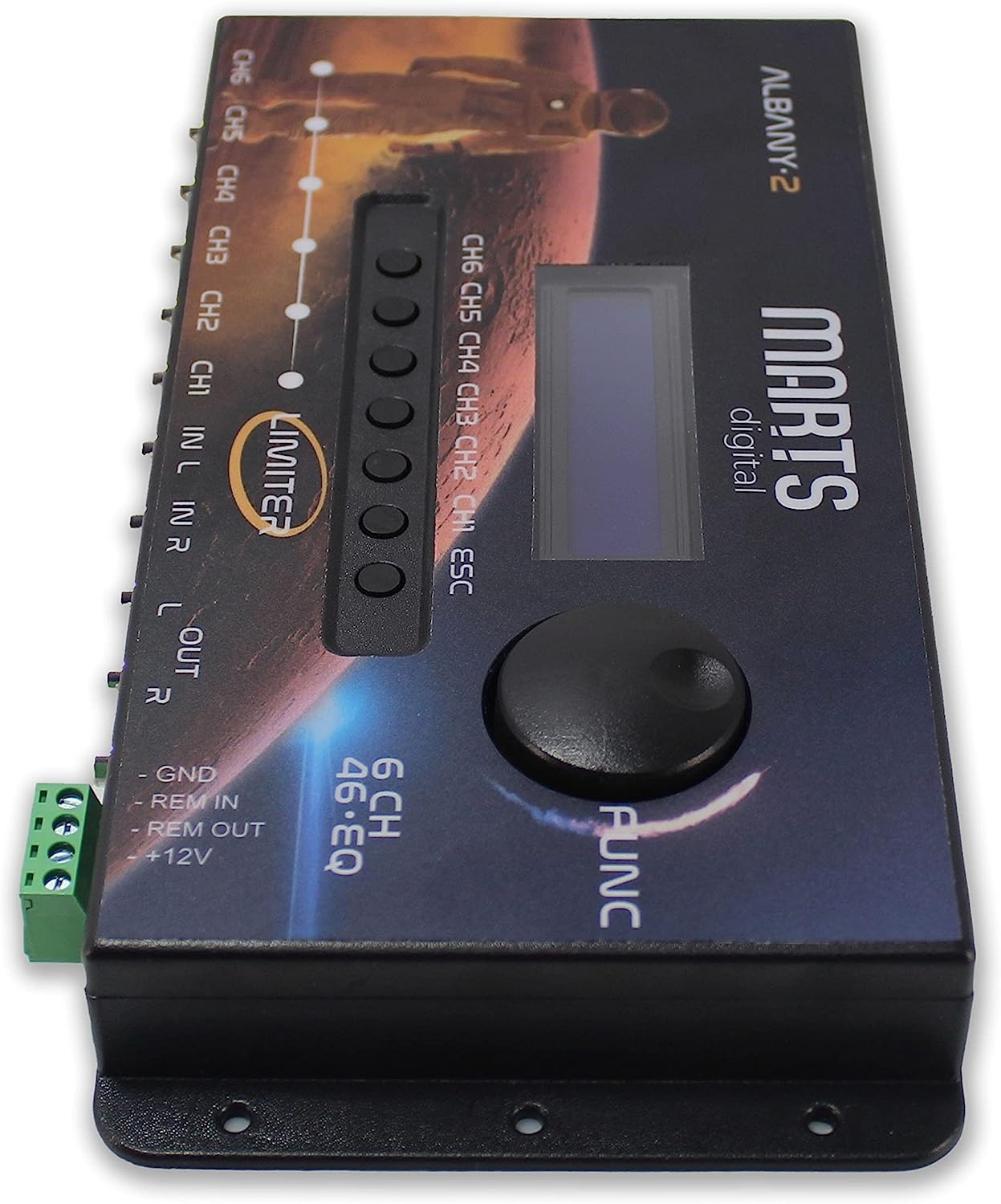

Marts Digital DSP Signal Processor 6 Ch Equalizer Crossover 28 Band Car Audio

Marts Digital Signal Processor 6 Channel Equalizer 28 Band Car Audio Albany-2

Marts Digital offers high-quality products for high-quality sound from Brazil to the world! These amplifiers, voltmeters, and more will help you secure your seat on the journey into the universe of high performance.

This listing contains:
(1) Marts Digital Signal Processor 6 Channel Equalizer 28 Band Car Audio Albany-2

Features for Albany-2:
-2 RCA Inputs and 2 Linked RCA Outputs
-6 Independent Outputs
-Routing Channels
-Input Equalizer with 28 bands between ¼ octave
-Parametric equalizer with 3 independent bands per channel
-Crossover with filters: Butterworth, Linkwitz-Riley and Bessel, with attenuations from 6dB/8a.
-Independent delay per channel
-Automatic or manual Limiter function with Threshold, Attack, and Decay
-Polarity Inversion
-Input gain adjustable
-Independent Mute per channel
-Pink-Noise Generator
-User-controlled password
-Preconfigured out of the box
-Independent Output gain per channel
-Remote output with 300mA max
-Operating Voltage 9V ~ 16V DC

Technical Specifications for Albany-2:

Inputs
Kind: Unbalanced
Connection: RCA
Input Max Level: 4Vpp (1,4Vrms)
Input impedance: 47kΩ

Outputs (1,2,3,4,5,6)
Kind: Unbalanced
Connection: RCA
Input Max Level: 10Vpp (3,5 Vrms)
Input impedance: 470Ω

Technical Information
Resolution: 24 Bits
Sample Frequency: 48 Khz
Latency Frequency: 1.08ms
Range Frequency: 15Hz ~ 22KHz (-1db)
THD+N max: 0,01%
Signal to Noise Ratio: 100dB

Power Supply
Voltage: 10 ~15V DC
Consumption: 300mA (5w)
Fuse: 2A

Package Dimensions (LxWxH): (10”x5.5”x1.5”)

Item Dimensions (LxWxH): (10″x5″x1.25″)
