M12 Lens Set, Arducam Lens for Raspberry Pi Camera (1/4″) and Arduino, Telephoto, Macro, Wide Angle, Fisheye Lens Kit (10°-

(8 customer reviews)

$89.00

Brand Arducam
Lens Type Telephoto, Macro
Camera Lens Description 10
Maximum Focal Length 20 Millimeters
Minimum Focal Length 20 Millimeters
  • Why we need it: In case you’re disappointed with the fixed official cameras and want precise control of what gets into the frame of your image – like how wide and how close it is – we selected, tested and labeled a bunch of lenses and shrinks it all into a complete toolbox on your palm

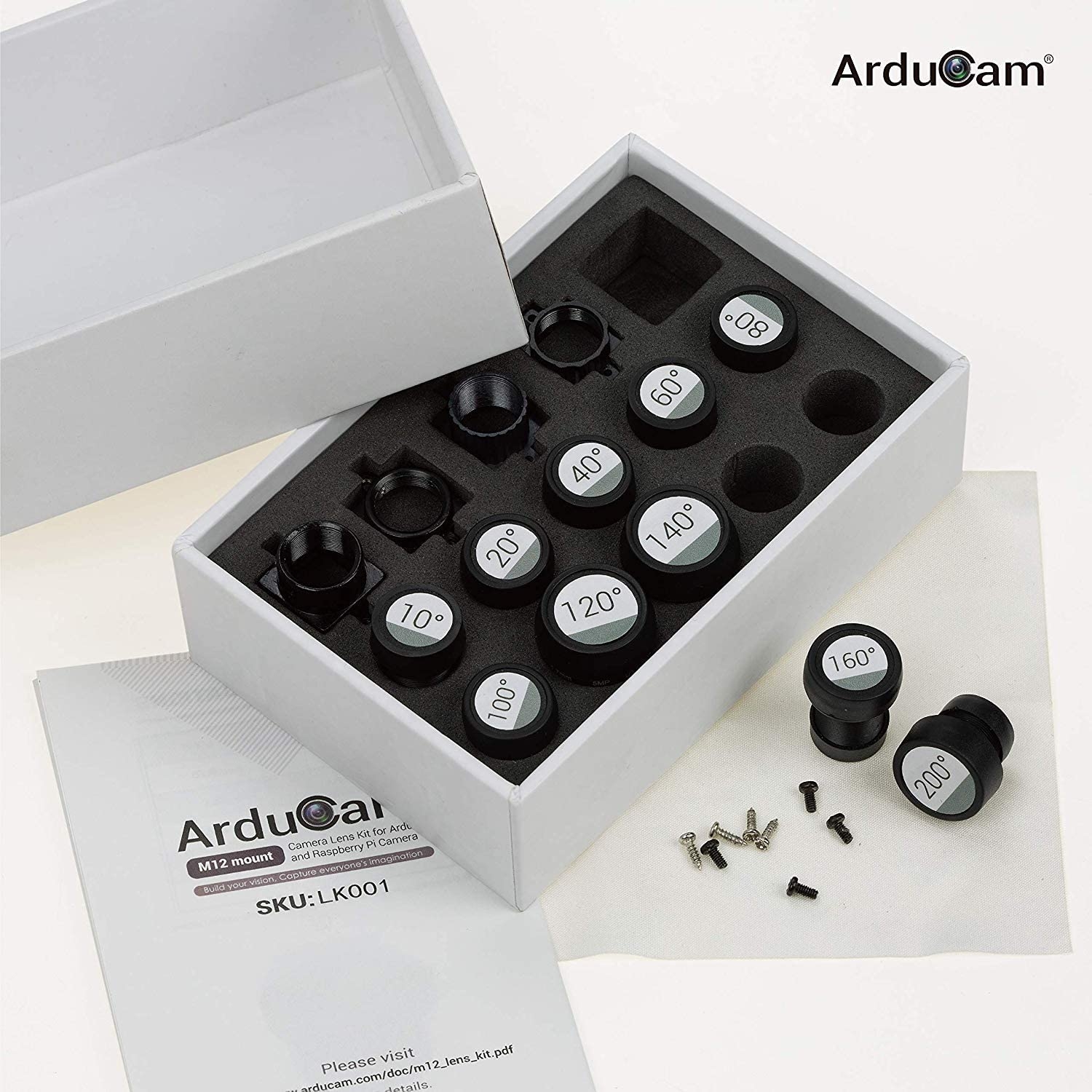

  • What’s in it: This kit includes 10 M12 Lenses to cover almost any angles of view you’ll ever need, 10°/20°/40°/60°/80°/100°/120°/140°/160°/200° respectively on a 1/4” Pi Camera like OV5647 and IMX219. M12 lens holders, screws, specifications and even cleaning cloth are also in the box
  • What else is needed: It makes a perfect combo with “Arducam B0031”, a more flexible and slightly larger camera module for Raspberry Pi that uses M12 lenses to frame up the best image. You can’t use this kit directly with the official Raspberry Pi Camera Module V2 because an M12 holder or 18/20mm hole spacing of the camera board is required
  • NOTE: The 4 lens holders included come with 18mm/20mm hole spacing and 7mm/13mm heights. Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all. Arducam CS Mount Cameras also work with this kit with holders replaced
SKU: B07L92S9MT Categories: , , , , ,

Description

Product Description

In order to meet the increasing market demands for more lens options to address different use cases, Arducam selected and tested a wide range of M12 mount optimal lenses from long focus to fisheye for shooting on your Raspberry Pi or Arduino cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

overview

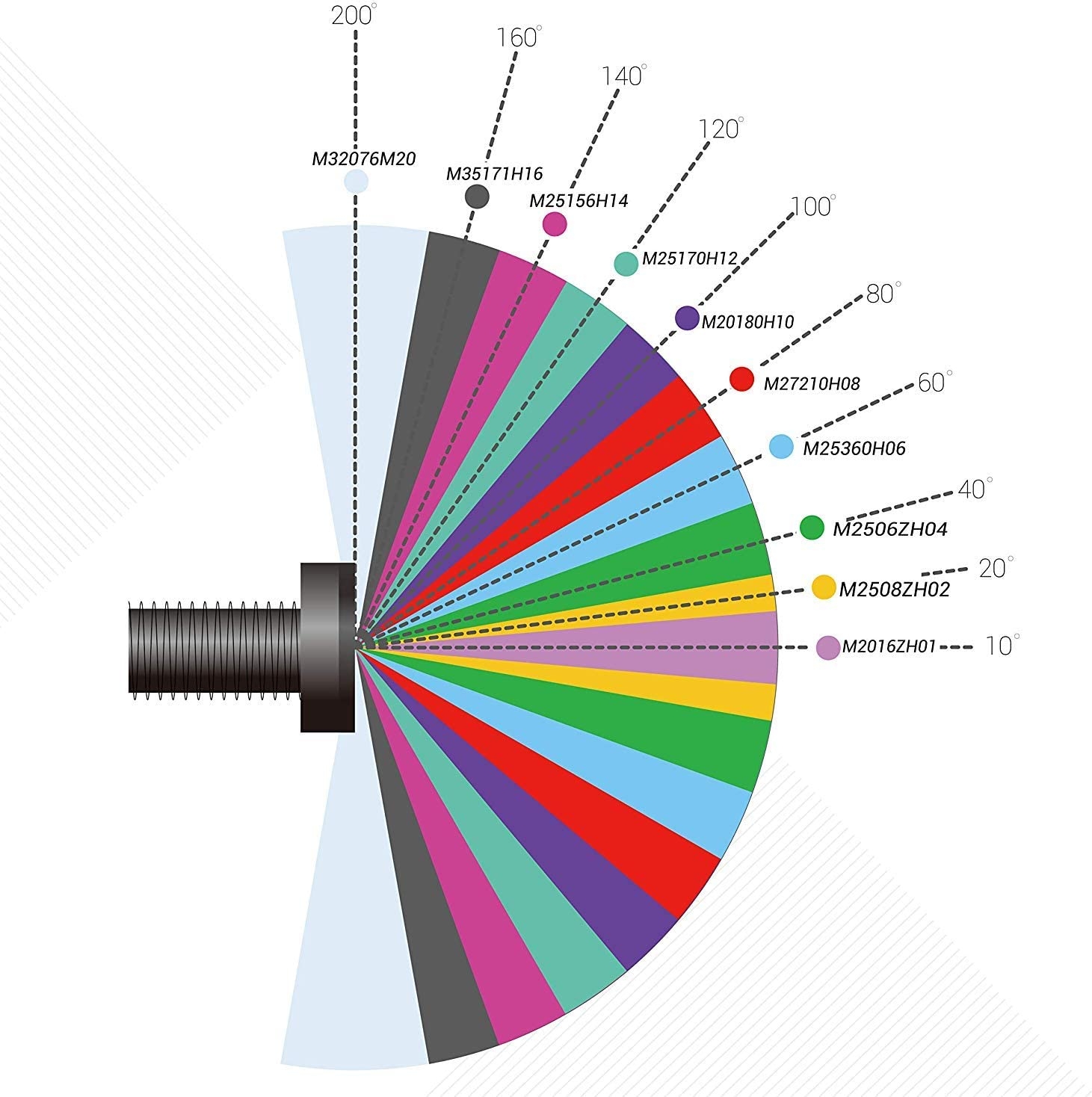

View Angles
overview

LK001 specifications

Note:

1.Choose a suitable lens holder as follows:

a) Determine the lens holder height listed in the lens specifications for your selected lens. If you use a different lens holder height, you might not be able to focus the lens at all.

b) Ensure that the lens holder matches the screw hole pitch of your camera board. Lens holders are available with18mm and 20mm pitches.

2.If required, the thread gap between the lens and lens holder can be filled with damping grease or similar glue in order to fix the lens in position after focusing.

3.Specks of dust or tiny bubblers might be visible on the image while focusing the lens. These will disappear when the lens is in focus, and will not affect image quality.

4.When focusing or replacing a lens, do not screw the lens into the lens holder too deep, otherwise the lens might touch and damage the image sensor. Often, focusing a lens is performed while monitoring the image quality on a video screen. A blurry image will result if the lens is screwed in either too deep or too shallow from where it is in focus.

5.You have to manually remove the IR filter at the bottom of the lenses when using them with a NoIR camera

Additional information

Weight 6.4 kg
Dimensions 5 × 3.4 × 1.5 cm
Package Dimensions

5 x 3.4 x 1.5 inches
Item Weight

‎6.4 ounces
ASIN

B07L92S9MT
Item model number

3216551480
Date First Available

December 11, 2018
Manufacturer

Arducam

8 reviews for M12 Lens Set, Arducam Lens for Raspberry Pi Camera (1/4″) and Arduino, Telephoto, Macro, Wide Angle, Fisheye Lens Kit (10°-

  1. hal0bender –

    Great assortment of lenses…Its a great assortment of lenses for the Arducam. I did have some issues with one of the lenses, contacted the company and they have been quick to replace it. Other than that, for the Raspberry cam enthusiast this is a great collection!

  2. Paul Hoover –

    Excellent lenses for a great price from an awesome sellerThese lenses are perfect for the Raspberry Pi project that I’m working on. It was easy to find them and the fulfillment turn around from the seller was great. Support your “Ma & Pa sellers” and order from Arducam

  3. Adam Goodwin –

    Great for benchmarking and sampling specifications!Most of the specs were available (missing a few) and it was a perfect sample for what I needed. Great set of different angled lenses to determine FOV, and get a benchmark for other necessary specs. Especially useful if you have potentially changing applications.

  4. Joseph A. Vrba –

    The best way to identify the best lens for Arducam applicationsSure, we could just use the lens that came with the camera. We could have estimated which lens might be best for a given application. But this high quality, inexpensive and complete collection of lenses for our Arducam cameras allows us to easily determine the appropriate lens for our various applications. The kit is ideal for experimentation on the “optical side” so as to frame up the best image for capture, processing and display.

  5. satisfide! –

    A very interesting lens setLike it all. A very interesting lens set, which covers most needs. A good value for money.

  6. Six cats in a trenchcoat. –

    Great value, make sure it fits.Make sure your arducam module has changeable mounts so you don’t have to order a different one like I did.

  7. Dave Mueller –

    Nice little bundleThe flexibility these lenses add to the camera make them a worthy investment.

  8. Thomas Wilson –

    Great valueI like the quality of these lenses.
