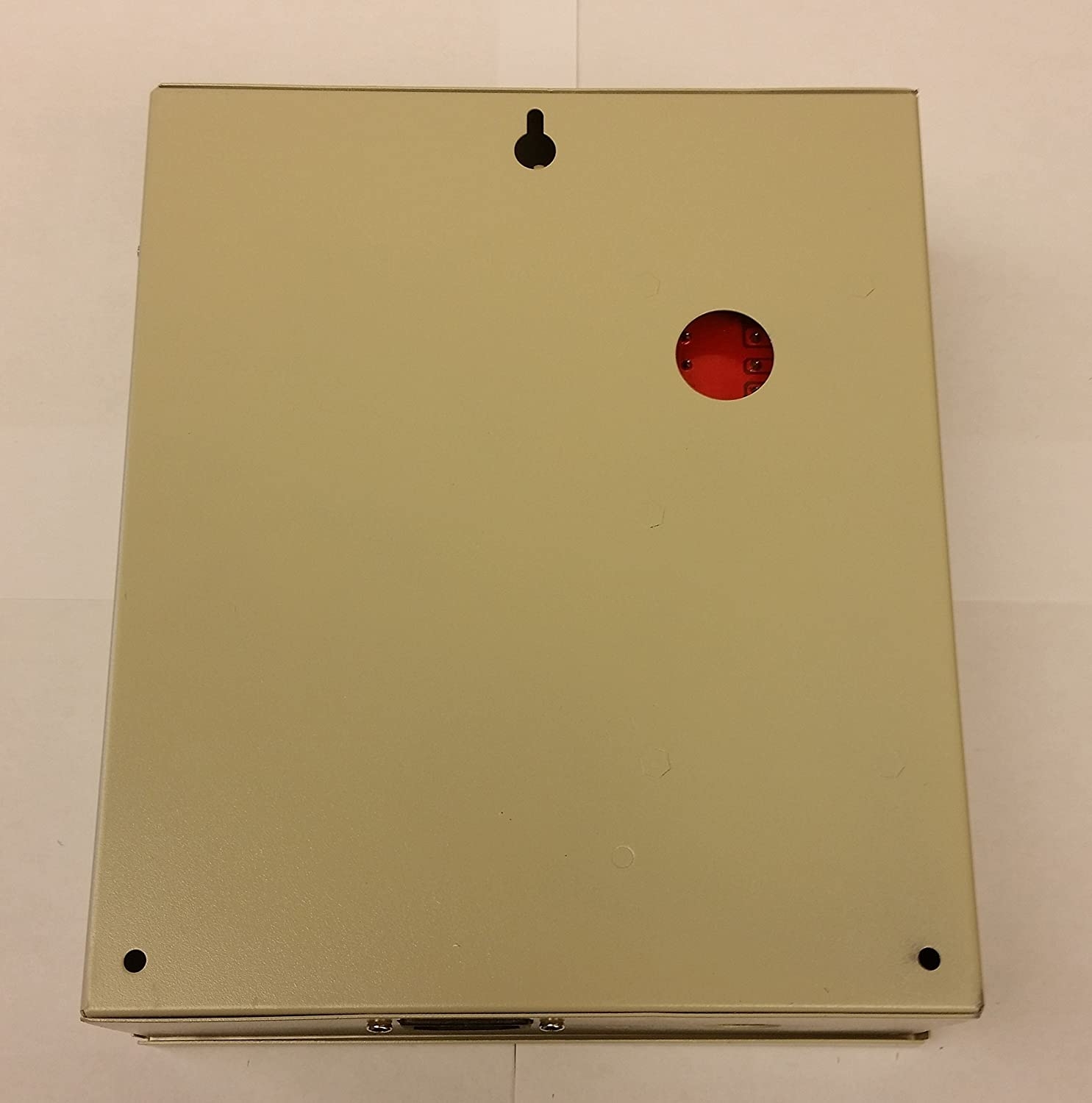

CCTV Power Supply Box Distribution Unit 18 Ports Output PTC Fuse 12V DC 20Amp

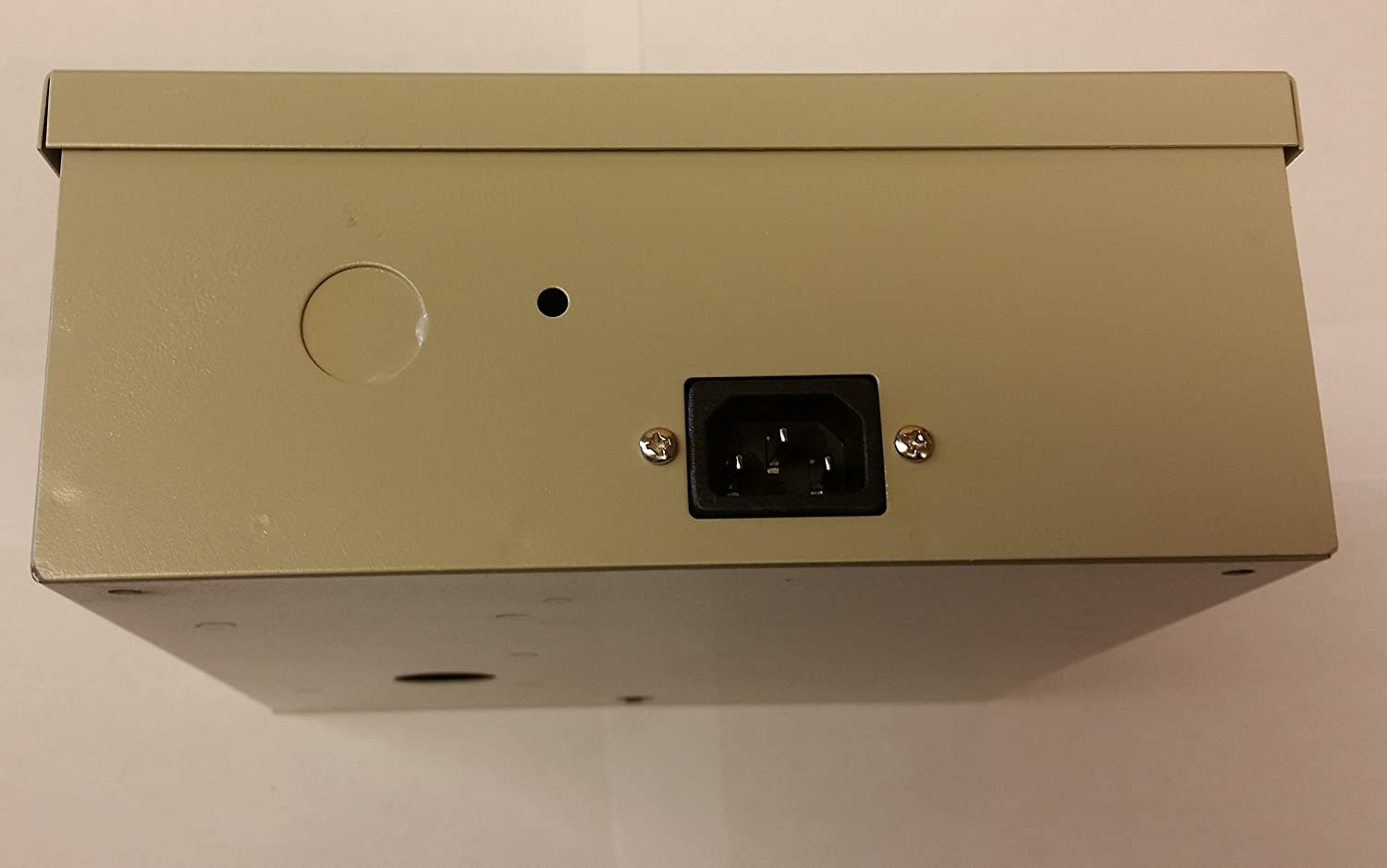

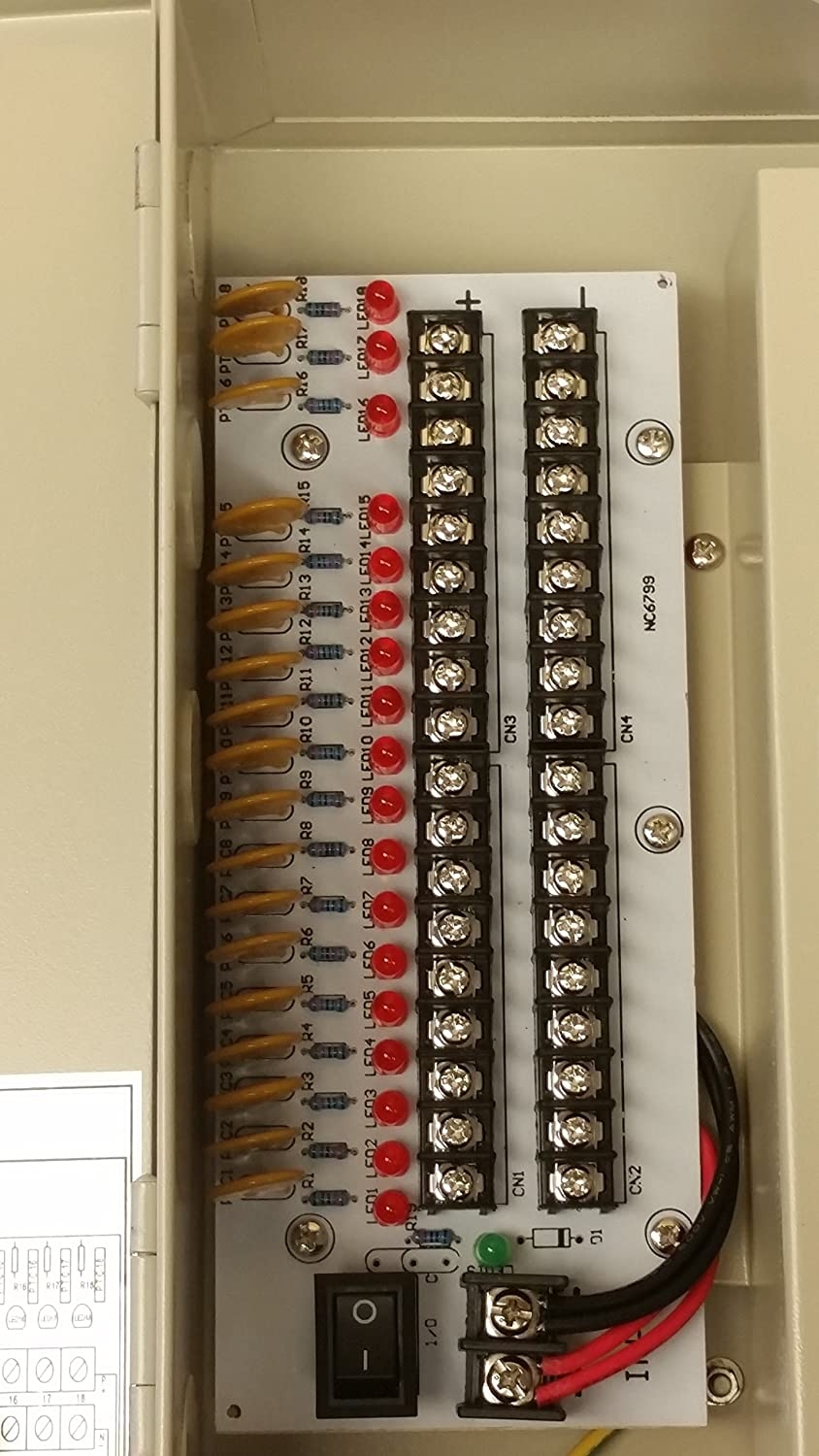

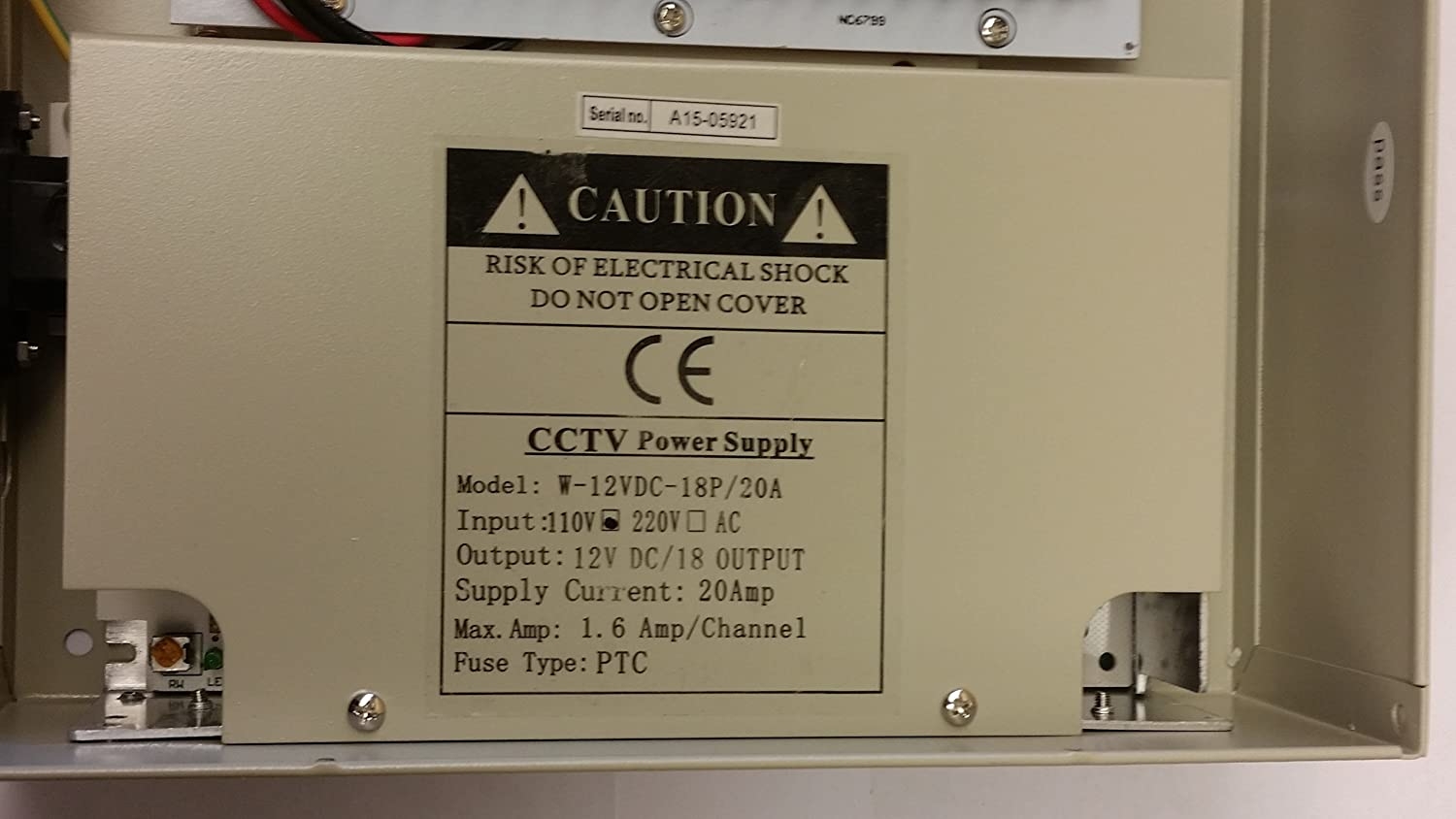

20 Amp @ 12VDC supply current 110-120VAC 60Hz input. 12VDC Output. 18 PTC Fused protected outputs. AC Power Switch, Power LED indicator. Dimensions: 11 H x 8.0 W x 3.5 D PTZ fuse rated 60V/2.2A max Power cable Included. Features: – Each output has individual PTC fuse (Positive Temperature Coefficient) and LED indicator. Individual outputs retain working condition when one is compromised. – Circuit short Protection: When a short condition occurs, each individual PTC fuse will open the circuit. When the condition is removed, the PTC fuse will automatically return to closed. – High Voltage Protection: When a high voltage situation occurs, the surge protection will be hit through to protect the connected devices (CCTV camera etc) – Over-current Protection: When over current occurs the power supply will automatically switch to self-protected status. It will switch back to normal upon removal of the condition. – Application: CCTV Cameras, PTZ, IR illuminators, Video Process Equipment, Access Control Reader, Lock, Panel, etc.
