Description
The DUALZDirect provides two independent high quality totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended 1/4″ inputs is converted by a transformer into an isolated, balanced, low impedance signal output. The DUALZDirect’s audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments. The input ATTENUATOR switches allow for a wide range of signal levels and the input THRU jacks allows for tapping off of your signal chain. The GROUND LIFT switches let you totally separate the input and output signal grounds, when appropriate, to isolate two systems, thereby reducing hum and ground-loop noise. What further sets the DUALZDirect apart from other “DI” boxes are its extended features and versatility. We have added switchable low pass FILTERs that cut out all very high frequency interference. These Bessel filters on the outputs are placed out of the audio range and are primarily intended to reduce radio frequency interference before it gets into the main system. The filters are very effective in reducing any digital computer noise artifacts when using the DUALZDirect as an interface between a computer-based audio workstation and your monitors. The PHASE INVERT switches, while not normally included with your “run of the mill” DI box, have been added to allow you to switch signal polarity right at the source. This feature is especially handy when you are combining a direct tap with a microphone feed in the mix. The compact black-anodized all aluminum case and it’s passive design allow the DUALZDirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full feature set, rugged construction, and high-end specifications make the DUALZDirect the obvious choice.
Overview

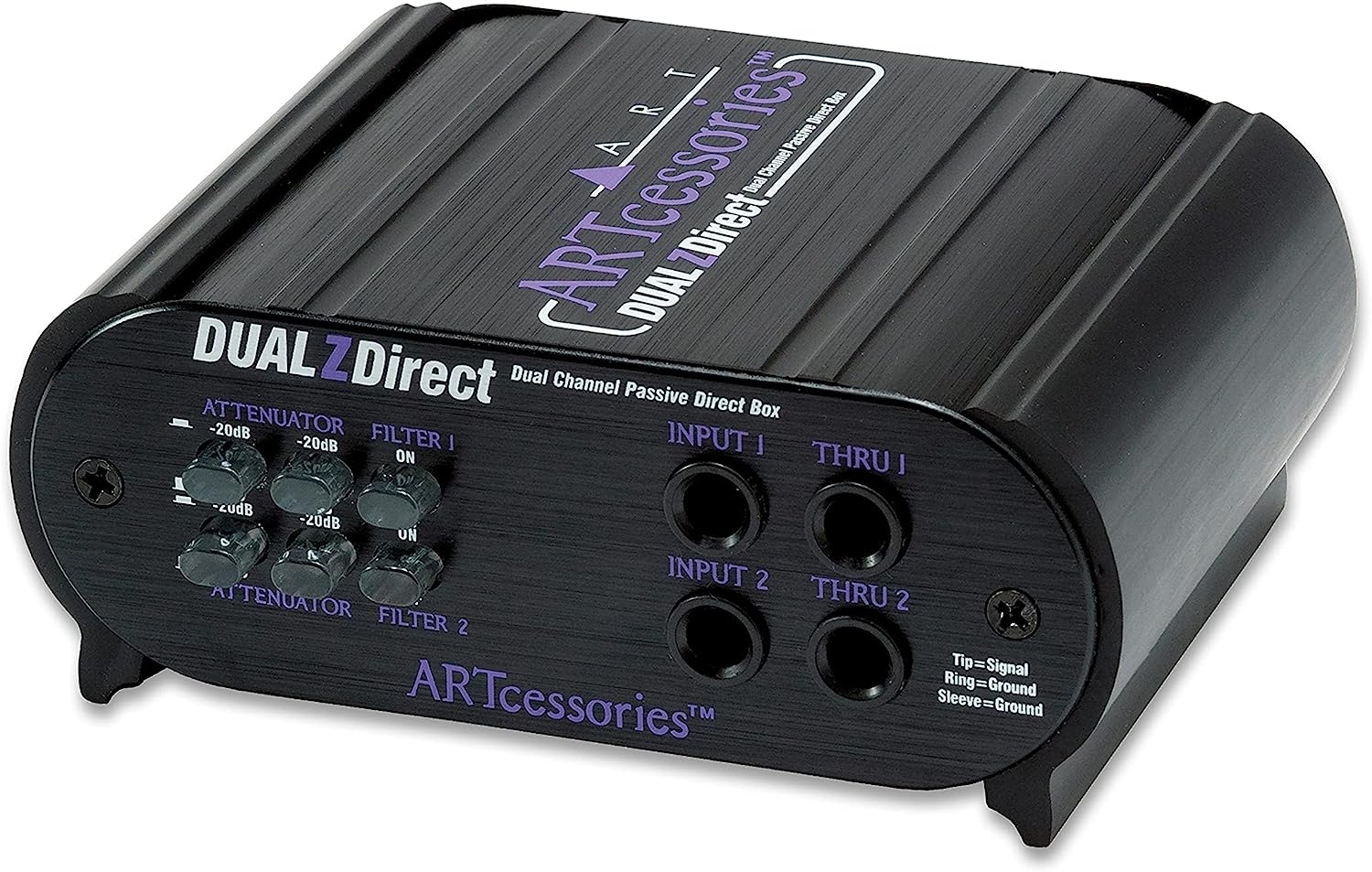

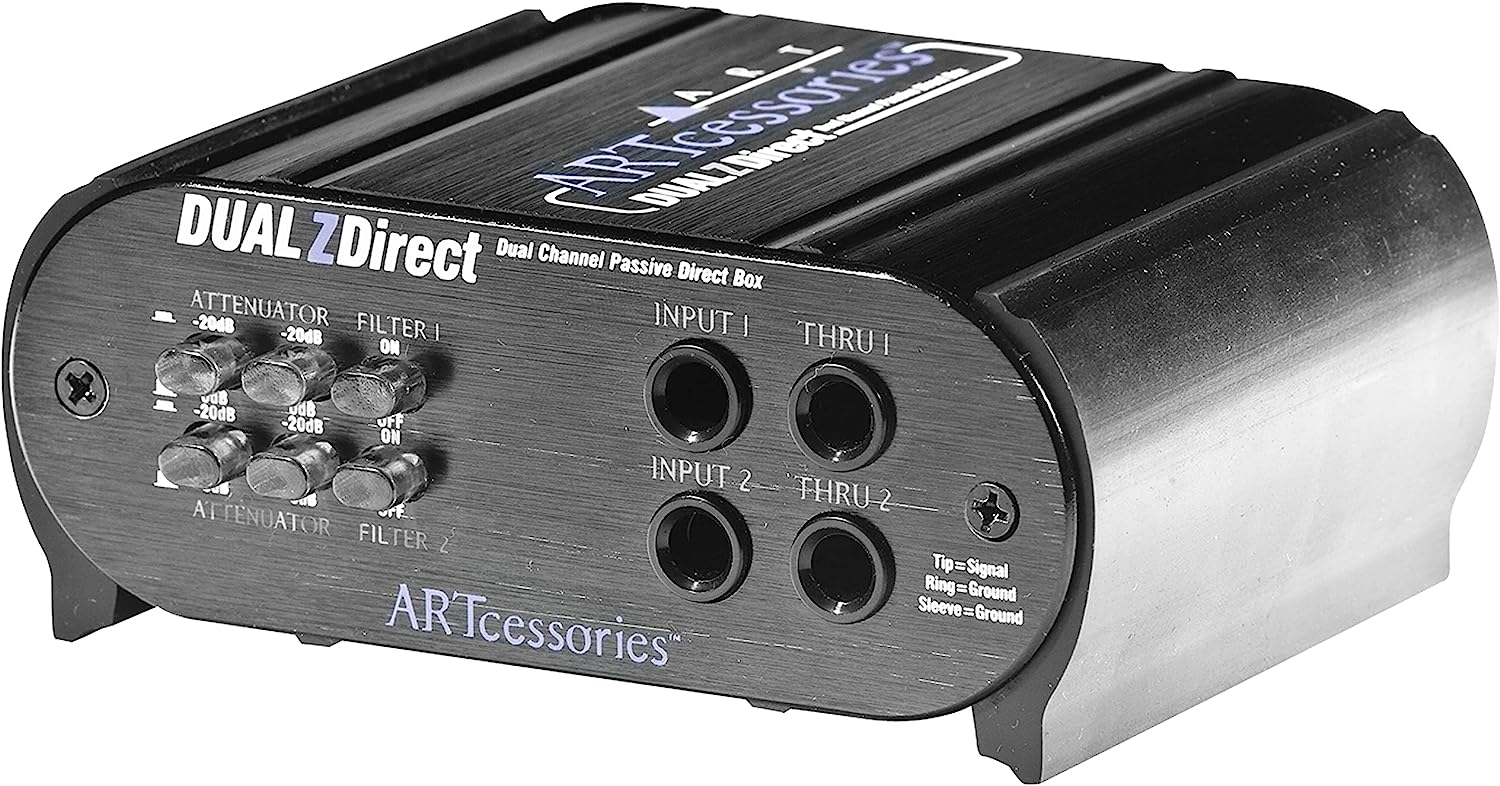

The DUALZDirect provides two independent high quality totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended 1/4″ inputs is converted by a transformer into an isolated, balanced, low impedance signal output.
The DUALZDirect’s audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

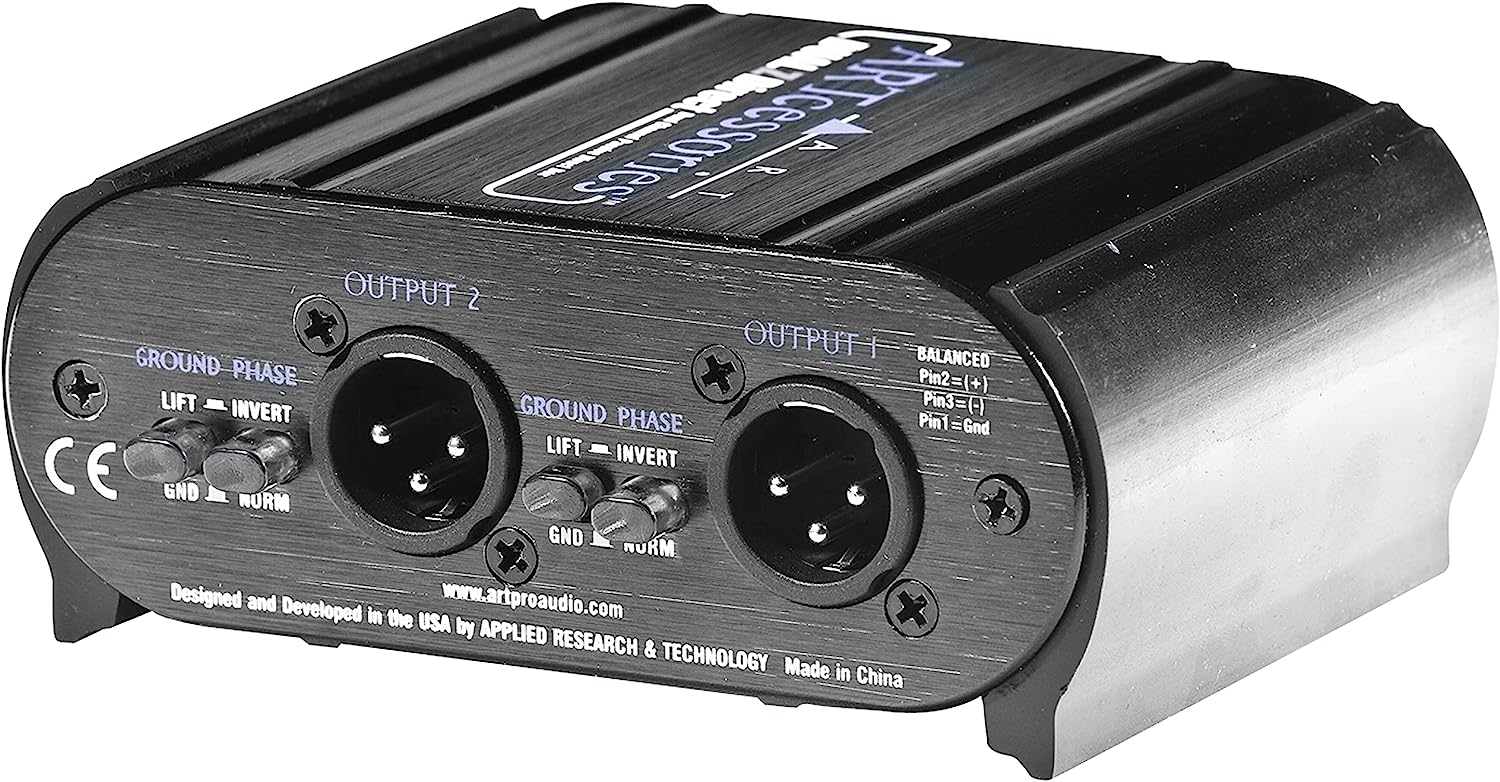

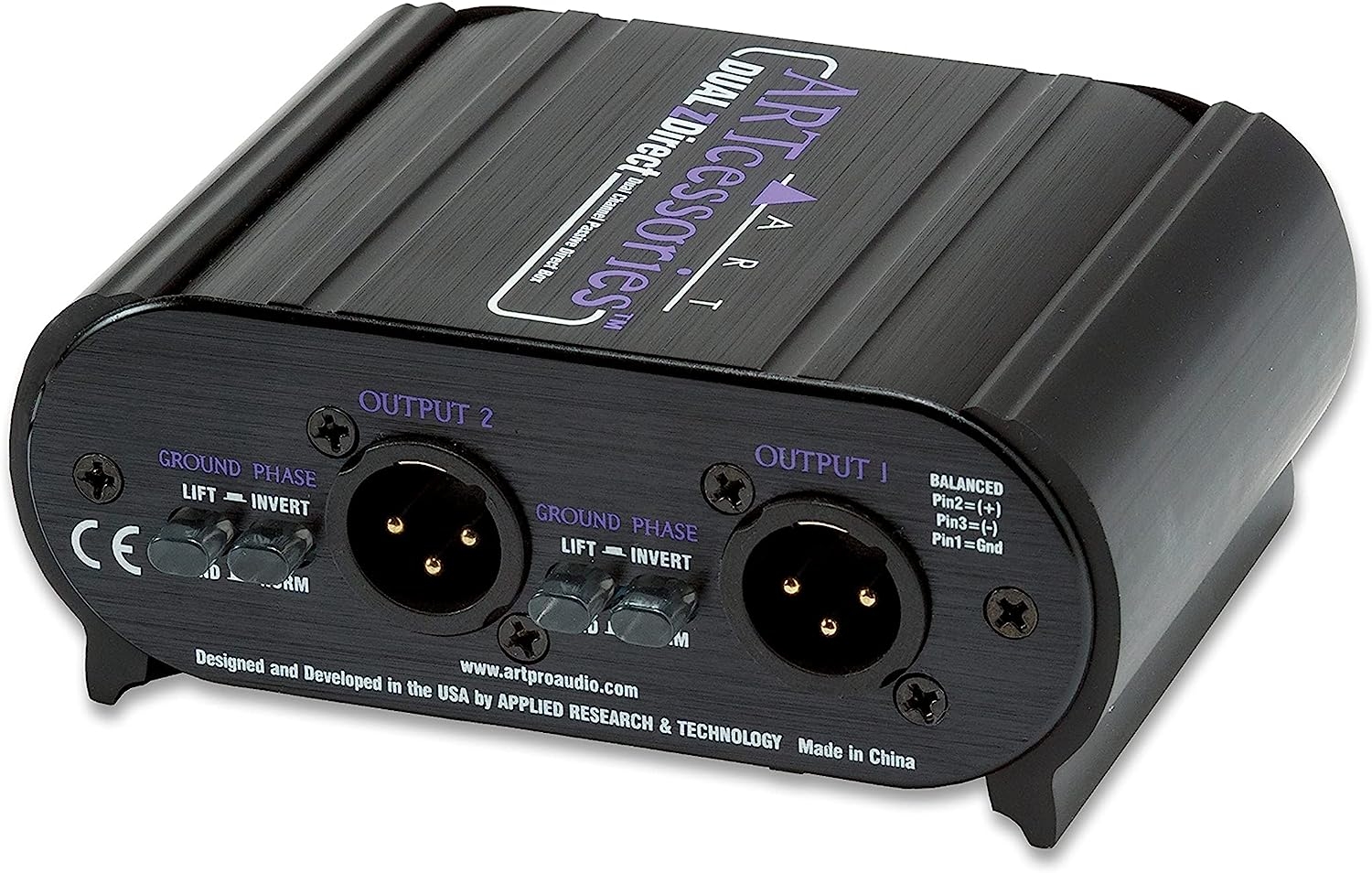

The input ATTENUATOR switches allow for a wide range of signal levels and the input THRU jacks allows for tapping off of your signal chain. The GROUND LIFT switches let you totally separate the input and output signal grounds, when appropriate, to isolate two systems, thereby reducing hum and ground-loop noise.
What further sets the DUALZDirect apart from other “DI” boxes are its extended features and versatility. We have added switchable low pass FILTERs that cut out all very high frequency interference. These Bessel filters on the outputs are placed out of the audio range and are primarily intended to reduce radio frequency interference before it gets into the main system.
The filters are very effective in reducing any digital computer noise artifacts when using the DUALZDirect as an interface between a computer-based audio workstation and your monitors.
The PHASE INVERT switches, while not normally included with your “run of the mill” DI box, have been added to allow you to switch signal polarity right at the source. This feature is especially handy when you are combining a direct tap with a microphone feed in the mix.
The compact black-anodized all aluminum case and it’s passive design allow the DUALZDirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full feature set, rugged construction, and high-end specifications make the DUALZDirect the obvious choice.
About Us
ART is a company comprised of musicians, engineers and recording enthusiasts. Since its inception in 1984, we have been striving to redefine the performance versus cost barrier with a series of innovative new audio products designed with the needs of the musician in mind.
With a full line of vacuum tube preamplifiers and compressors that deliver unmatched warmth, tone and character; innovative Graphic Equalizers that actually show you exactly where feedback may occur, and a full complement of cool little useful tools designed for stage and studio, ART offers affordable audio solutions that deliver unmatched quality, tone, versatility and reliability.
On the road, in nightclubs, arenas, recording studios, auditoriums, churches, rehearsal halls, basements or garages, ART products have gained the loyalty of customers worldwide. Our rich history reflects our true passion for music and the creative process.
Amazon Customer –
Great Sound Quality
This DI box is amazing. A clear difference in not only show quiet my signal is, but the quality has improved. I use my keyboard through this for gigs and my instrument has never sounded better. Whatever preamps and transformers are in there has my keyboard sounding night and day compared when I was gigging before just plugging my board quarter inch into piano amp.
Jim & Renae –
Good DI box for the price
Built very well. I like the rubber armor on what could be sharp edges. This box will not slip and slide on a stage.There is a very small amount of crosstalk between channels (order of -100dB?). You won’t hear it but at the really high preamp gain levels needed for guitars with passive pickups, you might see it on your level meters. Absolutely not an issue for live sound (our use). For studio recording I would use single channel interfaces, possibly with dedicated preamps.There are a lot of buttons to select pad levels, ground lift, etc. We don’t use any of them because we go from this box into a mixer with highly configurable preamp gain. So I can’t comment on how well these bonus features work.
Catmomma –
Best D.I. For The Money

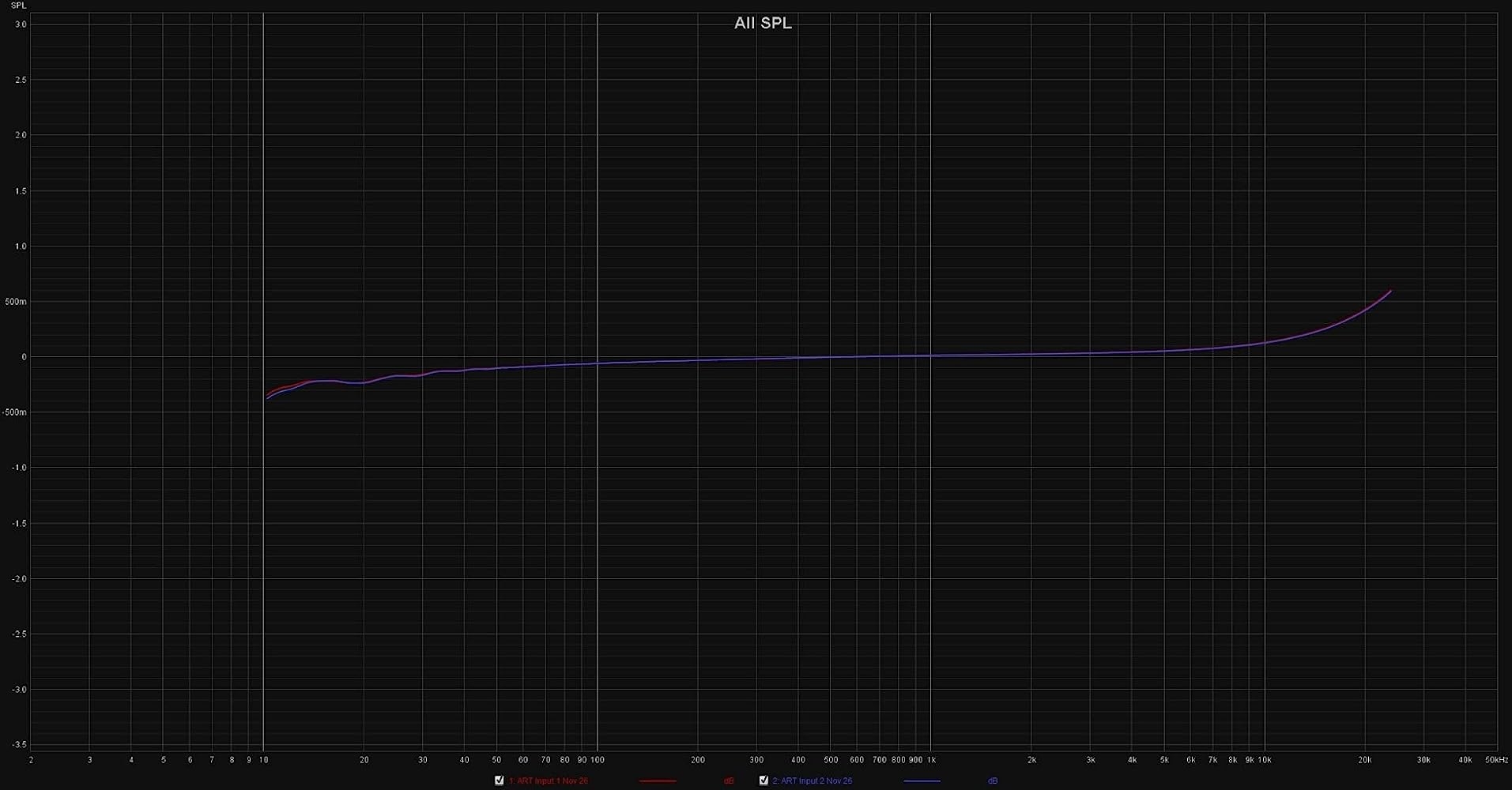

I have tested a number of similar D.I. boxes and this one is my favorite.Firstly this direct box is incredibly small considering that it houses two channels.I was also impressed by it’s frequency response which Ranges less than a dB from 10Hz-30kHzBuild quality is also excellent.Would highly recommend.
Art C –
Works great! No sound issues
So far this stereo di is working great for our piano. Beats having to run two separate direct boxes for a stereo channel.
moises antonio rodriguez –
fa il suo lavoro
lo uso per. una sala prova a. volte per la. tastiera. a volte per un basso e una chitarra. , comunque. niente male
Donald W. Coley –
Great DI Box, but…
I probably purchased the wrong DI Box. This box is well designed, well made and works fine, BUT… I didn’t realize that it would reduce the signal LEVEL so much !!!! From reading the description, I though we could use this to take an unbalanced ~ 2 Volt Line-Level Signal and convert it to 600 ohm balanced OUT, to send to a powered speaker that is far from the mixing board. We did this, but there was not enough Signal to drive the powered speaker. I call A.R.T. and asked a Tech about the [Turns Ratio] of the transformers and he wasn’t sure, but if it is anything like the Zin-Zout Ratio (50,000 Ohm to 600 Ohm, or less), it will reduce the Voltage OUT by something like 83 times, so 1 Volt IN gives 12 mV OUT (which for us isn’t useful). It would take 40 Volts IN to get 0.5 V OUT. To his credit, the Tech suggested that for our application, what we wanted a different DI box, which ART also makes. It turns out that they make a great many different versions, for all sorts of applications, so I recommend either a visit to the ART Website (or a call to Tech Support), to be certain that the DI Box you pick can do what you want. – Donald Coley –
ilazki –
Una herramienta para la guerra
Fuera ruidos. La mejor opción para quitar ruidos raros a partir de los 30KHz y aislarse de la toma de tierra. Ideal para convertir una señal no balanceada de alta impedancia, a una señal balanceada de baja impedancia para tiradas de más metros de cable y con conector XLR. Si eres Dj, músico o cualquier otro caso donde conectas un pc, proyector… a un equipo de audio, te lo recomiendo totalmente. Además, es una DI pasiva, no necesita alimentación.
Matteo –
Da Mixer a mic. Fotocamera.
Avevo bisogno di realizzare un video con audio proveniente da un microfono a condensatore da studio collegato ad un compressore. Quindi l’ho comprato per mandare l’uscita del mixer dentro al jack dell’ingresso microfonico di una fotocamera Canon tramite il cavetto di riduzione. Dalle prime prove sembra tutto perfetto. I tasti di attenuazione sono molto comodi per poter lasciare il mixer con la regolazione che tengo di solito senza doverlo abbassare troppo. Comunque anche senza attenuazione l’uscita del mixer è gestibilissima senza distorsioni o saturazioni di sorta.
SteveH –
Works great – use it at all gigs.
I love this DI box. I play both bass and acoustic guitar – I plug both guitars into this (end of pedal chain, with the shortest possible 1/4″ cables) and then run XLR cables to the mixer. Sounds like a clean signal to me – much better than long 1/4″ cables. The unit is nice and small – fits into a side pouch on a backpack. No power required – plug and play. Bass players seem to always get pushed into a corner or way off to the side so this gives me a chance to have a clean signal to the PA.
Eagle “Bones” Falconhawk –
Chunky wholesome and looks good too.
Impressive build quality and features, allows me to either split one electric guitar signal in two and route both into a mixer for recording, or live put an acoustic and an electric guitar amp’s emulated out into a PA. I’d recommend if you are thinking of buying a DI box to watch one of the many helpful videos on youtube first, just to see how useful these bits of kit are. Of all the product options on offer this came out on top. Compared to my mate’s Behringer DI this is much better and does a few things more.
