Description
No matter what your audio mixing needs, this Pyle PMXU43BT mixing desk provides the performance and features that can take your talent to the next level. With professional sound quality, our legendary mic preamps, EQs and 16-Bit DSP Multi-FX processor makes us the envy of sound engineers and producers all around the world!
Features:
DJ & Studio Console Mixer System
Multi 4-Channel Audio Source Mixing
Built-in Bluetooth Wireless Receiver
FX (Analog Effects) & 16 Bit DSP processor
Direct-to-Computer Connect & Sound Record Ability

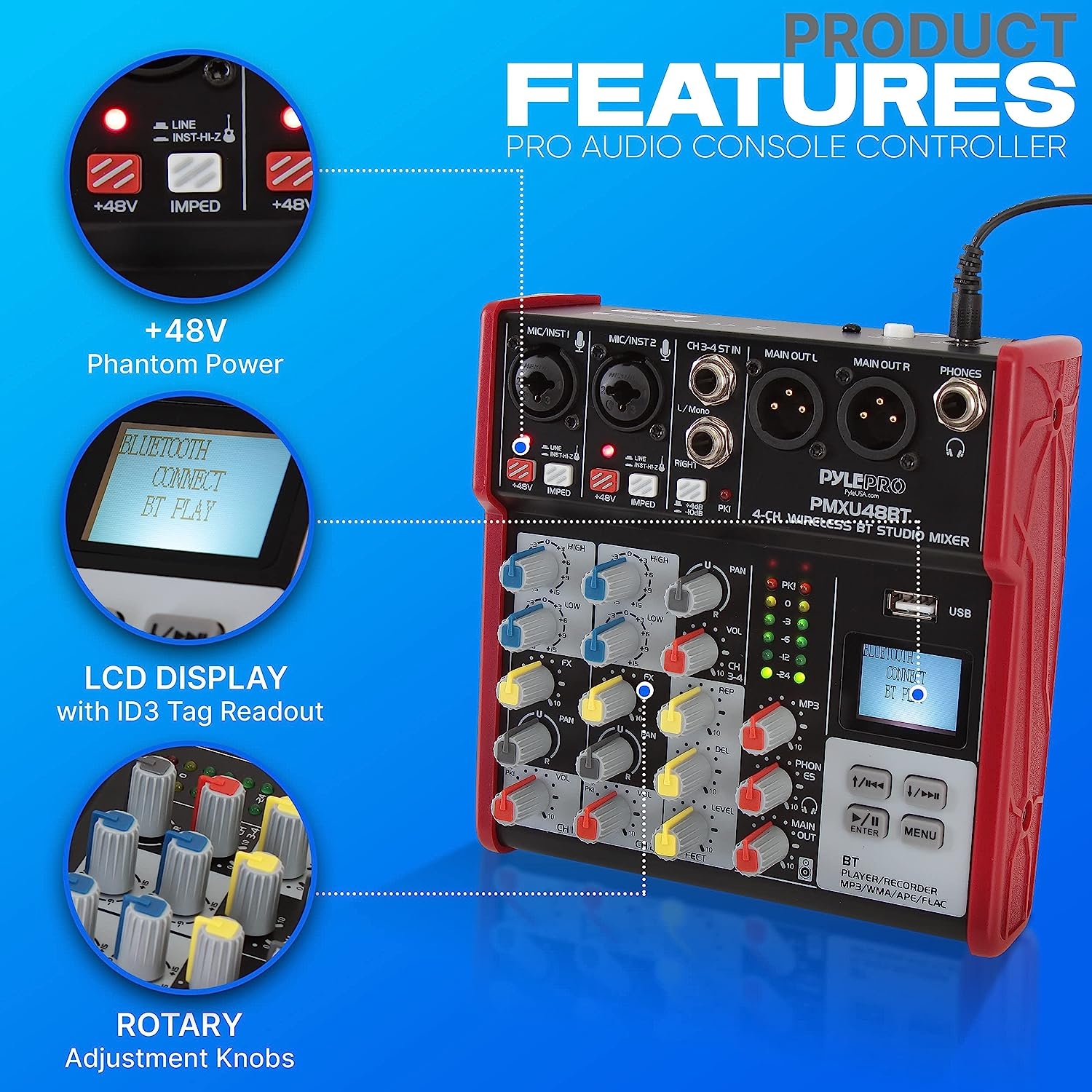

LCD Digital Display & Front Panel Control Center
Rotary Adjustment Knobs & LED Indicator Lights
MP3 Digital Audio File Compatibility
USB Interface: MP3 Flash Drive Reader/Computer Connection
Connect & Stream Audio from External Devices
(2) 1/4’’ (L/R) MAIN Outputs
(2) XLR/14’’ Combo Audio LINE/Microphone Inputs
1/4’’ Mono + Stereo Inputs
1/4’’ Send + Return Inputs
1/4’’ Headphone Jack
Stereo Level Fader/Slider
Output Signal Level Indication
BUS Audio Control, Sound Routing
PAD Channel Source Input Switch
Independent Channel Input Audio Configuration
Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
+48V Phantom Power Control

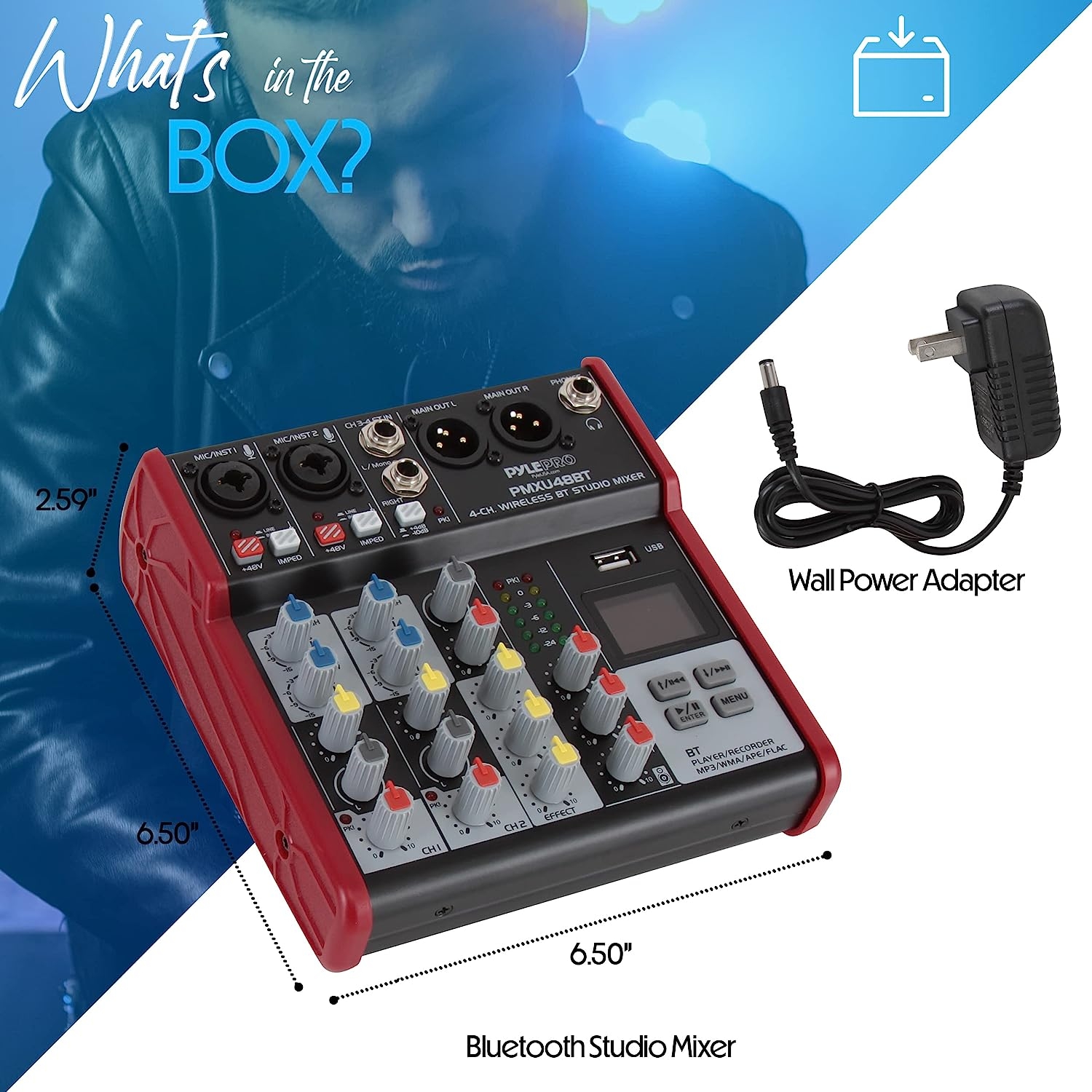

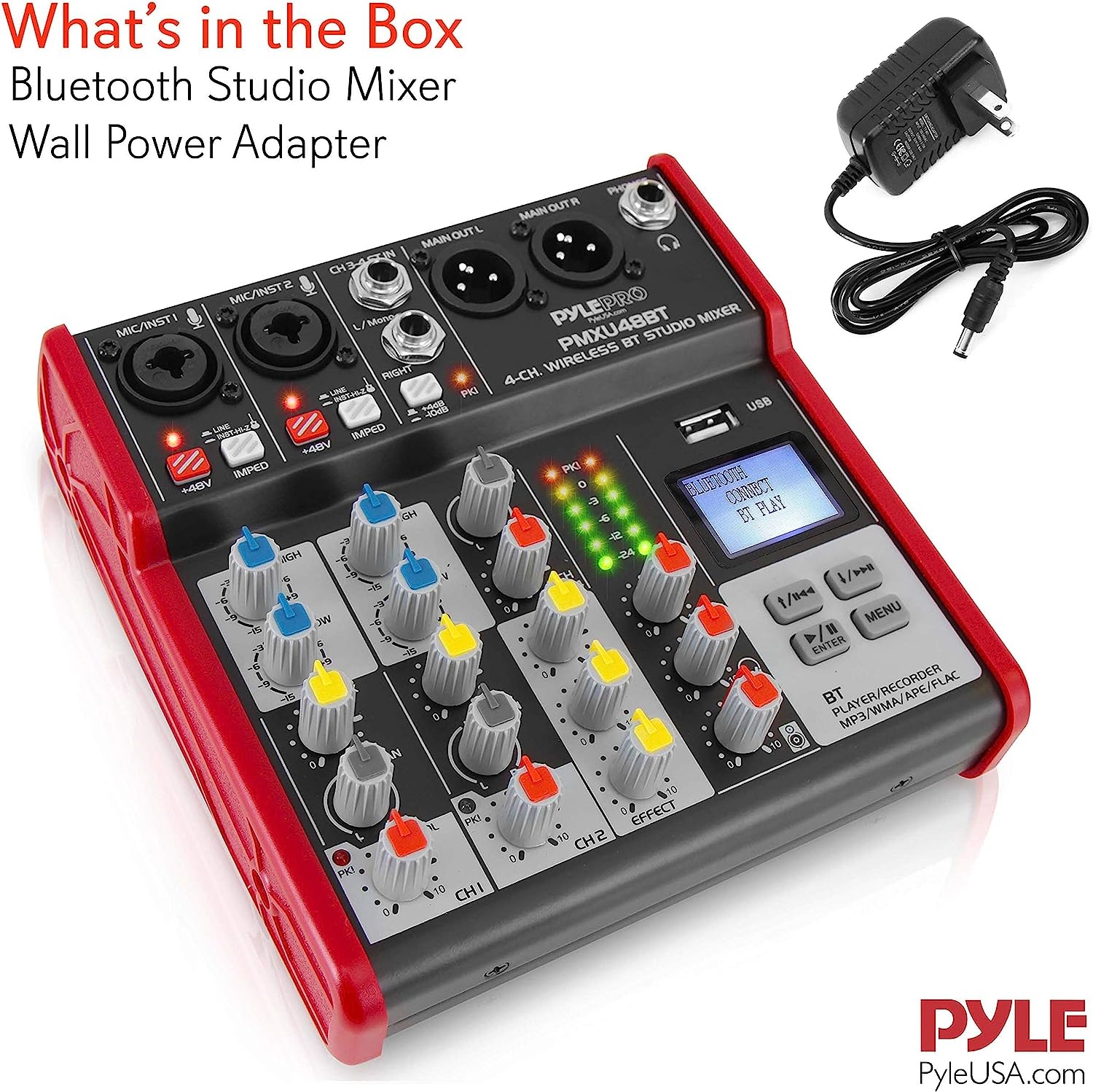

What’s in the Box:
Bluetooth Studio Mixer
Power Adapter Cable, 4-Pin
Wireless Bluetooth Connectivity
Hassle-Free Audio Streaming Ability
Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Network Name: ‘KT-08UP’
Bluetooth Version: 4.0
Wireless Range: 15’+ ft.
Technical Specs:
Input Mixer Channels: 4-Ch. (+ FX/Headphones)
Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
Input Frequency Response: 20Hz-20kHz, +/-3dB
Input Distortion: 0.03%, 1kHz/150mV Input
Channel GAIN Adjustment: +20/+64 (-6/+38)
HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
LOW Gain: +/-15 dB, 80kHz Frequency Shelving
HIGH/MID/LOW Adjustment: -15/+15dB
Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
PAD Input Channel Adjustment: 26dB
Peak CLIP Level.

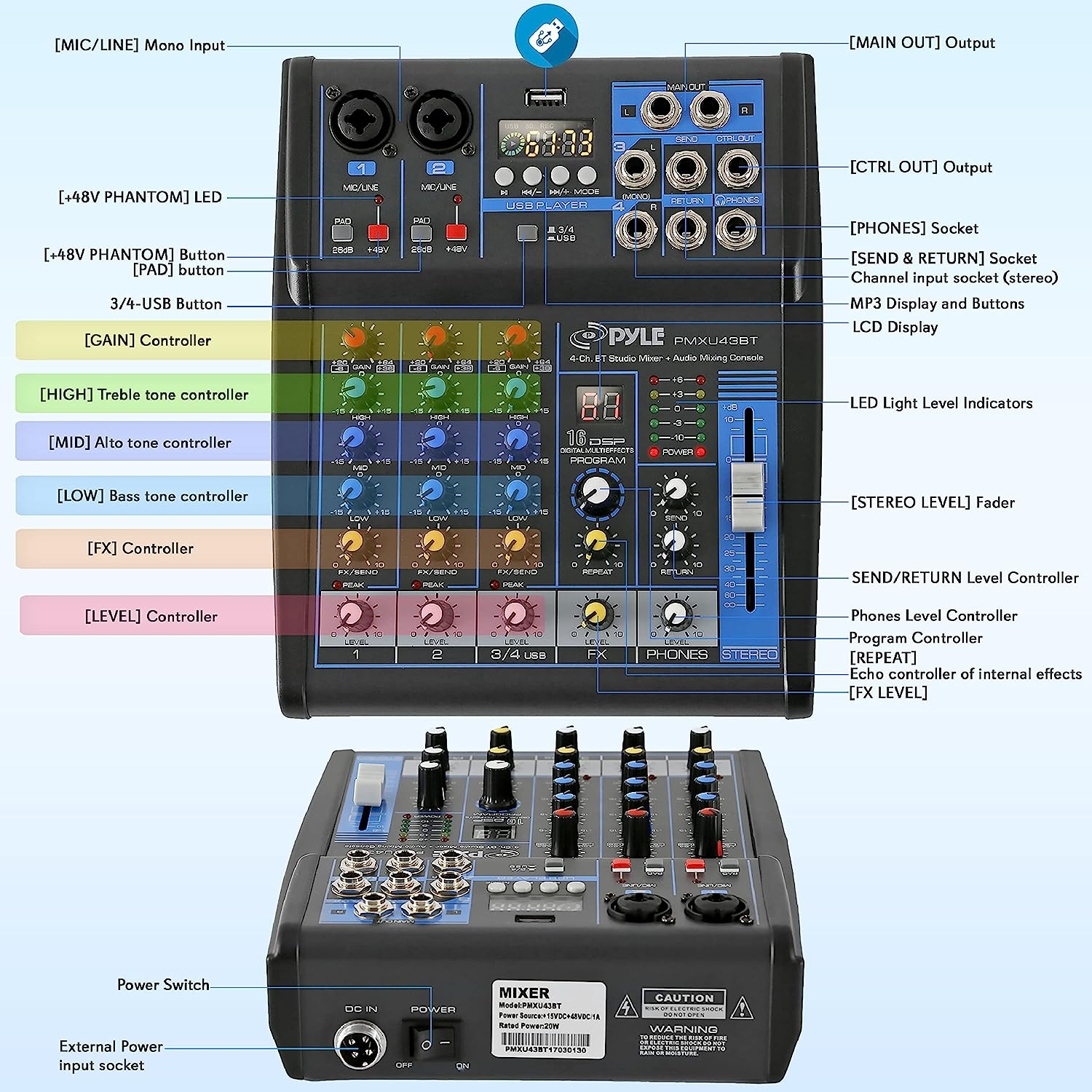

PYLE PMXU43BT
- (2) 1/4’’ (L/R) MAIN Outputs
- (2) XLR/14’’ Combo Audio LINE/Microphone Inputs
- 1/4’’ Mono + Stereo Inputs
- 1/4’’ Send + Return Inputs
- 1/4’’ Headphone Jack
- Input Mixer Channels: 4-Ch. (+ FX/Headphones)
- Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
- Input Frequency Response: 20Hz-20kHz, +/-3dB
Pyle Professional Audio Mixer Sound Board Console System
4 Channel Digital USB Bluetooth MP3 Computer Input 48V Phantom Power Stereo DJ Studio Streaming FX 16-Bit DSP processor-PMXU43BT
No matter what your audio mixing needs, this Pyle PMXU43BT mixing desk provides the performance and features that can take your talent to the next level. With professional sound quality, our legendary mic preamps, EQs and 16-Bit DSP Multi-FX processor make us the envy of sound engineers and producers all around the world!
- DJ & Studio Console Mixer System
- Multi 4-Channel Audio Source Mixing
- Built-in Bluetooth Wireless Receiver
- FX (Analog Effects) & 16 Bit DSP processor

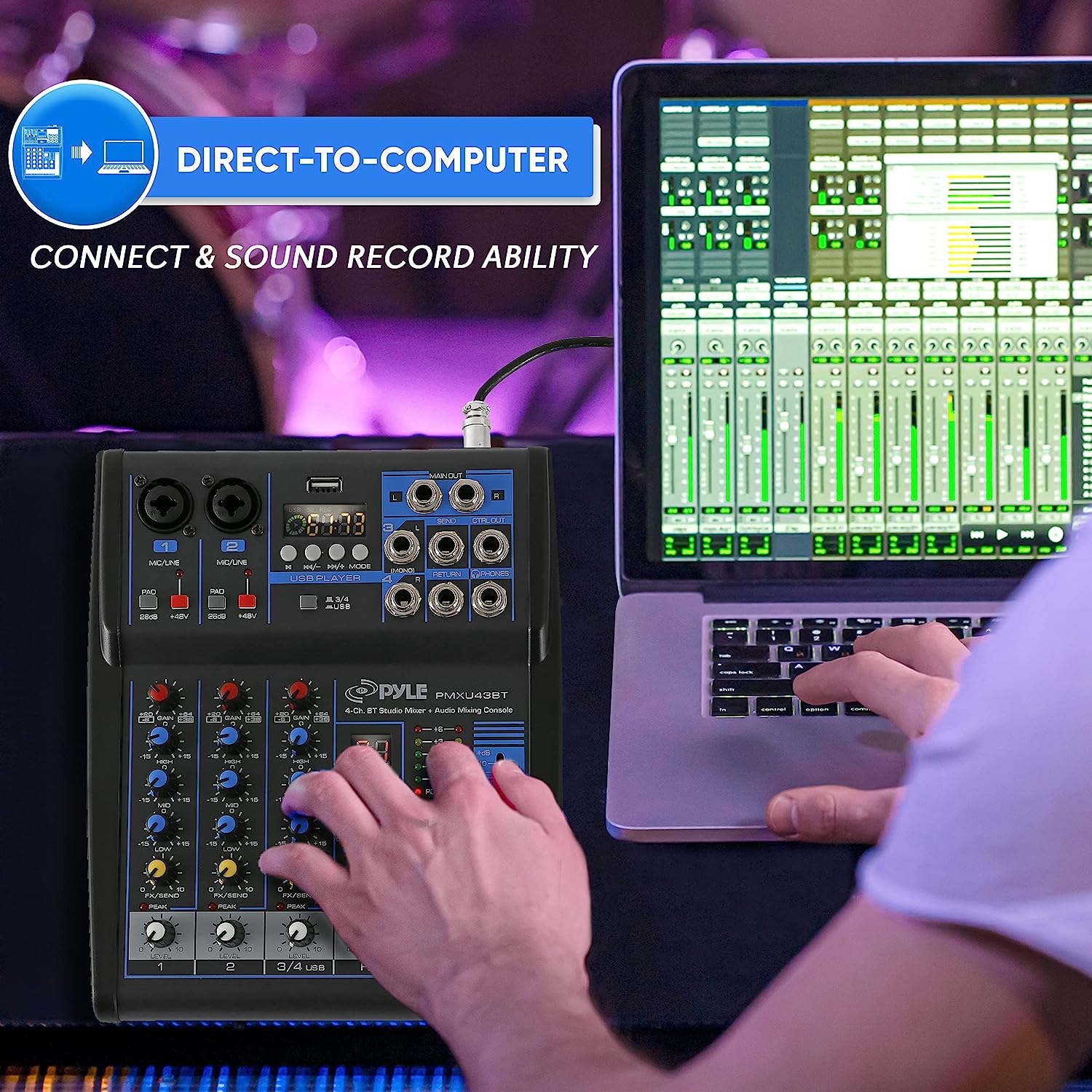

- Direct-to-Computer Connect & Sound Record Ability
- LCD Digital Display & Front Panel Control Center
- Rotary Adjustment Knobs & LED Indicator Lights

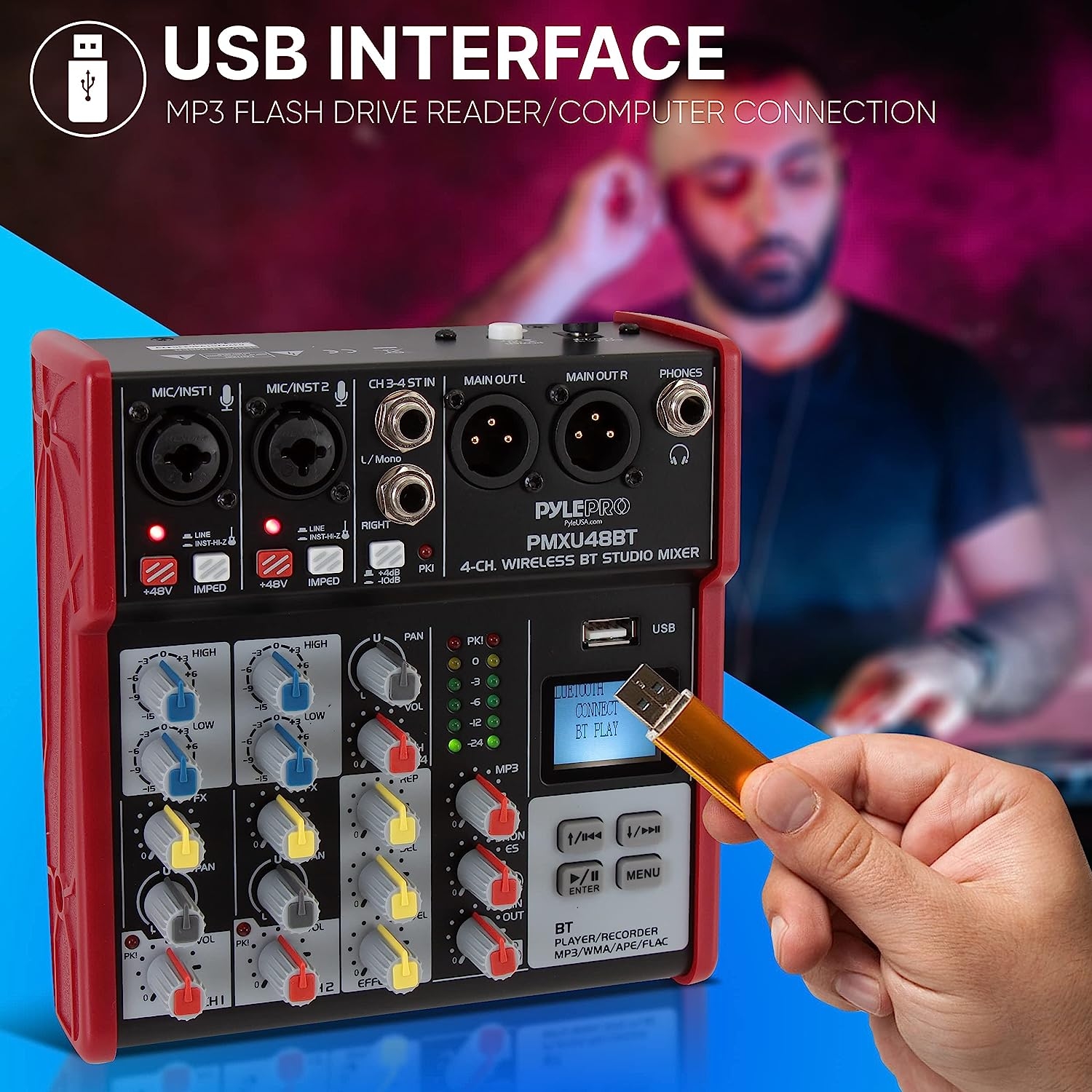

- USB Interface: MP3 Flash Drive Reader/Computer Connection
|
|
|
|
|---|---|---|

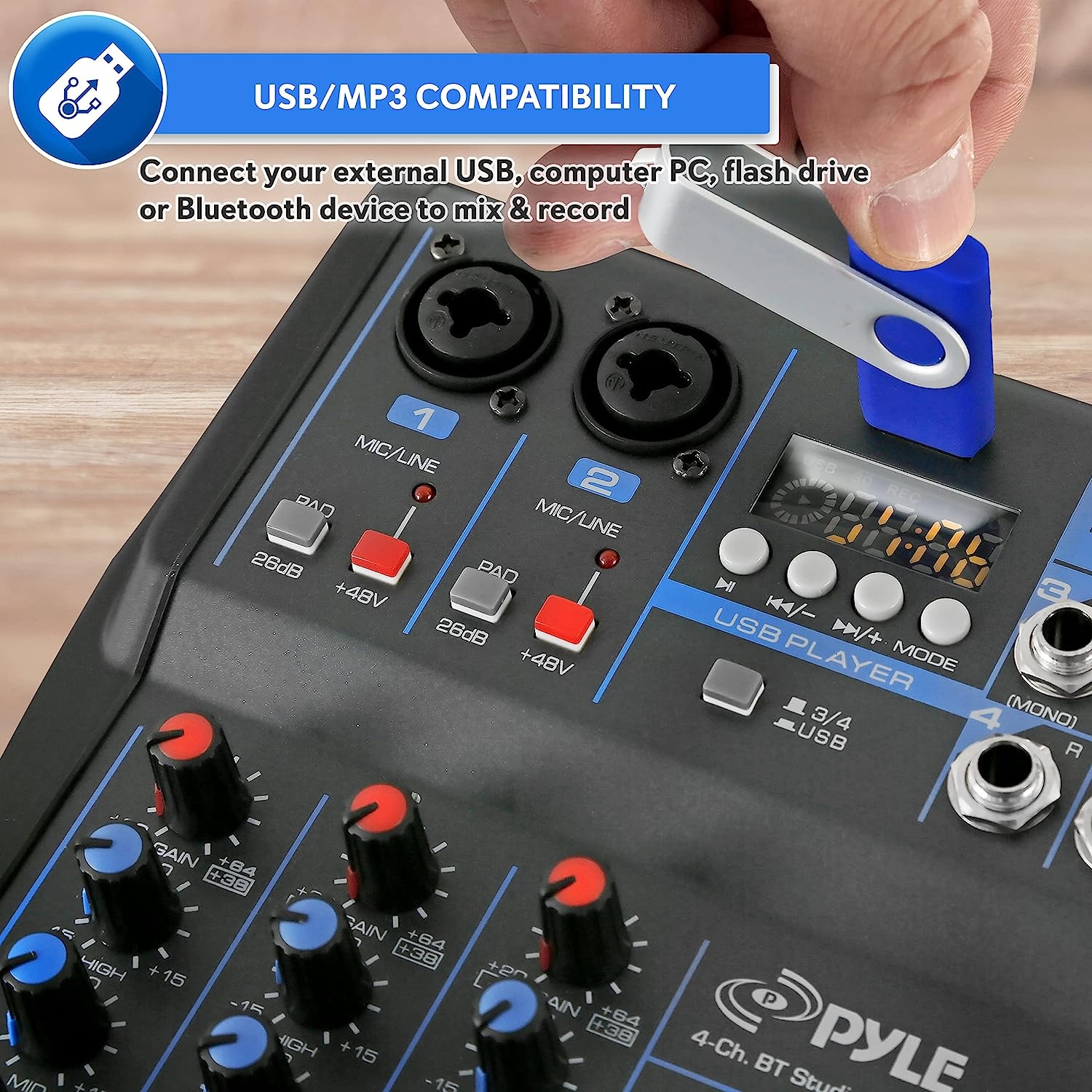

USB/FLASH READER/MP3 COMPATIBILITYConnect your external USB, computer PC, flash drive, or Bluetooth device to mix & record Use the built-in controls to play/pause, skip tracks, and switch between modes. |

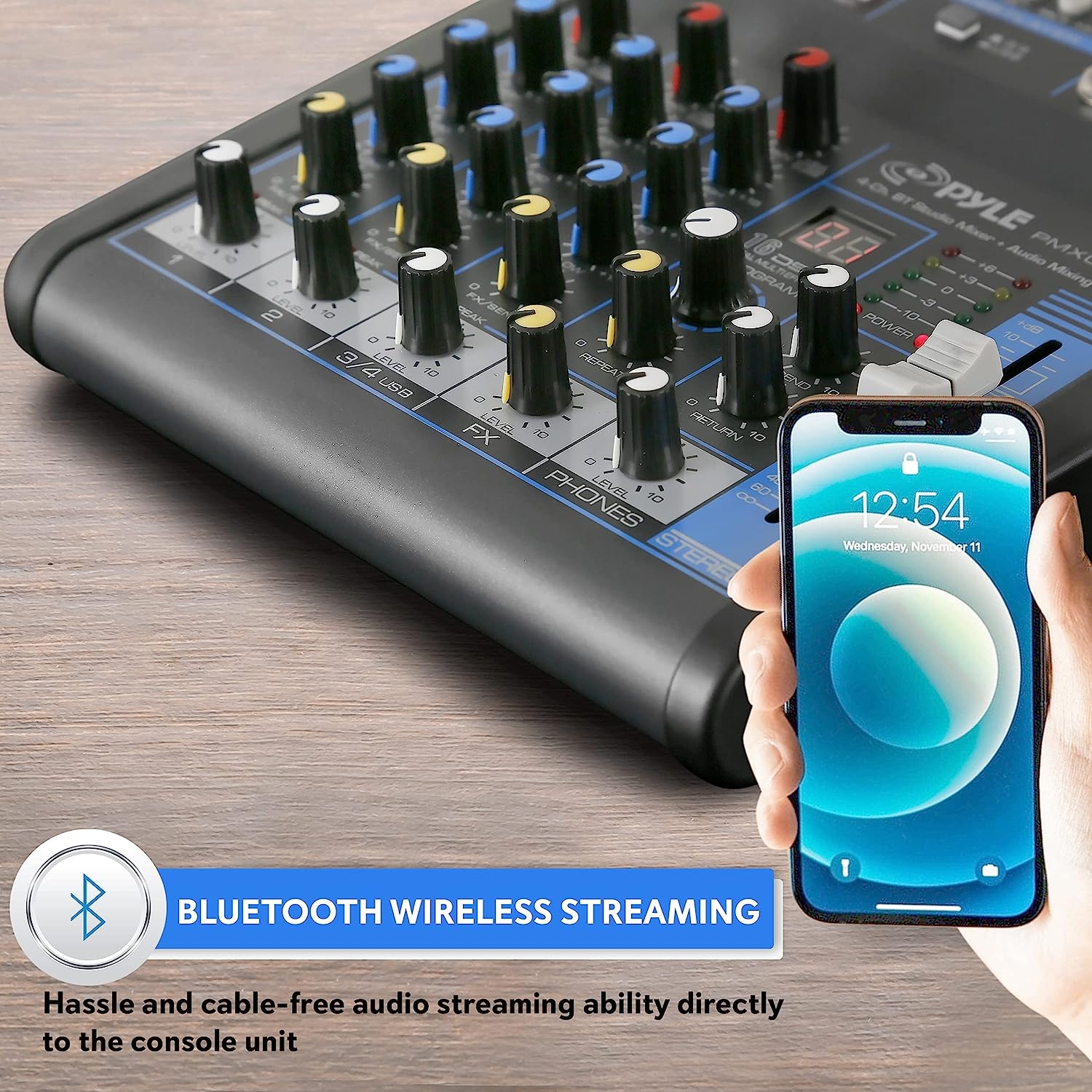

BLUETOOTH WIRELESS STREAMINGHassle and cable-free audio streaming ability directly to the console unit This audio mixer can wirelessly stream music tunes from iPad, iPhone, and Android Smart Phone with mixing board from Pandora or Spotify. |
NEW MULTI-VOLTAGE POWER SUPPLY100V-240V (+/-15V DC power adapter) ideal for worldwide usage. Enjoy a value-packed mixing solution today with performances that sound great each time. |
frank gregus –
Pro sound easy
I bought it for my home karaoke set up and it gave me the tunability to dial in vocals like the best hosts in town. I only need two channels for two vocal mics so it is perfect for my needs.
Rollo –
Really good just slippery
Works great. Only complaint is that it doesn’t have rubber feet. Buy some adhesive rubber feet so it doesn’t lose off your table. Add those as standard and would be 5 stars.
Charles R. –
Great little mixer
Highly recommended. Easy to use.
Jake –
All around solid product
For the price of this unit I am absolutely blown away. The Bluetooth and computer connectivity work seamlessly. This is a much better deal than any goxlr as long as you know what you’re doing at least a little bit. Recommend.The way i am using it, i have my condenser mic on CH1, main outputs to my scarlett 2i4, scarlett output 1 to monitors, scarlett output 2 to PC line out with Ground loop noise isolator (to route output of scarlett ot usb wirelss headphones for system sounds to play on multiple sources without changing in windows). This leaves 2 channels open for instruments, one of which i am using the bluetooth functionality on. This allows me to play anything off my phone through my mic line into the game, i may eventually connect my computer this way for sampling.Anyways, accomplished everything id been conjuring in my head for the past year so i am very happy with it.Build quality is great for office mixers. I wouldn’t take it out of the house without a good case.
Steve –
Great little audio mixer!
Day one and this mixer is performing as expected. No issues at all. I’m using this for karaoke and I’m mixing 3 different channels. My main need was to mix an RCA input and two microphones. Works perfectly.
Katherine J OMalley –
Live karaoke mixing
Easy to use for beginners. Would be nice if it came with a list of the 16 internal digital effects.
Alden Pittman –
Package came totally perfect!
I love the product soo much! My good friend already has the mixer soo I knew what I was signing up for! Thank you to my pops and Pyle music!
Michael H –
Solid build quality & Functionality.
The media could not be loaded.
Don’t hesitate on this mixer, interface if you are in the market my issues are non-existent & the sound quality & build surpasses the price tag. Shipping was fast & received my mixer plugged in the usb to the windows 10 pc & 0 issues, no drivers, software needed. There are lots of volume control knobs on this board and it takes getting used to when first operating. [ notice] the usb 3/4 button must be depressed to listen to play back audio. The 16 digital effects are very functional & sound great but with some repetitive sounds. The instruction book is somewhat vague, but it’s an experimental type of product & experienced operation gets you great results. personally, I am pleasantly pleased with my purchase & can recommend this interface mixer for anybody looking to podcast, livestream, you tube making content. update. Do not use phantom power with a dynamic mic. you will lose audio output. i see this on one of the reviewers’ videos he has phantom power on with a dynamic a good way to wreck your microphone
James Kelly –
First mixer, easy enough for a beginner
So far very much a fan of product, basically is plug and play. This is my first mixer so I’m still figuring out exactly how it all works and will take some time to get used to, but after about 10ish minutes of finagling, karaoke night is live!
Keboo –
Windows Drivers experience
I have owned this board for a little over a year now. I purchased it for use with OBS on a Windows PC. I am a software developer, with only beginner skill in with audio engineering. I have connected the device to my computer using the USB cable. After doing so, Windows will see the device as JieLi BR 17 (I assume this is due to the internal components) and install a generic driver for it.Recently, after a clean install on Windows and running updates, I experienced an issue where the Windows volume control was always visible and would not go away. Eventually I figured out that, the problem only occurred while the device was plugged into the PC and mode was set to PC. Power cycling, updating all drivers for my PC, many reboots, and nothing fixed it. Using a program like Carnac, I determined the issue was the device was constantly sending a Volume Up command. I spent a long time try to determine what the cause of this was to no avail.Eventually I simply opened the Windows Device Manager and disabled the appropriate “USB Input Device” under the Human Interface Devices section. This works for me because I simply want to use it for recording with OBS and do not care about that interface, however I could see this as a problem for others.
