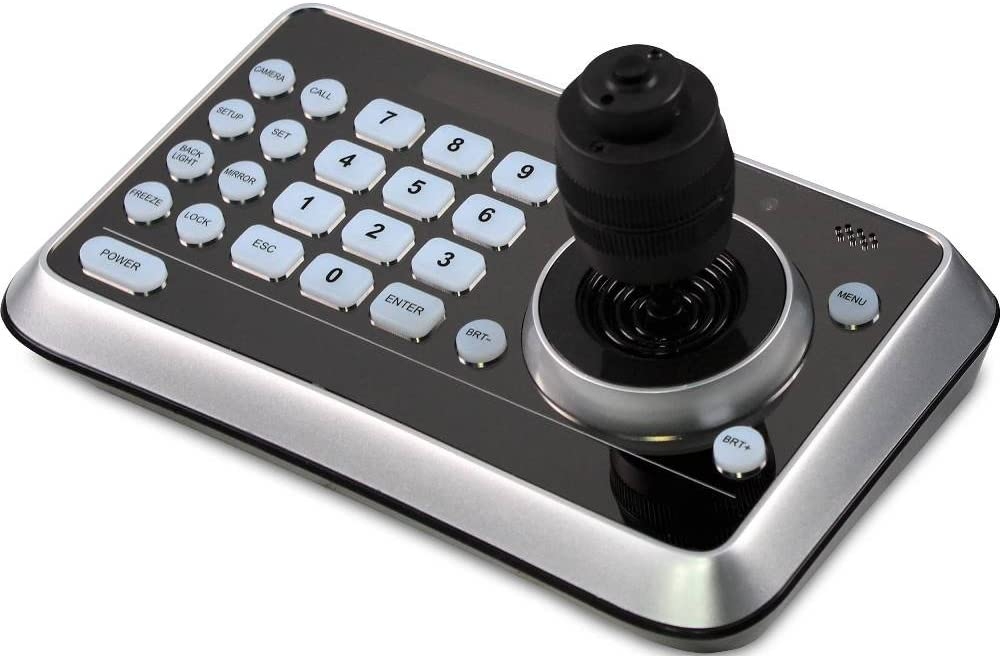

Lumens VS-K20 PTZ Camera Controller, Joystick for Pan/Tilt/Zoom and Focusing, RS-232/RS-422 Communication Interfaces, High

Lumens VS-K20 PTZ Camera Controller, Joystick for Pan/Tilt/Zoom and Focusing, RS-232/RS-422 Communication Interfaces, High Brightness OLED Display, Multi-level Protection, Auto Backlight Keys

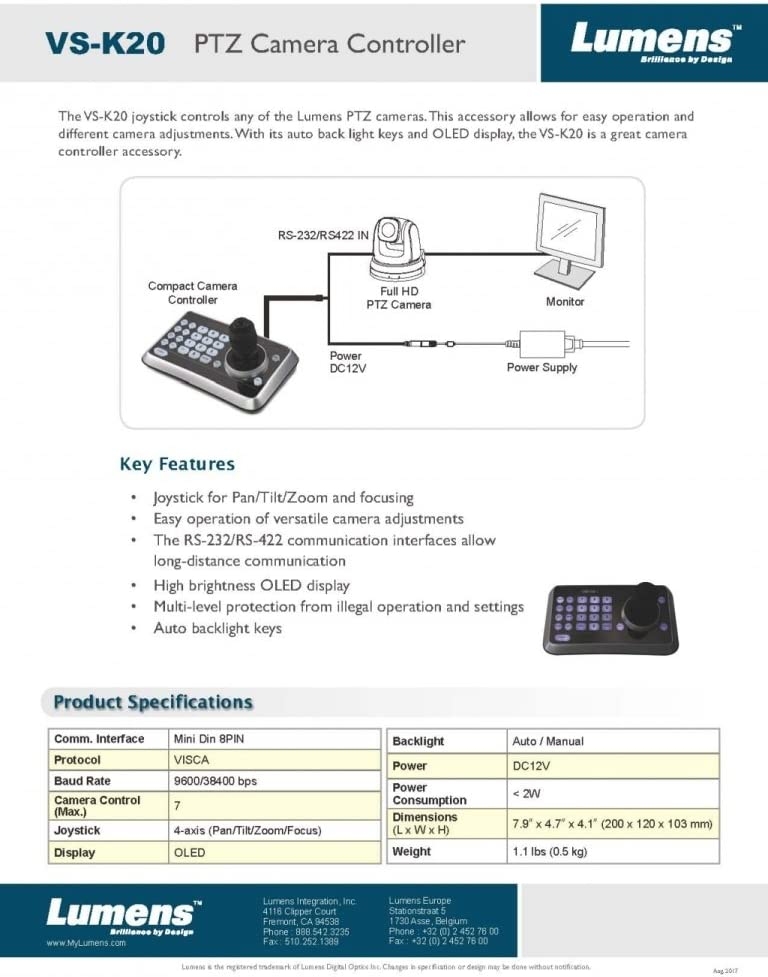

The VS-K20 joystick controls any of the Lumens PTZ cameras. This accessory allows for easy operation and different camera adjustments. With its auto back light keys and OLED display, the VS-K20 is a great camera controller accessory.

Key Features

• Joystick for Pan/Tilt/Zoom and focusing
• Easy operation of versatile camera adjustments
• The RS-232/RS-422 communication interfaces allow long-distance communication
• High brightness OLED display
• Multi-level protection from illegal operation and settings
• Auto backlight keys

Specifications

• Comm. Interface: Mini Din 8PIN
• Protocol: VISCA
• Baud Rate: 9600/38400 bps
• Camera Control (Max.): 7
• Joystick: 4-axis (Pan/Tilt/Zoom/Focus)
• Display: OLED
• Backlight: Auto / Manual
• Power: DC12V
• Power Consumption: <2W
• Dimensions (LxWxH): 7.9″ x 4.7″ x 4.1″
• Weight: 1.1 lbs
