Product Description

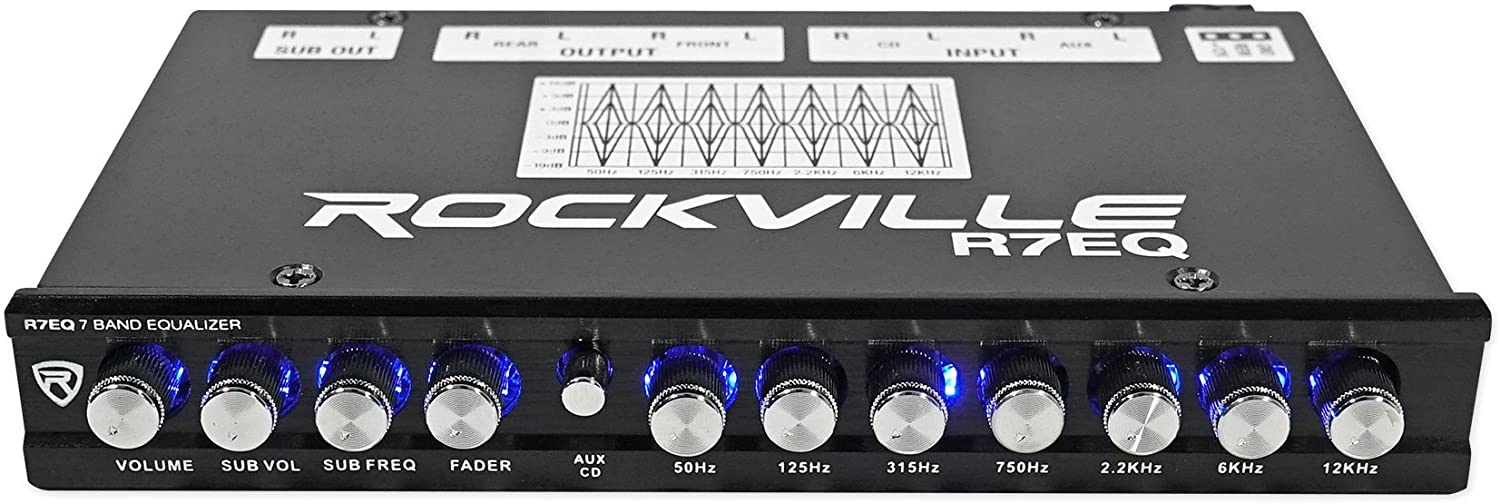

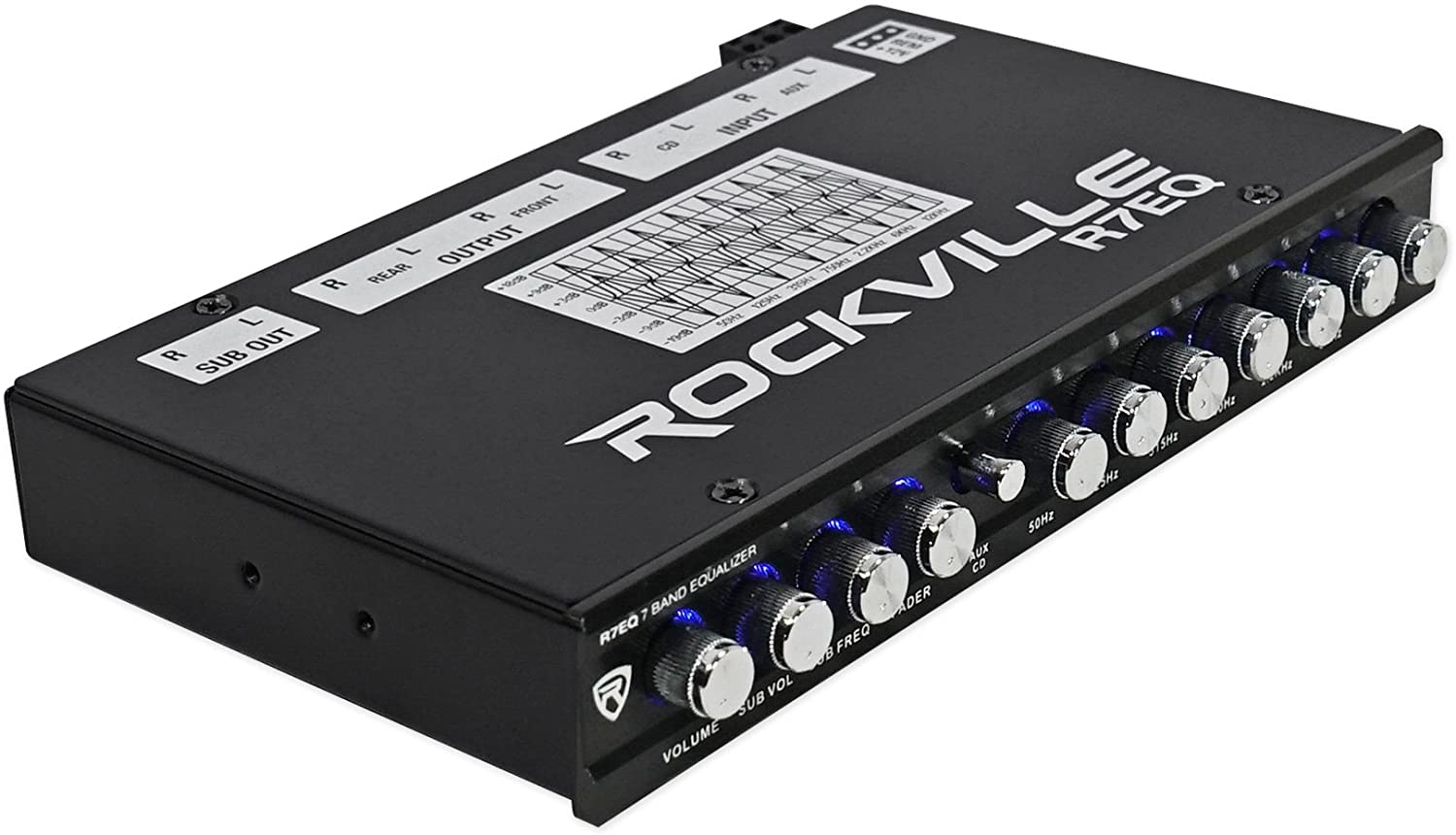

Rockville R7EQ 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output

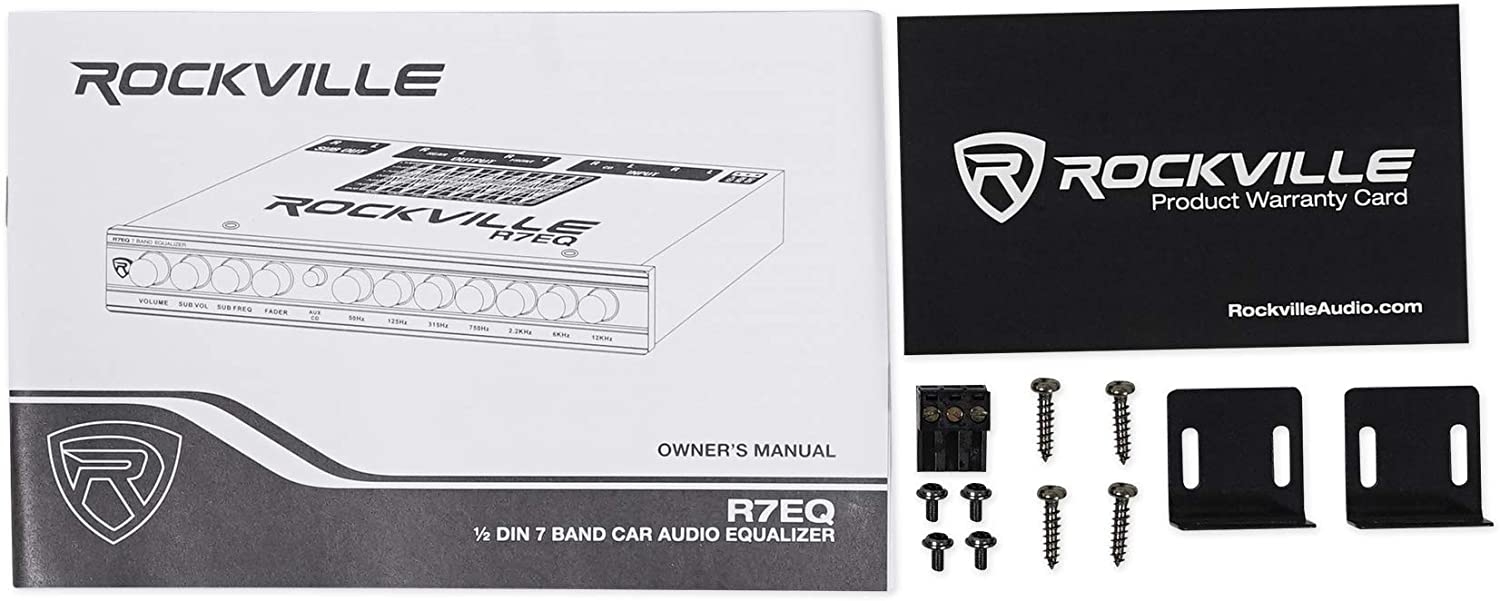

Includes:
- Equalizer
- Screws
- Bracket
- Owner manual
Features:
- Rockville R7EQ 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output
- Includes mounting brackets and screws for easy installation
- 7 adjustable bands of equalization (50Hz,125Hz,315Hz,750Hz,2.2KHz,6KHz and 12KHz)
- Each band is adjustable from -18dB to +18dB
- Adjustable subwoofer frequency from 40Hz to 250Hz
- Built in crossover
- Subwoofer level controls and subwoofer frequency cutoff controls (40-250 Hz)
- Built in 7 volt line driver
- Blue LED lights on each rotary knob

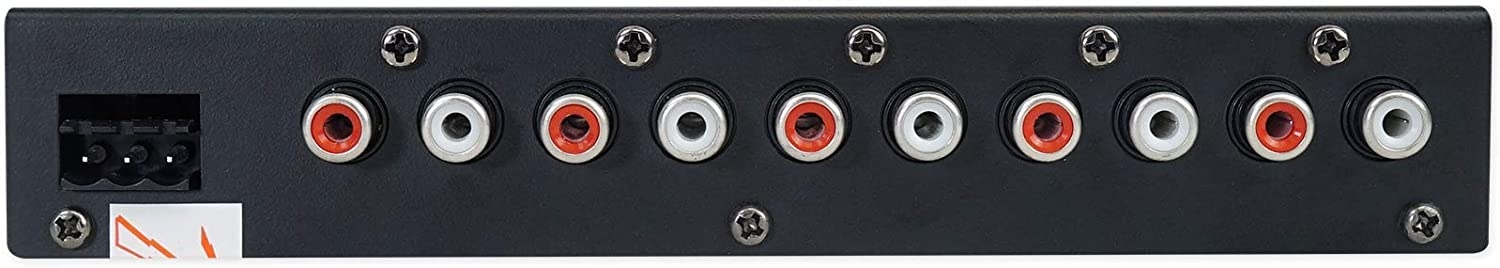

- Front, rear, and sub preamp outputs
- Aux input with gain knob to adjust aux volume
- Strong metal chassis with high quality rotary knobs for all controls
- Amazing quality with low distortion (Built with top quality components)
- Frequency response: 20Hz TO 20KHz +/- 1dB
- S/N Ratio: 101 dB
- Crossover Roll-Off: 12dB per octave
- Input impedance: 10K
- Input sensitivity: 200mv per channel >7V
- THD: 0.01%
- Input: 12V
- Output: 15V
- Power requirement: 11-16V DC
- Unit dimensions in inches: 7.04” x 4.72” 1.1”

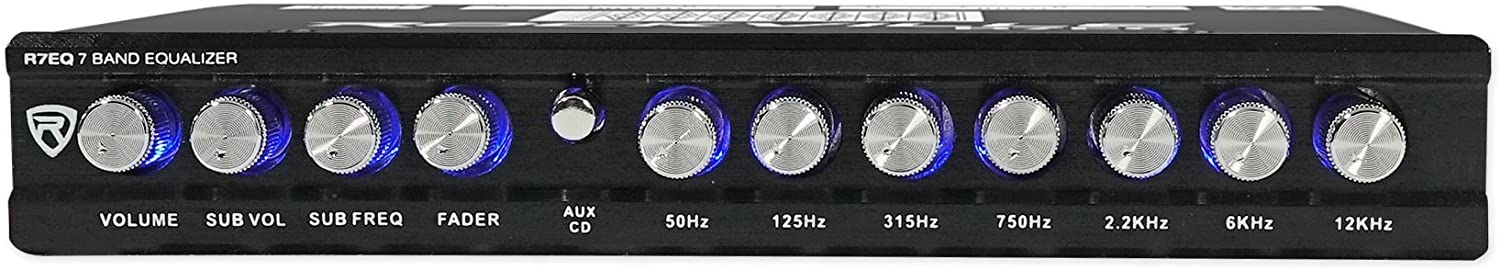

Controls: (Click here for diagram)
- Master volume
- Sub volume
- Sub frequency (40-250Hz)
- Fader
- Input selector switch
- 50 Hz control (+ or = 18 dB)
- 125 Hz control (+ or = 18 dB)
- 315 Hz control (+ or = 18 dB)
- 750 Hz control (+ or = 18 dB)
- 2.2 KHz control (+ or = 18 dB)
- 6 KHz control (+ or = 18 dB)
- 12 KHz control (+ or = 18 dB)
