Description
Features
– SDI standards: SD-SDI, HD-SDI, 3G-SDI
– Input video pixel rate (max): 165MHz
– Output video bandwidth: 2.970 Gbps, 2.970/1.001 Gbps
– Video output resolutions:
> 3G-SDI: 1080p @60/59.94/50Hz (4:2:2)
> HD-SDI: 1080p @30/24Hz, 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz
> SD-SDI: NTSC @59.94Hz, PAL @50Hz
– Advanced features: Video enhancement, de-interlacing, video H/V mirror, over/under scanning adjustable, active video area adjustment, stable and independent output signal quality, aspect ratio adjustable, frame rate conversion
– Operation methods: Push buttons (OSD menu), IR remote control, software via micro USB

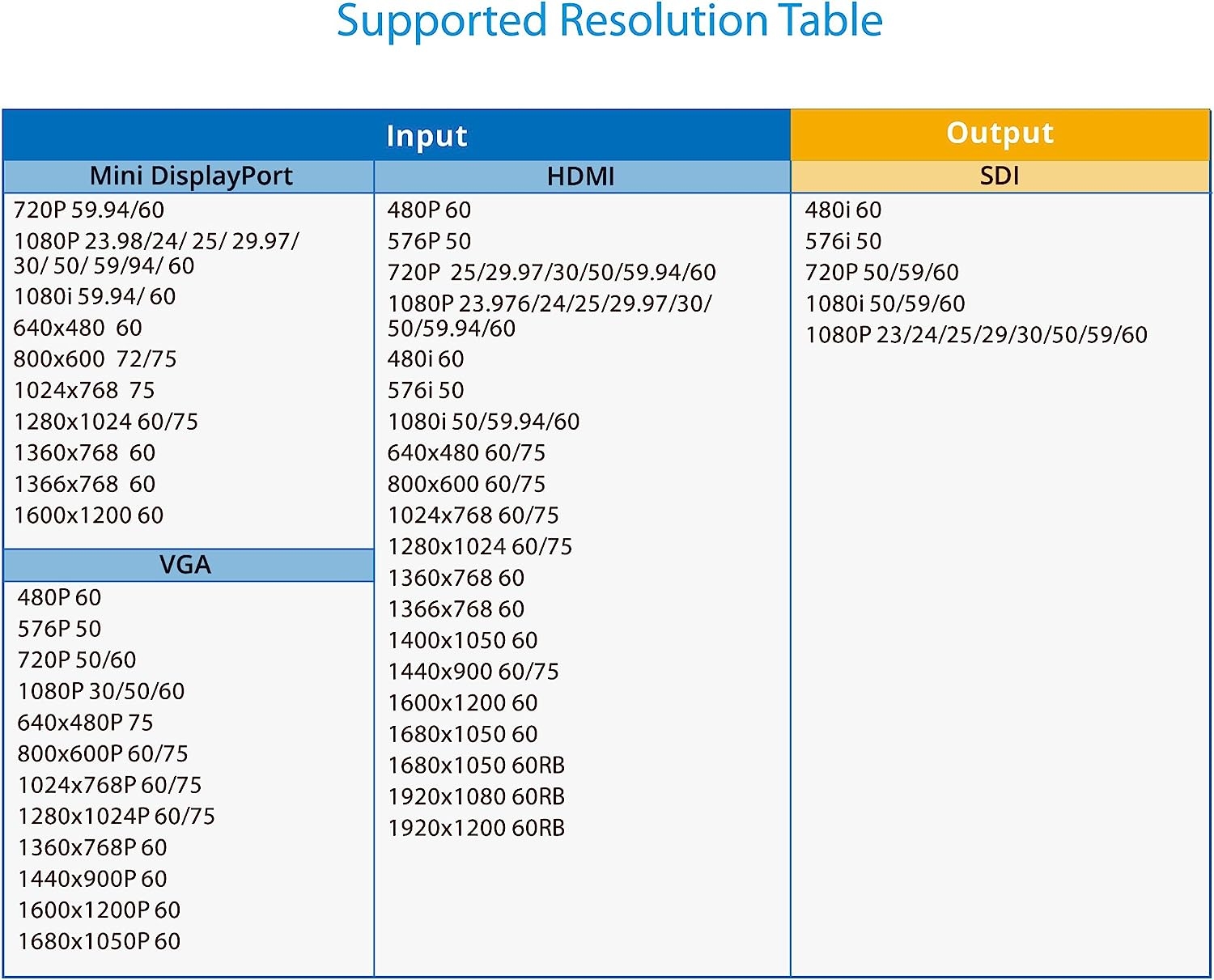

– Supports popular SMPTE and VESA input & output resolutions, including 1080p @60Hz, 1080i @60Hz, 720 @60Hz, 480p @60Hz, 1920×1200 @60Hz, and [Output only resolutions:] 3840×2160 @30Hz, 4096×2160 @30Hz

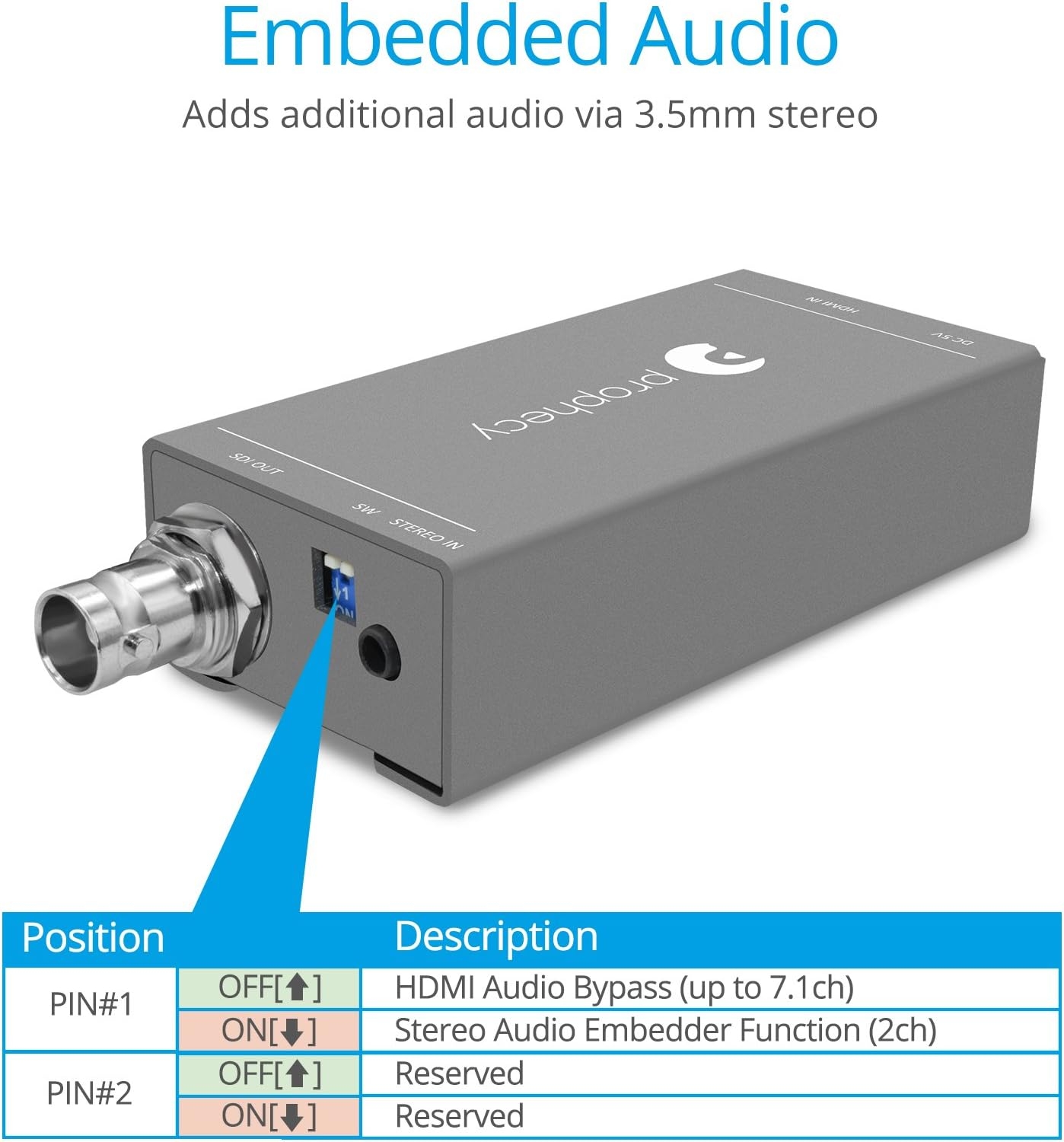

– Embedded 2-channel analog stereo audio input (3.5mm) (PCM 2 (48KHz Fs sample rate)
– Supports Up/Down Scaling Conversion

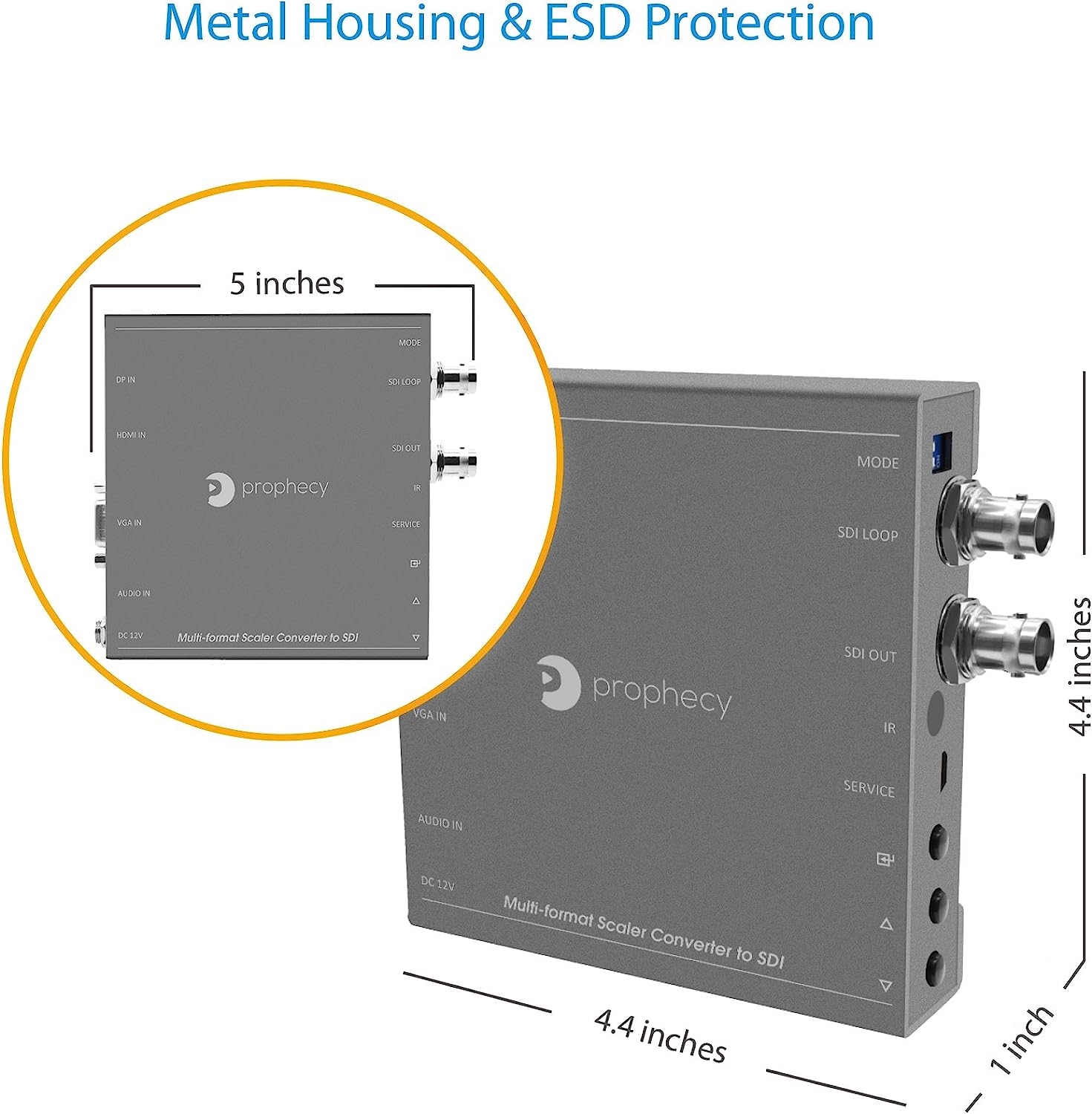

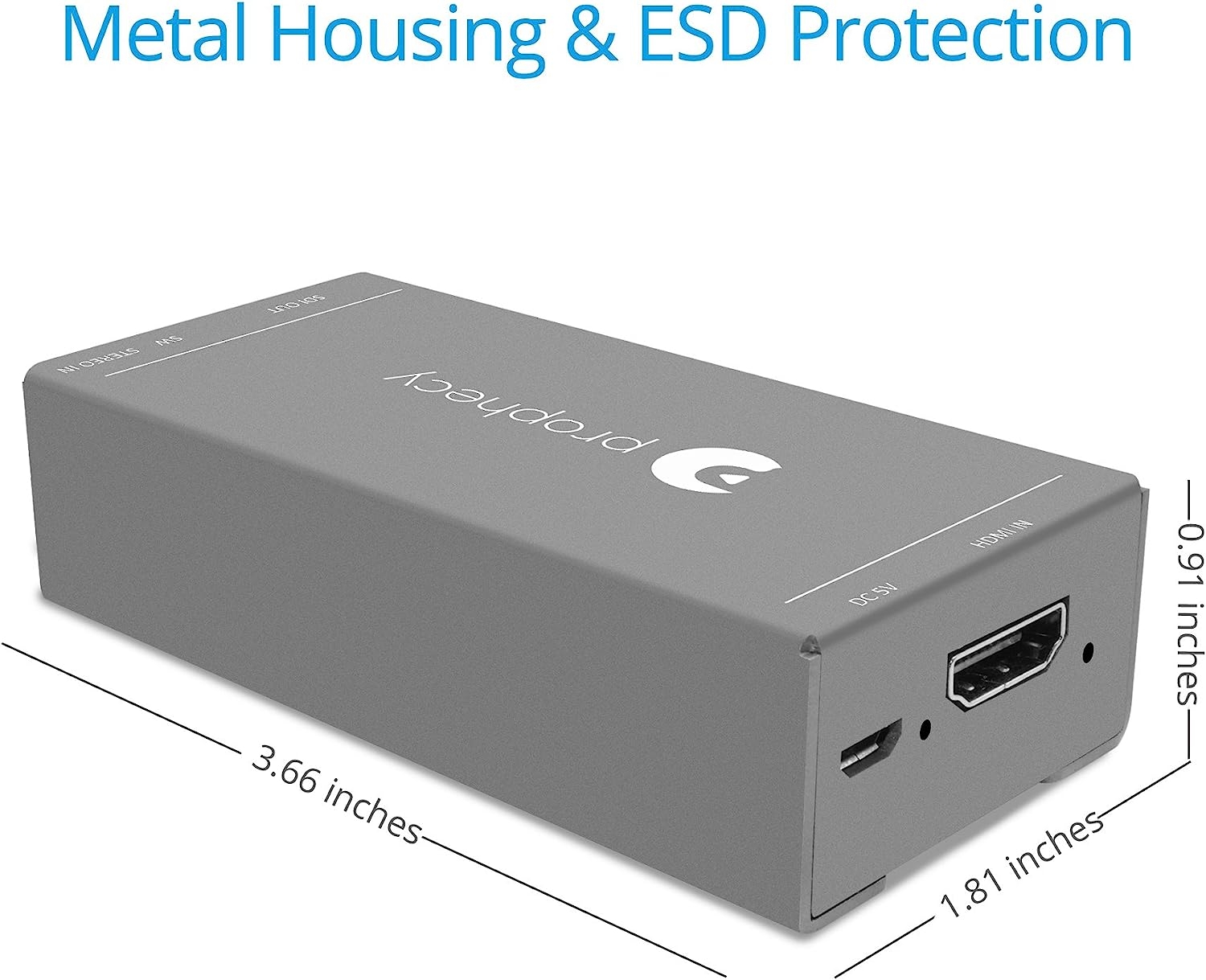

– Surface mountable metal enclosure with ESD protection
– Firmware upgradeable for expanded compatibility
– Country of origin: Taiwan
– Regulatory approvals: FCC, CE, RoHS

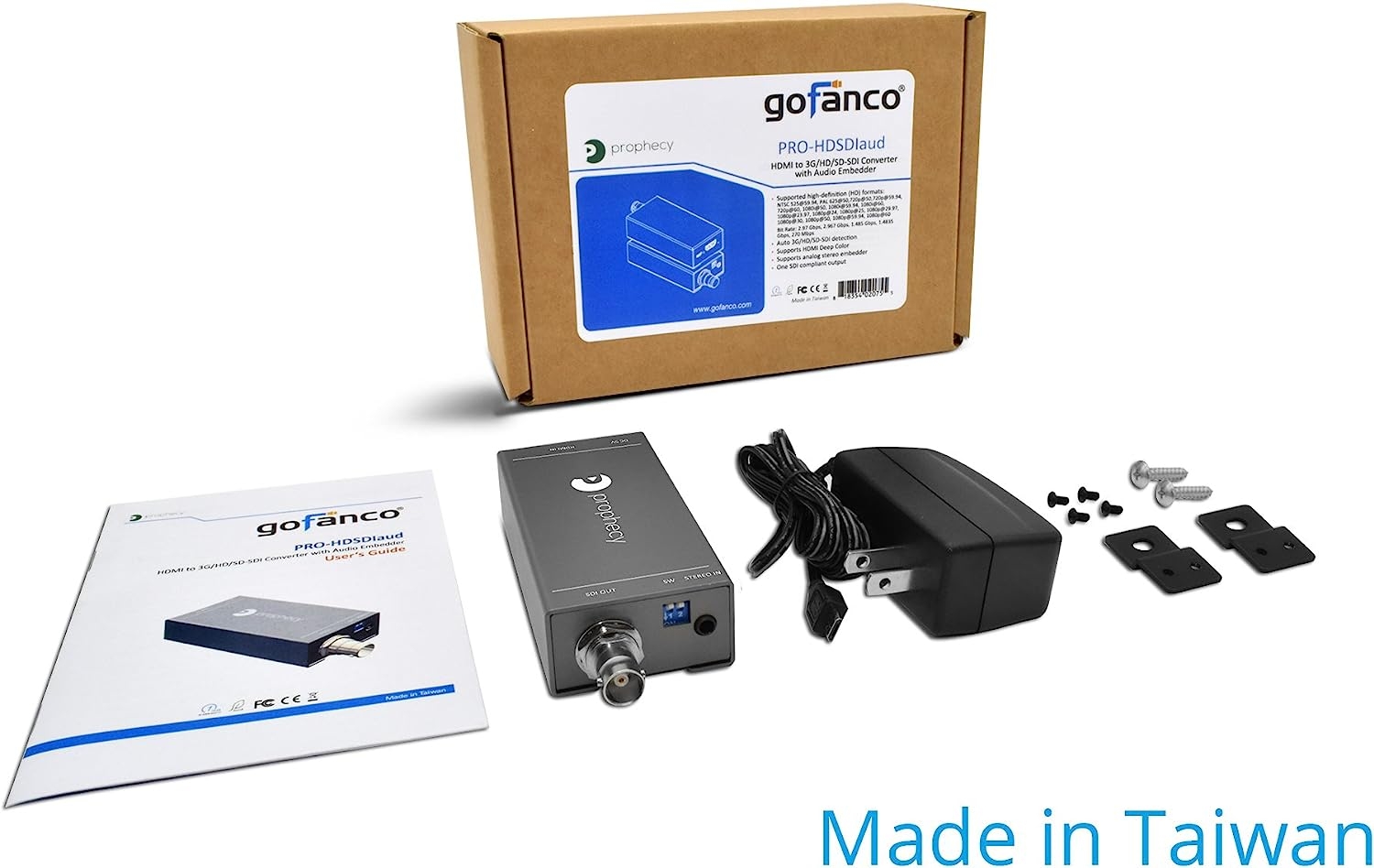

What’s in the Package
– Multi-format Video Scaler/Converter to SDI
– Power supply
– IR remote control
– Surface mounting accessories
– Software CD
– User’s manual
Warranty & Support
– Limited One-Year Warranty and Lifetime Product Support
