Description

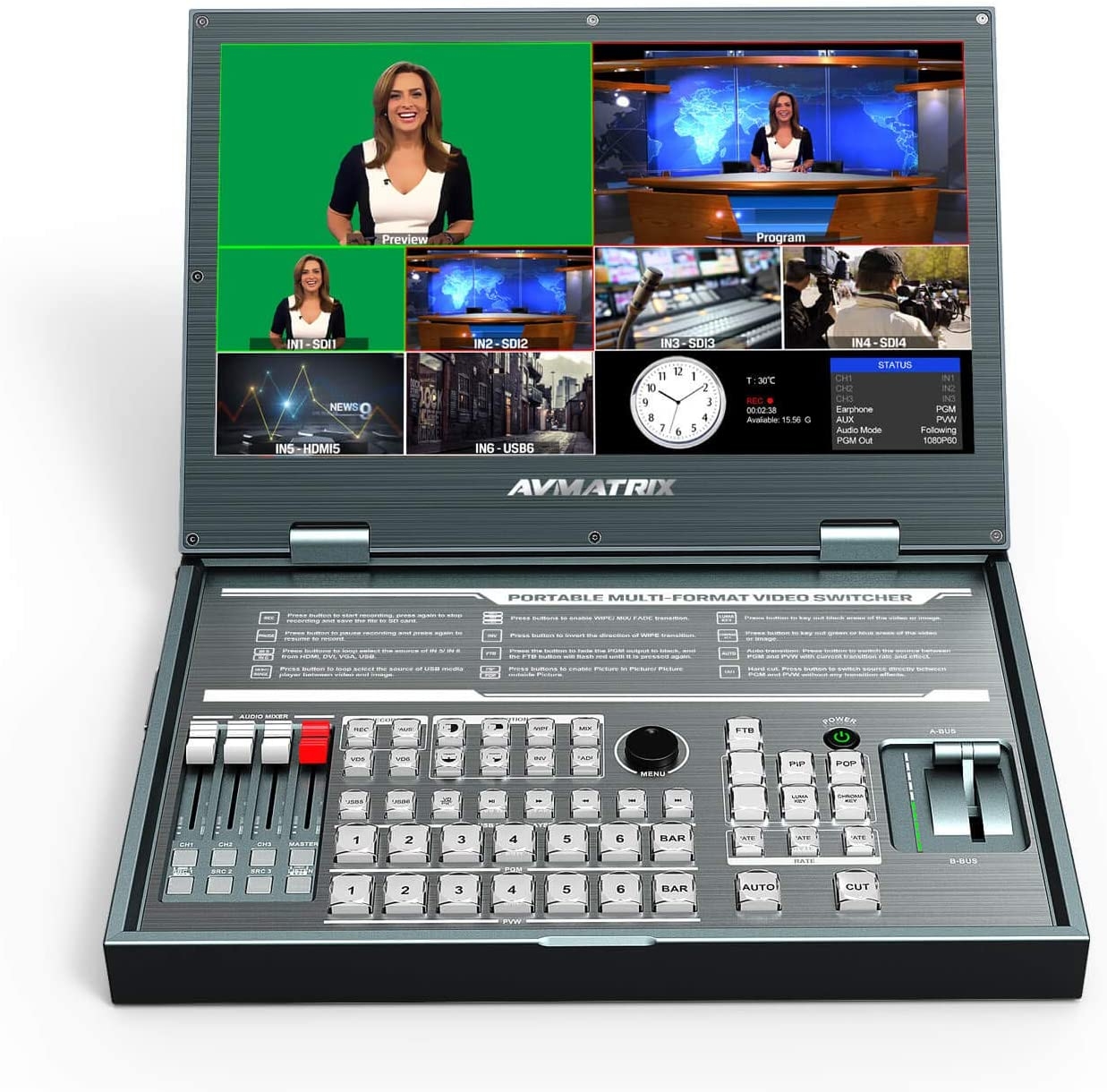

AVmatrix PVS0615 Portable 6-Channel Multi-format Video Switcher, 15.6″ FHD LCD Display, 6 Channel Inputs, Input Format Auto-Detected and PGM/AUX Output Format Selectable, Audio Mixer
PVS0615 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video recording. The unit integrated a 15.6″ LCD monitor which can be used in wide variety of venues for events, seminars, etc.
Key Features

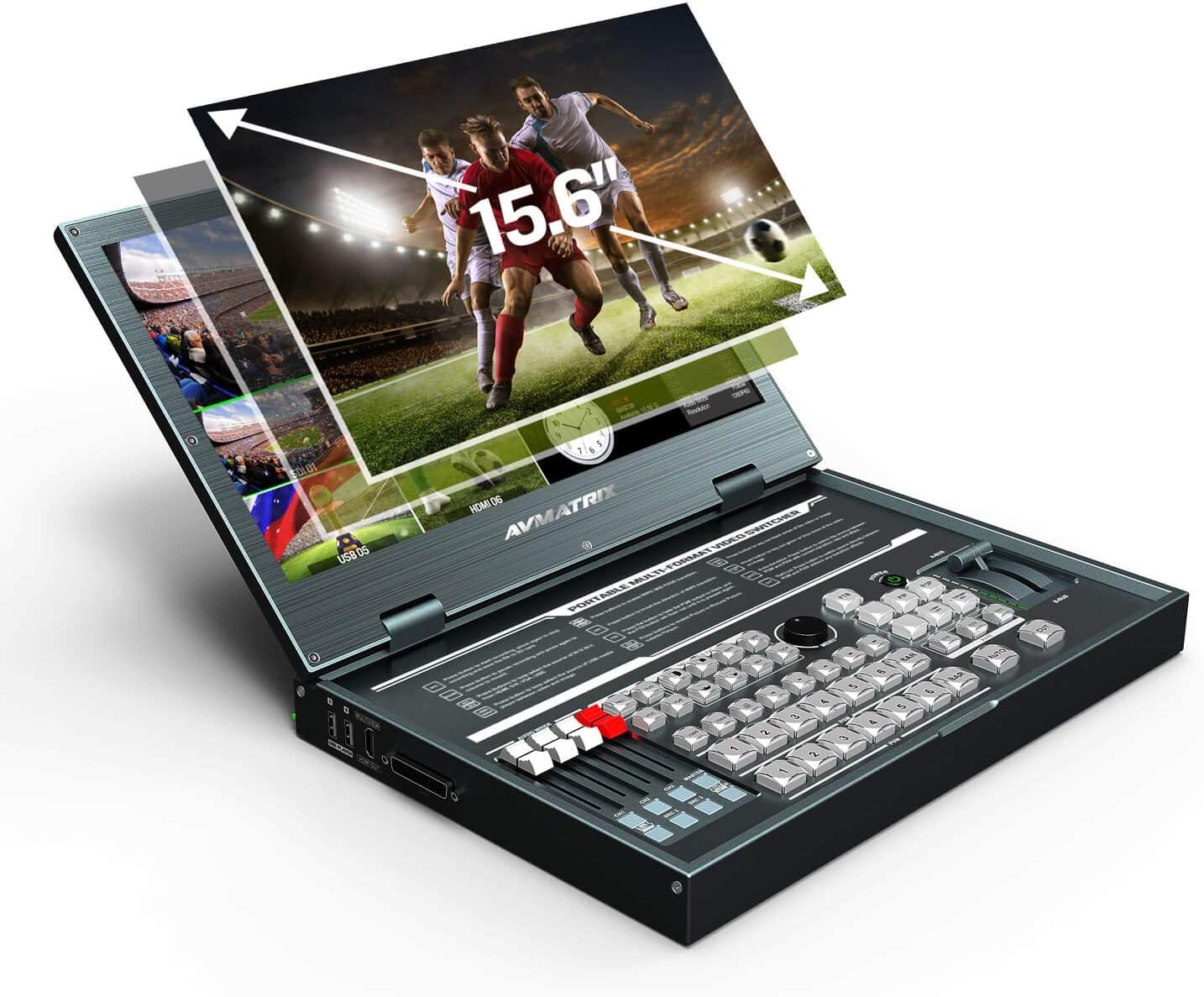

- Portable All-In-One design with 15.6 inch FHD LCD display
- 6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
- 3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
- Input format auto-detected and PGM/AUX output format selectable
- T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key for virtual studio
- PIP/POP window size and position adjustable
- Record PGM video to SD card, up to 1080p60
- Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

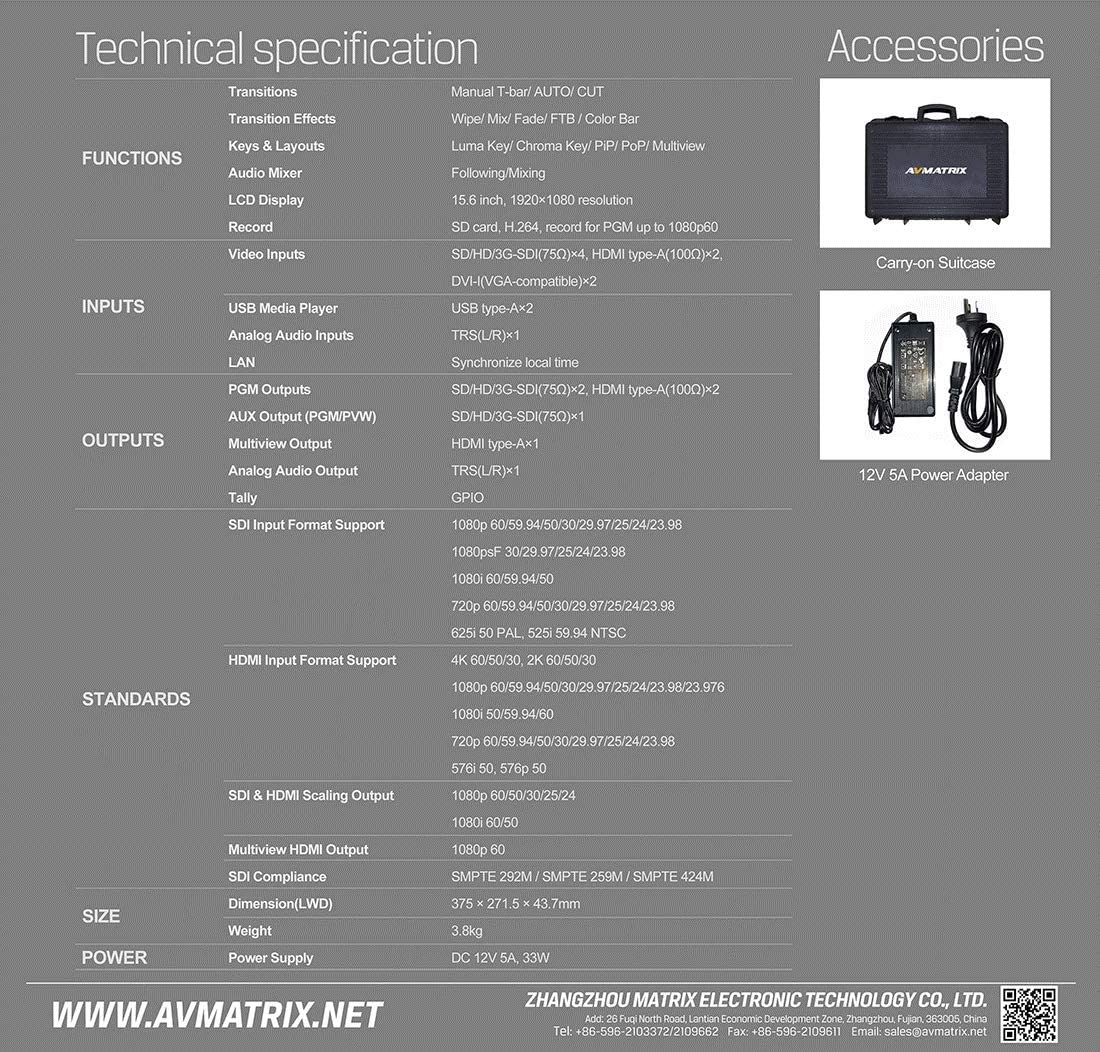

Specifications
- Resolution: 1920×1080
- Video Inputs: 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USB
- Bit Rate: 270Mbps~3Gbps
- Impedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
- SDI Video Rate: Auto detection, SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
- PGM Outputs: 3×3G/HD/SD-SDI; 2×HDMI
- PGM Output Format: 1080p 50/60/30/25/24, 1080i 50/60
- Multiview Output: 1×HDMI
- Multiview Output Format: 1080p 60
- Return Loss: >15dB 5MHz~3GHz
Signal Amplitude: 800mV±10% (SDI/HDMI/DVI/VGA)
- LAN: RJ45
- SD Card Slot: 1
- Operation Temperature: -20°C~60°C
- Storage Temperature: -30°C~70°C
- Operation Humidity: 20%~70%RH
- Storage Humidity: 0%~90%RH
- Power Supply: DC 12V 5A, 33W
- Dimensions: 10.7″W x 1.72″D x 14.76″L
- Weight: 8.38 Pounds
john moss –
Easy to use standalone no computer requiredI have worked with several video switchers and found that this one is by far the best easy to use extremely portable and very functional also having a built-in recorder to SD card extremely convenient large 16 inch screen makes viewing very easy all metal construction high-quality feeders operate very smoothly one of the best portable video switchers I’ve ever seen on the market highly recommend it
Chantal D Sira –
greatnice
Michael Zotos –
Decent Unit!Good value for the money. The technology is bit old and I wish there were more recording (higher bitrate) and transition options, but this is a solid all-metal unit that comes with a custom cut-out case and tally light adapter!
