The TPEQA5400 is the ultimate tool for sound professionals and hi-fi sound enthusiasts looking to enhance their audio system. Boasting two channels, the TPEQA5400 can take input from up to three sources via the integrated RCA inputs. Each channel sports its own 10-band equalizer with an adjustable range of ±12 dB. Equalization points are spread out over the whole spectrum of human hearing to give you the ability to boost and cut output wherever the sound takes you from highs to lows.
To TPEQA5400 features a stylish minimalist design that comes with removable rack-mounting brackets that allow you to incorporate the TPEQA5400 into standard audio control systems. In addition, the TPEQA5400 comes with a digital display that illustrates important information about equalization points. LED readouts on the equalization knobs also help illuminate settings even in dark venues.
- Inputs: RCA (3 audio sources)
- Outputs: RCA (record, line)
- Dual 10 band equalizer with individual LED indicators
- High and Low preset modes
- Frequency response: 30Hz-16kHz
- Equalization Points: 30Hz, 64Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz
- Adjustment Range: ±12dB
- Optional Signal Boost +6dB / +12dB
- Bass, Treble and Gain Controls
- Direct / Equalizer function allows option of unfiltered pass-through
- LEDs on EQ sliders can be turned on / off
- Fluorescent output meter
- Removable rack-mount brackets

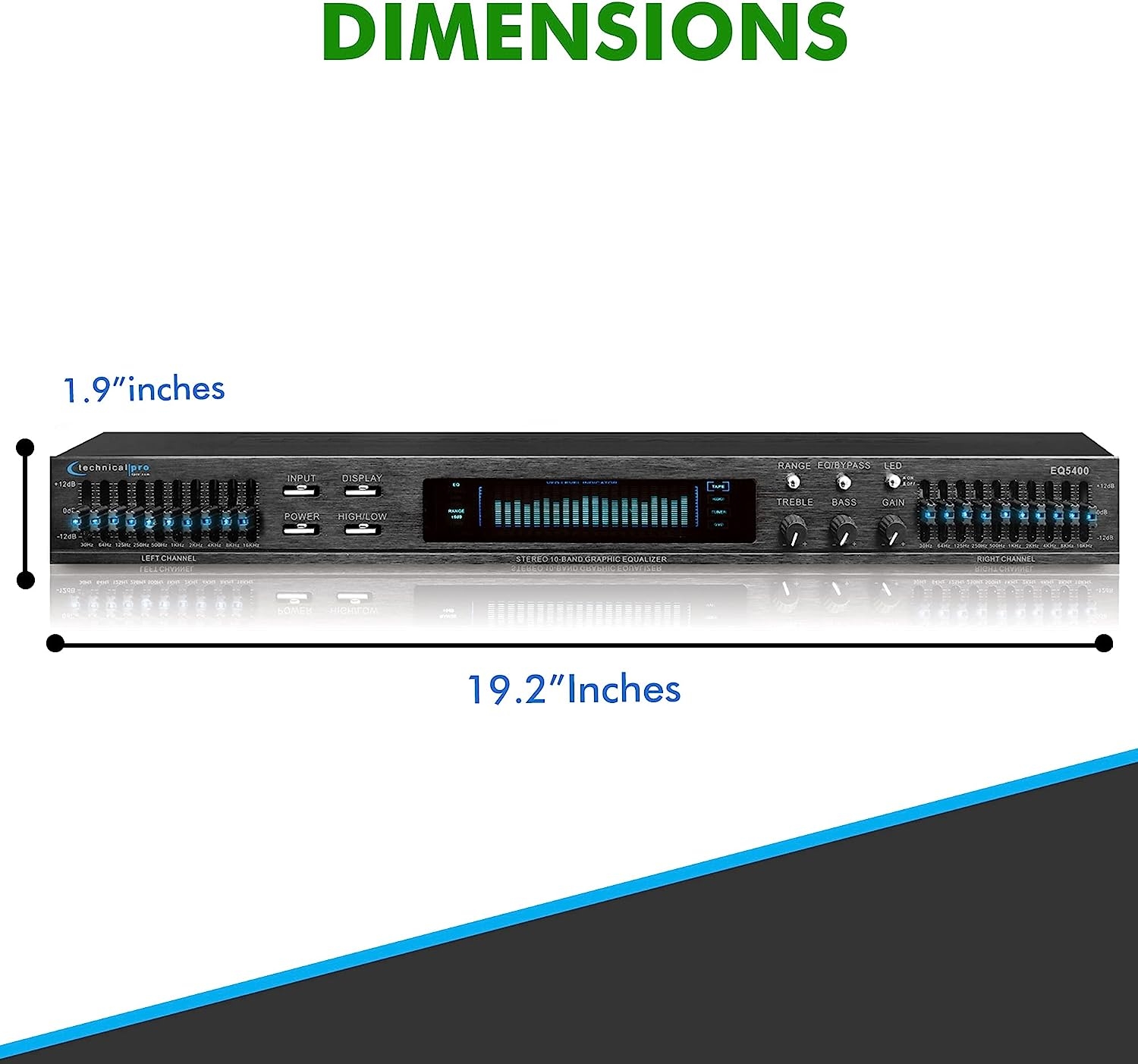

- Dimensions (L x W x H): 19.2” x 9.4” x 1.9”
