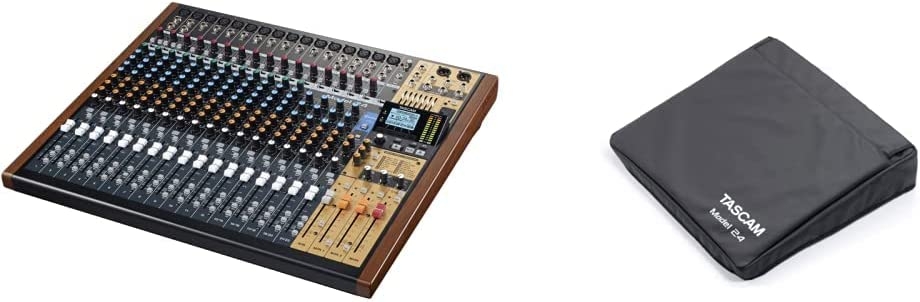

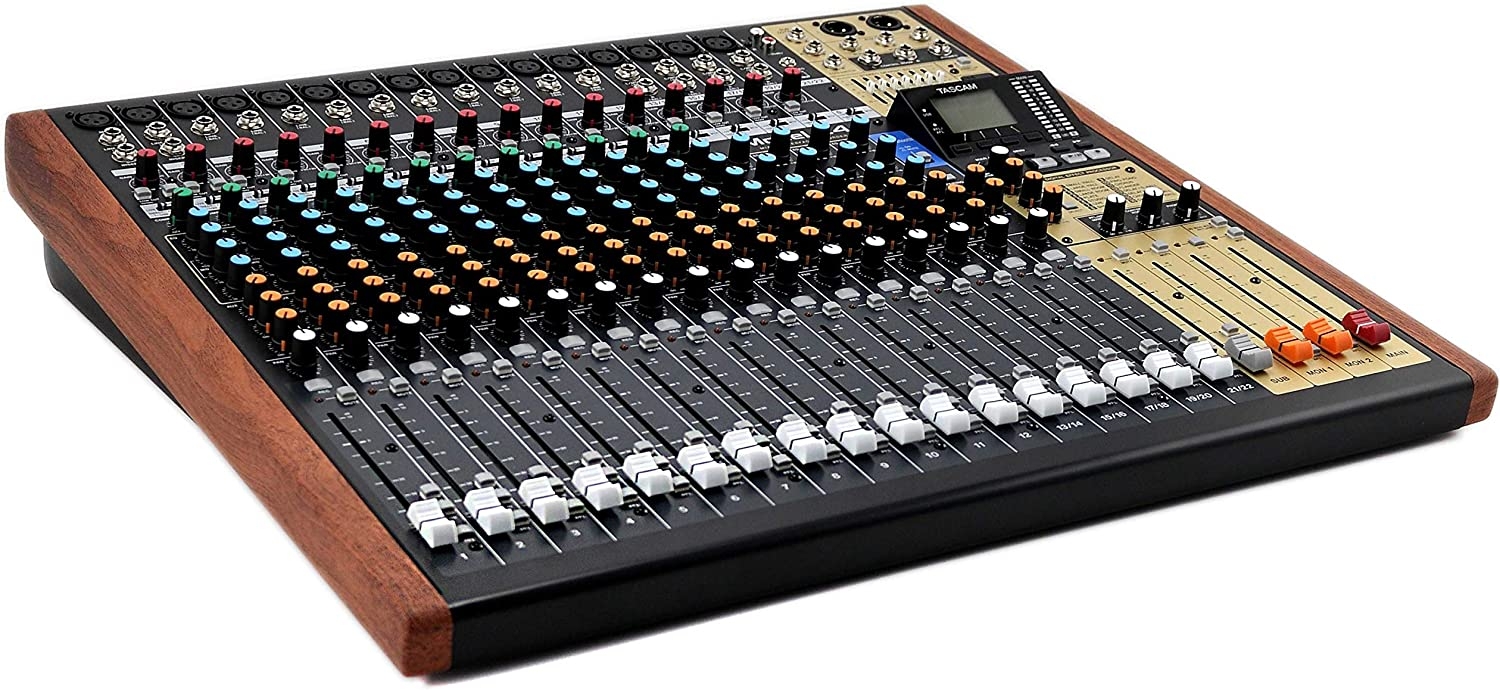

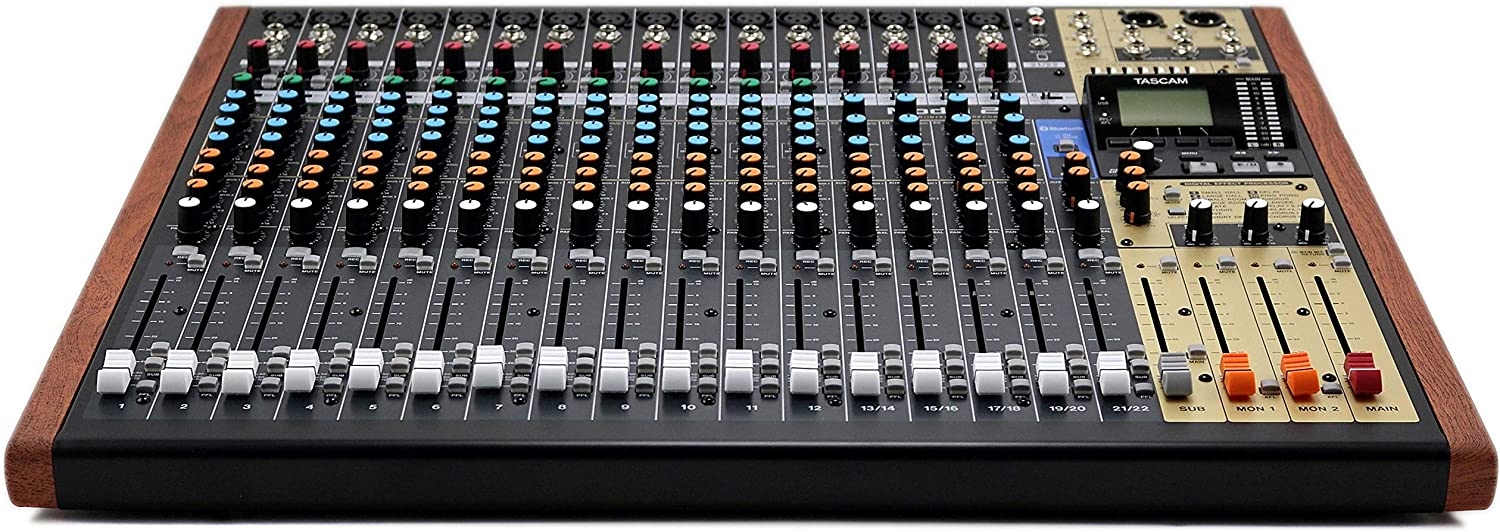

Tascam Model 24 Multi-Track Live Recording Console

(10 customer reviews)

$1,199.00

Brand Tascam
Number of Channels 4
Item Dimensions LxWxH 3 x 3 x 3 inches
Item Weight 1 Pounds
Connectivity Technology USB

  • A full set of familiar EQ and Auxiliary knobs remove the need to menu dive, and all inputs/outputs are all on the surface for easy access
  • Features 16 high-grade TASCAM mic preamps and multiple stereo line inputs for studio-quality audio performance right out of the box
  • Capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time
  • Once a take is done, easily playback any or all recorded tracks through the console for immediate mixdown; Input Impedance: 22kΩ
  • Can act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice
  • Designed to be both lightweight and rugged, it can easily be carried from studio to stage with confidence in its reliability

Description


One glance is all you need. The Tascam Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access. The Model 24 is truly a modern take on a classic design.


From the manufacturer

2

1

4

Recording Section Specifications:
  • Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB), Class 10 or higher required.
  • File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
  • Recording File Format: WAV
  • Playback Format: WAV
  • Sampling Frequency: 44.1k / 48k Hz
  • Bit Depth: 16 / 24-bit
  • Recordable Channel: Max. 24 channels (22ch + 2 stereo mix)

Tascam Model 24

Multi-Track Live Recording Console

TASCAM has continuously been providing industry-leading recording solutions for decades. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface. Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today’s working and recording musician

  • Power: AC 100 to 240V, 50/60Hz
  • Power Consumption: 52 W
  • Dimensions (W x H x D): 576 × 513 × 112.5 mm (including side panels, knobs and connectors)
  • Weight: 22.04 lbs.
  • Provided Items: AC Cord, Owner’s manual

24 Channel Multitrack Recorder with Integrated USB Audio Interface and Analog Mixer

1

2

1

1

Simple, Intuitive Design

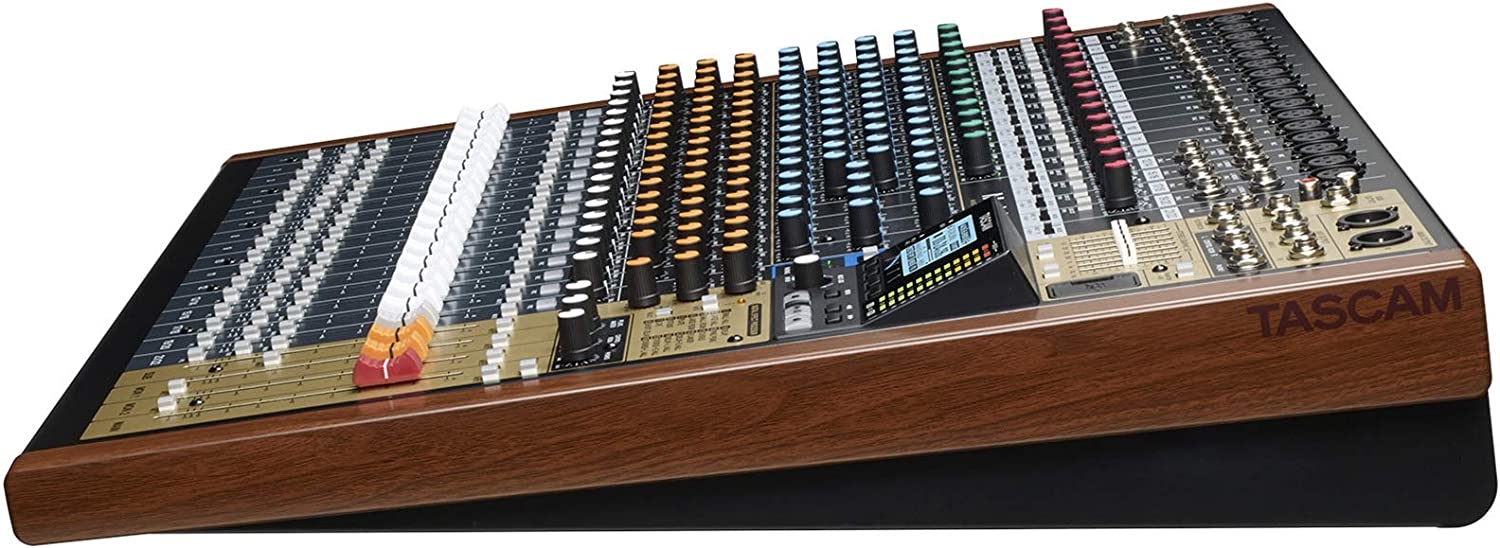

One glance is all you need. The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

TASCAM’s Revolutionary Recording Technology

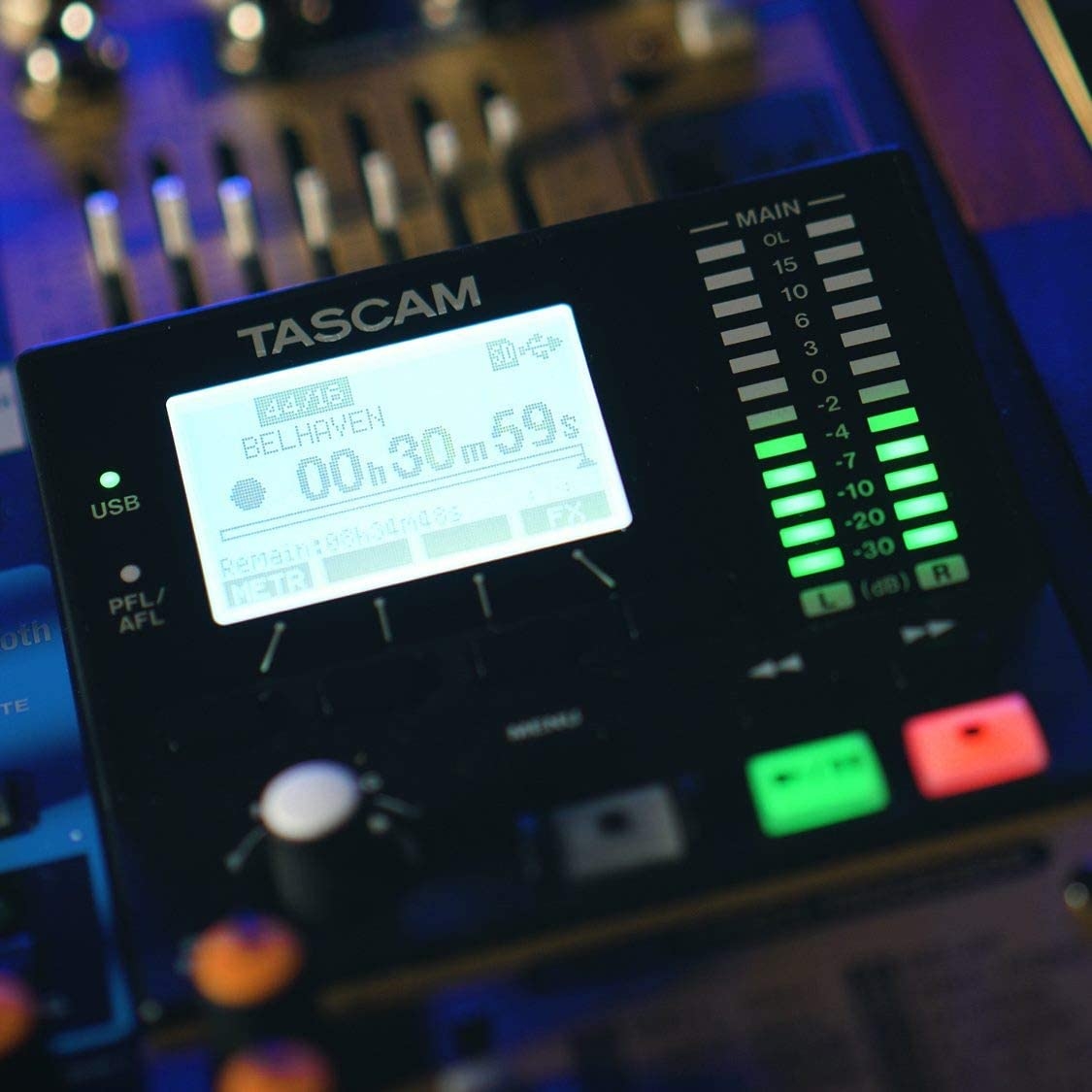

Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it’s time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

Flexible Connectivity

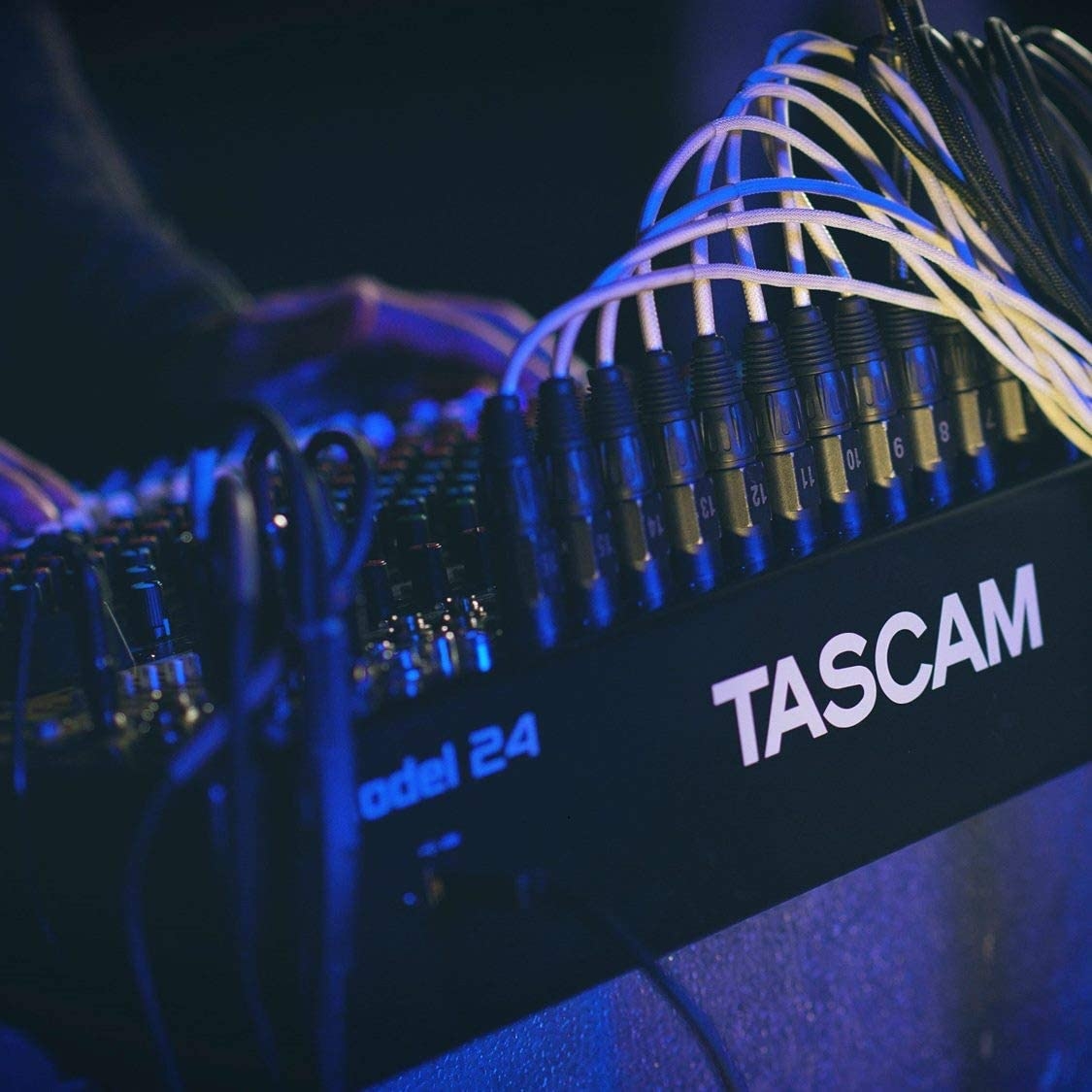

In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8”, dual RCA Bluetooth connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

Durability and Reliability

Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM’s legendary reliability will keep the music going.

4

A True Triple Threat

The best of both worlds, the TASCAM Model 24 is a full featured 24 Track Digital Multitrack Recorder and 24 Channel USB Audio Interface with integrated Analog Mixdown capabilities. From stage to studio, the Model 24 helps you bring your music together in one easy-to-use device.

4

A True Triple Threat

1

Record

1

Connect

1

Mix

2

Channel Surfing

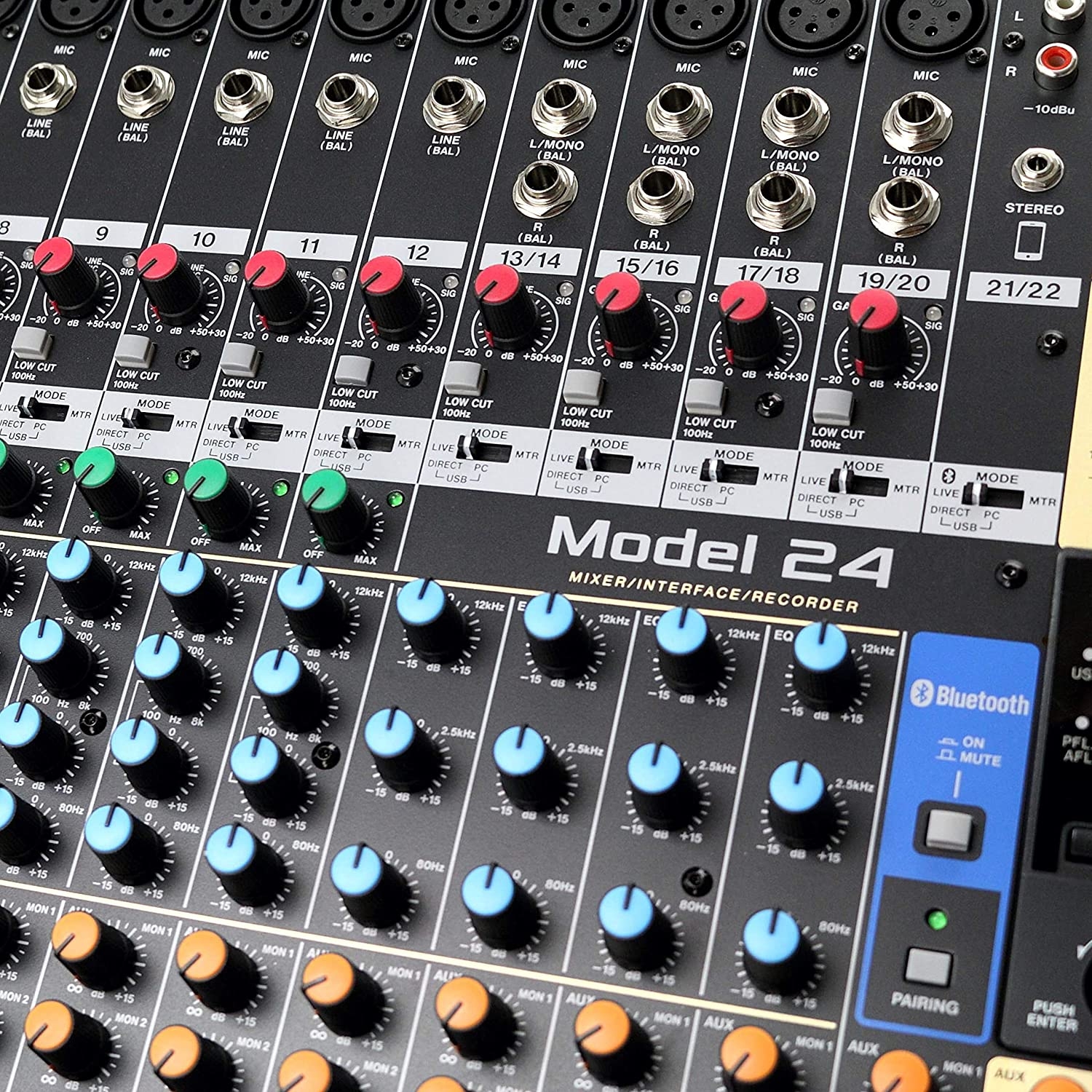

Designed for use on the road and in the studio, The Model 24 features four different channel strip configurations. The first two channels feature both an XLR input as well as a switchable line/instrument level ¼” input. These are followed by a ¼” TRS Insert connector for easy patching of a compressor, EQ or other effects. Next are the preamp gain controls (with overload indicator LED), switches for a 100Hz Low cut and the Line/Instrument level select switch.

2

Channel Surfing

4

Master and Commander

4

Make Tracks

1

Live and Let DAW

Additional information

Weight 1 kg
Dimensions 3 × 3 × 3 cm
Item Weight

‎1 Pounds

Product Dimensions

3 x 3 x 3 inches

Country of Origin

‎China

ASIN

B07G5S1J6L

Item model number

Model24

Date First Available

August 4, 2018

Hardware Interface

USB, SDHC, SDXC, USB 2.0

Media Format

Digital

Manufacturer

Tascam

10 reviews for Tascam Model 24 Multi-Track Live Recording Console

  1. Warren G. Beatty

    Excellent analog mixer with digital recordingLove the feel of a mixing desk! Getting around and getting to know it was fairly easy. Sound is excellent as well as use with my Mac and getting tracks to and fro. This is a great way to get away from your DAW!My first 4-track was a cassette 4-track in 1987. Using this Tascam gave me “that feeling again” as weird or cool as that may sound.So far, I’ve had no issues with use or function.

  2. teleguitarist

    In the early stages of use as it was just delivered it’s very very coolI had a big headache getting this from Amazon but they came through and I appreciate that. The unit based on the size I would suggest that the manufacturer consider a bigger digital display. you have this gigantic piece of real estate and you have this small less than my cell phone size screen? That’s the only thing so far that I found I don’t like I’m just getting into it and I’m gonna be recording up a lot of stuff I may edit my review down the road

  3. thebradyarnold

    Great Product With a Few Little Headaches IncludedI am upgrading my review to 4 stars because finally I was able to work out the problems on my own. One of the problems is that it’s unclear whether or not the card is actually being formatted when you first insert a new one. I found out that whatever the function is that occurs when you first insert a card, it’s not formatting, and you still need to do that in order for the unit to record without disk write errors. I should say with less disk write errors because still after formatting I had a disk write error although the formatting seemed to greatly reduce the errors.In using this as an interface I wasn’t able to get it to work with Windows 7. It was only after I switched to Windows 10 that the driver and unit would work on my PC. Also when recording straight to daw I noticed a small amount of crosstalk between tracks / channels.I like how it sounds overall, as the preamps are pretty dang sweet! I’ve been able to make a few great sounding recordings with it so far. Overall it’s a pretty good recorder / interface with a few quirks that you’ll have to live with.

  4. H

    This has potentialThis has potential as a stand-alone but I wish that Tascam was more clear on which of their models are DAW CONTROLLERS. I bought the model 24 in hopes of controlling tracks on my DAW & using the 7 band EQ’s. Unfortunately after days of trying to figure out the formatting of the card to updating the firmware & following various video tutorials on turning this into a DAW controller, I came to find that model 24 is NOT a DAW controller. The only model that does this is Model 12. I only found this out after scrolling through comments on Tascam’s YouTube videos. Because of this I had to return it. I wish there were more affordable dual layer consoles that give you a hybrid of digital & analog sound, most are like $3,000+.. hopefully this helps someone else that was looking to do the same with their DAW.

  5. SGPlayer

    Great BoardI love the board. It has a bit of a learning curve but is so nice to have controls accessible without dropping down menus. I do wish the screen was a little larger.

  6. David D Duncan

    whatever you record does NOT have any of the effects.whatever you record does NOT have any of the effects. sounds great live but you get raw sound on recordings. the only way to get the effects in a recording is to send it out to another device. useless.

  7. G. Bauer

    Glad the EQs can be adjusted as knobs, and not just in a computer menu!This is a great sounding mixer and recorder, useful for studio recording and live sound. 16 mic input channels are really fantastic! The mix can be heard on the output channels, fully EQd, while all channels can be recorded without being affected by the EQ or fader position. Perfect for well mixed and EQd live sound and at the same time, recording of a direct signal that can be EQd and mixed later in your favorite mixing software. The only small drawback is that phantom power is applied to all channels simultaneously, so if you have vintage ribbon mics that might be damaged by phantom power, you may not want to plug them into the phantom power carrying inputs; you need to put a phantom power blocker in between the mic and the input.

  8. Paul Raymond

    This thing is awesome..I’m beyond stoked and completely satisfied with my purchase, This Tasscam 24 is amazing, with the built-in audio interface, compressor, preamps, and equalizers you’re basically buying three or four different pieces of equipment in one. I was blown away by the analog sound quality when I ran my guitar and vocals through channels one and two for the first time. The one knob compressor sounds amazing, you just dial it into your taste, the equalizers with sweeping mid-band range is awesome. I have no doubt my band and I are going to be able to produce a studio quality sounding album off of this board.

  9. ATN TV

    All what we need in our churchHas everything we live the clear sound out and the audio compressor on each channel

  10. pbjason

    Great piece of gearI love this thing. Preamps and EQ sounds great. The onboard effects are pretty decent. However, this thing could benefit from having an onboard metronome. Not a huge deal since you can use this as an interface with your DAW of choice. But for people like me who use this as a stand-alone recorder, a metronome would be awesome. Overall, I would recommend this to anyone from the semi-pro engineer to the bedroom artist. Happy recording!
