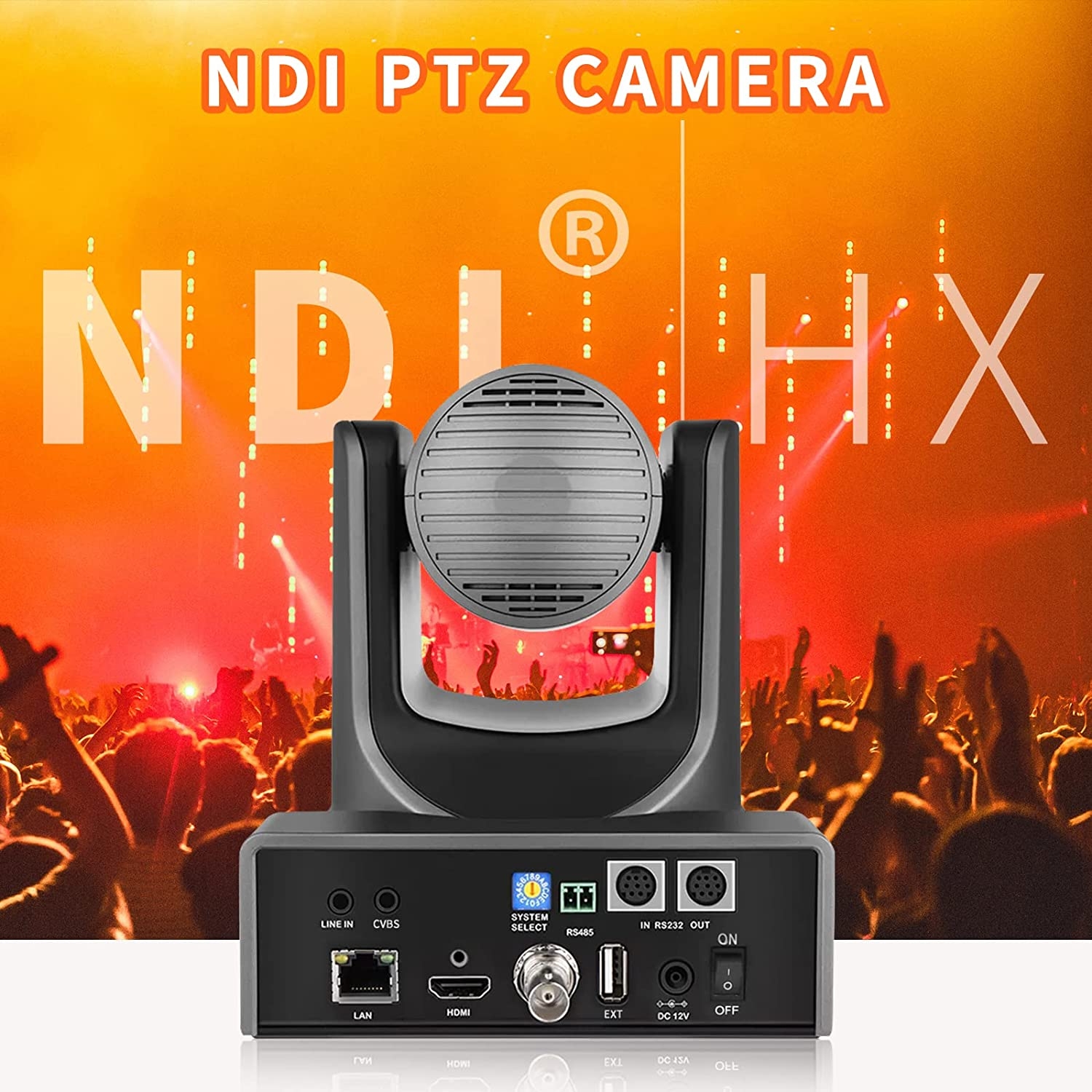

SHSTVAME NDI PTZ Camera,12x Optical Zoom Simultaneous HDMI/3G-SDI/IP Live Streaming Camera,NDI HX for Video


Connectivity Technology HDMI/3G-SDI/LAN
Flash Memory Type SD
Color Black and grey
Special Feature Low Light
Screen Size 2.7 Inches
Optical Zoom 12 x
Photo Sensor Technology CMOS
Camcorder type Video Camera
Included Components Power adapter, remote control, manual, connection cable

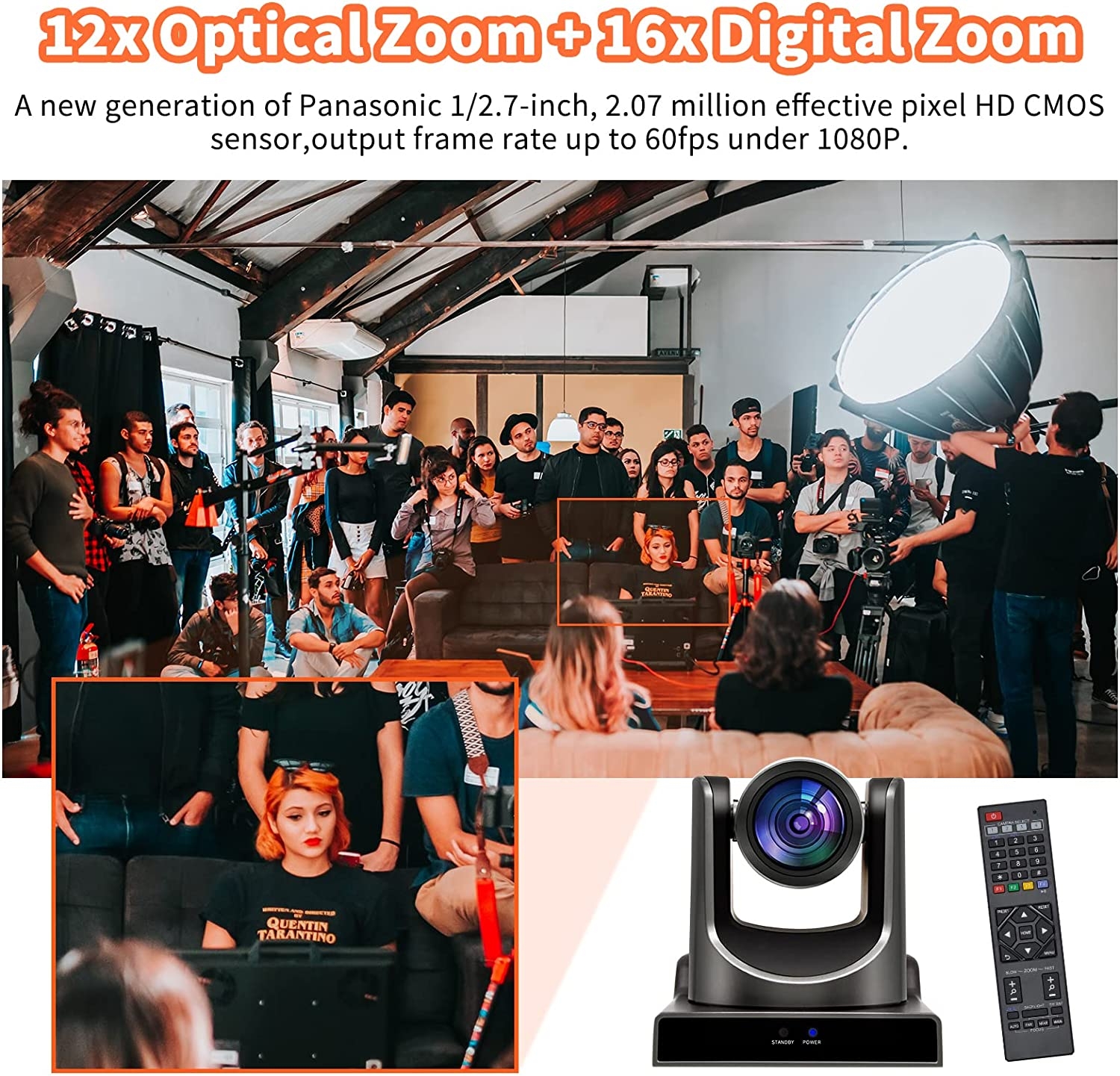

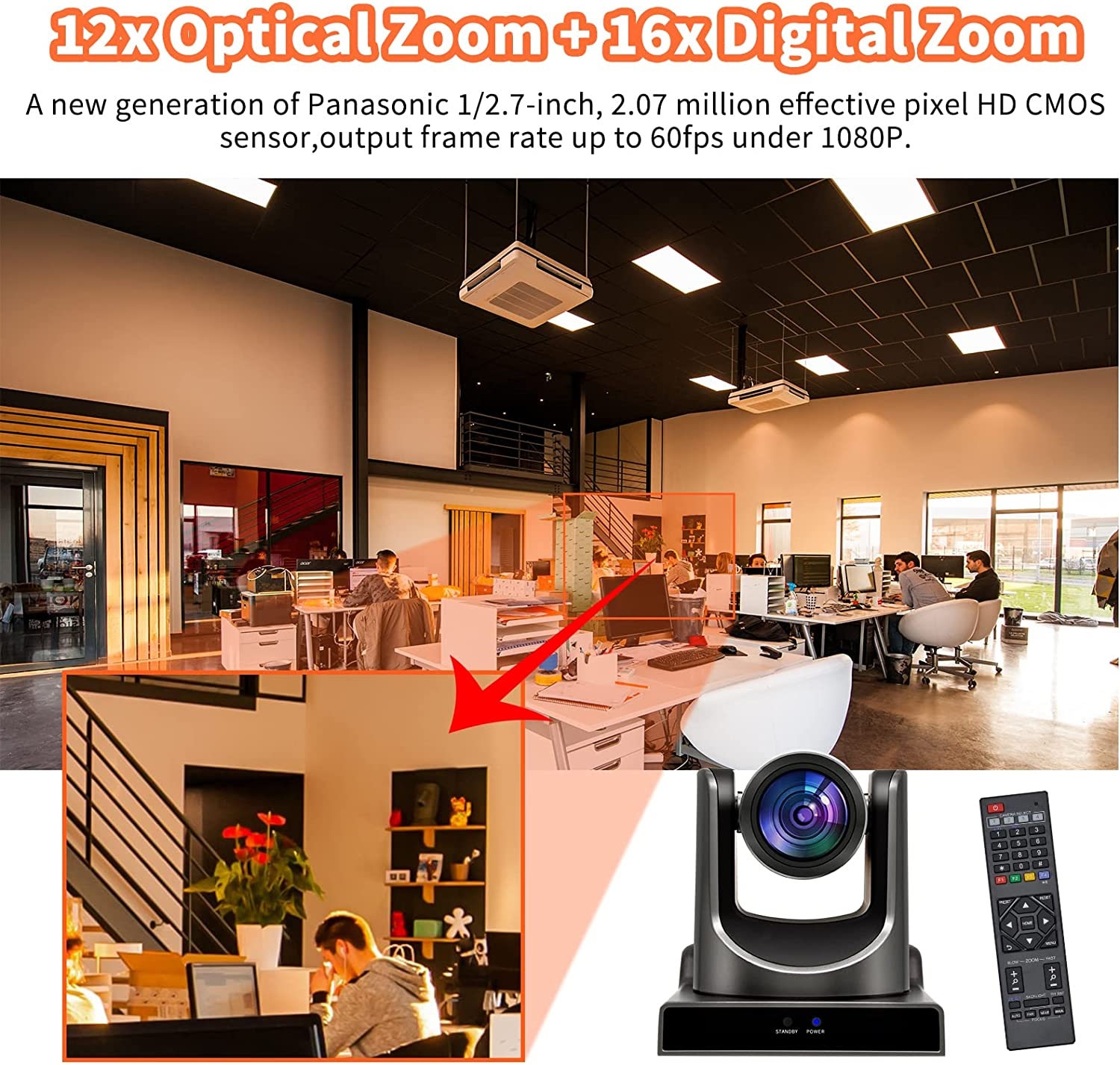

  • 【12X HDMI PTZ Camera with NDI Supports】Licensed by Newtek, you can get ultra-low latency, high quality, frame accurate video streaming and PTZ control via NDI protocol with just one Ethernet cable.Application of Panasonic 1/2.7-inch, 2.07 million effective pixels of high quality HD CMOS sensor, 12x optical zoom + 16x digital zoom, 72.5 ° ultra-wide angle lens, a wider field of view. Upgraded AI technology enables automatic identification and tracking of target portraits.
  • 【Full HD Professional SDI Camera】Support H.265/H.264/MJEPG encoding standard, realize full HD 1080p/60fps ultra-low bandwidth transmission.ISP image processing algorithm provides better white balance and auto exposure function. 2D and 3D noise reduction algorithms are used to keep images clear even in ultra-low illumination. Support AAC audio encoding for better sound quality.
  • 【Smooth and High-speed PTZ Control】This NDI camera supports horizontal rotation (-170° to 170°) and vertical rotation (-30° to 90°), multiple control methods such as the included IR remote control, or using RS232 and RS485 serial ports (serial joystick).Support 255 preset positions (10 can be set via the remote control). Compliant with TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP and other network protocols, can support advanced functions of live streaming.
  • 【Rich and Perfect Interface】Simultaneous output of HDMI, 3G-SDI and IP streaming media, effective transmission distance up to 150 meters, in addition to support CVBS SD output. It is perfectly compatible with vMix, OBS, Zoom, Skype, Google Hangouts, GoToMeeting, BlueJeans and other video conferencing software. Widely used in video conferencing, live streaming, church service, distance education, web broadcasting and other fields.
  • 【30 Days Money Back Guarantee and Lifetime Product Support】You will get 12x NDI PTZ camera, power adapter, IR remote control, user manual, serial control cable. Any questions please contact us, our customer service will reply you within 24 hours and will surely provide a satisfactory solution for you.


Product Description

PTZ Camera HDMI 20x

Professional NDI PTZ Camera With AI Technology

1080P60 NDI|HB

It supports 1080P60 NDI|HB technology, which brings us ultra low latency high-quality audio and video signal transmission, which can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision.

Equipped with 1/2.7″, 2.07 million effective pixels high quality HD CMOS sensor, It can reach maximum 1920 x 1080 high resolution and achieve quality image.

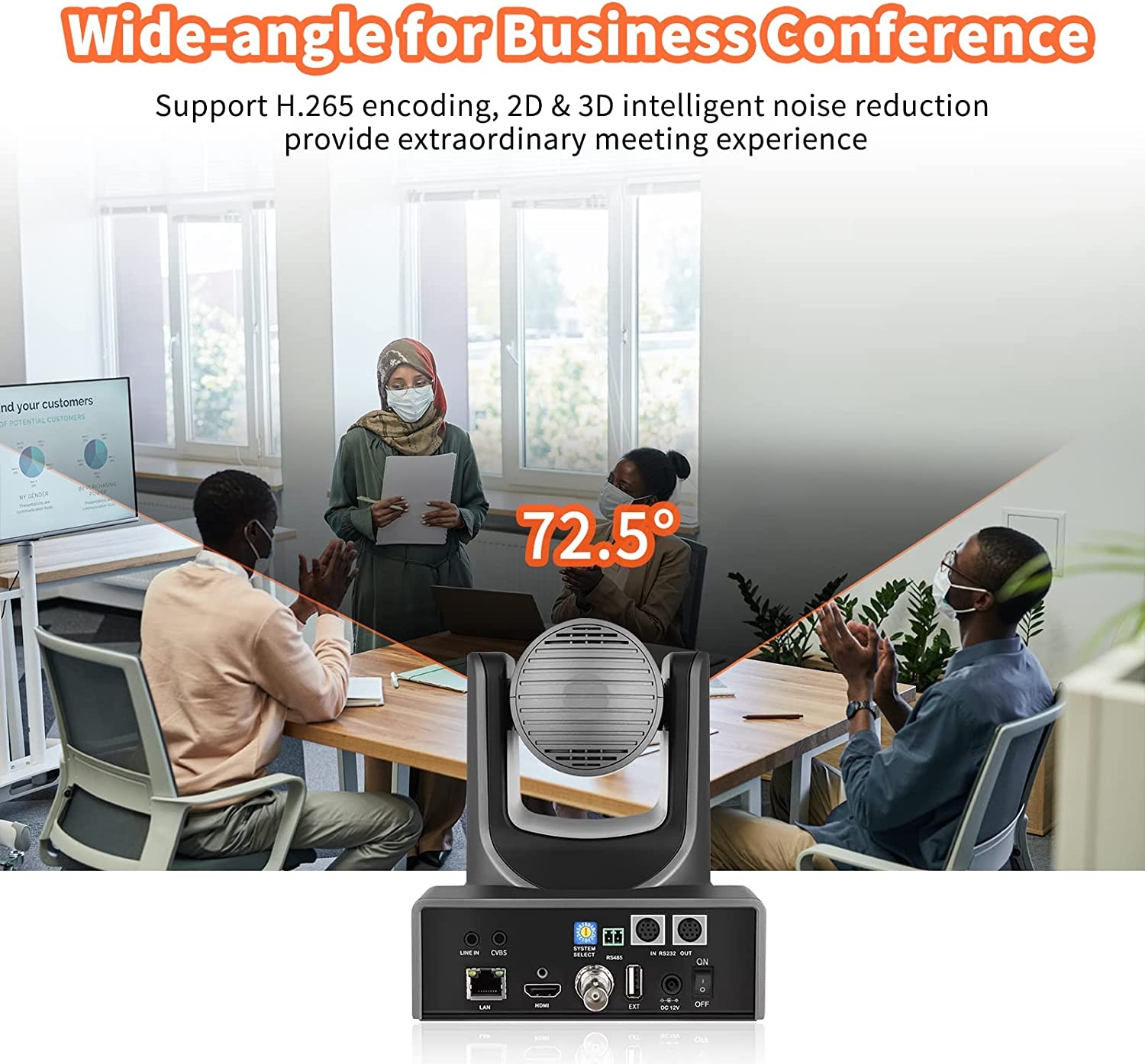

72.5° Wide-angle Lens + 12x Optical Zoom

Using high-quality ultra-high-resolution Full HD lens, the maximum horizontal field of view is up to 72.5° , while supporting classic 12x optical zoom.

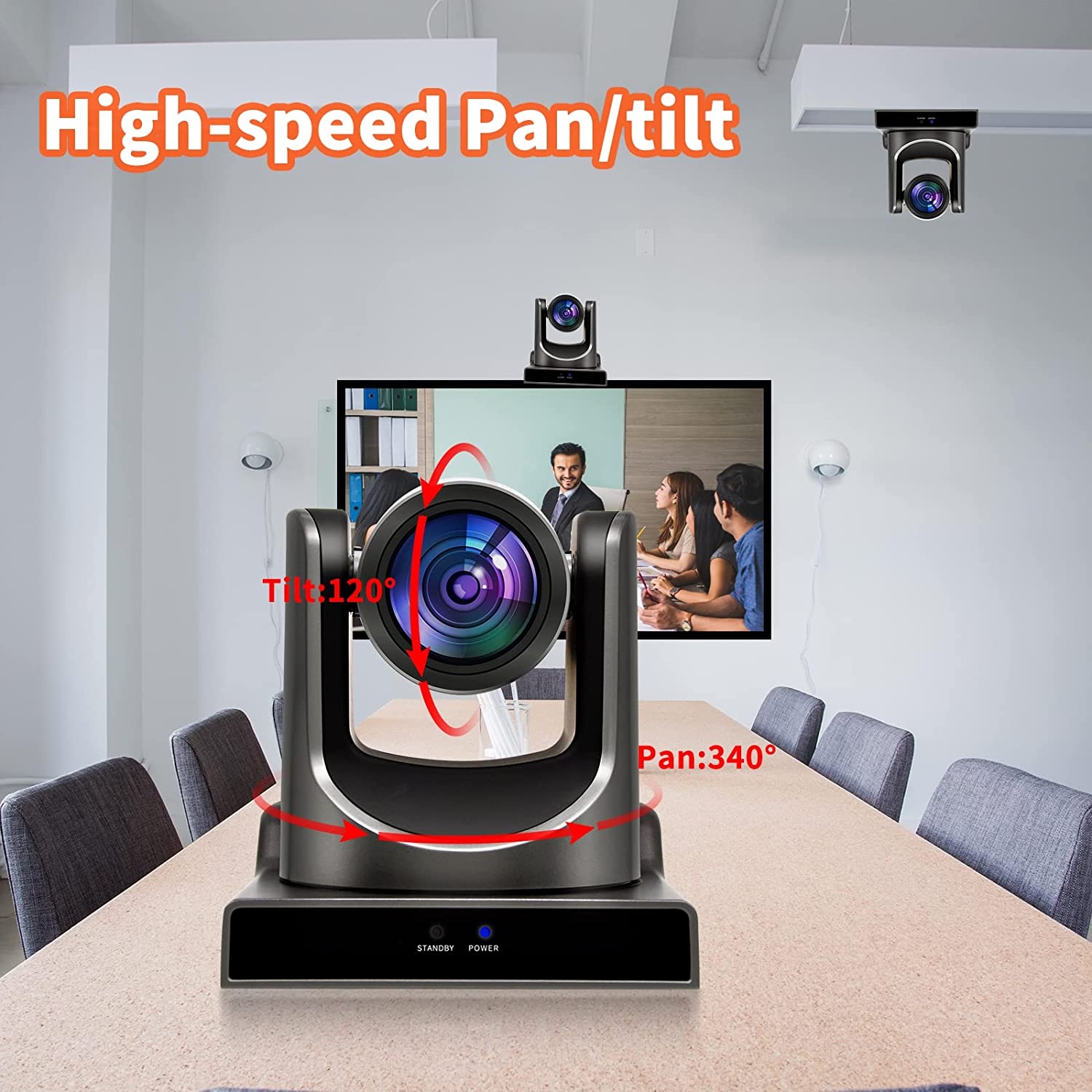

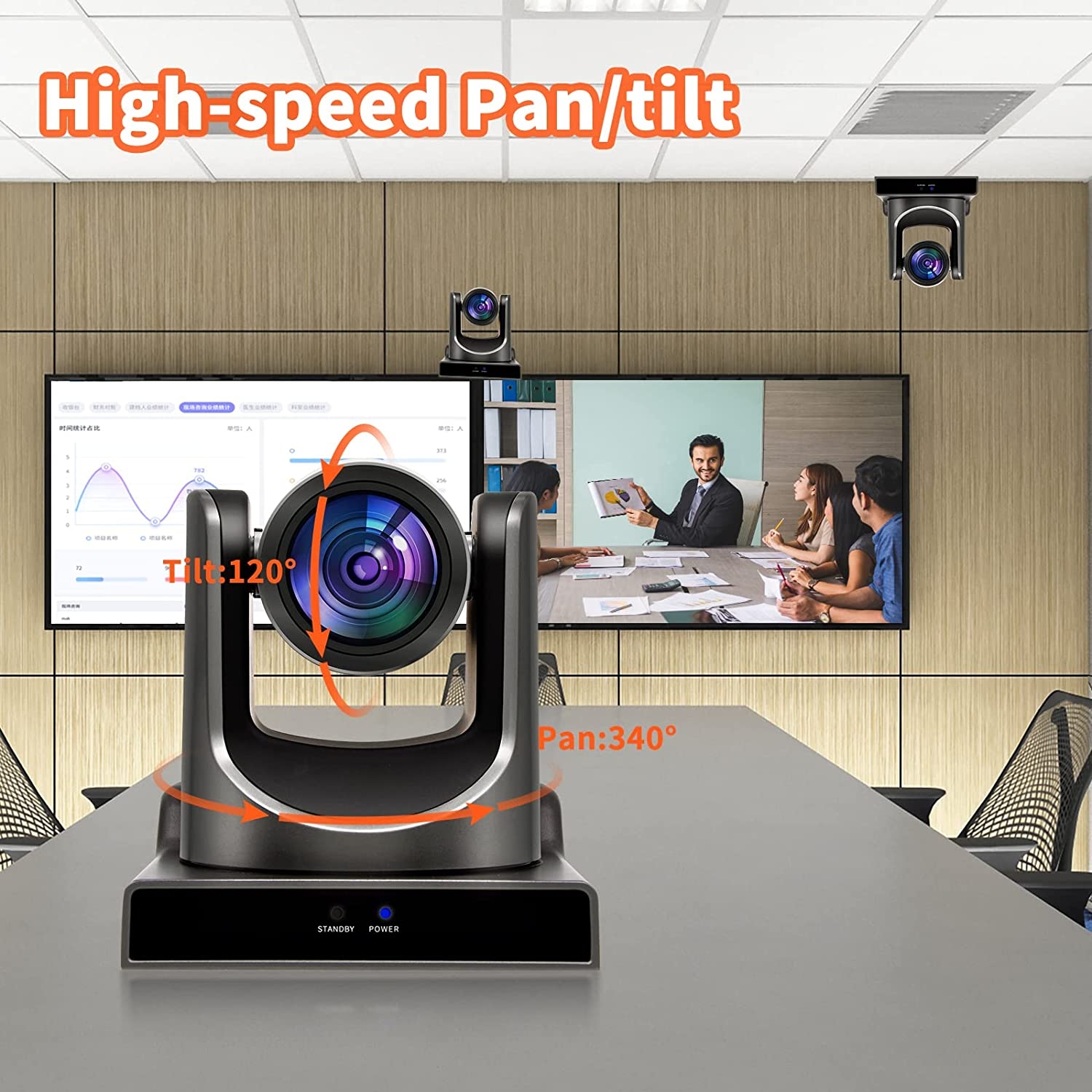

Electromechanical head

Built-in self-developed electromechanical head, the horizontal rotation range can reach ±170 ° , the rotation speed range is 1.7°~ 100° /s; the vertical rotation range can reach -30°~ 90° , and the rotation speed range is 1.7°~ 69.9° /s.

Interfaces Miltiple Interfaces,low-latency output of all

It supports 3G-SDI, HDMI, USB and network audio and video to output 1080P60 at the same time, and all video output interfaces meet the low-latency index.

Uncompressed Professionally video output

With HDMI 1.3 and 3G-SDI interface, it can directly output uncompressed digital video.

Leading Auto Focus Technology

Using advanced focusing algorithm, the lens can focus quickly, accurately and stably.

Upgraded AI Technology

Using upgraded AI technology and pedestrian re recognition technology, it can accurately determine the location of each person based on information such as pedestrian clothing, body shape, hairstyle, and face recognition, and realize automatic identification and tracking of target human figures, automatic frame selection, and intelligent privacy for meetings.

PTZ Camera for Church Services Worship

Auto Tracking PTZ Camera with IP Live Streaming

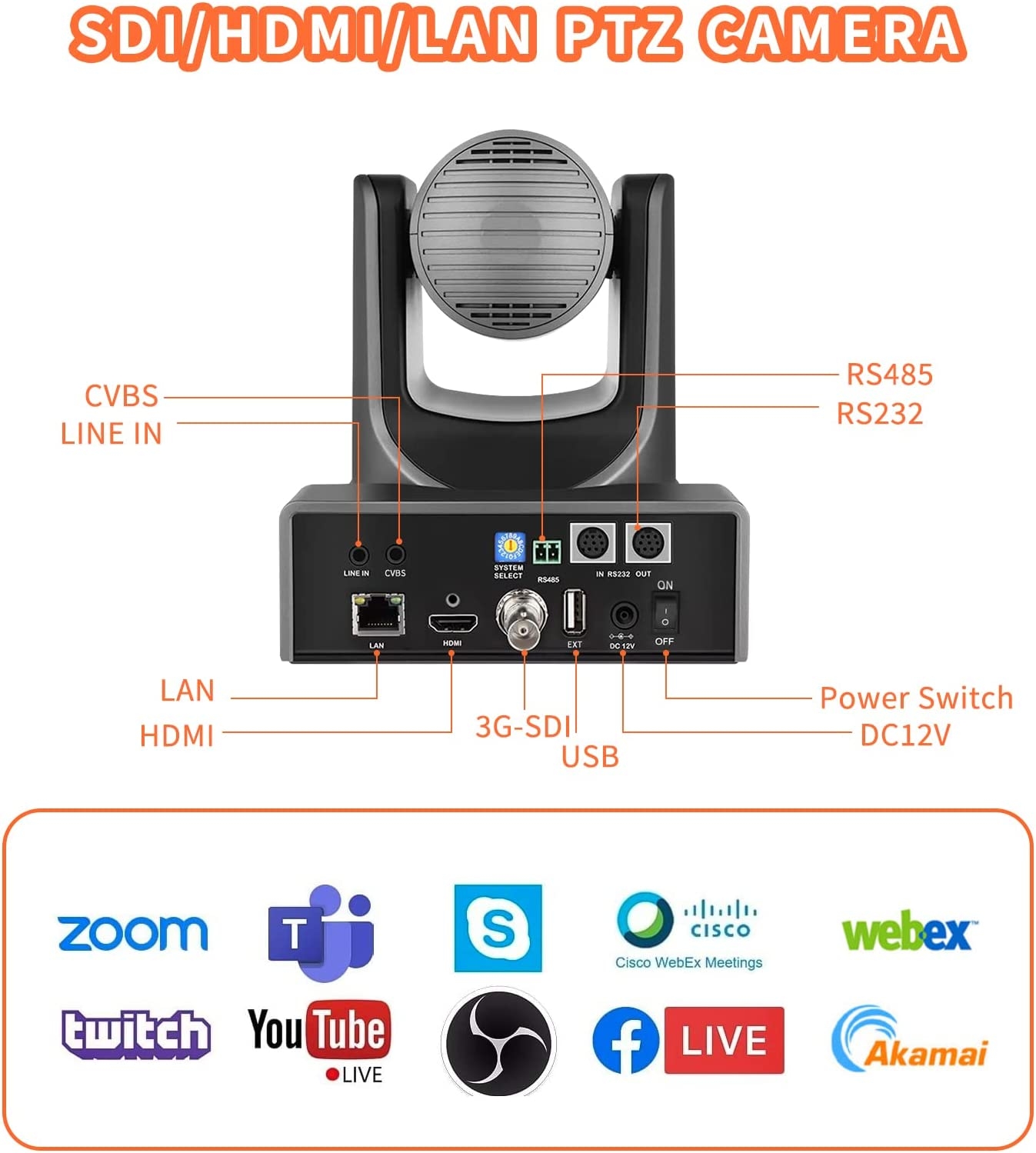

  • USB Interfaces — 1 x USB3.0,Type-A
  • HD Output — 1 x HDMI: Version 1.3;1x3G-SDI: BNC, 800mVp-p, 75Ω, as SMPTE 424M standard
  • Network Interface — 1x RJ45: 10M/100M/1000M adaptive Ethernet,Support PoE
  • Audio Interface — Built-in dual microphones,1 x Line In, 3.5mm Jack,1 x Line Out, 3.5mm Jack
  • Control Interface — 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;

1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D/ Pelco-P;

1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only

  • Power Interface — JEITA type (DC IN 12V)

Remote Control

Through the RS232 and RS485 serial ports and USB, the camera can be controlled remotely.

Operating System Supported

Windows 7 (only 1080P and below supported), Windows 8.1, Windows 10,or higher macOS 10.10 or higher Google Chromebook Version

29.0.1547.70 or higher Linux (support UVC).

Video Camera with SDI, HDMI and IP Outputs

Streaming Camera with HDMI, PoE Supports

Main Spec

Video Output 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94*
Sensor 1/2.7 inches, CMOS, Effective Pixel: 2.07 Megapixels
Scanning Mode Progressive
Focal Length 12X, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
White Balance Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
SNR ≥ 55dB
Horizontal FOV 72.5° ~ 6.9°
Vertical FOV 44.8° ~ 3.9°
Pan Angle ±170°
Tilt Angle -30° ~ +90°
Video Compression H.265 / H.264
Dimensions 5.6” W x 6.7” D x 6.5” H
Net Weight 3.00 lbs [1.36 kg]

Important information

Visible screen diagonal

3″ / 7 cm

Additional information

Dimensions 9.7 × 7.9 cm
Brand Name


Item Weight

7.43 pounds

Package Dimensions

‎11.6 x 9.7 x 7.9 inches

Item model number


Color Name

‎Black and grey

Special Features

‎Low Light



Date First Available

August 31, 2022
