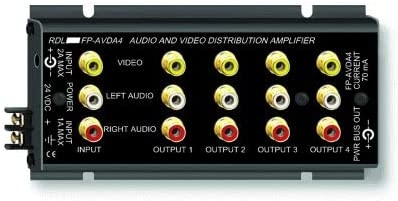

Radio Design Labs RDL FP-AVDA4 Stereo Audio-Video Distribution Amplifier – 1×4 RCA Jacks

$389.00

  • RDL FP-AVDA4 1×4 Stereo Audio/Video Distributor/Phono Jacks
  • Consumer Audio/Video Distribution Four Outputs (Video + Stereo Audio)
  • Professional Quality Performance 75 O Video Input/Outputs
  • Unbalanced Audio Input/Outputs Wideband Video – Flat to 10 MHz
  • Ultra-Compact All Metal Construction

Description

VIDEOInput:Phono jack, 1 V p-pInput Impedance:75 ΩGain:UnityOutputs (4):Phono jackOutput Level:1 V p-p (into 75 Ω)Frequency Response:10 Hz to 10 MHz (+/- 0.2 dB)Noise:<-75 dB (below 1 V p-p)Output Isolation: 45 dBDifferential Gain:0.1%Differential Phase:0.1 degree (measured at 10% and 90% APL)AUDIOInputs (2):Phono jacks (stereo), -10 dBV UnbalancedInput Impedance:10 kΩ, bridgingGain:UnityOutputs (8):Phono jacks (4 stereo)Output Impedance:150 Ω drives 10 kΩ linesFrequency Response:20 Hz to 40 kHz (+/- 0.25 dB)THD+N:<0.05%; typ. 0.01% (1 kHz)IMD:<0.02%Output Level:-10 dBVHeadroom: 18 dBNoise:<-85 dB below ???10 dBVCrosstalk:Better than 75 dB (20 Hz to 20 kHz); typ <-90 dB (1 kHz)Power Requirement:GROUND-REFERENCED, 24 Vdc @ 60 mADimensions:Height: 1.20 in. 3.05 cmWidth: 3.25 in. 8.26 cmLength: 6.41 in. 16.28 cmAmbient Operating Environment:0 C to 55 C

Additional information

Weight 15.2 kg
Dimensions 9 × 4.88 × 1.42 cm
Package Dimensions

9 x 4.88 x 1.42 inches

Item Weight

15.2 ounces

ASIN

B01D8O8ORU

Date First Available

August 10, 2016

Manufacturer

Radio Design Labs
