Pyle 4 Channel Wireless Microphone System-Portable UHF Audio Set with XLR Jack-4 Handheld Dynamic Mic, Receiver, Dual Antenna,

(10 customer reviews)



PylePro Model : PDWM4520

4-Ch. UHF Wireless Microphone System Kit

Wireless Microphone System, UHF Quad Channel Fixed Frequency, Rack Mountable, Includes (4) Handheld Microphones


  • UHF Band Receiver System
  • Quad Frequency 4-Channel Design (Channel 1, 2, 3, 4)
  • Broad Frequency Response Range & Low Distortion
  • High Signal/Noise Ratio Performance
  • RF Signal & AF Signal LED Indicators
  • Radio Frequency and Audio Frequency
  • (4) XLR Output Connector Jacks
  • Independent Channel Adjustable Volume Controls
  • Rack Mountable System

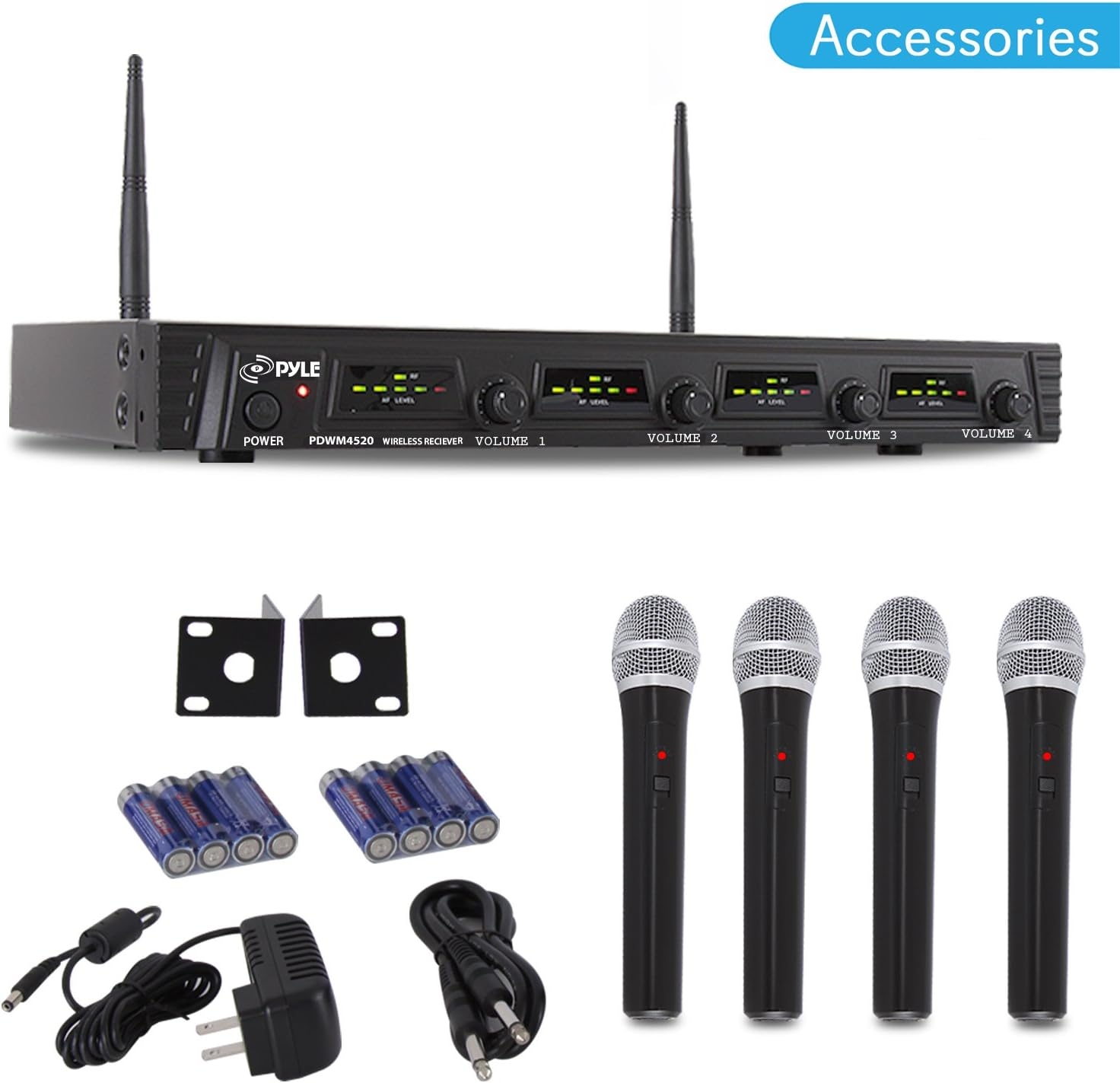

What’s in the Box:

  • Base Receiver
  • (4) Wireless Microphones
  • Rack Mount Hardware
  • Wall Power Adapter


  • RF Power Output: >10dBm
  • Modulation Type: FM
  • Max. Deviation: +/- 40kHz
  • Nominal Power Current: <40mA
  • Spurious Emission: >55dBc
  • Battery Operated, Requires (2) x ‘AA’ Batteries -Each

System Receiver:

  • Wireless Operating Frequency Range: 573.0 – 597.8 MHz
  • Image & Spurious Rejection: >70dB
  • Receiving Sensitivity: -105dBm
  • Signal/Noise Ratio: >85dB
  • T.H.D.: <0.5%
  • Audio Output Level: 0-300mV
  • Power Supply: 110/220V (12-15V DC Power Adapter)
  • Dimensions (L x W x H): 15.51” x 9.25” x 2.16” -inches

The Pyle PDWM4520 delivers clear, noise-free wireless transmission and excellent sound reproduction. Simple setup and installation allow you to transmit clear sound instantly. System features include (4) individual balanced XLR output jacks for additional connectivity. Enjoy quad channel voice distribution across the four included handheld microphones. Whether used for work or play, for on-stage vocal performances or conference room speeches, this wireless microphone system will provide you with a quality audio experience. Enjoy hassle-free and reliable wireless sound transmission with today’s latest system technology with this all-in-one package.

Additional information

Weight 453.59 kg
Dimensions 12.07 × 52.07 cm




Model Name

‎4 Channel Wireless Microphone System – Portable UHF Audio Mic Set with XLR Jack – 4 Handheld Dynamic Mic, Receiver, Dual

Part Number


Hardware Platform

Karaoke Machine

Compatible Devices

‎Radio, Speaker

Mounting Hardware

‎Microphone, Remote Control, Power Adapt, Speaker

Number Of Items


Noise level

‎85 dB

Microphone format

‎Microphone System

Power source type

‎Battery Powered

Batteries Included


Batteries Required


Signal-to-noise ratio (dB)

‎85 dB

Connector Type


Does it contain liquid?


Includes AC Adapter


Item model number


Product Dimensions

‎31.12 x 12.07 x 52.07 cm; 453.59 Grams




2 AA batteries required.

Date First Available

26 March 2015


Pyle, Sound Around

10 reviews for Pyle 4 Channel Wireless Microphone System-Portable UHF Audio Set with XLR Jack-4 Handheld Dynamic Mic, Receiver, Dual Antenna,

  1. Pamela

    I host karaoke. They take some abuse and still work very well.
    Four mics under 200$ I though well if they last a season great… the take a lot of hits and drops hosting 3-5 nights of karaoke. After 3 years 2 stoped working so I gave the set away and bought the same set again.. they sound great with very little issue . Easy to use . For the money they are the best value. Very rare to drop signal and it’s un noticed by any one but me.. I have shure brand mics as well but I use these ones for karaoke and have no complaints.. excellent buy and value.. I was very surprised and happy …

  2. Roberto

    Para lo que se paga es muy buen micrófono 🎤Llevo 3 años comprando este microfonoMuy bueno

  3. Rich “Whiskey” Rutledge

    Cut out too much, but the price is very nice.
    Let me start by saying, that I run karaoke on a semi-professional level and this is about my 3rd mic system purchased. I’ve slowly been upgrading my gear, little by little.Pros: I like that the antenna are rear mounted. The system I had prior were front mounted and always in the way. The price on a (4) mic UHF system, is probably the best I’ve seen out there. I like that you have the option of plugging in each mic to a separate channel on the mixer or one single 1/4″ jack. The sound quality is also actually pretty good.Cons: The mics have intermittent issues with the sound. It started with one of the handsets and quickly the other three followed suit. I’m OCD when it comes to my shows, so I always change out the batteries at the beginning and I use name brand alkaline batteries. If it weren’t for this one little/big issue, I would be perfectly happy with the product. A minor thing – the handsets seem a little light, so they don’t have that well constructed solid feel to them.

  4. MJB

    No cords
    Tried this out and we love the sound quality!! Perfect for the stage and the separate controls are great!!

  5. Blaine Parks

    Short term option only!
    I gave 4 out of 5…mics feel cheap and lightweight. Sound is ok, expanding out 50 feet away. Some have start acting up but ok product for a short term fix.

  6. Karla

    Pictures are not accurate!
    I bought these specifically because I needed 4 hand held microphones, when they arrived the box only had 2 handhelds, the other 2 were ear pieces. I thought I made a mistake when ordering so I ordered a replacement with 4 handhelds and returned the original but got the same exact thing.

  7. J. A. Clark

    Mics were 50ft from the receiver in the sound booth and the trio that sang sounded awesome! Much better than the original corded mics
    Used for the first time in a sanctuary environment. Mics were 50ft from the receiver in the sound booth and the trio that sang sounded awesome! Much better than the original corded mics.Only concern is that the rechargeable AA batteries we tried to use would not make contact and power the mics. The AA batteries that came with it have a longer positive terminal.

  8. Robert Jordan

    PDWM 4520 4 mike system
    Bought this system for my church….to go head to head with a SHURE system….. dollar for dollar… they hold their own. They aren’t a $500 SHURE system… but they aren’t RADIO SHACK either.

  9. Danny Edwards

    Solid mics
    Solid mics, a bit bulky but well put together, great sound. Easy to use for my drunken Karaoke patrons. Easy battery replacement.

  10. Charlie W

    Four Stars
    Great sound for the price. Very light weight. Be careful with handling them.
