Description

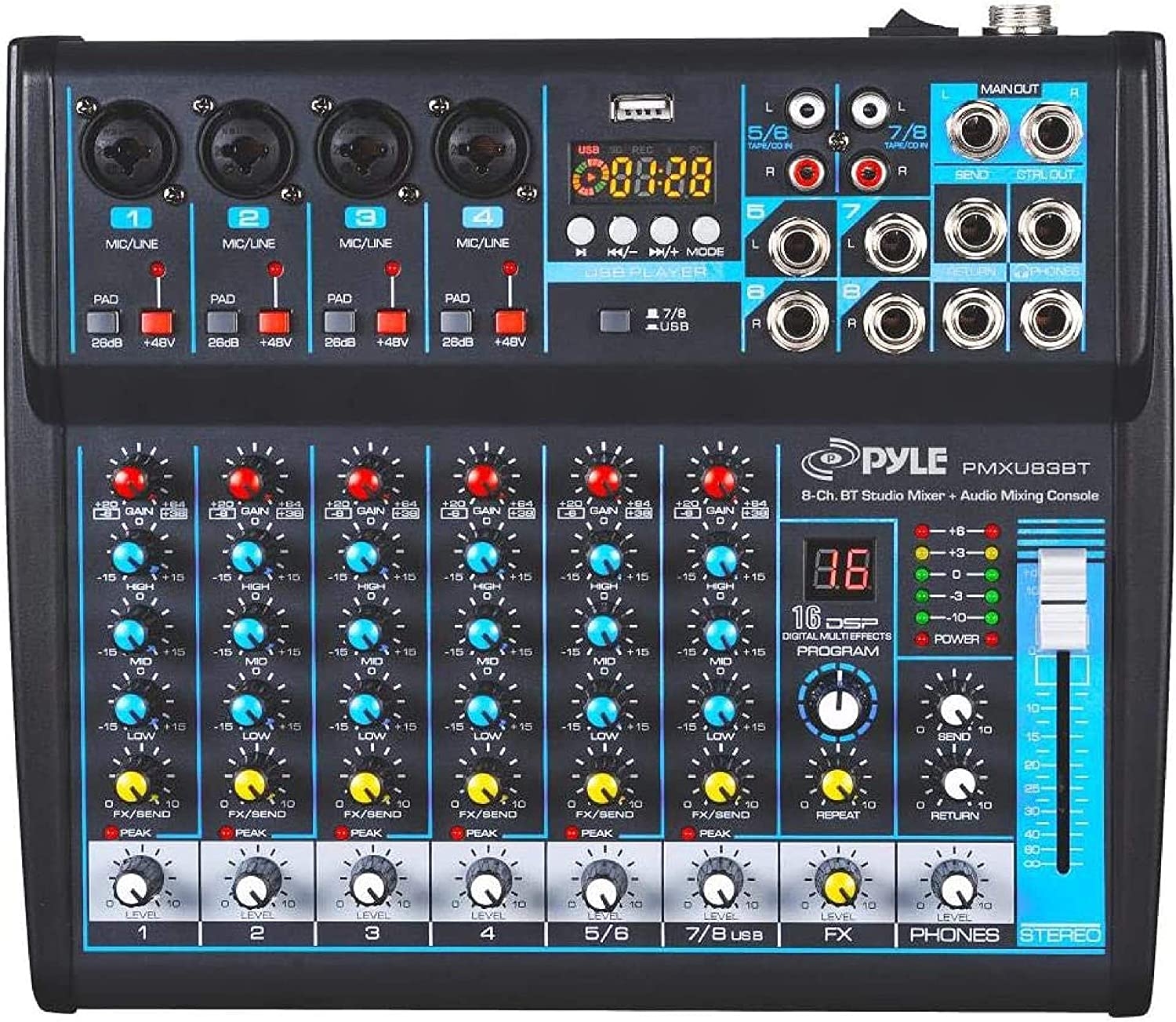

Pyle Model : PMXU83BT
8Ch Bluetooth Pro Audio DJ Sound Mixer
8Ch. Bluetooth Studio Mixer DJ Controller Audio Mixing Console System
Features:
- DJ & Studio Console Mixer System
- Multi 8Channel Audio Source Mixing

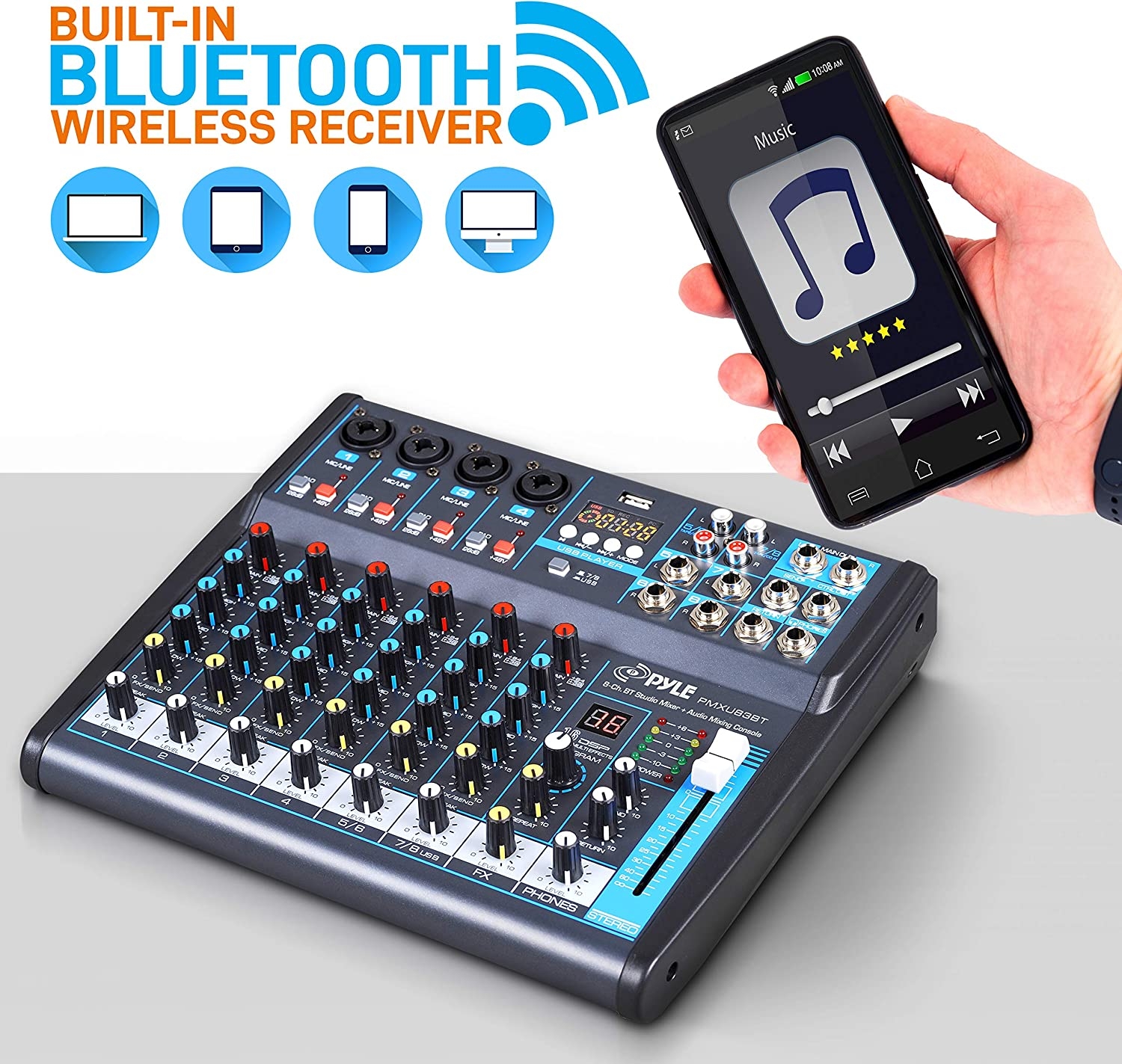

- Builtin Bluetooth Wireless Receiver
- FX (Analog Effects) & 16 Bit DSP processor
- DirecttoComputer Connect & Sound Record Ability

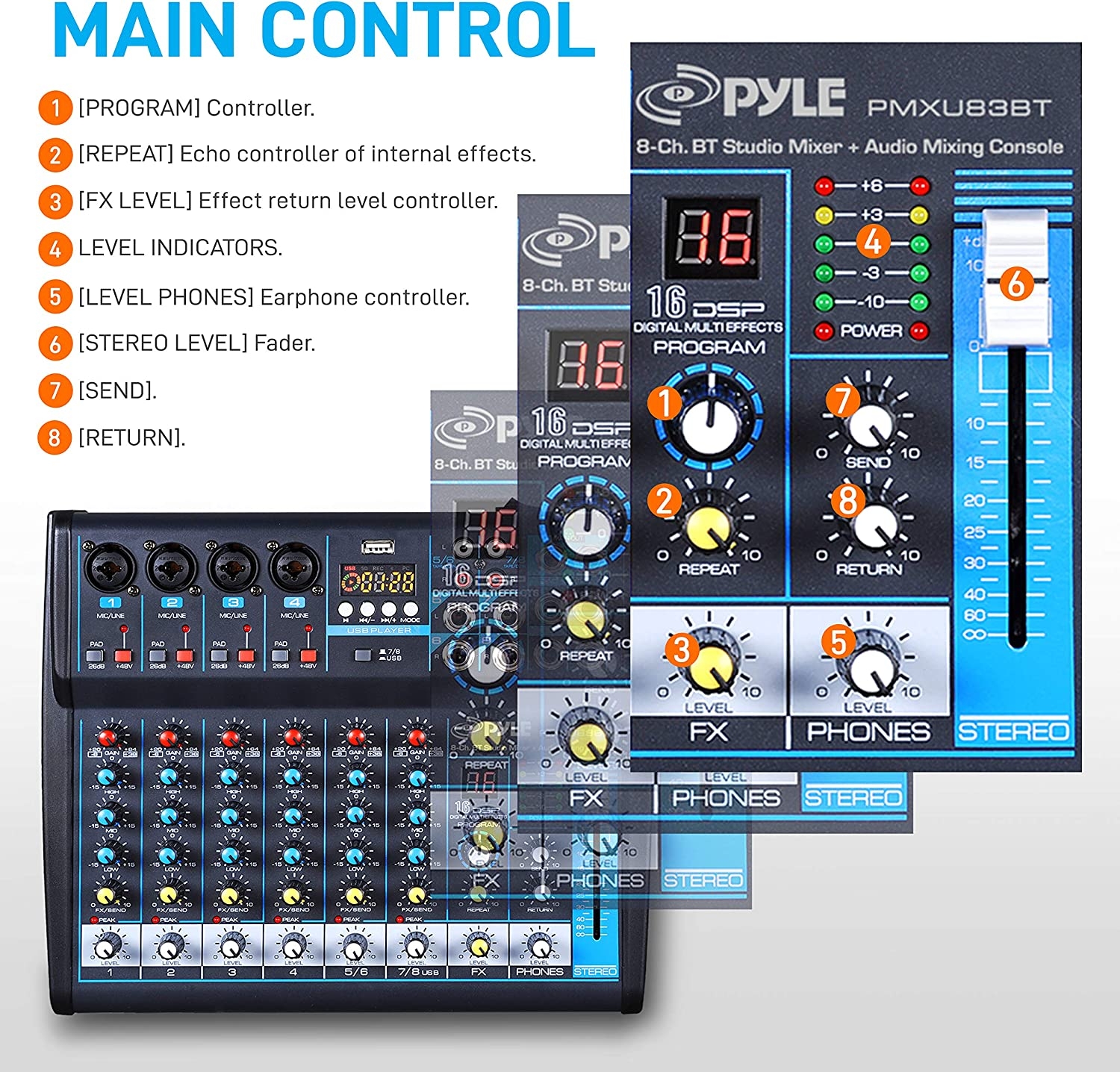

- LCD Digital Display & Front Panel Control Center
- Rotary Adjustment Knobs & LED Indicator Lights
- MP3 Digital Audio File Compatibility

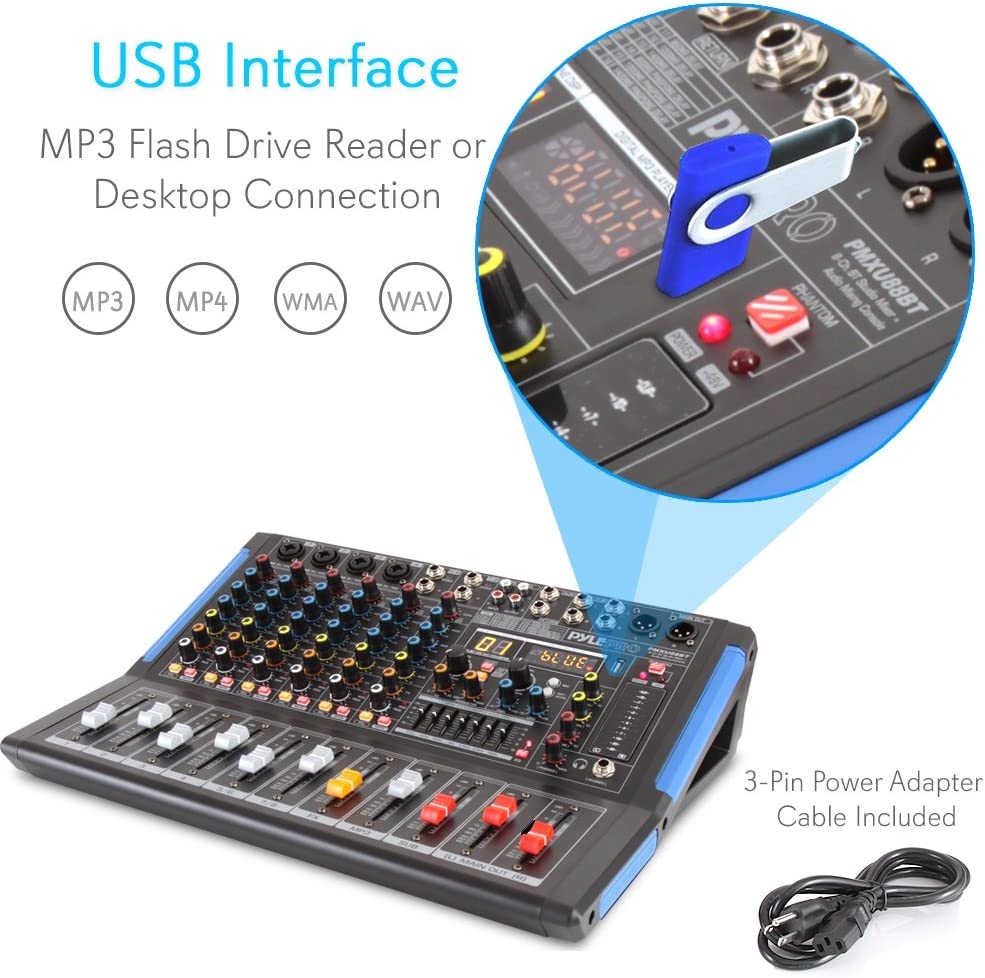

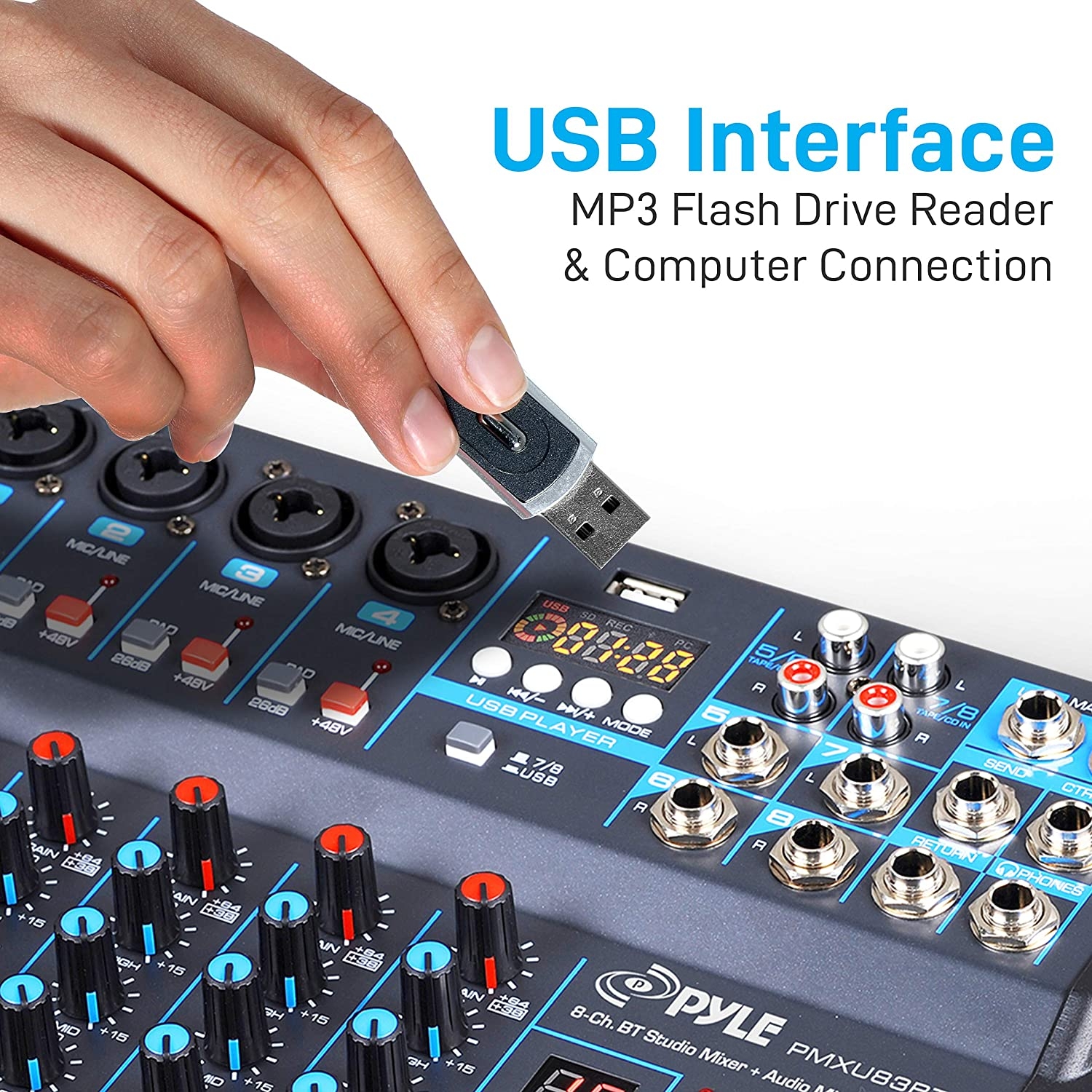

- USB Interface: MP3 Flash Drive Reader/Computer Connection

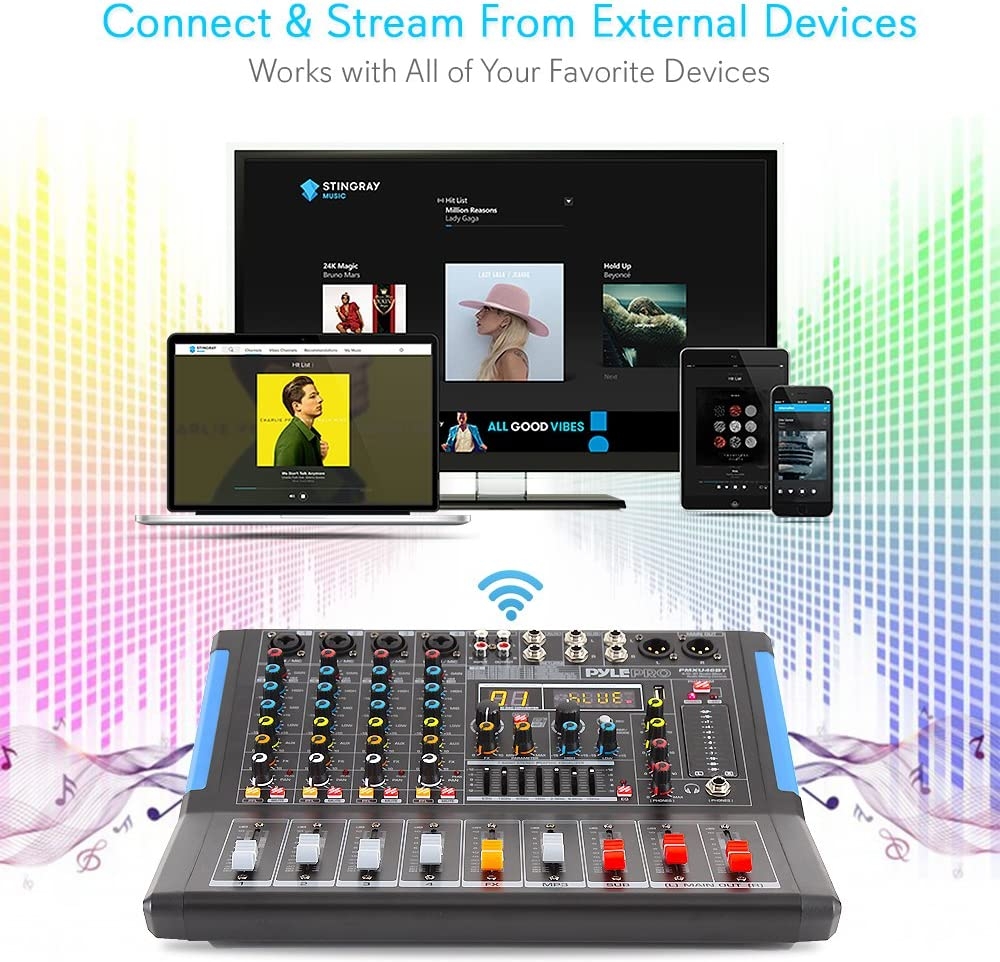

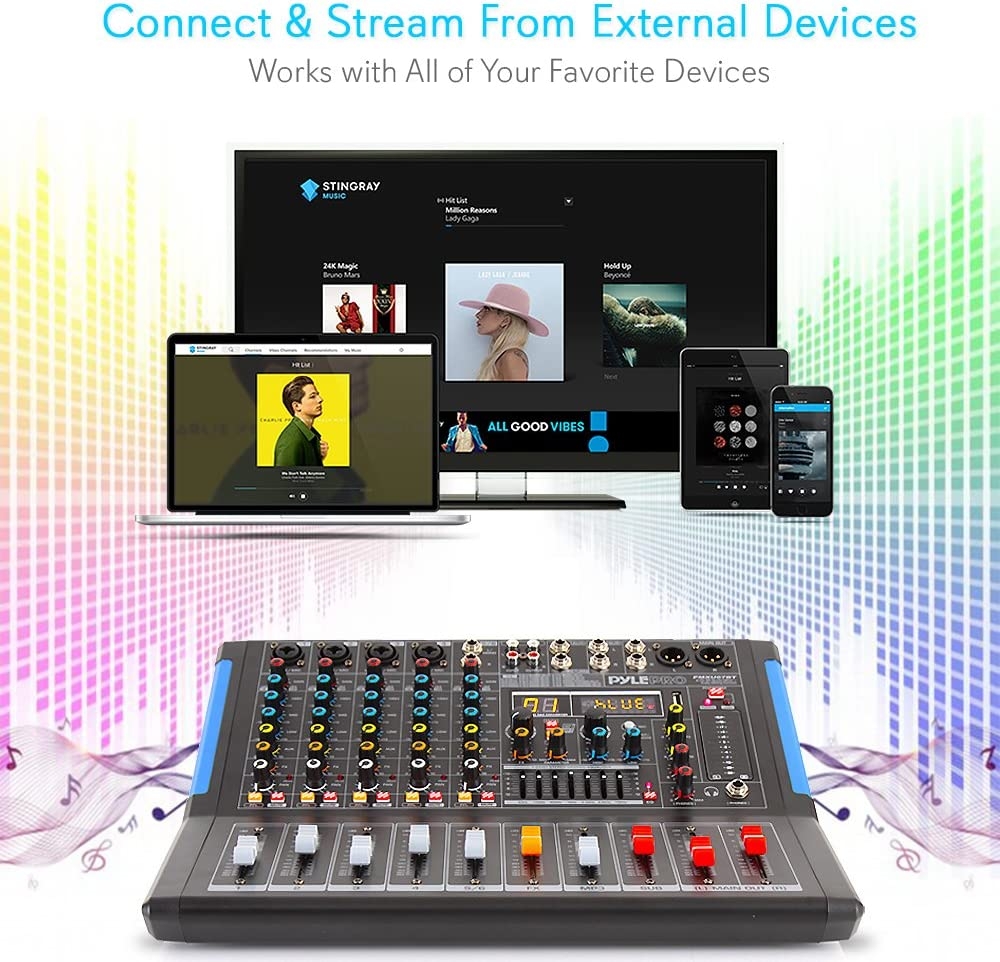

- Connect & Stream Audio from External Devices
- (2) 1/4’’ (L/R) MAIN Outputs

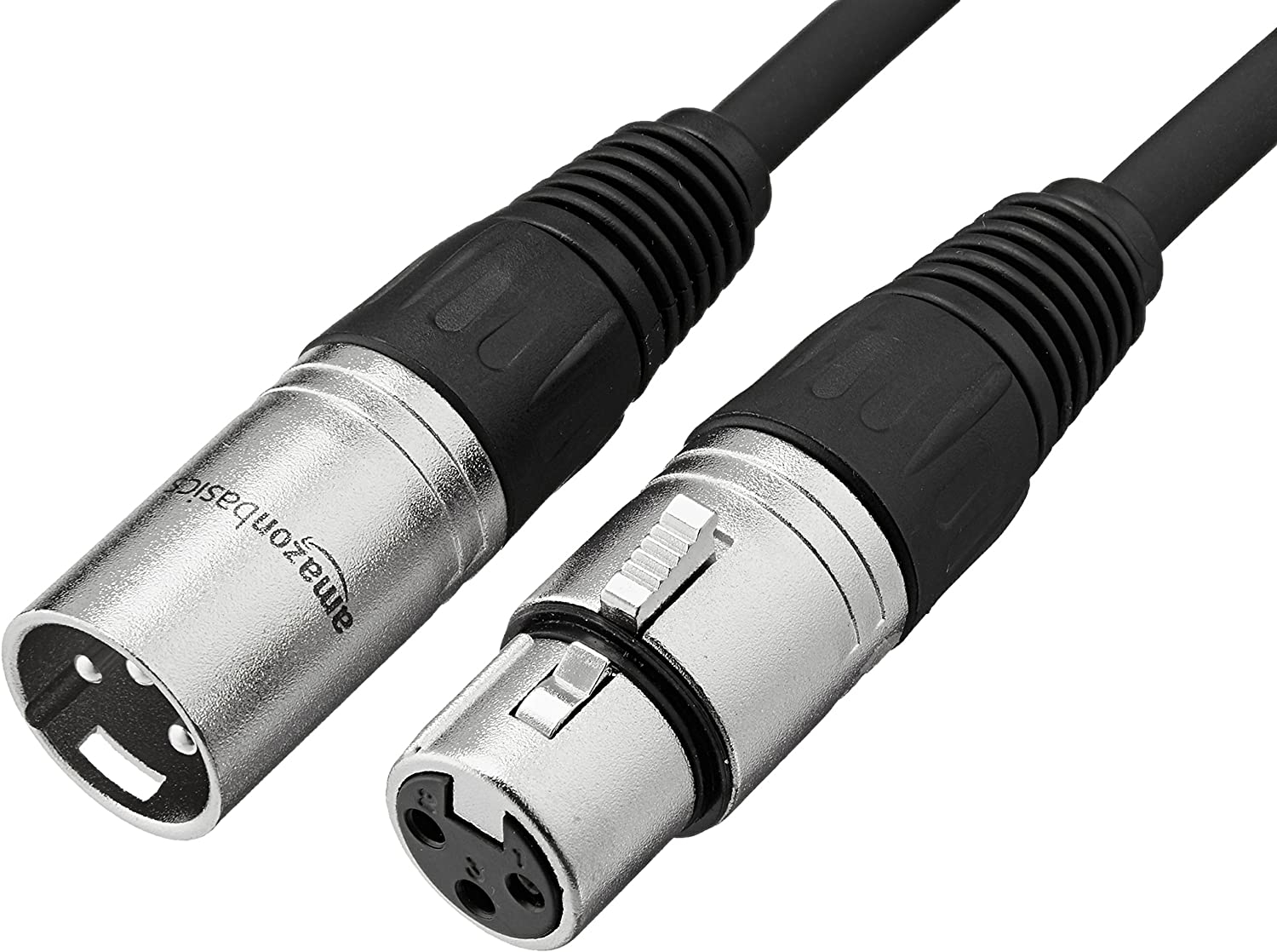

- (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
- (2) Pair RCA (L/R) Inputs
- (2) Pair 1/4’’ Mono + Stereo Inputs
- 1/4’’ Send + Return Inputs
- 1/4’’ Headphone Jack
- Stereo Level Fader/Slider
- Output Signal Level Indication
- BUS Audio Control, Sound Routing
- PAD Channel Source Input Switch
- Independent Channel Input Audio Configuration
- Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
- +48V Phantom Power Control
- Power ON/OFF Switch
- Used for Professional Studio Applications & OnStage Performances

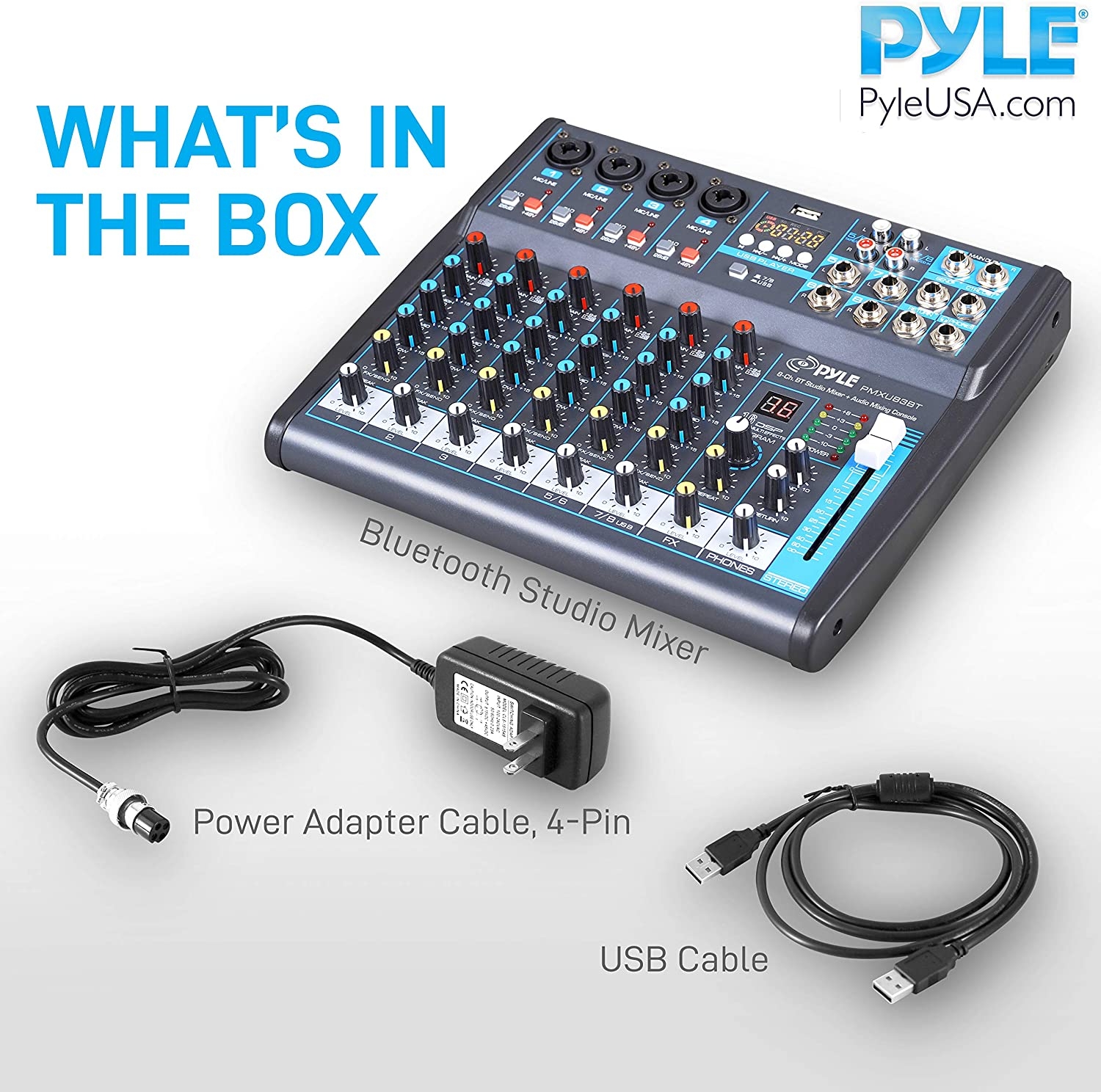

What’s in the Box:
- Bluetooth Studio Mixer
- Power Adapter Cable, 4Pin
Wireless Bluetooth Connectivity:
- HassleFree Audio Streaming Ability
- Works with All of Today’s Latest Devices
- (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Network Name: ‘KT08UP’
- Bluetooth Version: 4.0
- Wireless Range: 15’+ ft.
Technical Specs:
- Input Mixer Channels: 8Ch. (+ FX/Headphones)
- Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
- Input Frequency Response: 20Hz20kHz, +/3dB
- Input Distortion: 0.03%, 1kHz/150mV Input
- Channel GAIN Adjustment: +20/+64 (6/+38)
- HIGH Gain: +/15 dB, 12kHz Frequency Shelving
- MID Gain: +/15 dB, 2.5kHz Frequency Shelving
- LOW Gain: +/15 dB, 80kHz Frequency Shelving
- HIGH/MID/LOW Adjustment: 15/+15dB
- Stereo Output Level Meter: 5Segment (+6, +3, 0, 3, 10dB)
- PAD Input Channel Adjustment: 26dB
- Peak CLIP Level: < 3dB
- Phantom Power Voltage: +48V
- Power Supply: 100/240V (+/15V DC Power Adapter)
- Digital Audio File Compatibility FileTypes: MP3, WAV
- Dimensions (L x W x H): 9.3’’ x 10.8’’ x 2.6’’
The Pyle 8Ch. Bluetooth Studio Mixer DJ Controller Audio Mixing Console System DJ & Studio Console Mixer System Multi 8Channel Audio Source Mixing Builtin Bluetooth Wireless Receiver FX (Analog Effects) & 16 Bit DSP processor DirecttoComputer Connect & Sound Record Ability LCD Digital Display & Front Panel Control Center Rotary Adjustment Knobs & LED Indicator Lights MP3 Digital Audio File Compatibility USB Interface: MP3 Flash Drive Reader/Computer Connection Connect & Stream Audio from External Devices (2) 1/4’’ (L/R) MAIN Outputs (4) XLR/14’’ Combo Audio LINE/Microphone Inputs (2) Pair RCA (L/R) Inputs (2) Pair 1/4’’ Mono + Stereo Inputs 1/4’’ Send + Return Inputs.
From the manufacturer
- USB Interface: MP3 Flash Drive Reader/Computer Connection
- Connect & Stream Audio from External Devices
- (2) 1/4’’ (L/R) MAIN Outputs
- Stereo Level Fader/Slider
- Output Signal Level Indication
- BUS Audio Control, Sound Routing

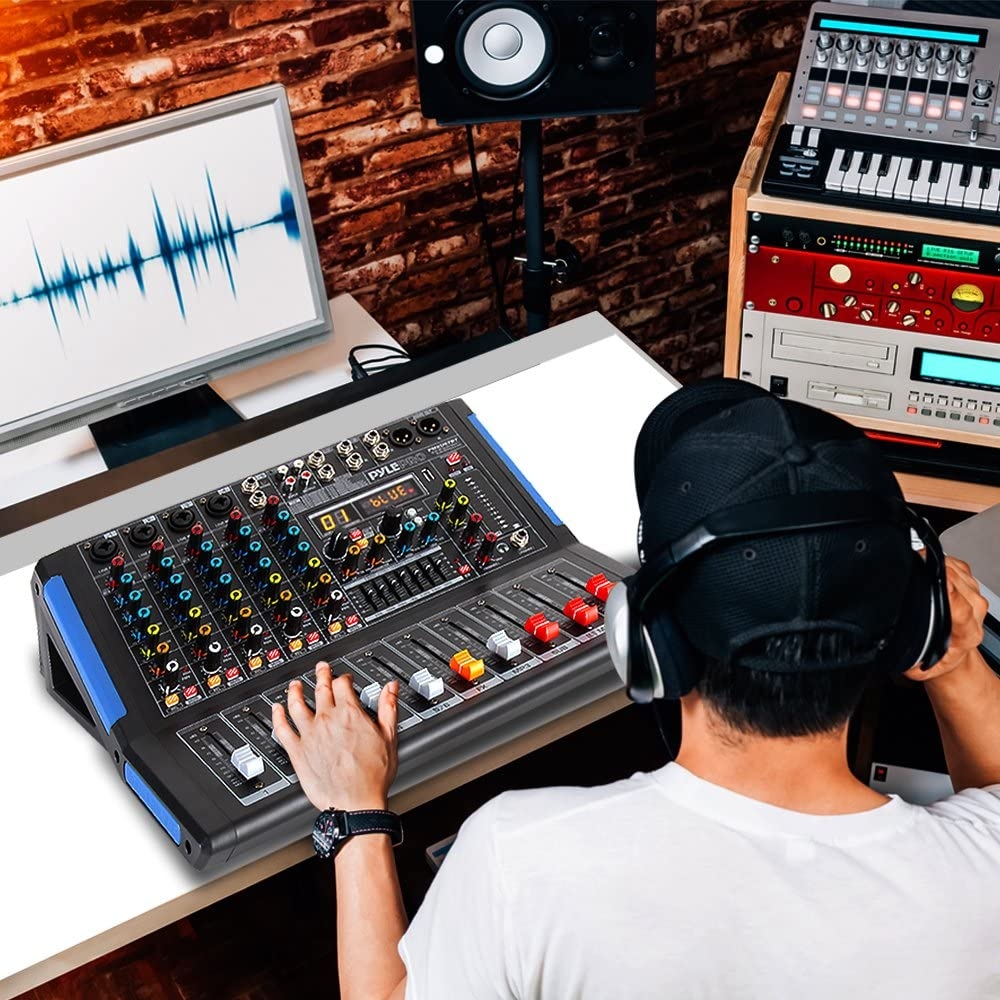

Professional Audio Mixer
PMXU83BT

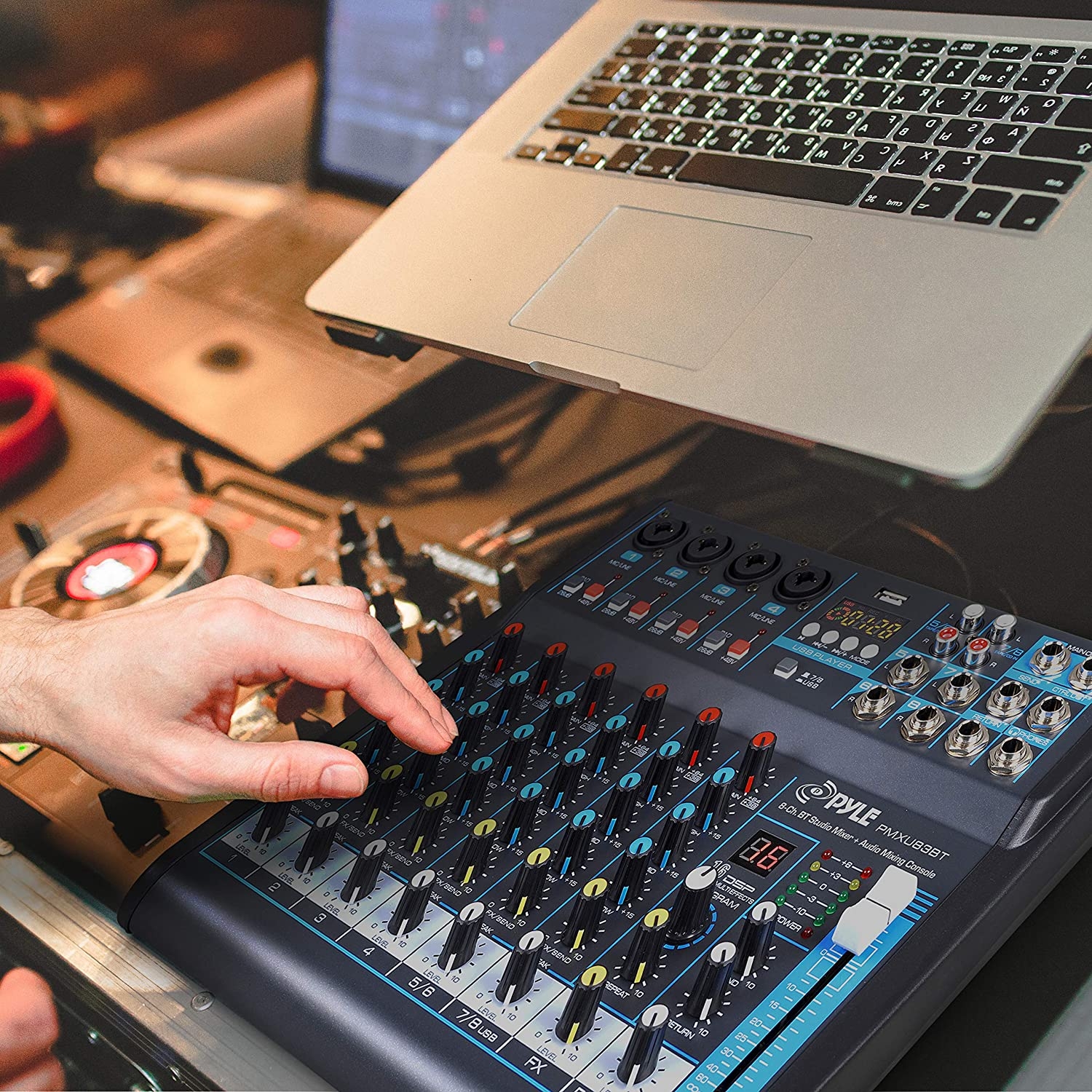

With sealed rotary controls to resist dust and grime, this compact DJ mixer will provide total dynamic control for the ultimate in punch and clarity; This incredibly versatile mixer is great for high quality on stage performance, live gigs, and Karaoke; Effortlessly achieve premium quality crystal clear studio level quality musical playback
- DJ & Studio Console Mixer System
- Multi 8Channel Audio Source Mixing
- Builtin Bluetooth Wireless Receiver
- FX (Analog Effects) & 16 Bit DSP processor

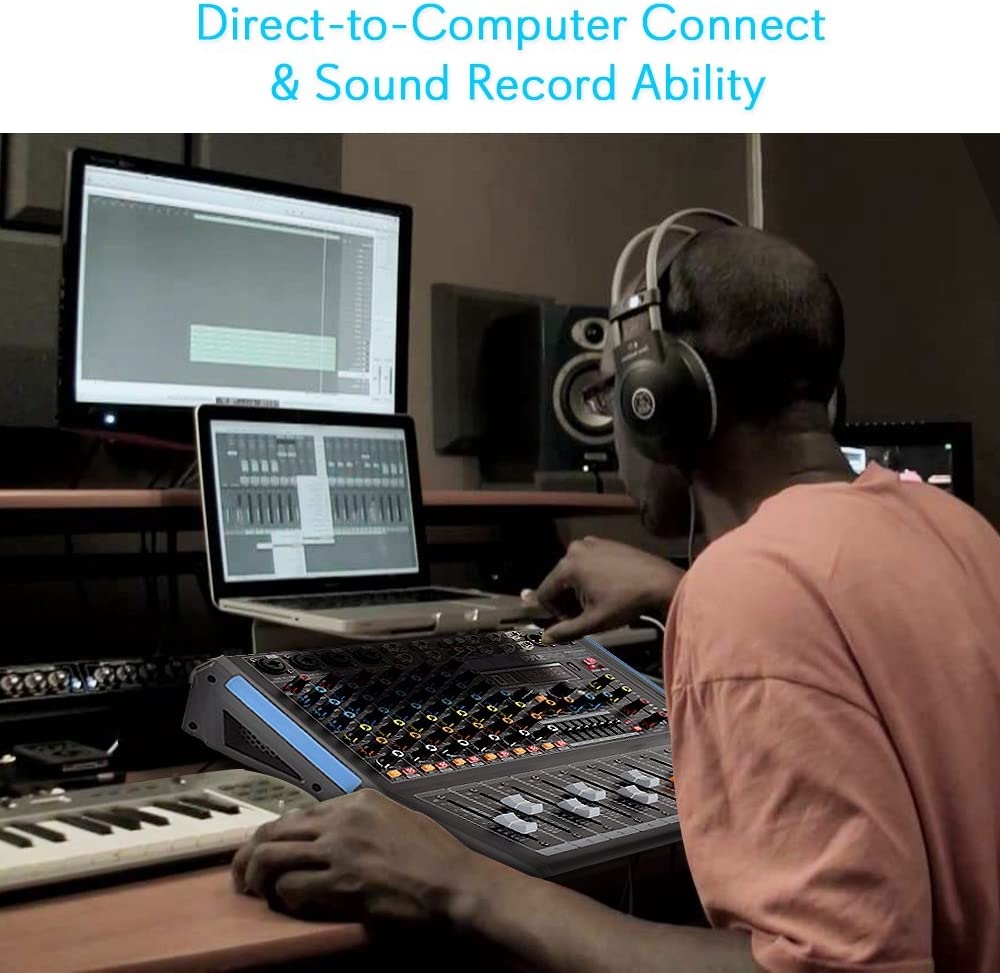

- DirecttoComputer Connect & Sound Record Ability
- LCD Digital Display & Front Panel Control Center
- Rotary Adjustment Knobs & LED Indicator Lights
- MP3 Digital Audio File Compatibility
|
|
|
|
|---|---|---|

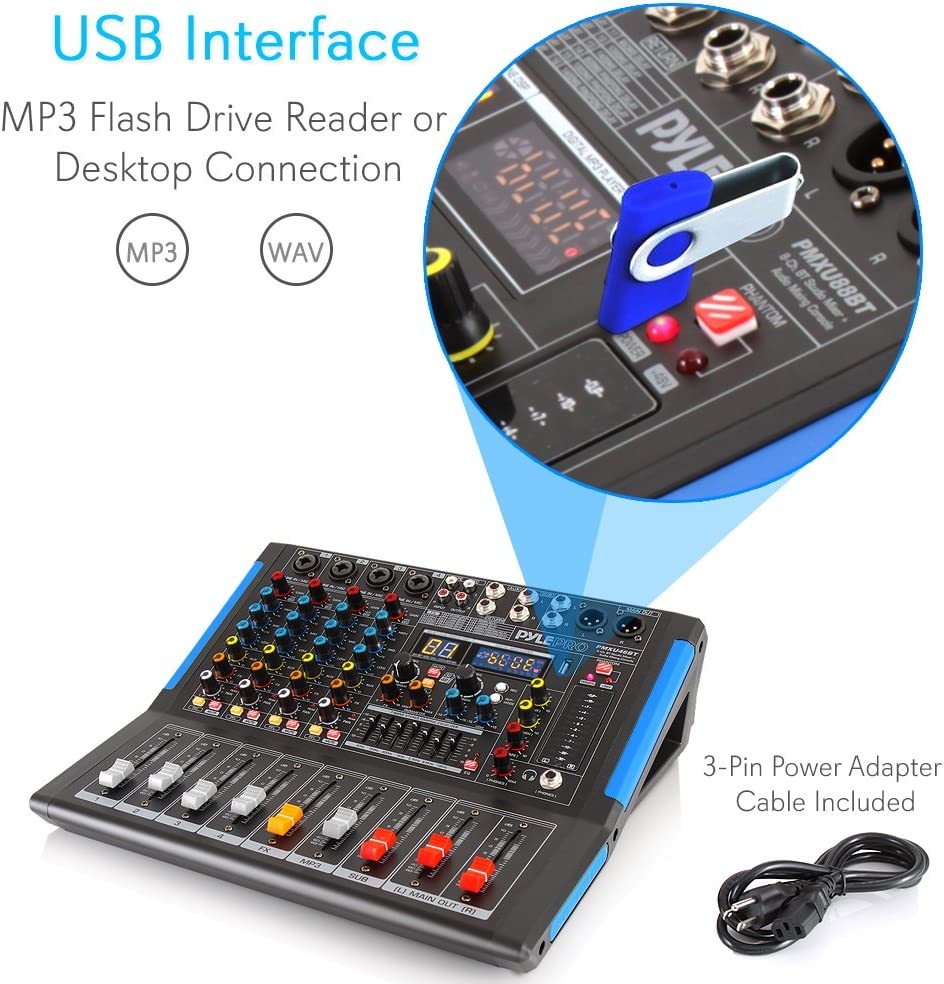

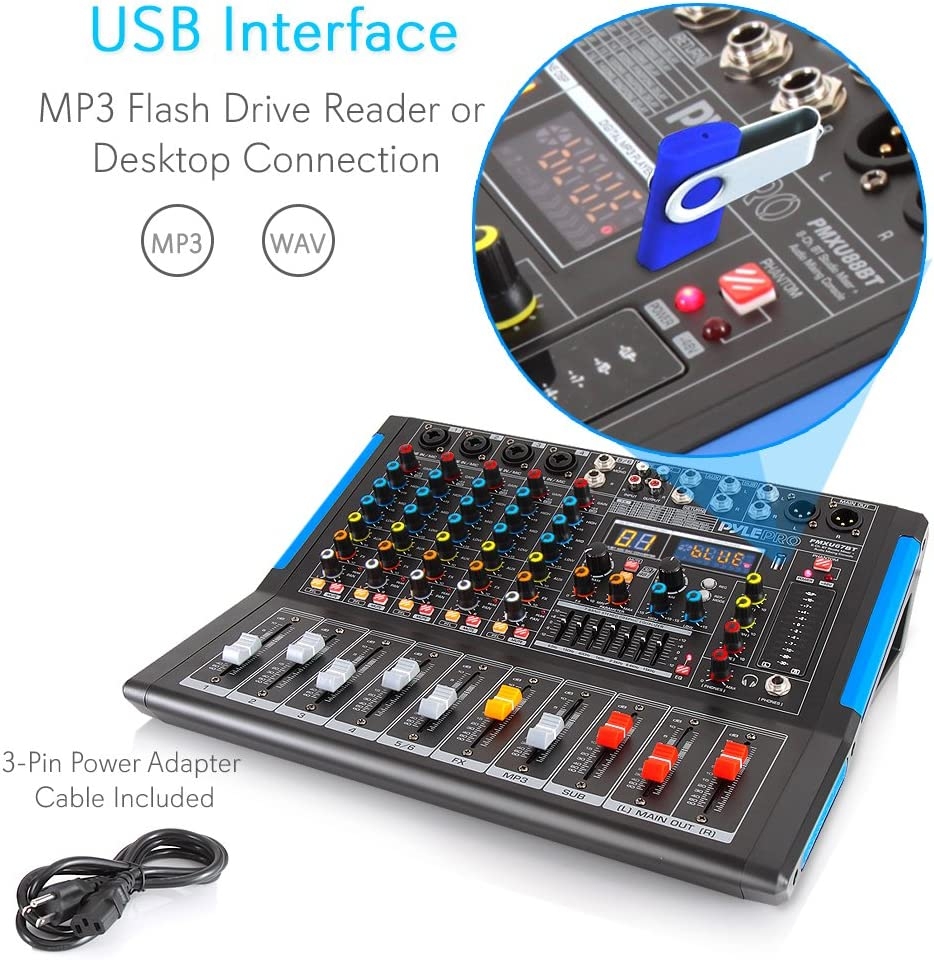

USB/Flash Reader /MP3 CompatibilityConnect your external USB, computer PC, flash drive or Bluetooth device to Mix & record; Use the built in controls to play/pause, skip tracks and switch between modes |
Bluetooth Wireless Music StreamingHassle and cable free audio streaming ability directly to the console unit; Mix your iPad, iphone, Android smart phone to your DJ session; This audio mixer makes it a breeze to wirelessly stream all uour favorite music tunes to the mixing board easily from Pandora or Spotify |
Mic and Stereo Line InputsSupporting XLR and unbalanced 1/4″ Plug with +48V Phantom button, highly accurate LED Peak Level Indicator and Ultra-musical 3-band EQ on all channels Ultra-low noise, high headroom mixer with super easy functionality |
|
|
|
|
|---|---|---|
8 Channels High Headroom MixerSupporting XLR and unbalanced 1/4″ plug with +48V phantom button, highly accurate LED peak level indicator and ultra musical 3 band EQ on all channels; Ultra low noise, high headroom mixer with super easy functionality for professional vocal and instrumental sound |
Product DimensionThe Pyle Professional Audio Mixer has Dimensions (L x W x H): 9.3’’ x 10.8’’ x 2.6’’ with 5.2 lbs of weight, So you can easily carry everywhere you go. |
Built-in Digital EffectsFor musical and non-musical applications, effects processing adds polish and professionalism to the mix. The Professional Audio Mixer Sound Board Console Desk System digital multi-effect processor, offering a comprehensive suite of editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live performance. |
Important information
Legal Disclaimer
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Cindy L. –
So far so goodSo far so good, seems to be a nice unit. I like that I can have the main volume all the way down and still have volume through the headphone output. On my old mixer the main output was tied to the headphones so if it was muted so were they. It’s my first experience with a USB mixer so it’s a little strange that the unit stays on when it’s plugged in that way. Even with the power off if it’s plugged in via USB the unit stays on. I’m going to get a hub with on/off switches so I can leave it plugged in and still turn it off.
kristofferb –
reasonable mixer for the priceI bought this on a Black Friday deal as I needed a mixer for my new PA system. Given all the extremely positive reviews I expected great things, such as you might find on a mixer that cost a lot more. However, you get what you pay for. In this case, not all of the channels can go as loud as you might like, the effects are challenging to navigate, the support and user documents are a little lack luster. However, it does the trick for what I need, I just wish it did a little bit more and a little bit better. Overall, I’m sufficiently satisfied to use it for my ongoing purposes.
Kerry McCabe –
Worth the moneyIt’s not the best, but definitely not the worst. It does the job and I’m impressed so far. The effects are terrible and all sound identical in my opinion.
Jofo69 –
Small, lots of features, and very affordable.I needed a higher quality mini-soundboard to patch some inputs into our streaming service software. It has a very clean sound, and several effects that can be added to your mix. Very pleased with our purchase.
J and K –
Ready for our New Year JammingWe did do the initial set up for our New Year gathering event . The mixer is performing well as expected.
Amazon Customer –
.Item as described and arrived quickly.
Julie Shepherd –
Great productEasy to use- portability. Easy set up. I’m a beginner and this helps a lot
Matthew Braden –
Easy to use, great valueThis Pyle mixer is a great value for the money. Worked perfectly to mix my vocal and guitar straight into a Zoom or Teams session, which was exactly what I wanted it for.
Alex Montalvo –
really good for the priceI just order the Pyle PMXU83BT and arrive 3 days ago, I wait until now to understand the mixer before I do a review about it and let me tell you this mixer for that price. it is awesome, it was really easy to hook up with my JBL speakers, my Nady EQ, and my Peavey amp, I love the fact that when I go to Bluetooth, channel 7/8 becomes the eq and volume of whatever you connect via Bluetooth, how is it sound? not so great if you only use the Mixer with the 3-band EQ that has in each channel but because I own a 32-band EQ from NADY (16 bands for left and 16 bands for right) combine with the 3 bands EQ on the board make music sound on point, so if you are a DJ you will need an extra EQ to make music sound clear and with more bass if you use it for a band? well, it all depends on what sound you are looking for, in my case I will not use my Nady EQ for live performance until I can add a feedback killer and a compressor. overall I will recommend this product.
Tim Sundara –
Awesome !With my new venture into podcasting , this product is perfect. Plus my friends and family love karaoke . The Bluetooth function makes it even better . Multiple inputs and outputs and the built in DSP gives you a wide range of reverb and delay effects .
