Description

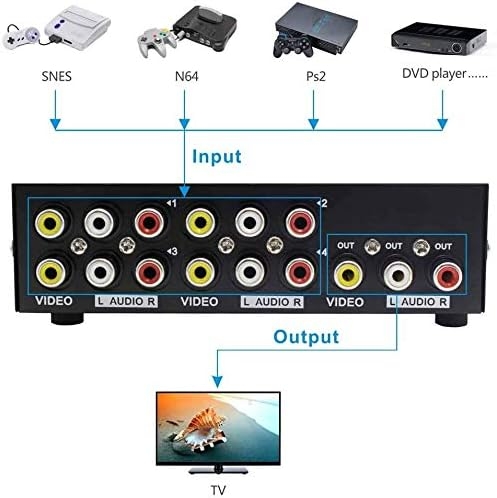

The MT-431 AV switch enables you to connect 4 devices like Wii, XBOX, DVD, PS2 ..etc for output to your TV by AV cable. It’s easier for you to switch by button.
Specifications:
1. Video
Input level Resistance: VS 0.8-1.0Vp-p/75Ω
Output level Resistance: VS 0.8-1.0Vp-p/75Ω
Bandwidth: 50Hz-5.5MHz
Input Connector: 4
Output Connector: 1
2. Audio
Input level Resistance: 2V(RMS)/47KΩ
Output level Resistance: 2V(RMS)/1KΩ
Frequency: 10Hz-20KHz, 0db
Input Connector: 4 (R+L)
Output Connector: 1 (R+L)
Switch: Manual
Enclosure: Metal
Play and plug, no software required
Wide Compatibility: Any devices that use RCA Audio and Composite cables
Package
1* AV Switch Box
1* User Manual
P. Koch –
Does what it’s supposed to do.
This little switch box is just what I needed. It can be used either way, four in one out, or one in, and four out. There is no signal loss, or loss of sound quality that I’ve noticed. Works perfectly, if you need one of these, get it.., for the price this one is a thumbs up!
Raul Zavala –
El divisor de señal es muy práctico buen producto
Lo usé para mandar señal de tres equipas a una pantalla
BlackDragon8624 –
Works but expect limitations
The device works exactly like it says it will. I have no complaints at all. Now the bad new, it doesn’t up convert the files. So if you want this for older consoles it will work but will be fuzzy a lot of the time. But for things like GameCube, Wii, Xbox 360 it works great.
ryan vadeboncoeur –
Works great
I said up a gaming center so I’m using two of them they work phenomenal absolutely please
Susan T. –
AV switch
This AV switch works perfectly Ni problems installing it. My son did it for me but I could have done it myself. I have 4 components installed and they all work great!
Paul Eichenberg –
Easy to set up, easy to use…
Bought this item from Amazon and wasn’t sure if it was going to meet my needs, especially when I discovered that it wasn’t powered. I had been plugging various retro PCs directly into an old receiver/amplifier to get great sound from some small speakers, but had to switch the input on the receiver each time I switched PCs. I bought this item so that I could just plug all of those PCs into it and then have the device go into on single input. Yes, have to click the button on the item whenver I switch PCs, but its much easier than having to remember which input on the receiver matched up to which PC. And, now I have extra inputs to use on that receiver if I need them. I would recommend this item if your looking for an inexpensive way to have multiple devices go into a single input on a receiver. Haven’t tried the video capabilities, but I only bought the item for sound. It not being powered has not been an issue.
Bryan Martinez –
buen producto
este es el indicado, me lo vas agradecer
John Michael Rowen –
A must for anyone with multiple game consoles
If you multiple game consoles like I do you definitely are gonna . Want to invest in one of these because you won’t have to . Worry about going behind your TV to switch . Out cables so if you have multiple game consoles . This is a must have I would highly recommend it.
matthew piciulo –
Excellent for retro gamers!
Product Is Excellent. We are a retro game system collecting family, snd were able to run 8 vintage AV out systems through a single composite input. There is no noise or buzz with even the most simplest cables. Item is small and easy to mount with 2 sided tape or (we used Alien tape) and switching is solid and without any lag. Great Piecce and excellent seller!
m walker –
SO FAR, IT WORKS!!
CONNECTED MY WII AND CD TO FIRE TV
