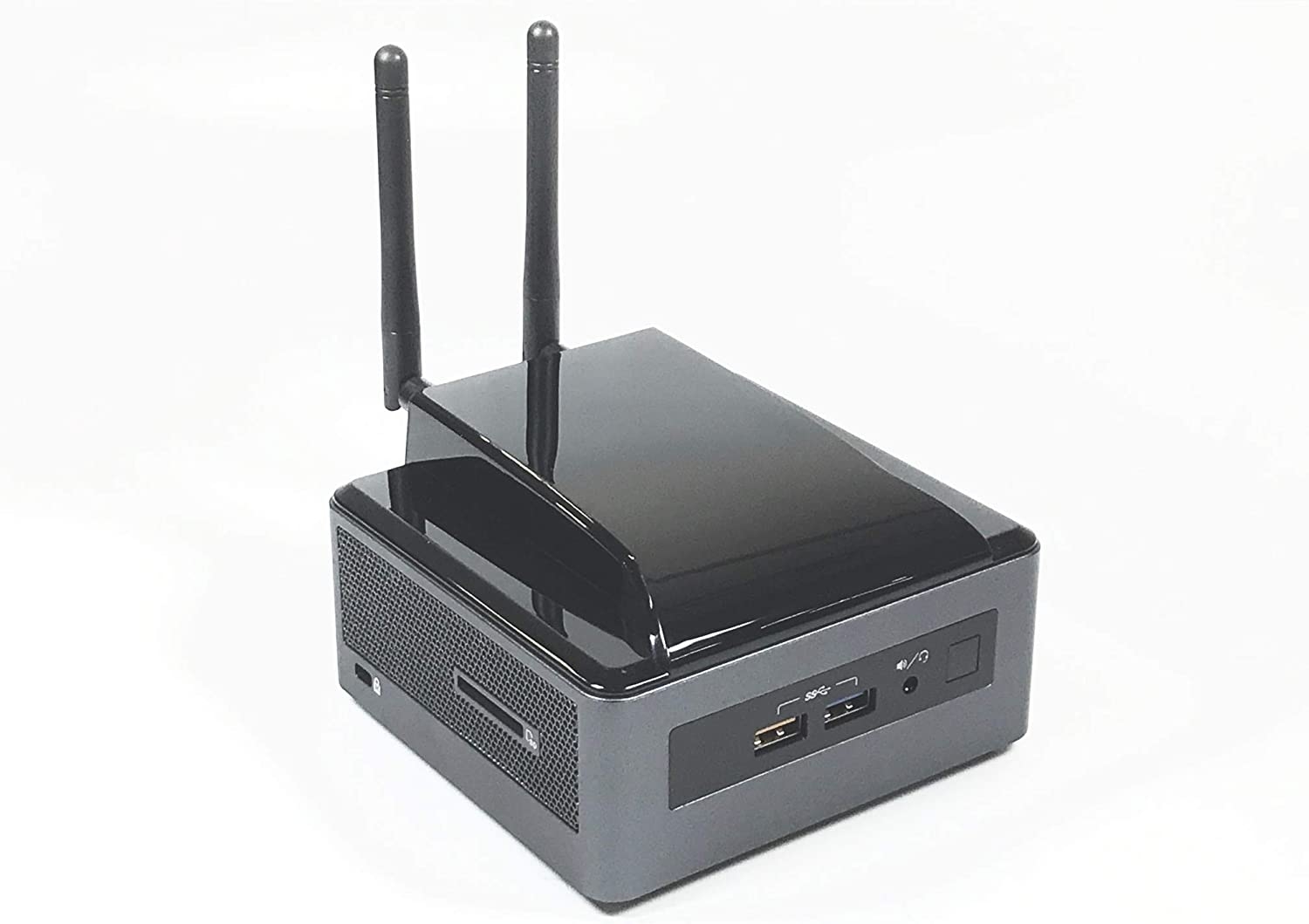

‌Intel NUC 8th Gen Dual Antenna RF Extension LID


One end has a MHF4 connector, and the other end has a RP-SMA female connector with a bulkhead-mount. Cable is 8 inches in length. RP-SMA Female connector includes a bulkhead nut and washer. The length of the RP-SMA-female connector (threaded part) is 3/8 inches.

RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz: This antenna cable is compliant for all types of wireless antennas, including WiFi WiMax networks: 802.11N, AC, G, A, B. 900MHz, 2.4GHz 5GHz applications, as well as any other frequency between 0 and 18GHz.

RP-SMA Female connector composition


Center Contact: Beryllium Copper, Gold Plated

Connector Body: Brass, Gold Plated

Crimp Ferrule: Copper, Nickel Plated

Insulators: PTFE



1.13mm Mini-coaxial (50 Ohm)

1.2mm low profile, MHF4 IPEX/IPX connector

SMT type coaxial receptacle and Mating plug cable connector

Applicable cable: 0.81mm RF coaxial cable

Easy cable termination by “i-Fit” without soldering

Application Technology: IEEE802.11 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless

Space Economy: 2.0mm x 2.0mm PCB footprint, mated height of 1.2 mm

Teflon Cables: Silver plated center conductor, Teflon dielectric and jacket

Dual Band Antenna Omni Directional with RP-SMA Male connector with right angle articulating angle that can be adjusted to 90-degrees

Suitable for 802.11abgn and 802.11ac

Mounts directly onto RP-SMA-female connector of device.

Frequencies:◦2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.8GHz

Gain: 2dBi

V.S.W.R: Less than ≤2.2:1

Impedance: 50 ohms

Dimensions: 57 x 16.5 x 8mm

Lead-free and ROHS compliant



Additional information

Weight 0.38 kg
Item Weight

0.38 ounces



Date First Available

July 22, 2019
