Description

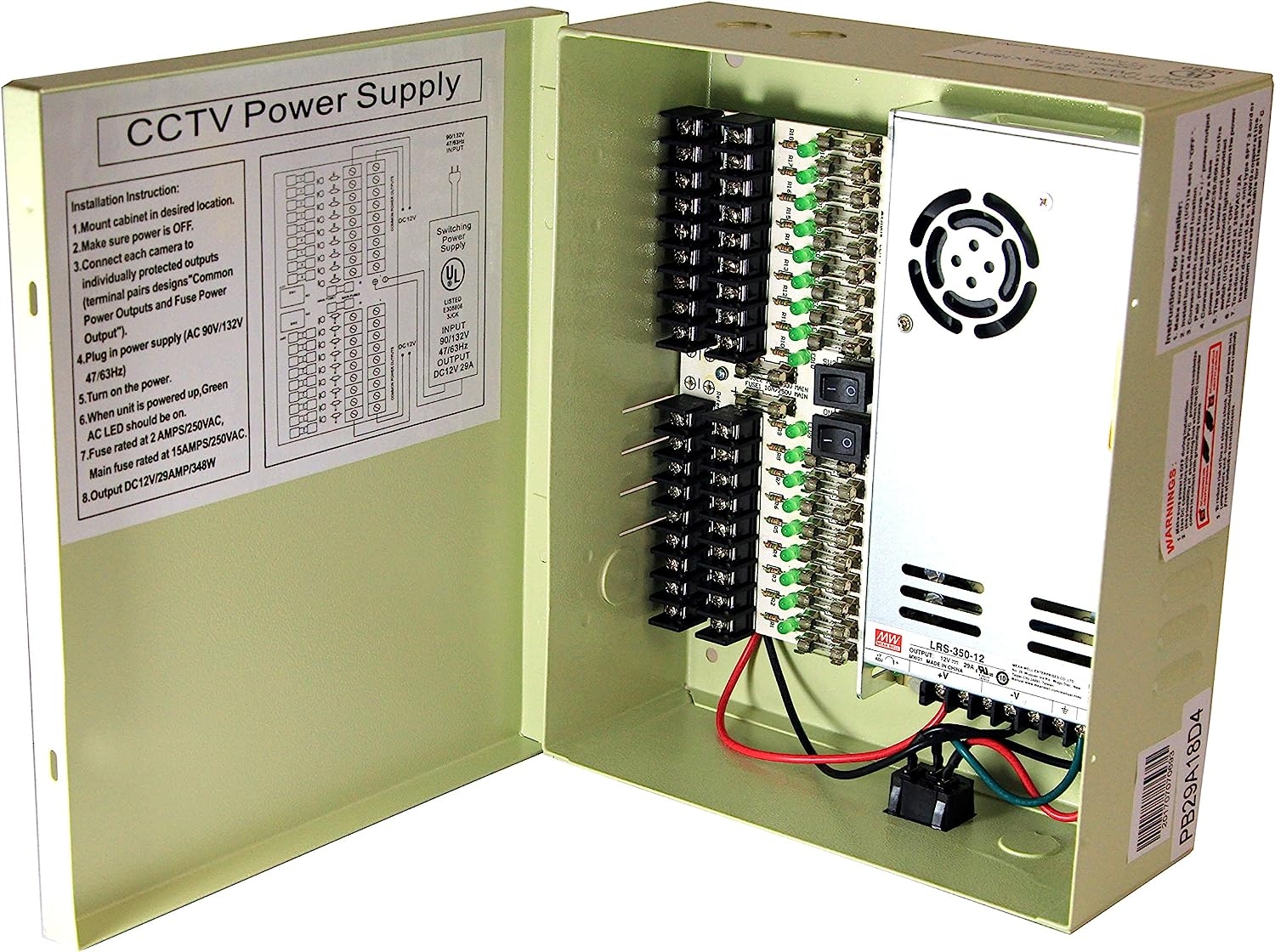

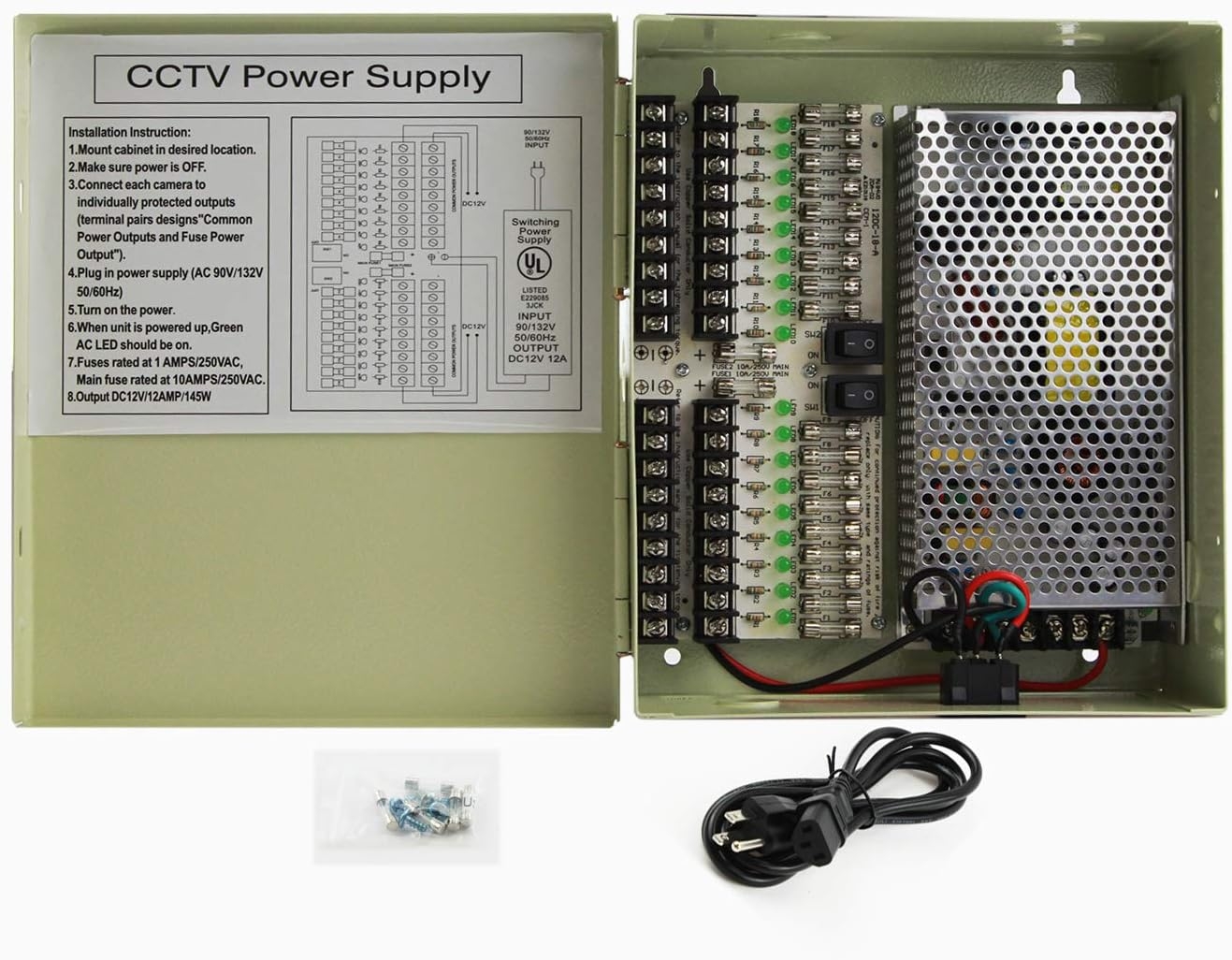

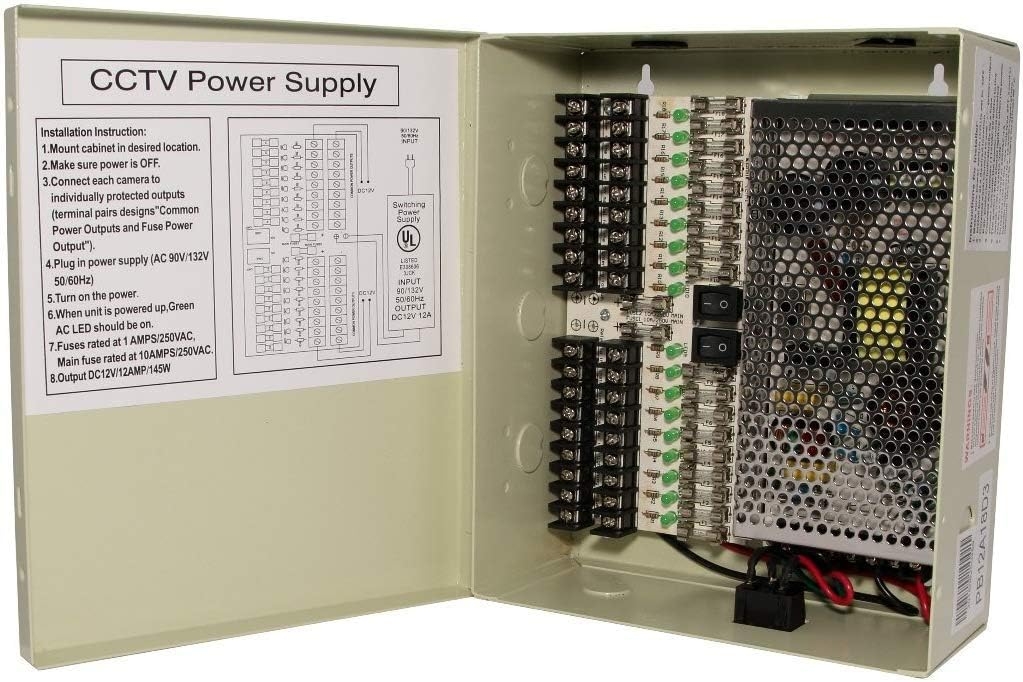

InstallerCCTV 18 Output 12 Amp 12V DC Power Box
Our 18 channels 12v power supply cctv is perfect for professional installers. It can support up to 18 cameras, offering a professional alternative to individual power adapters. In addition, our powerbox offers individual Fuse Output Protection. NOTE: The fuse for each channel is 1 Amp and total power consumption cannot exceed 12 Amp

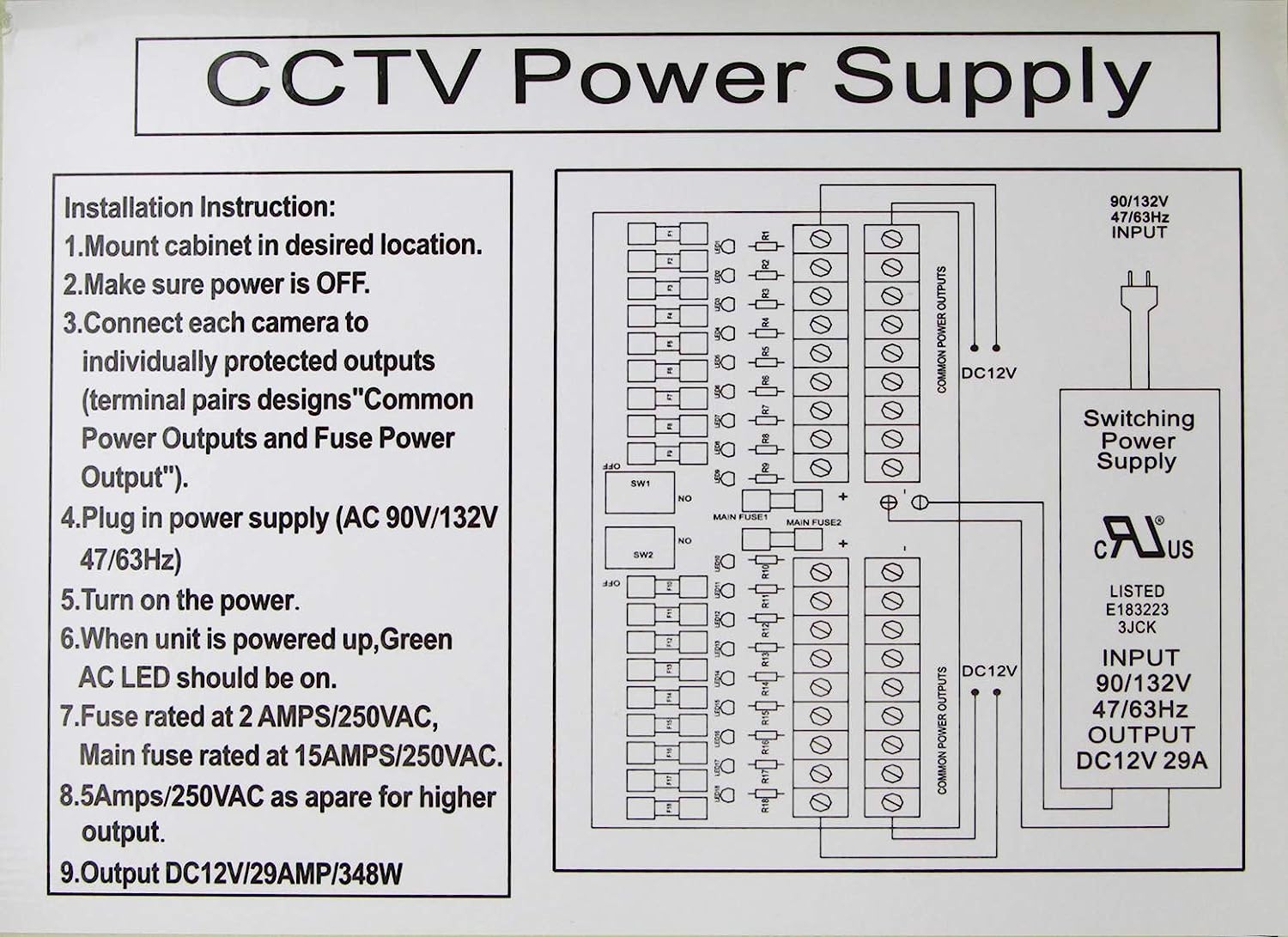

Instructions for installer:
- Make sure power switch(I/O) is set to “OFF”.
- Install box at a desired location.

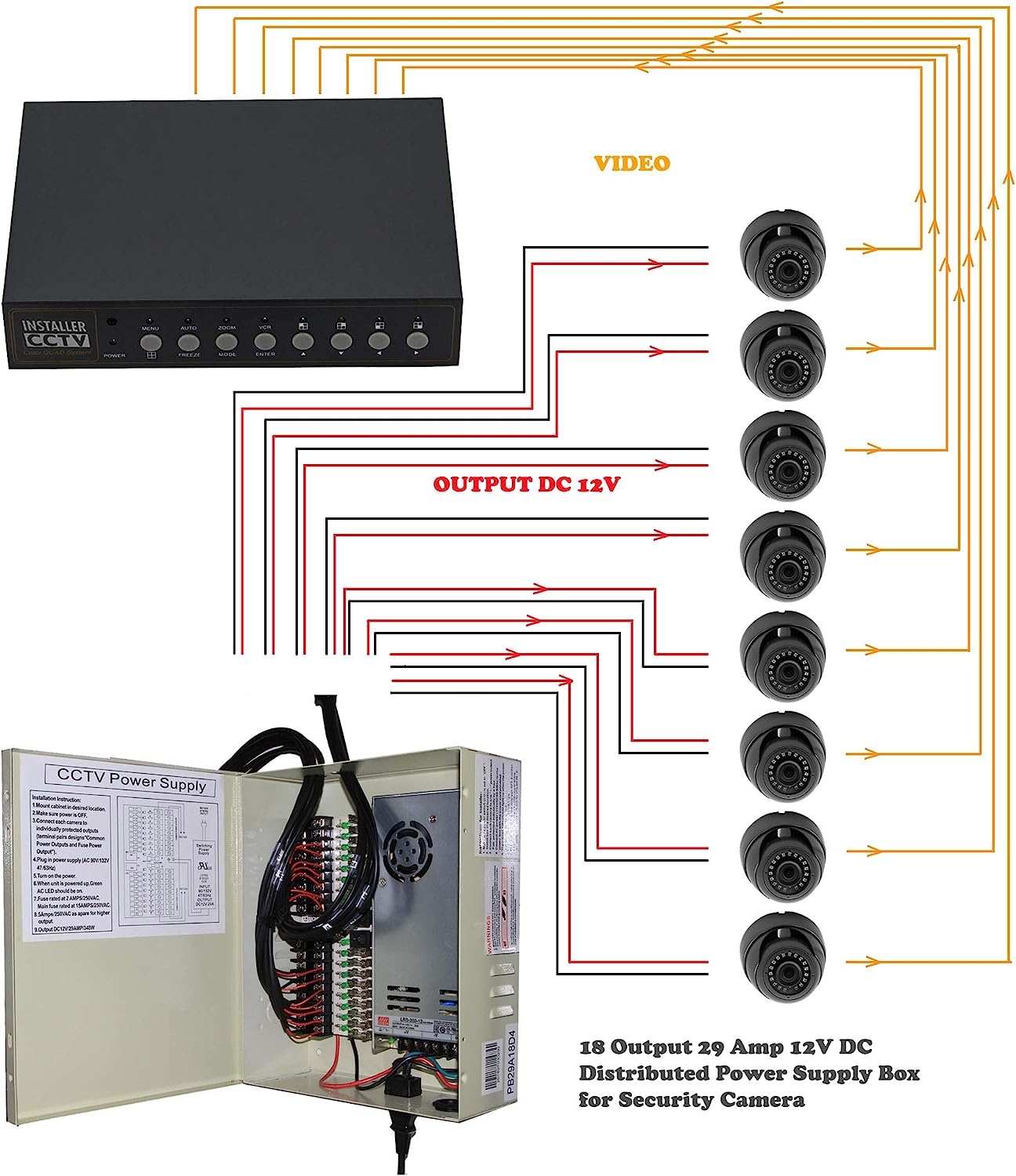

- Connect each camera to one”+/_” power output Pair, protected individually by a fuse.
- Connect AC power(115VAC50/60Hz) to the power box with the power cord provided.
- The green LEDs should light up when the power switch (I/O0 is set to “ON”
- The fuse is rated at 250VAC/1A
- To reduce rish of fire, use only type SPT-2 cord or heavier duty cord, No. 18AWG copper at the minimum. Use wires suitable for at least 90 degrees.

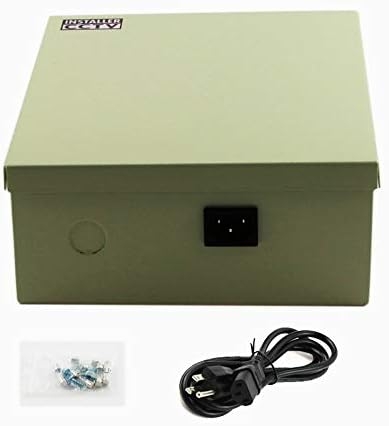

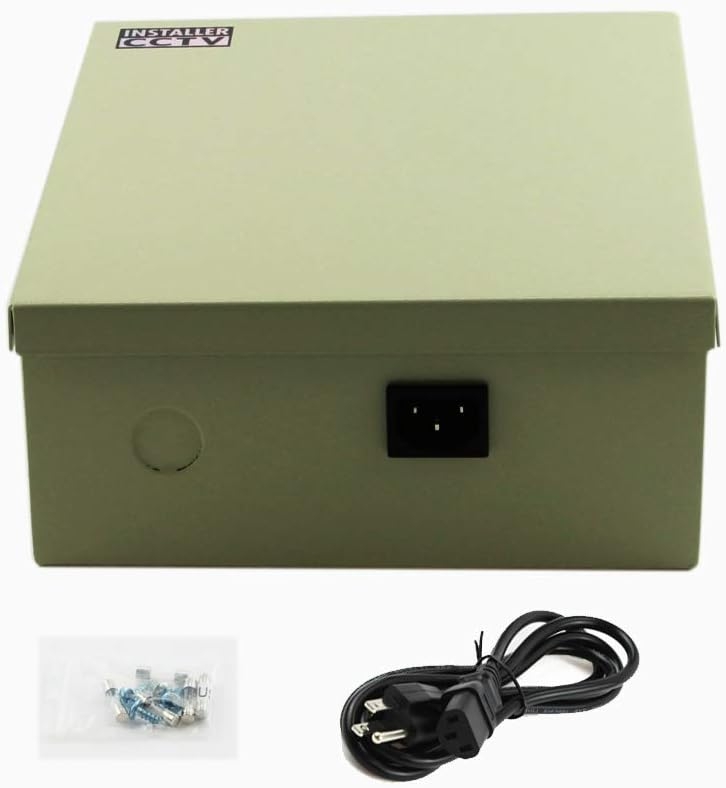

Package Includes :
- 1x Power Box

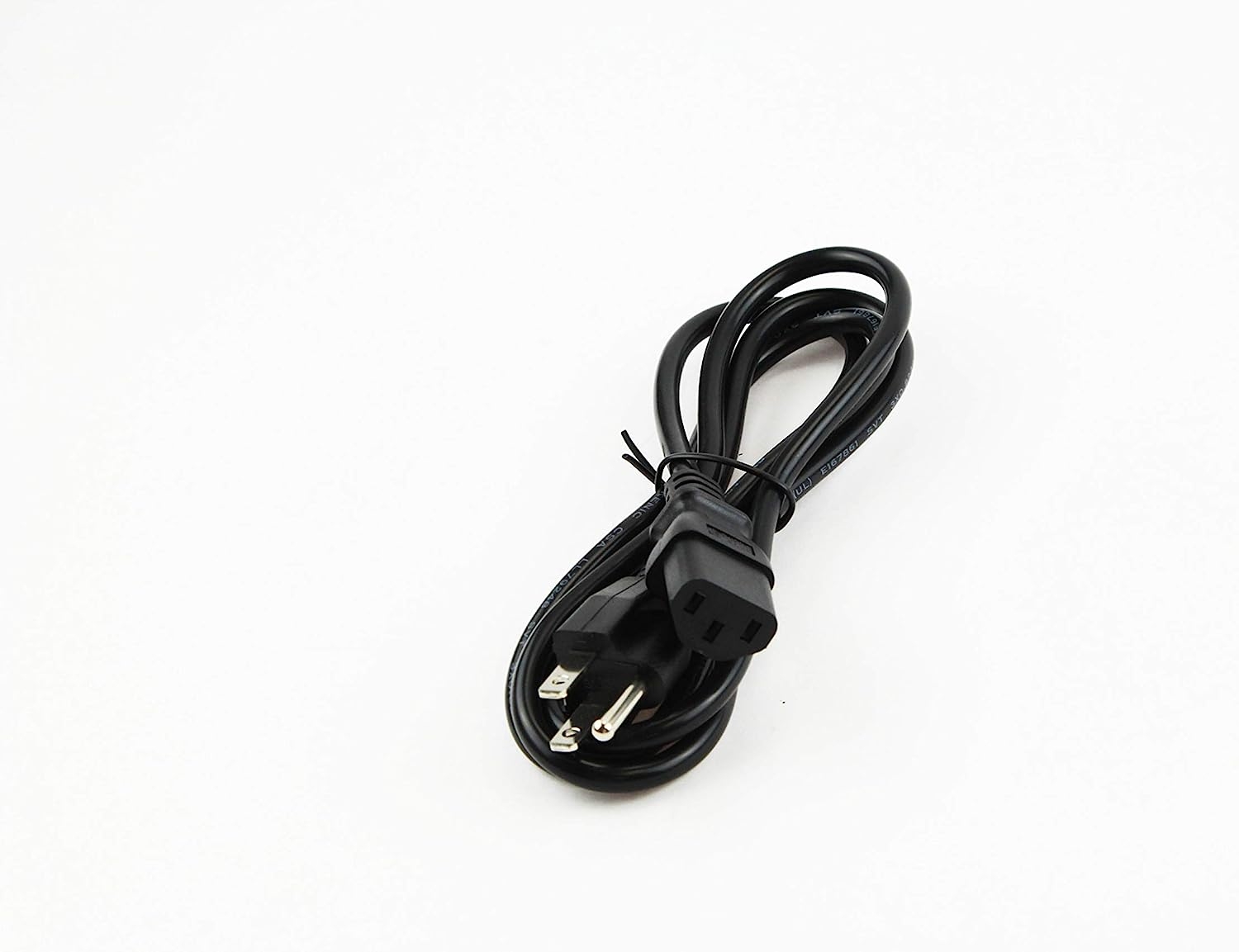

- 1x 3 Prong Power Cord
- 1x User Manual
- 5x Spare Fuses
- 4 Mount Screws
Novsix –
Very good power supply for CC security cameras
I cannot comment on durability as I have only had it up and running a couple of months. It is on 24/7 and so far has yet to miss a beat. It has gone through two outages and a couple of serious “dips” in power and did not fail nor seem to even notice! It runs surprisingly cool for a power supply that has no fan. I guess one is not required. I have 8 cameras’s running off of it so I only use one “bank” on connections the other 8 are turned off for now. As I add additional cameras I will utilize the full potential of the unit.It has a small footprint and is silent. Lots of knock outs so I did open up several of them to let the unit have more air and as I have said, it runs cool. Connections are easy although I have large fingers and often find working in small spaces difficult. I pre “tin” connections and this makes it easier to insert pos and neg wires in the proper places.So, bottom lone, it’s a nice unit and 12 amps at that price is pretty good. I hope it runs many years, but if not I will let everyone know.
Amazon Customer –
Excellent Quality Unit
After my old distributed power supplied died, I tried to find parts to repair it. Due to it’s age, it was obsolete and parts were no longer available. I did some searching and found the Installer CCTV unit and the price was very reasonable. After placing my order, the unit arrived within a few days and I installed it. It worked great and as a result I was able to get our security system back online very quickly. I would definitely order this distributed power supply again.
Kindle Customer –
Voltage
So had this installed with 6 cameras needing no more than 1/2 amp each. Have had issues with other applications such as noise and imaging with the cameras and knew it was the voltage drops. I installed this power source and fixed the issue. Planning to install 4 more cameras and have confidence in this power source. This is a fanless power source and also heat distribution isn’t noticeable.
Amazon Customer –
Works as advertised!
Received and works as advertised. Exactly what I needed. Thank you.
Eric B –
Nice unit
If I ever need another one for someone this is the one I’ll get.
Brian Vanmatre –
Bought it to replace an out of production Qsee model …
Bought it to replace an out of production Qsee model that died. Worked perfectly. The punch outs and connections are on the opposite side of the model being replaced, so I had to install it upside down for the wires to reach, but it worked perfectly. Extra fuses included.
Ben Gray –
Nice unit for the money.
Good quality look and function. Easy to install.
Lunigo –
Great
It was installed since oct 2018, and still working
Camilo Gutierrez –
Recommended
Solid and robust, works I expected. Better than I thought.
Bill Stat –
Power Supply Box
The only one we use!
