Product Description

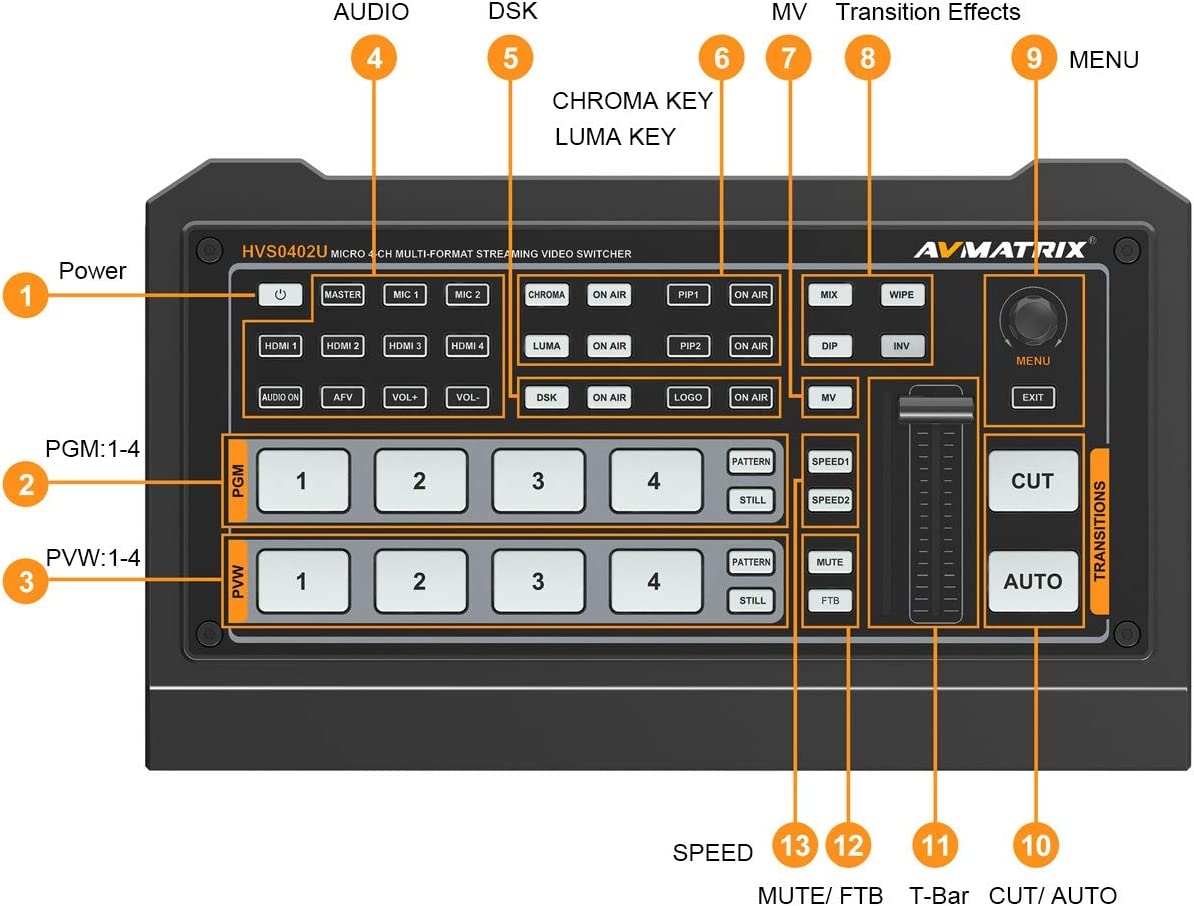

HVS0402U MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER
- 4 channel auto-detected HDMI inputs
- 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- AUX output configurable and assignable
- USB-C for capturing and streaming on PC
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
- Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
- customer configuration import and export
Specification
Video In | HDMI type-A ×4 |
Video Out | HDMI type-A PGM ×1 HDMI type-A Multiview ×1 USB2.0 type C ×1 (Streaming on PC) Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview |
Audio In | MIC/ Line level (3.5mm stereo audio) ×2 |
PC Control Port | LAN×1 |
Media Library | USB type-A ×1(USB disk port for image import and firmware upgrade) |
Tally Port | DB-15 ×1 |
Power In | DC 12V ×1 |
HDMI In Format Support | 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 1080i 50/ 59.94/ 60 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60 |
HDMI PGM Out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50 |
HDMI Multiview Out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50 |

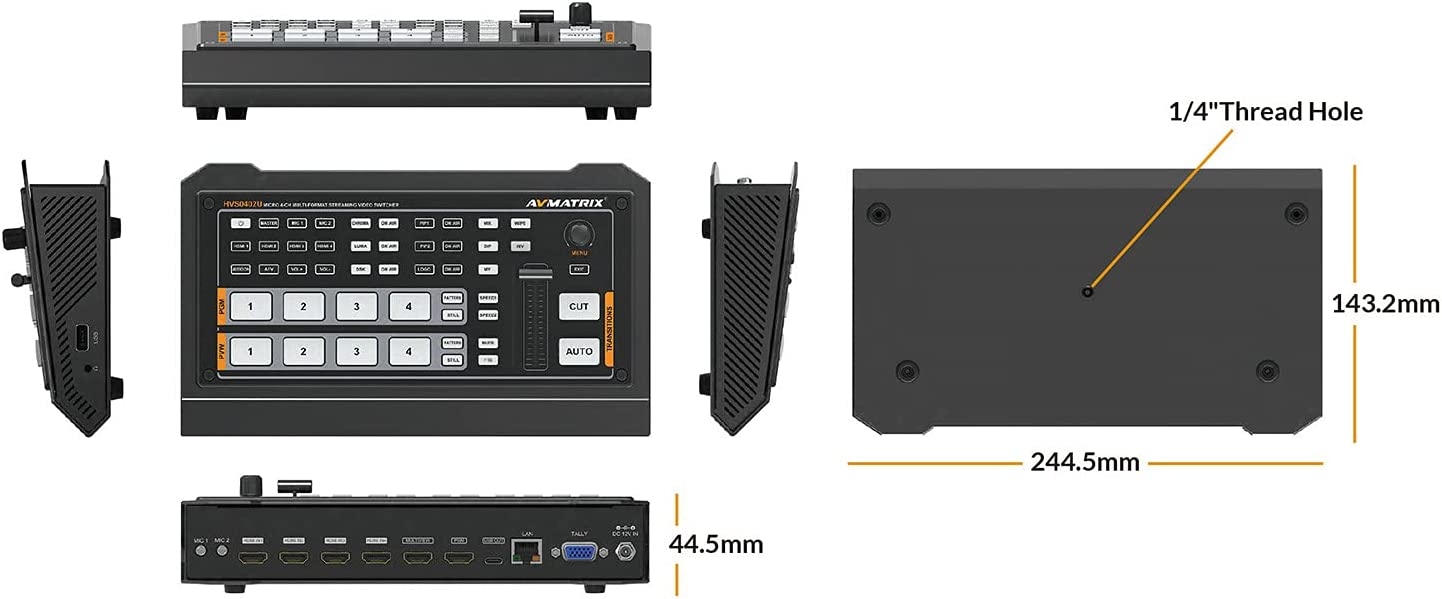

Dimension (LWD) | 244.5 × 143.2 × 44.5mm |
Weight | Net: 1030g; Gross: 1500g |
Temperature | Working: -20℃~60℃, Storage: -30℃~70℃ |
Accessories | Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1 |
