Description

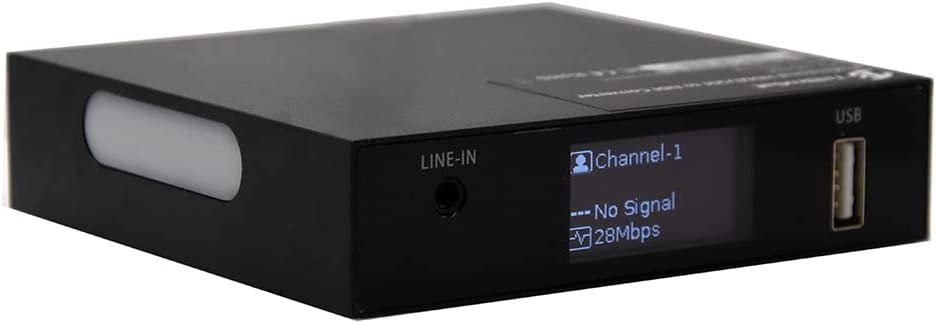

TBS2606 HDMI/SDI Full NDI Encoder supports HDMI or SDI in. HDMI supports to 3840x2160p_30hz in maximum, SDI supports to 1080p_60hz maximum
Key features
*Full NDI supported, based on NDI SDK 5.X
*SpeedHQ Compression, high bandwidth, high quality
* Low latency, less than 50ms
* PTZ, Tally supported
*IEEE 802.3af PoE Supported

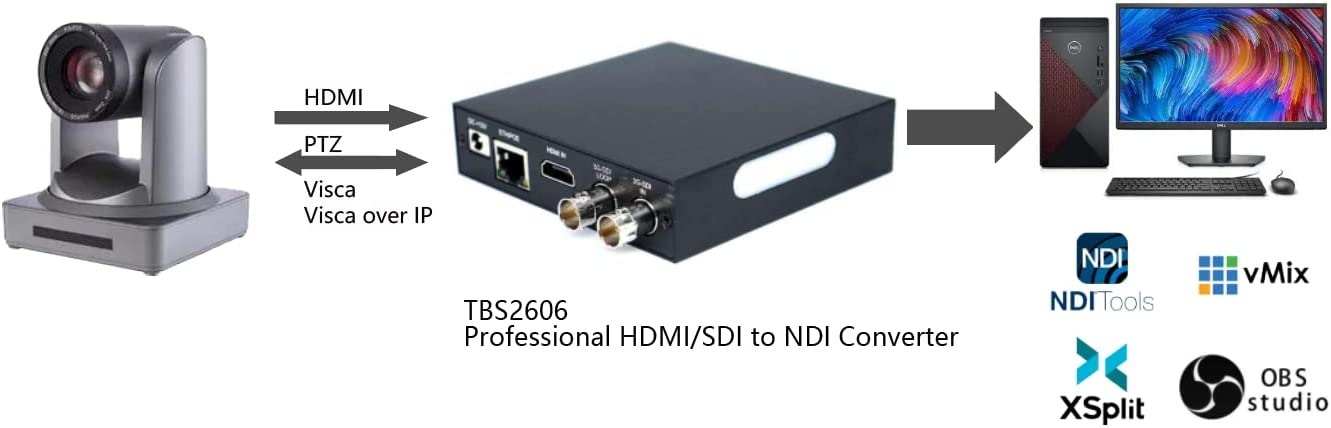

Hardware Connection
Normal Connection:
HDMI signal, DC 12V/1A adapter, LAN cable, PC/Laptop, Network switch, Router
PoE (Power Over Ethernet) Connection:
HDMI signal, LAN cable, PC/Laptop, PoE Network Switch, Router. This case we do not need power Adapter, power will be supplied by Ethernet.
Encode Configure
Audio source: HDMI embedded, SDI embedded or Line In.
Video Source: HDMI, SDI. You can choose any one of them to use. It’s not allowed to use HDMI and SDI simultaneously.
Audio Gain: -12dB~+12dB
Encode quality mode: Auto, Manual.
Auto: system set a proper quality depends on the input.
Manual: manually set the Encode quality.
Encode Quality (bitrate): Lowest, low, normal, high, infinite (bitrate will be depended on NDI its own algorithm). For instance, 1080p_60fps stream and encode quality to “high”, the bitrate is around 150Mbps
Network
An extra IP address for machines from which you wish to discover NDI sources.
Protocol config: NDI Connection mode (NDI stream sending mode).
TCP, RUDP, Unicast, Multicast
TCP: multi-TCP sending or receiving.
RUDP: Reliable UDP, the default connection type on NDI version 5 and later.
Unicast: UDP unicast sending or receiving.
Multicast: the use of multicast for receiving.
