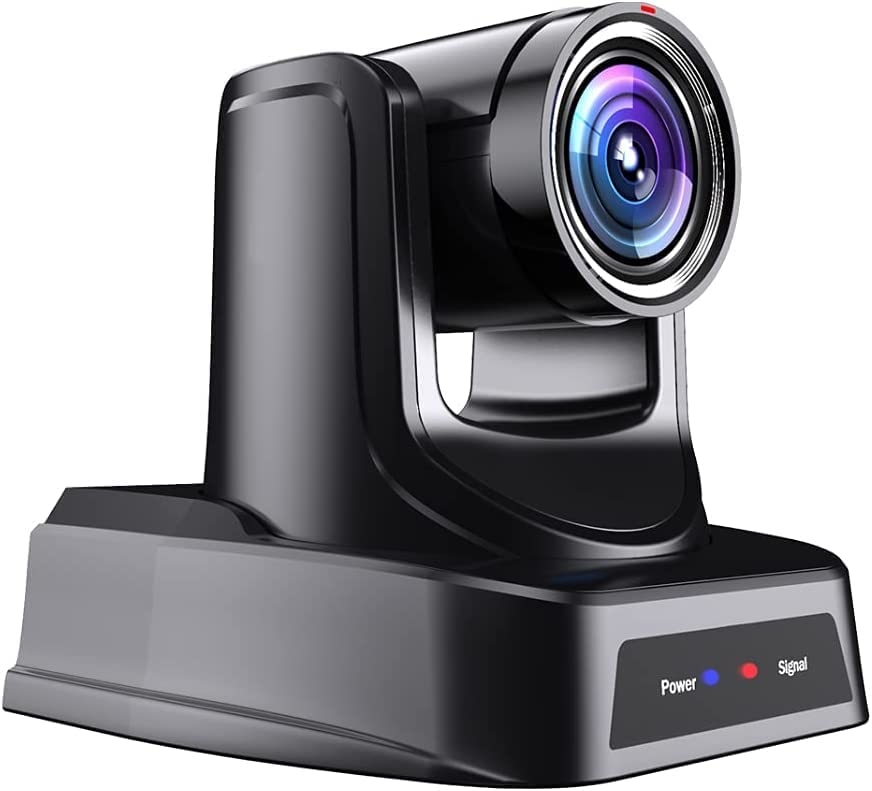

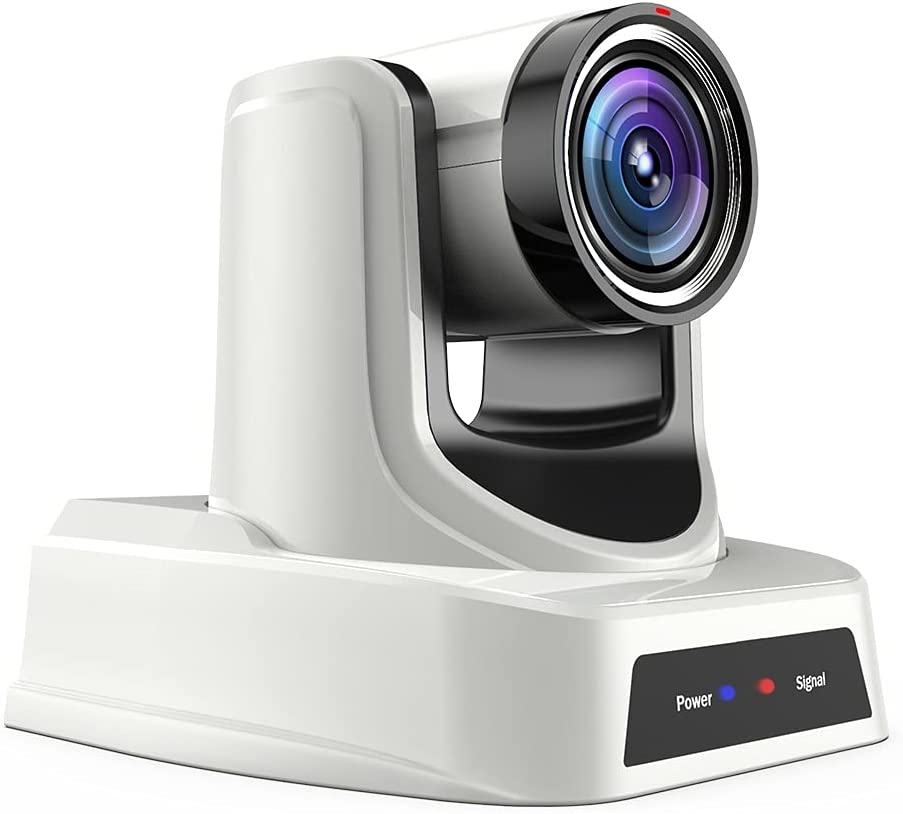

SMTAV PTZ Camera with 3G-SDI,HDMI and IP Streaming Outputs,30X + 8X Zoom,Video Conference Live Streaming Camera for

(10 customer reviews)


Connectivity Technology Wired
Special Feature Low Light
Power Source Battery Powered
Connectivity Protocol Wi-Fi
  • Apply 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 30x + 8X Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well.
  • As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.
  • Is a Full HD professional live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support PoE(802.3af) and RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
  • It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we also offer free app to help you setting the camera.★ If you need wall or ceiling mount bracket pls serach B08SC4N9J2.★
  • What can you get.30X Full HD PTZ Camera,Power adapter,IR remote control,user manual,Serial control cable.Any question, please feel free to contact us, Our support team will reply you within 24 hours.


Product Description



SMTAV Corporation is a professional AV integration and conference solution supplier. It has been providing the high-quality video and audio products for more than 20 countries worldwide. Committed to provide and support you with the good and cost-effective products.

At present, while supplying high-quality audio and video products to many Fortune 500 companies, it has also helped many brands manufacture PTZ cameras and microphones belonging to their brands.

BA30S is a PTZ camera for professional live broadcasting. It basically has features you can imagine, including but not limited to multiple resolutions, multiple frame numbers and multiple output methods (SDI&HDMI&IP), H.265&H.264&MJPEG video encoding, RTSP&RTMP, and multiple control methods (Onvif/VISCA/ Pelco-D/Pelco-P/CGI/HTTP, etc.), PoE, local recording and so on. It can make video creation fun and simple.

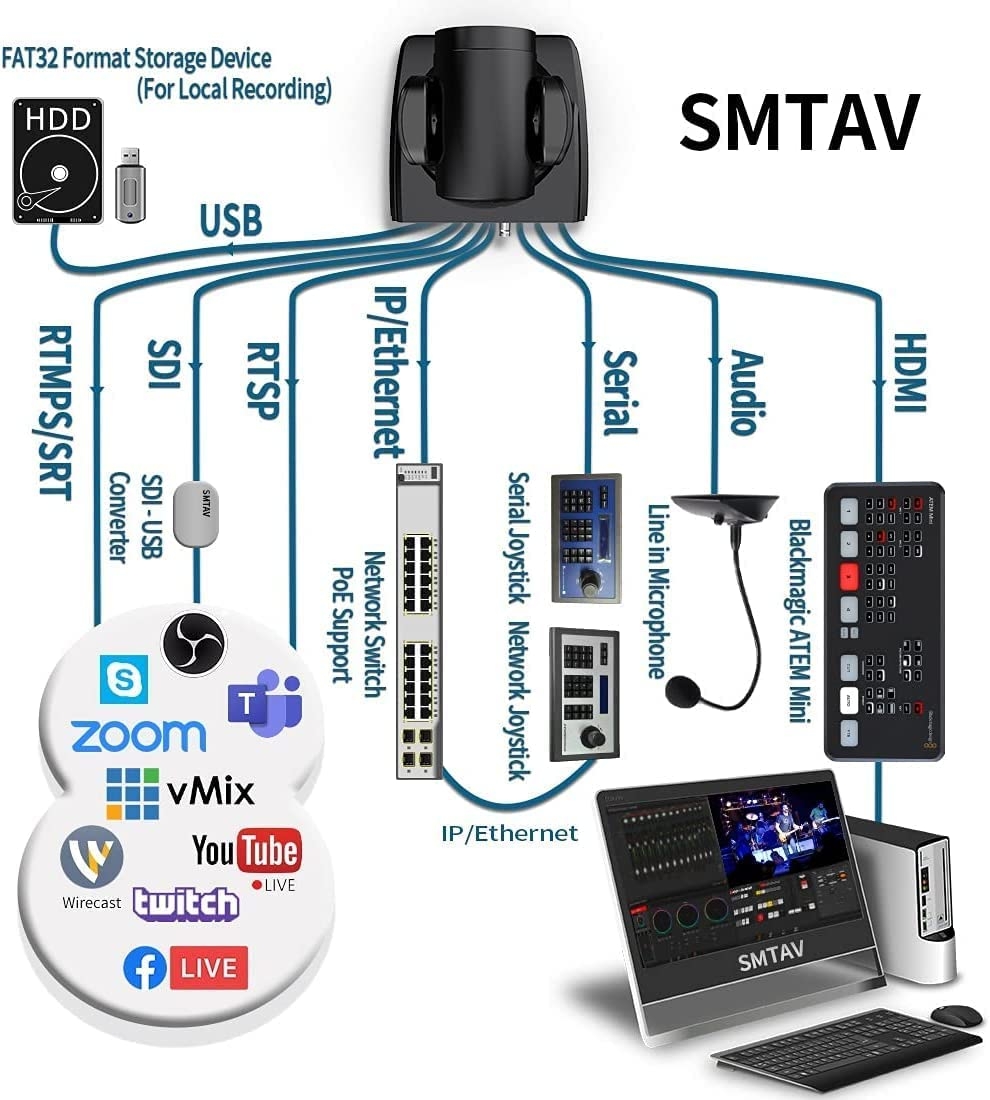

PTZ Camera Interface

Camera Interface

Supports 3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.

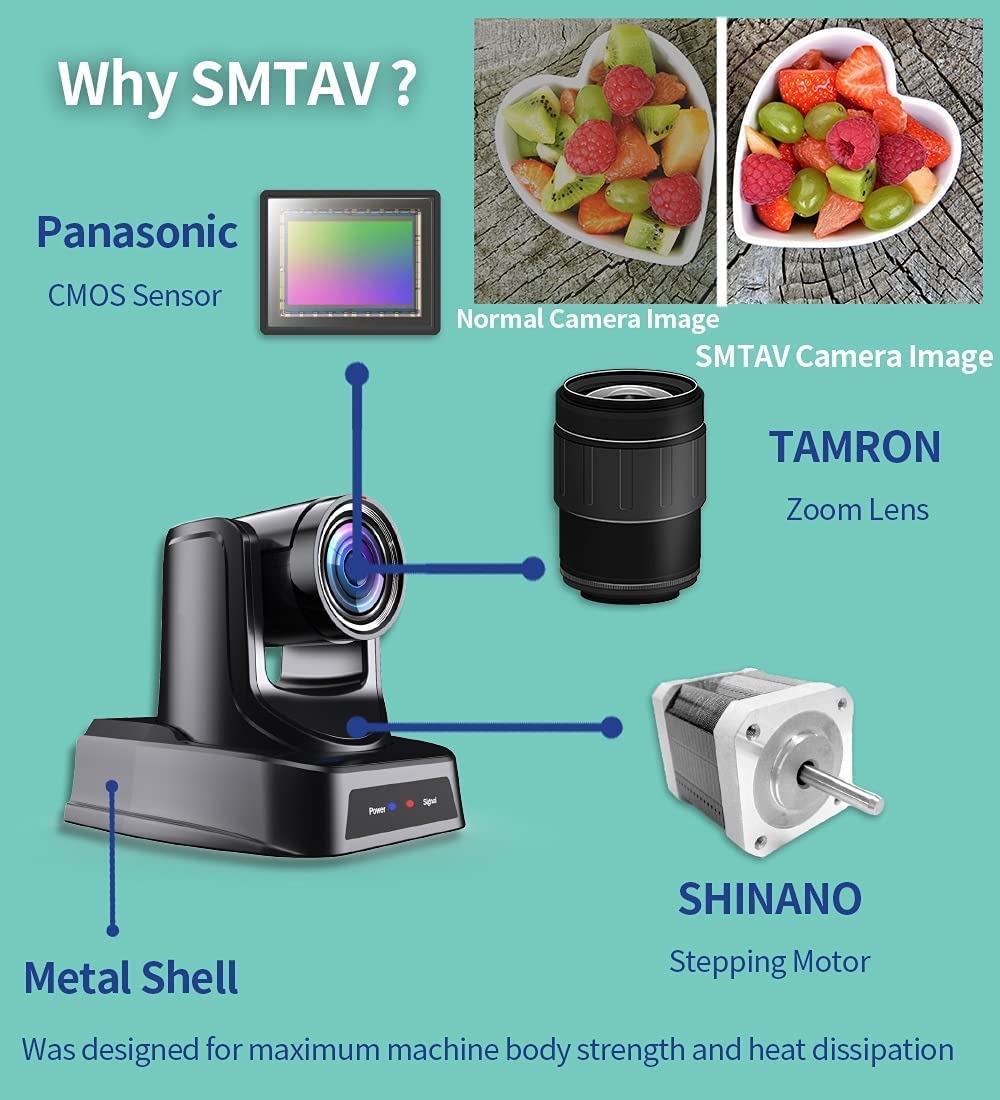

Picture Quality First

We have always believed that the soul of a camera is the most basic image quality, so we have been committed to optimizing image quality.

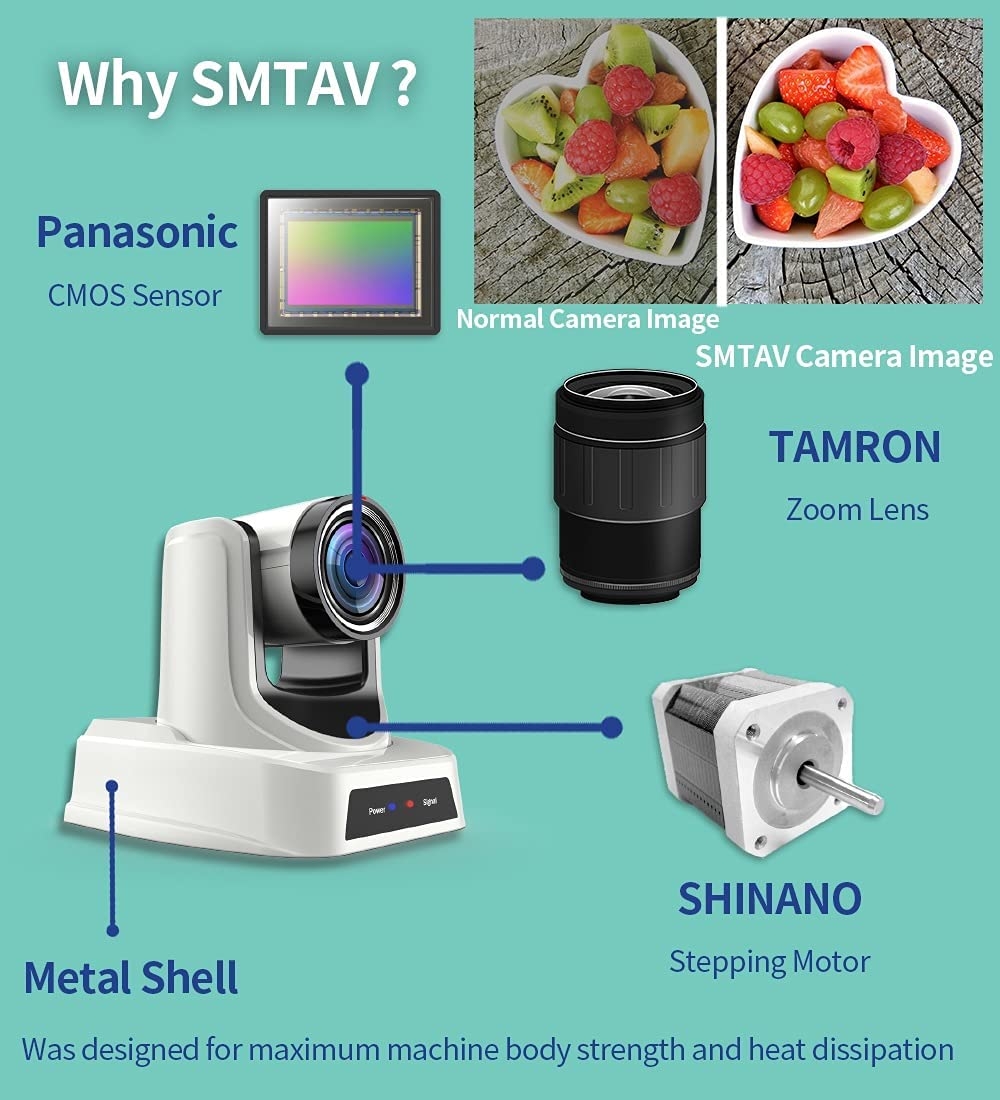

It is equipped with a Panasonic 1/2.7″ CMOS and a Tamron zoom lens with a maximum aperture of F1.8, combined with our unique image processing algorithm and focus processing algorithm, so that it can easily cope with a variety of scenes. Whether it is a football competitions under night lights, press conferences under the spotlight or a party under the sun.

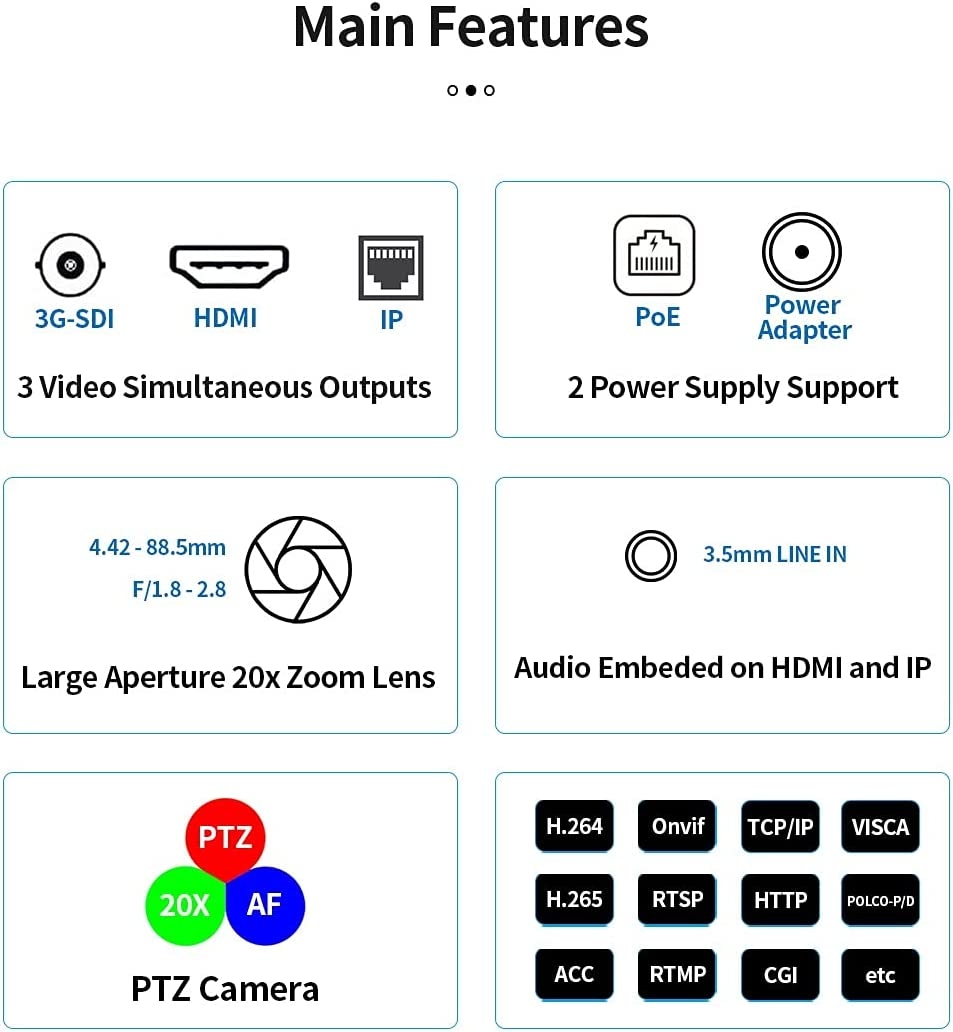

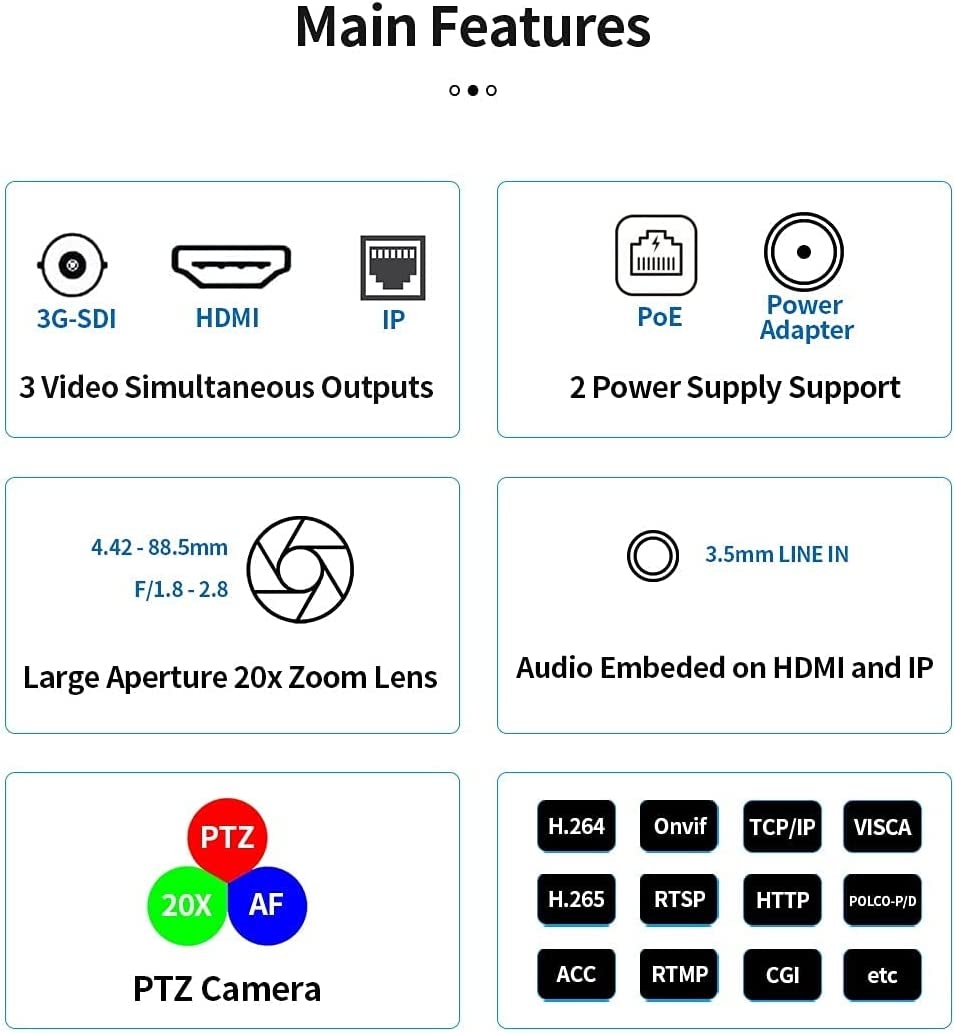

3 Video Outputs

Live streaming features

Multiple Protocol Support

3 Simultaneous HD Video Outputs

Simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG/H.264/H.265)

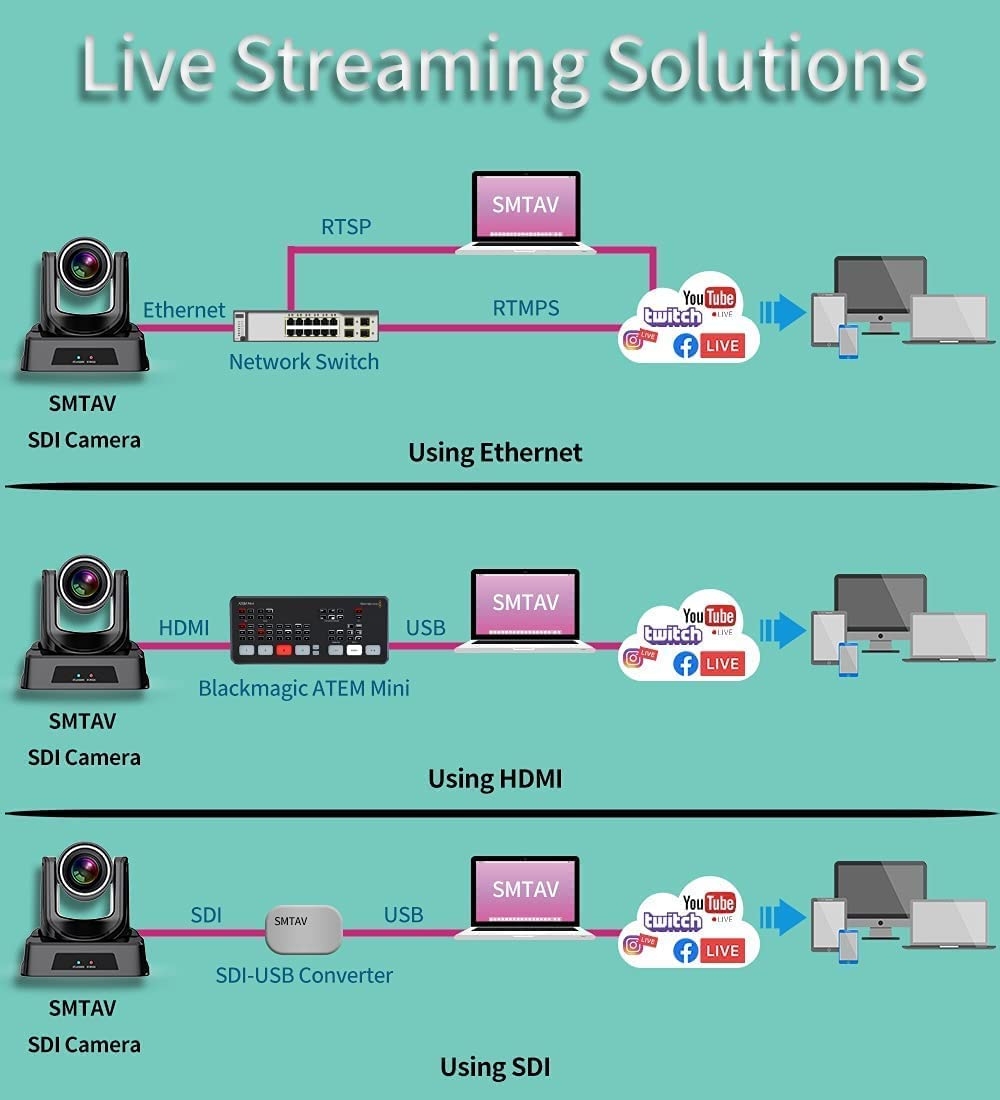

Live Streaming Camera

It supports H.264/H.265 video encoding and RTSP/RTMP protocols, can easily cope with various live steaming challenges

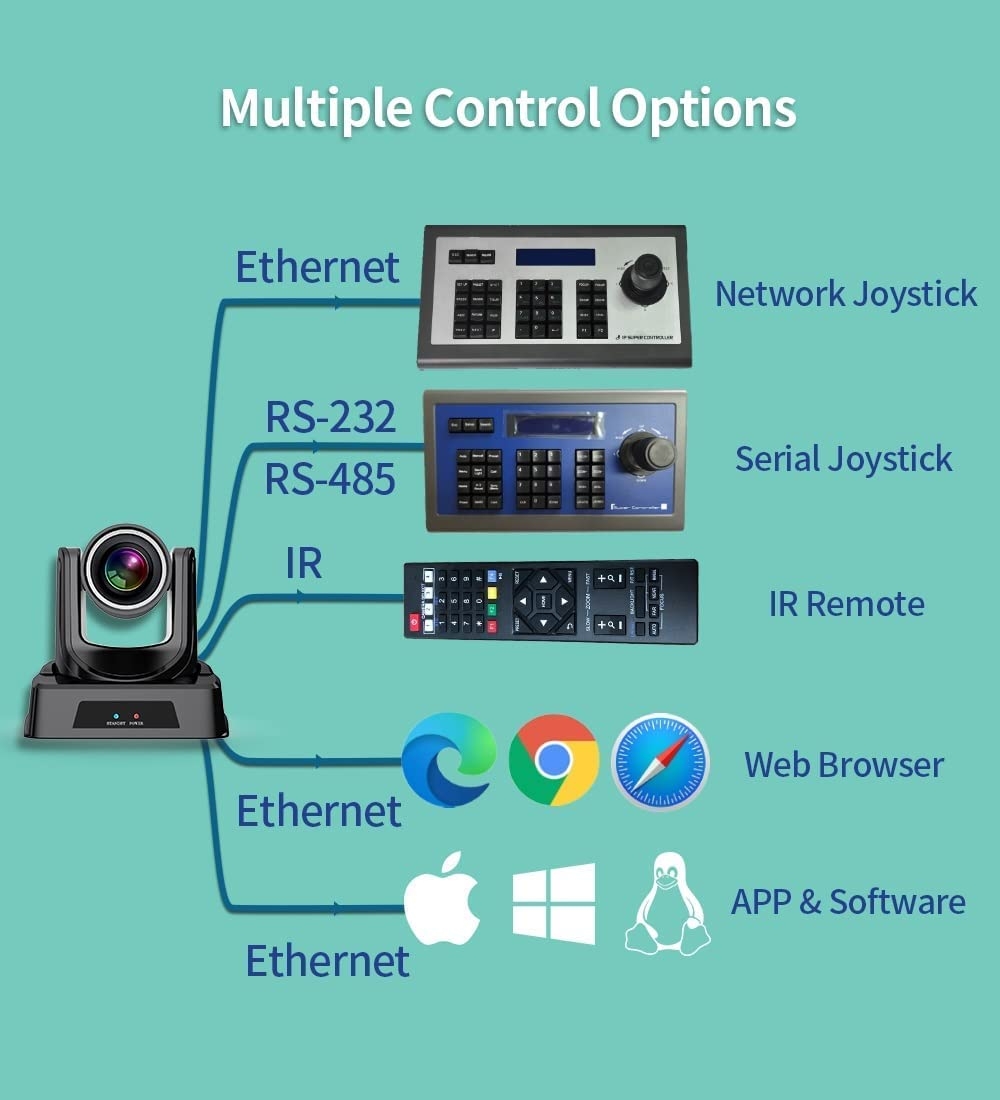

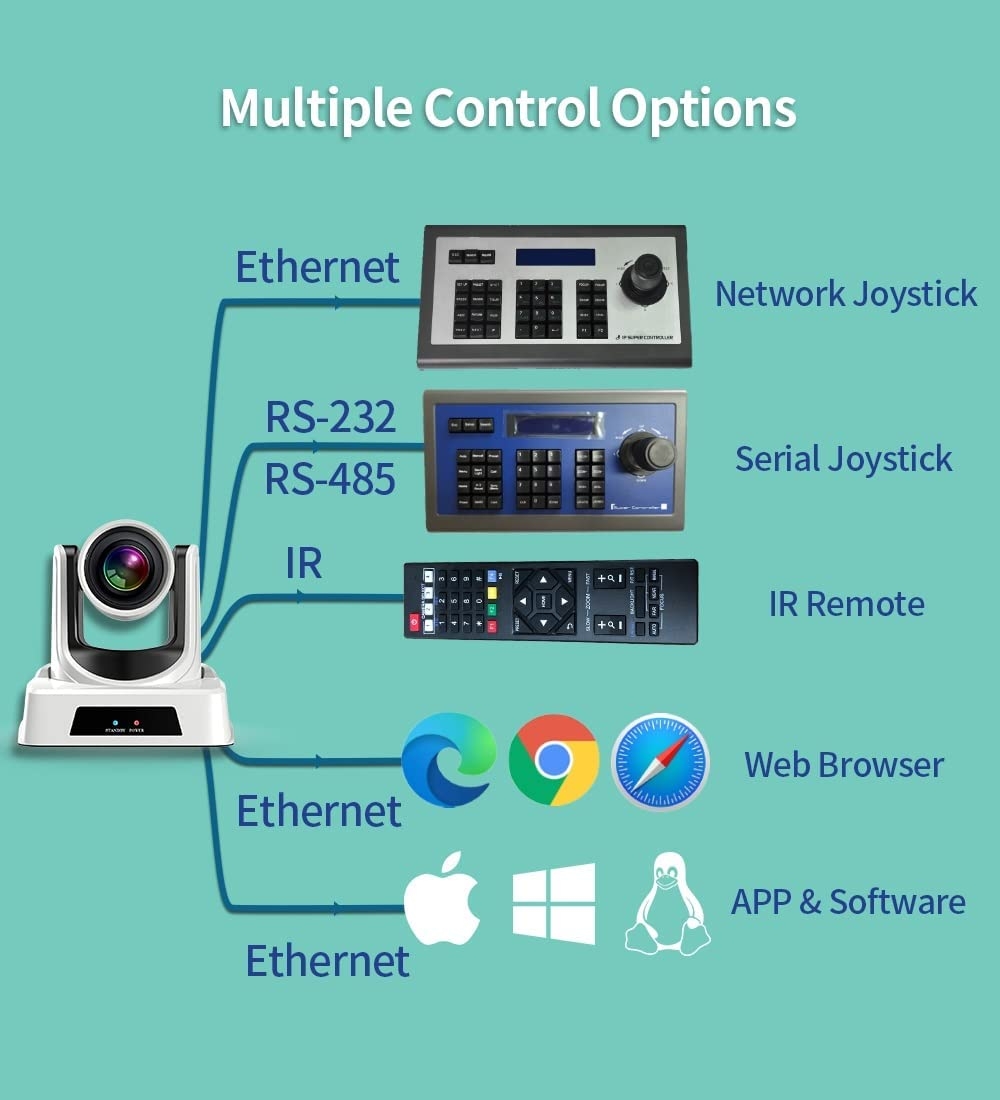

Multiple Protocol Support

Standard PoE/Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and etc protocols Support.

Easily controlled by IR controller, Network or serial port.


Events and broadcasts

Worship and church

Government and education

Sports and medical

Events and broadcasts

Worship and church

Government and education

Sports and medical


Video Output Interface 3G-SDI, HDMI, CVBS, IP(RJ45)
Video Format HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i
Sensor 1/2.7”, CMOS, Effective Pixel: 2.07M (Panasonic)
Lens 30x,f4.42mm~132.6mm,F1.8~F2.8 (Tamron)
Focus Mode Auto, Manual
Electronic Shutter 1/30s ~ 1/10000s
Minimum Illumination 0.5 Lux at F1.8, AGC ON
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Angle of View Horizontal: 60.7° ~ 2.28°, Vertical: 34.1° ~ 1.28°
H & V Flip Support
Image Freeze Support
Video Compression H.265/H.264/MJEPG
PoE Support(802.3af)
Local Storage Support(Flash disk via USB, FAT32 format, Up to 128GB)
Control Signal Interface 1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Control)

Additional information

Weight 5.39 kg
Dimensions 6.65 × 5.59 × 6.46 cm
Product Dimensions

‎6.65 x 5.59 x 6.46 inches

Item Weight

‎5.39 pounds



Item model number


Date First Available

February 23, 2021



10 reviews for SMTAV PTZ Camera with 3G-SDI,HDMI and IP Streaming Outputs,30X + 8X Zoom,Video Conference Live Streaming Camera for

  1. DWalls

    Good camera great priceWe are very pleased with this camera for our Church’s Online presence. The 30x zoom is more than what we need for inside the sanctuary, but we stream other events outdoors like our beach baptisms and on Easter Sunday at the local High School Stadium where I’m sure we will be able to take advantage of the 30x zoom. Good clean video picture, love the preset capabilities, push button framing works great for our video director. Easier to train than a volunteer camera person… Having PTZ capabilities means we can place the cameras without having to accommodate a camera person to operate. This is a game changer for sure, looking forward to getting a couple more (20x should be sufficient for the other camera locations).

  2. Reginald

    30x zoom is awesome on this camera.Picture quality is amazing. I had to set the camera back rather far, but the 30x zoom put the clients face perfectly in the frame. It’s totally worth the cost.

  3. Gary Stutts

    A very robust camera for the priceThis is the 2nd unit of this specific model that I have purchased. We use both cameras in our church to live stream the services to Youtube and Facebook. Works great and the quality is very good.

  4. Dale J Carrell

    Church cameraThis helps my church spread the Gospel with video. Works well with a Mac (if you have the right video capture card)

  5. franknj

    Great for our church!Excellent camera for our us. We just use it to broadcast the church service into an overflow room. The ability to set and select 9 different pan, tilt and zoom settings with the remote is fantastic! Gives the service a professional appearance. Thank you Jesus.

  6. dave

    cant programCamera looks good as for image but I can not enter the cameras setup to change ip address, therefore the other 2 cameras are useless to me because i can not control them. I will be sending them back and getting something different. Poor design on part of company.

  7. Christopher

    Worth the $For the money this camera is amazing, great picture quality and easy to use

  8. Convenient Technology Services

    Very good video quality and works well with low light conditionsI have bought and installed few of this camera for churches. Video quality is very good at 1080p, and has lots of enhancements options. Works well with low light conditions. Very low pan&tilt noise.

  9. cyberspeed

    Great Camera and Fast International ShippingGreat camera! Only thing is that I can’t figure out howto record the videos on USB. I tried various types which none worked. Is there a trick, upgrade needed or a special device?

  10. J. Earl Trussell

    Great cameras for live streamingEverything works fine
