Description

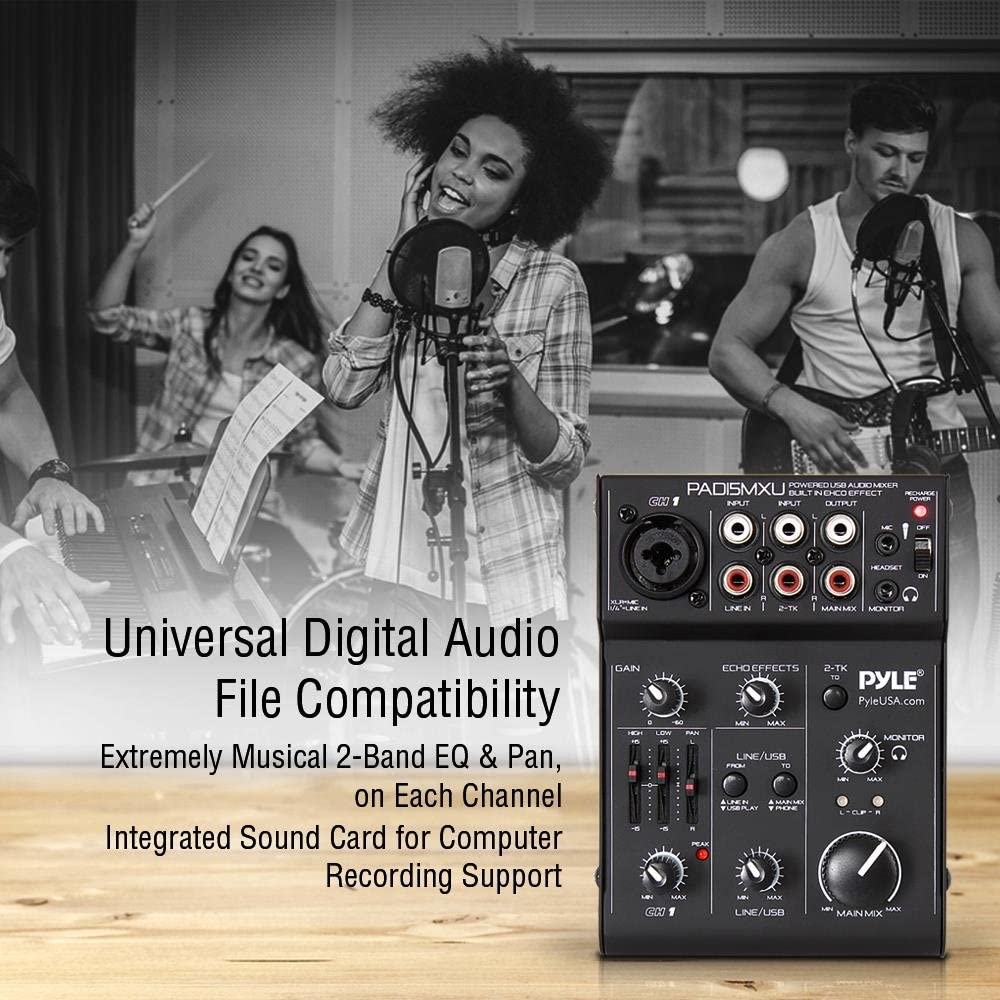

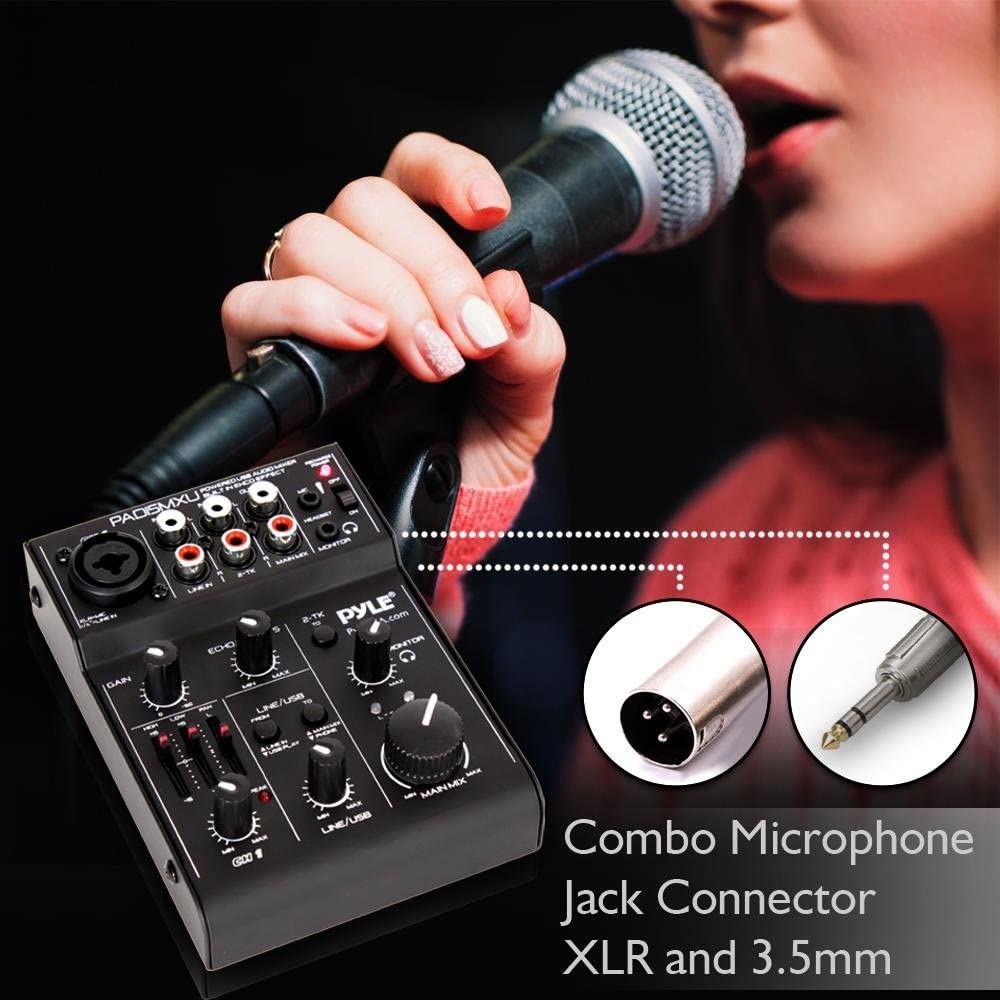

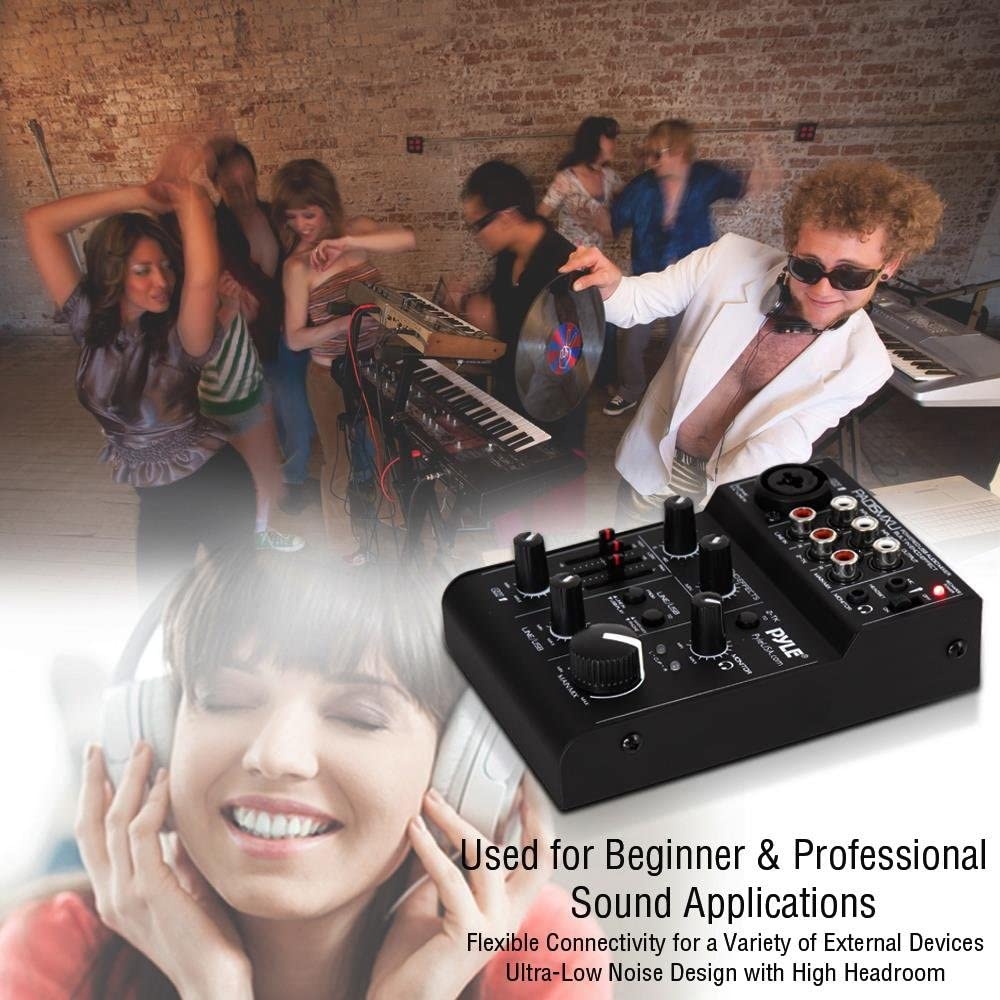

Pyle model: pad15mxu3-ch recording USB mixer audio interface3-channel USB Audio/sound mixer recording interface with built-in rechargeable battery Features: flexible connectivity for a variety of external devicesultra-low noise design with high head room integrated sound card for computer recording support USB interface: connect to Mac/ PC built-in rechargeable battery smooth Rotary-Style faders for mic/USB/line/master controls extremely musical 2-band EQ & pan, on each channel combo microphone jack connector – XLR and 3.5Mmrca (L/R) stereo input and output Connector RCA (L/R) Input connectors voice echo effect/delay feature audio signal clip LED indicator lights input selection/ control buttons independent Channel + master volume controls independent Channel balance/high + low frequency adjustment used for beginner & professional sound applications Universal digital audio file compatibility in the box: mixer interface USB cable wall adapter technical specs: Phantom power: +18Vmic sensitivity: 1.3mV/1.7Kω(gain max)ch.1 sensitivity: 5mV/12kω(gain max)ch. 2/3 Sensitivity: 260mV/16kω2-tk: 300mV/22kωoutput level: 5.8V Max (main; monitor)frequency range: 20 -21000 hot.H.D.: ≤0.05%S/N ratio: 81Dbeq range: bass 15dB/80Hz, high 15dB/12Khzheadphone impedance: ≥16ωusb interface: SB 2.0, Windows 98SE+, Macc OS 9.Rechargeable battery: 3.7V Lithium Ion, 600Mahpower supply: USB, 5V/500Ma (type-b)dimensions (L x W x H): 3.97’’ x 5.31’’ x 1.77’’ – inches The Pyle channel USB Audio/sound mixer recording interface is like a portable recording studio. It’s perfect for computer-based audio editing while adding fine-tune adjustments to your sound. The mono input channel allows you to connect a (phantom-powered) microphone. At the XLR jack, a Phantom power of +18V is always present. The stereo input channel allows you to connect an audio source with line signal level. In addition, the mixer is provided with connections for a recorder and Headphones. The mixed signal is sent to the output via RCA jacks and the USB port. It is also possible to use the USB port as an input to transfer audio data from the computer to the mixer. When connecting the mixer to a computer, power is supplied via the USB connection.
From the manufacturer
|
|
|
|
|
|---|---|---|---|
The InputsEach and every channel features a choice of powerful plug-ins and effects to dial in the perfect sound for whatever you’ve got plugged in. |
Rechargeable BatteryThis multi channel battery powered DJ music Mixer system also features a built in 3.7V Lithium Ion, 600mAh rechargeable battery with a maximum operating time of 4 hours for audio mixing on the go. |
The Most Intuitive ControlYou can customize the work surface for your specific application with view groups and access limiting to only show the controls you need. Powerful processing includes total control over all inputs and outputs, ensuring you can create a fantastic sounding mix easily. |
USB Interface and Mix MonitoringThis personal mixer has a USB port to connect to a power supply or a computer and use it as an audio output and input interface and a 3.5 mm jack for mix monitoring via headphones. |

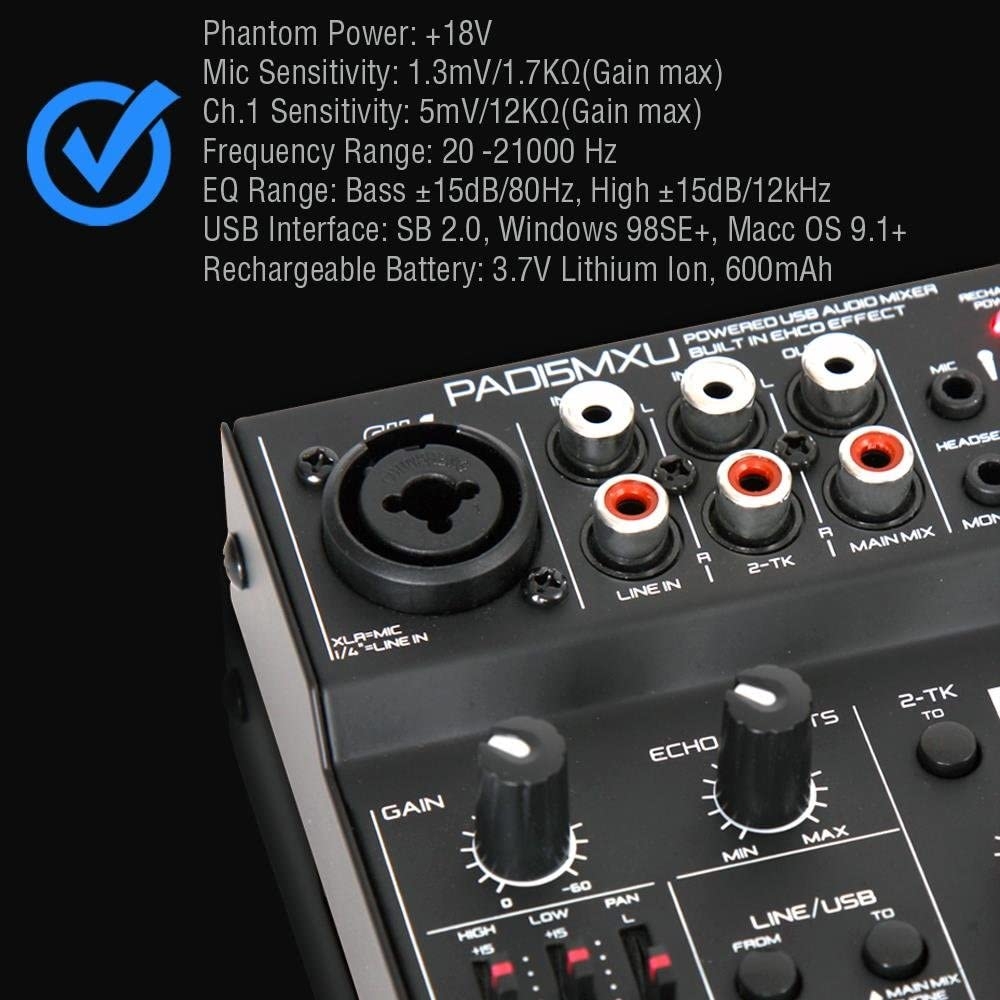

Technical Specs
- Phantom Power: +18V
- Mic Sensitivity: 1.3mV/1.7KΩ(Gain max)
- Ch.1 Sensitivity: 5mV/12KΩ(Gain max)
- Ch. 2/3 Sensitivity: 260mV/16KΩ
- 2-TK: 300mV/22KΩ
- Output Level: 5.8V max (MAIN; MONITOR)
- Frequency Range: 20 -21000 Hz
- T.H.D.: ≤0.05%
- S/N Ratio: 81dB

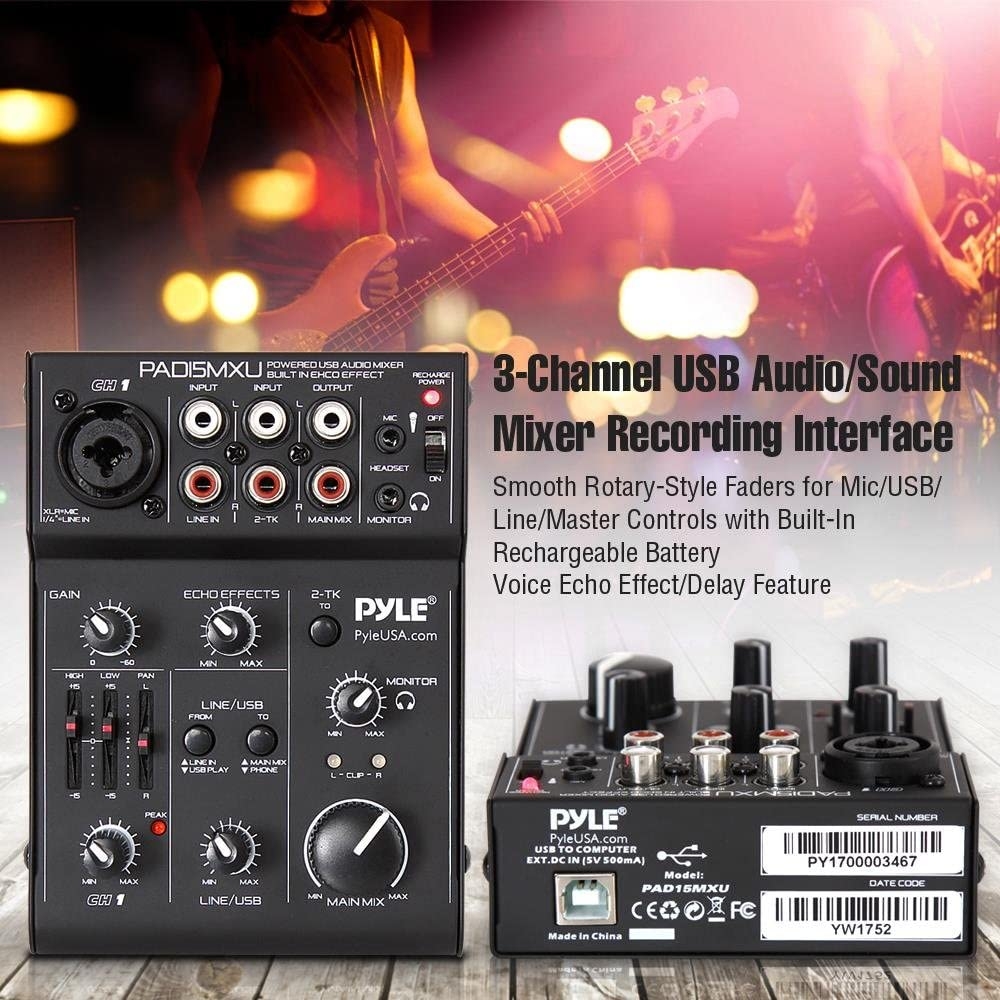

3-Ch Recording USB Mixer Audio Interface
Rechargeable Battery, Mix Monitoring, Line In RCA
The Pyle 3-Channel USB Audio/Sound Mixer Recording Interface is like a portable recording studio. It’s perfect for computer-based audio editing while adding fine-tune adjustments to your sound. The mono input channel allows you to connect a (phantom-powered) microphone. The stereo input channel allows you to connect an audio source with line signal level. In addition, the mixer is provided with connections for a recorder and headphones. The mixed signal is sent to the output via RCA jacks and the USB port. It is also possible to use the USB port as an input to transfer audio data from the computer to the mixer. When connecting the mixer to a computer, power is supplied via the USB connection.
- What’s in the Box?
- Mixer Interface
- USB Cable
- Wall Adapter
The Heart and Soul of Your Mix
Setting up your mix has never been easier. With built-in tools that allow you to create new channels, name them and even add a custom icon in a flash, you will always start the show on time. You can even load your favorite channel presets to get you started even faster.
K Price PDX –
Tiny But MIGHTY!I just took delivery of this little mixer yesterday and could not be more pleased. Well, maybe just a little bit (see more below.) I will use it for small live gigs, MIC into channel 1 and keyboard to CH 2. It does that brilliantly, and WITHOUT AC POWER. For 4 hours anyway. I haven’t seen any similar product with internal battery power, and it’s a strong feature. The mixer output goes to my pair of Rockit 5 powered speakers, which are awesome BUT lack any mic preamp. My new “BBQ / party” keyboard – a Casio CT-S1 – has 3.5mm output, so using a 3.5mm -to -RCA cable pair works fine here. I also looked at Pyle’s PAD22MXUBT, which has some better features but no battery. Adding battery to the PAD22MXUBT would be an absolutely killer product. (Hint, hint…)
Wylander Sangcap –
Great little battery powered Mixer!Great little mixer, and its battery powered (up to 4 hours). I use it as a pre-amp for my Mic. I have a battery powered speaker and combined with this mixer I am able to do weddings ceremony’s anywhere without plugging in for power!
Kindle Customer –
Appears to be well made. Weight is impressive.Overall good, but I can’t figure out how to output mix to Main Out and to Monitor simultaneously, which is critical for my usage.
Gregory Campbell –
Great little USB audio interface / mixer for the price!This affordable little mixer interface doesn’t have many bells or whistles, but if you’re just trying to mix a couple different audio sources and record into a computer, it works perfectly. It took me a little time to figure out the best configuration (but I have a somewhat complicated situation, I think, and I’m fairly new to setting up audio gear), but I really like the battery-powered portability, and, of course, the price (I found mine refurbished for around $30). I do wish there was a separate volume control for the 2-tk line, but all things considered, it’s a great unit for the money.
Nathan D Moore –
Exactly what I neededI have a fairly nice linear array sound system that I use to DJ events. All of the control on that system is on one of the subs, so I wanted a little mixer that I could use to plug in a mic and keep control in the booth. This would keep me from having to make all of the adjustments on the sub.I was worried about adding extra noise to the mix, but this thing is clean and quiet. I use an SM58 mic with it, and it does exactly what I needed it to do. There still may be an occasion where I need to adjust the main volume on the sub, but I don’t see that happening often.The control knobs have a nice quality feel. The EQ and pan sliders feel a little cheap and fragile, but they seem to work well and don’t cause any noise when moved.All in all, this is a nice little box. It’s easy to set up and operate, and then it does what it’s supposed to do.
Experienced User –
Versatile affordable mixerI’m impressed by this little product. I can mix 3 channels AND use my computer as an audio input output device using USB. The later function is unique for a device this small and affordable. The rechargeable battery allows use for small gigs. Highly recommend.
Steampunk Mark Plimsoll –
Weak preamp, and the miniplug port fails.I liked the miniplug Mic input but it broke very quickly. The EQ and pan work only on Track 1 which handles both three-pronged balance jacks and 1/4″ guitar jacks and output to STEREO, nice. The buttons of FROM (line in /USB play) TO (Main Mix/Phones) really confuse things because the headphones do NOT receive signal all the time, in spite of a separate volume knob (labelled “monitor”). Maybe that’s a feature for PRO mixing boards, but with this little thing, confuses troubleshooting. Wish it had more volume. Other iterations of this mixer removed the delicate miniplug. Ok while it lasted…
barnarra –
Great mixer!Was having problems with my previous audio interface. Ordered this and I am happy to say it is 100% better than what I had. Good volume and variety of inputs. We use this to livestream our church services. Good sound quality. Would definitely recommend this product to anyone.
isaiah –
Awesome budget mixerthis mixer powers my at2020 mic with minimal issues. sometimes the gain cuts down but thats because its not rated to power a mic like that. in general its pretty great (not a 48v phantom power supply)
Santiago Guzman –
La calidadPa estudio
