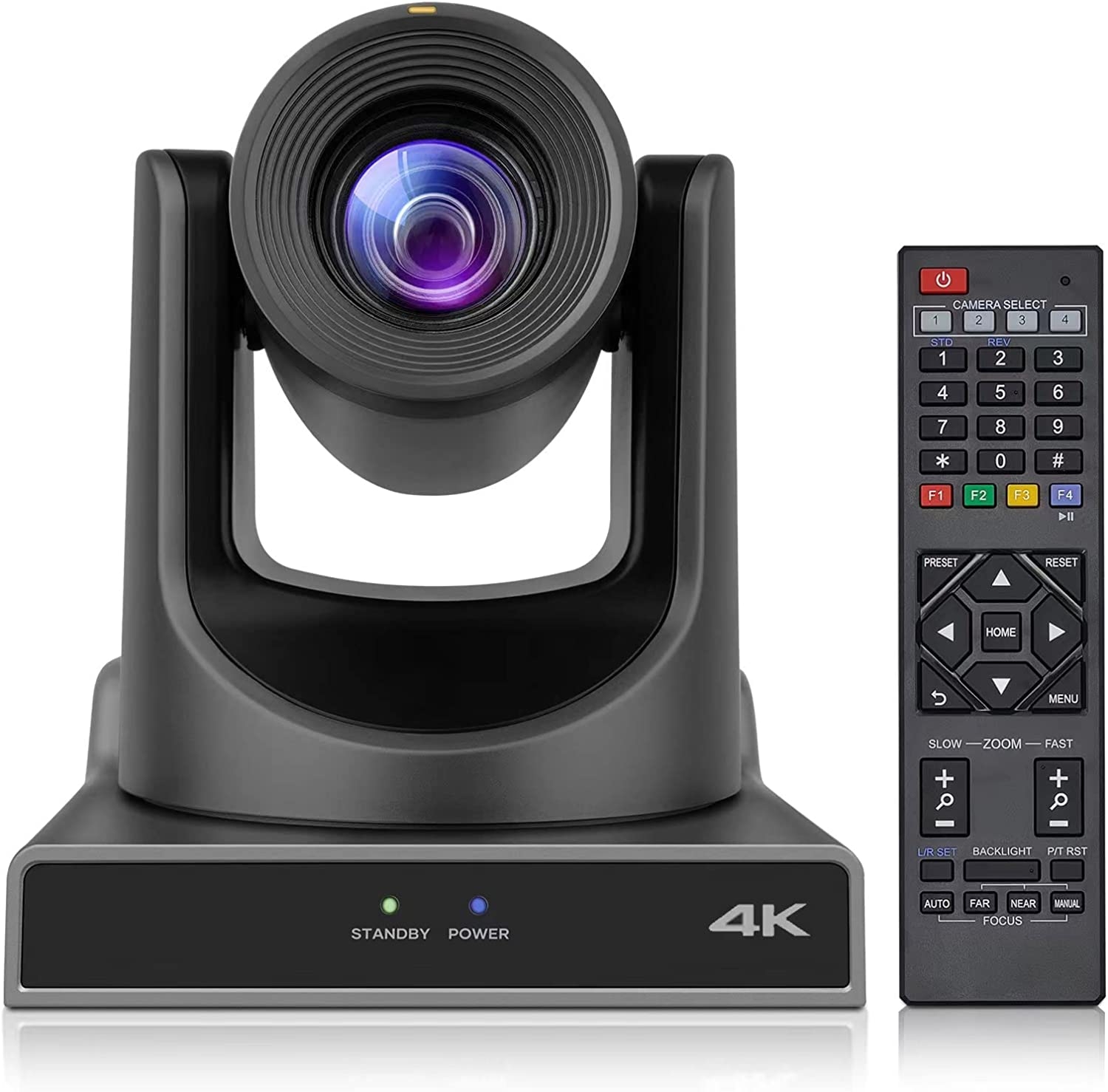

Meeasier NDI Camera 4K PTZ Camera,20X Optical Zoom PTZ Camera,4KP60 UHD Live Streaming NDI PTZ Camera SDI/HDMI/USB/NDI IP

(3 customer reviews)

$1,099.54

Brand Meeasier
Model Name Ndi ptz camera 4k
Connectivity Technology HDMI
Special Feature NDI | HX2 Support, PoE Support, Low Light
Power Source Corded Electric

  • Meeasier 4K NDI PTZ camera uses 20X Optical Zoom Lens. Ultra wide angle lens, FOV up to 60 degree to offer incredible broad views.Built in a new generation of 1/1.8 inch, 8.42M UHD 4K CMOS sensor,4K ultra-high resolution image quality can be achieved. Simultaneous 3G-SDI, HDMI, IP Video output. FULL HD 4K Resolutions with Full Frame Rates up to 4KP60fps, downward compatible with 1080P and 720P.
  • NDI | HX2 Support (NDI License Included), is next generation efficient NDI protocol. NDI provides you more reliable, ultra low latency and more flexible connection. You can save network cable runs and use less resources & low budge to make top quality video productions. 4K NDI Camera is compatiable with vMix, OBS, Zoom, Skype and other software which supports NDI HX.

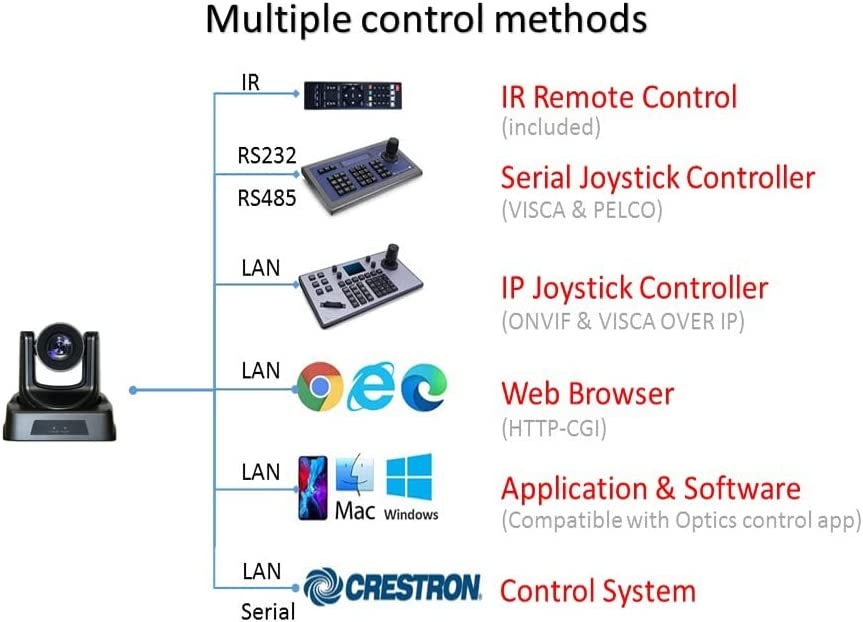

  • Meeasier NDI PTZ camera easy multiple ways control. Pan, tilt and zoom the camera can be easily controled via IR remote control/web portal/web interface/RS232 / RS485/IP/NDI. PTZ Camera system can set 255 camera positions. Use presets can easily switch to the view you want. POE Support. You can power, control, set up and preview this camera over a single Ethernet Cat5/6 cable. Simplifying installation and setup for live streaming systems.

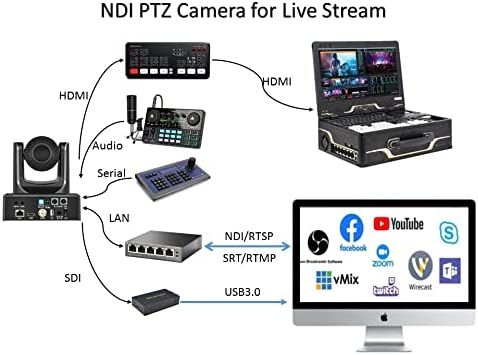

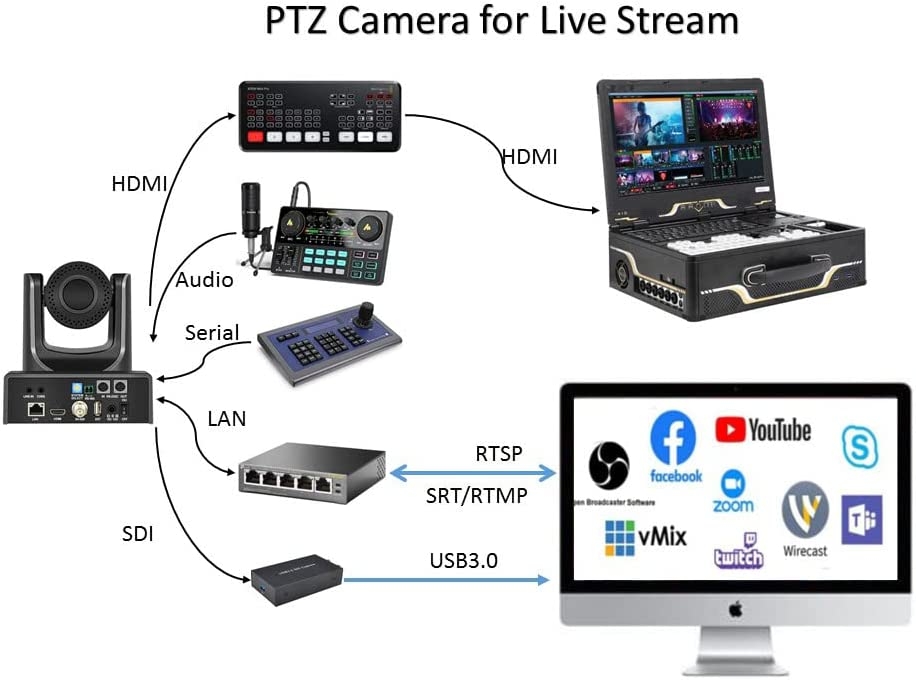

  • NDI PTZ camera is equipped with DHCP mode, you can easily set this 4K PTZ camera, convenient management & networking. 4K HDMI PTZ camera includes TCP/IP, HTTP, RTSP, RTMP/RTMPS, SRT, Onvif, DHCP, Multicast, GB/T28181 and other standard protocol. Variable speed via onvif/visca/IP/Vmix control,support IP -stream H.264, H.265, MJPEG, HD video stream over RTSP, RTMP,SRT,HTML5 etc. 20x sdi hdmi ndi ptz camera is very Easy to live stream directly to Facebook and YouTube.

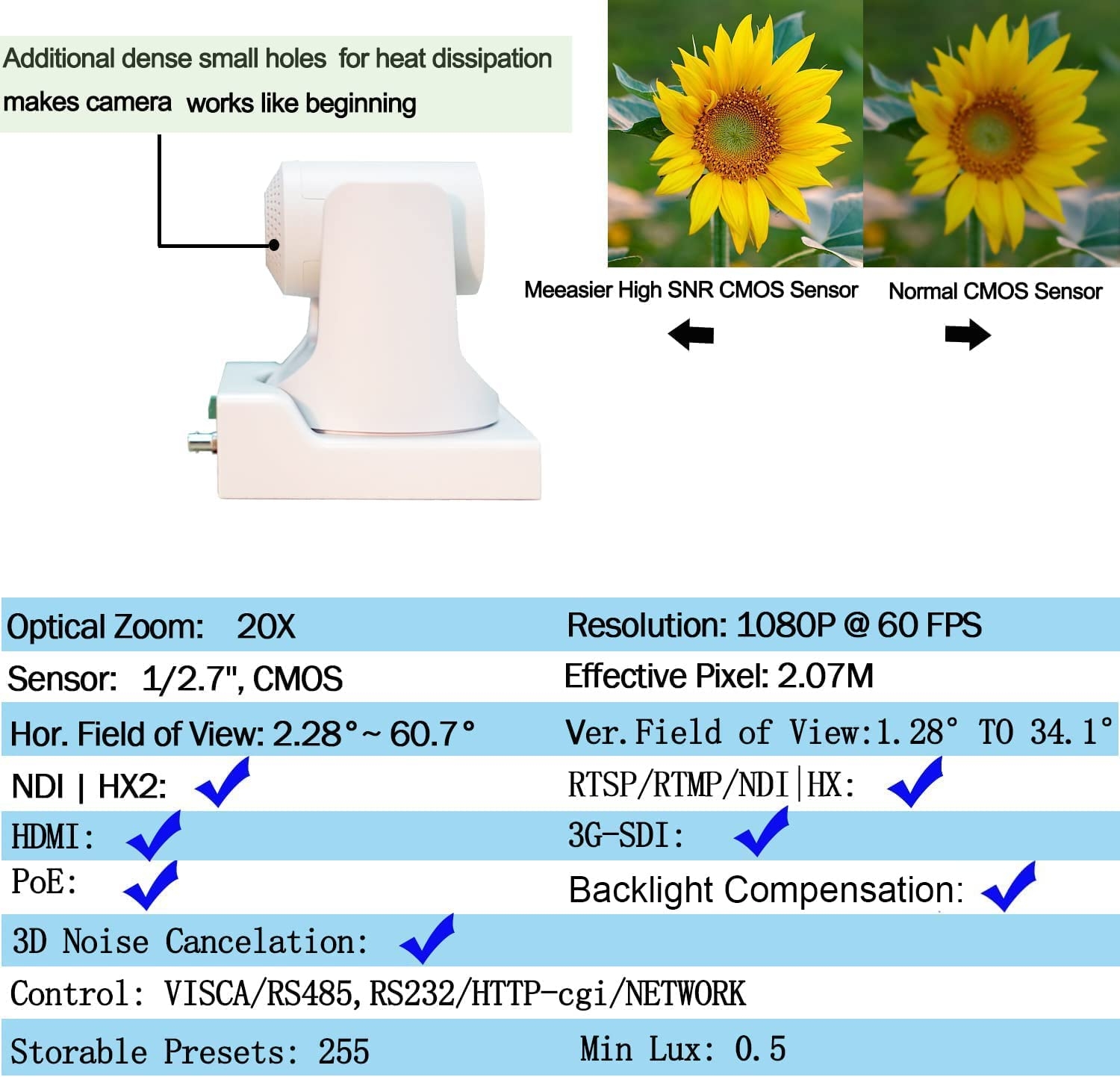

  • High SNR CMOS sensor can decrease image noise effectively under low light. 2D&3D noise reduction algorithms also are applied to reduce image noise greatly. Even under ultra-low light, the image is still clean and clear, and Video S/N is ≥55dB.

Description


From the brand


Product Description

4k ndi ptz camera

4K UHD: Built-in 1/1.8″ HD big premium CMOS sensor with 8.42 Mega Pixel . Meeasier 4K PTZ Camera resolution is up to 4K(3840X2160) at 60fps. Meeasier PTZ 4K Camera provide excellent clarity and resolution video image. NDI streaming camera give you real color, sharp, perfect video quality. Facial expressions and action will be presented vividly in the video.

20X Optical Zoom+16X Digital Zoom: 4K PTZ Camera support 20X optical zoom lossless enlarge. You can see the details clearly in far distance video image when zoom in or zoom out. PTZ 4K Camera use 20X Optical Zoom with wide angle 60° HD lens to offer distortionless image and wide view coverage area.

255 Preset Positions: PTZ camera system set up to 255 camera position via RS-232 with preset accuracy of 0.1°. IR Remote control is 10 preset positions.

2D&3D Noise Reduction:High Video SNR(≥55db) imported CMOS sensor and advanced 2D&3D noise reduction technology ensure clear voice and sharp image up to 4KP60fps under very low light.

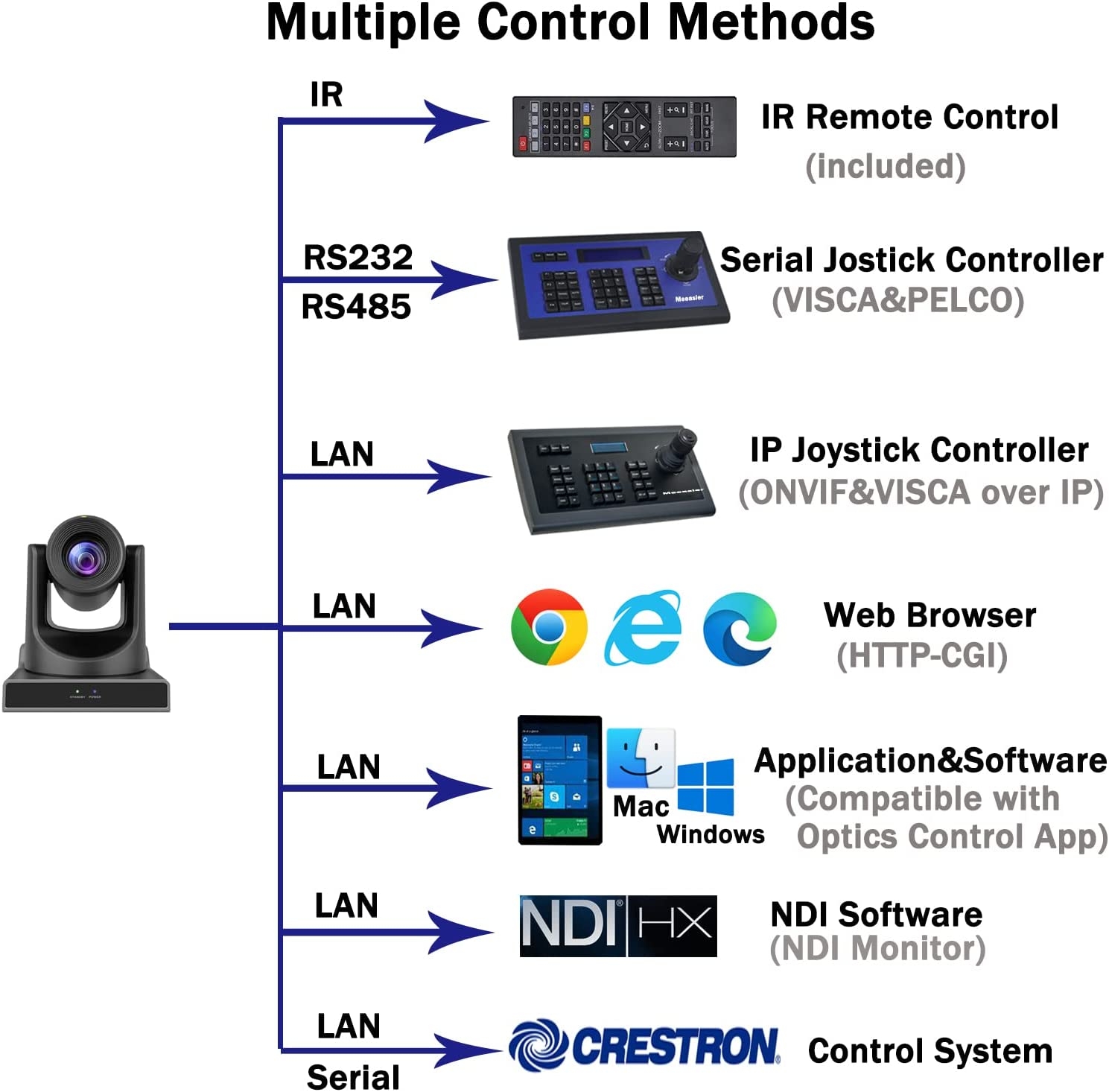

Remote Control: 20X Optical Zoom 4K Camera can be controlled via IR Remote control, RS-232 via VISCA or LAN over a network.

HDMI 2.0: NDI HDMI Camera supports HDMI 2.0 specification devices, can output uncompressed digital video directly.

PTZ Camera 4K

AI Humanoid Tracking & Intelligent Exposure

  • AI Humanoid Tracking technology can detect the human face automatically. 4K Video camera can automatically capture people’s movements through the high-definition zoom lens.
  • AI Tracking camera will automatically pan/tilt/ zoom to follow the leading role when they walk around, combined with auto composition technology. The main character is always in the center of screen.
  • Intelligent exposure effectively solve the impact of dim light or dazzling sunlight, make the color of image more accurate and people more beautiful.

4k ptz camera

LIVE NOW

  • 4KP60 HD Camera adopt advanced processing technology and algorithm to improve brightness uniformity, enhance the light&color layers and keep excellent color restoration and high definition. Make the image vivid.
  • PTZ 4K Camera use 20X Optical Zoom with wide angle 60° HD lens to offer distortionless image and wide view coverage area. You won’t miss every wonderful moments.

4K PTZ Camera

  • Remote Control:PTZ 4K camera 20x can be controlled remotely via RS232 and RS485 serial ports. Horizontal Rotation Range: ±170°. Vertical Rotation Range: -30° ~ +90°. 360° all-around pan-tile-zoom camera. Built in high precision step motor and precision motor drive controller, ensure quiet and smooth PTZ running. Ideal 4K PTZ camera for live streaming. You can use IR remote control to PTZ, stable slow zoom or fast zoom, focus, up/down movement, horizontal movement, reset, preset, menu settings etc.
  • Tally Indicator: Different color of tally indicator can remind the operation status of camera.

20X Optical HDMI SDI IP PTZ Camera

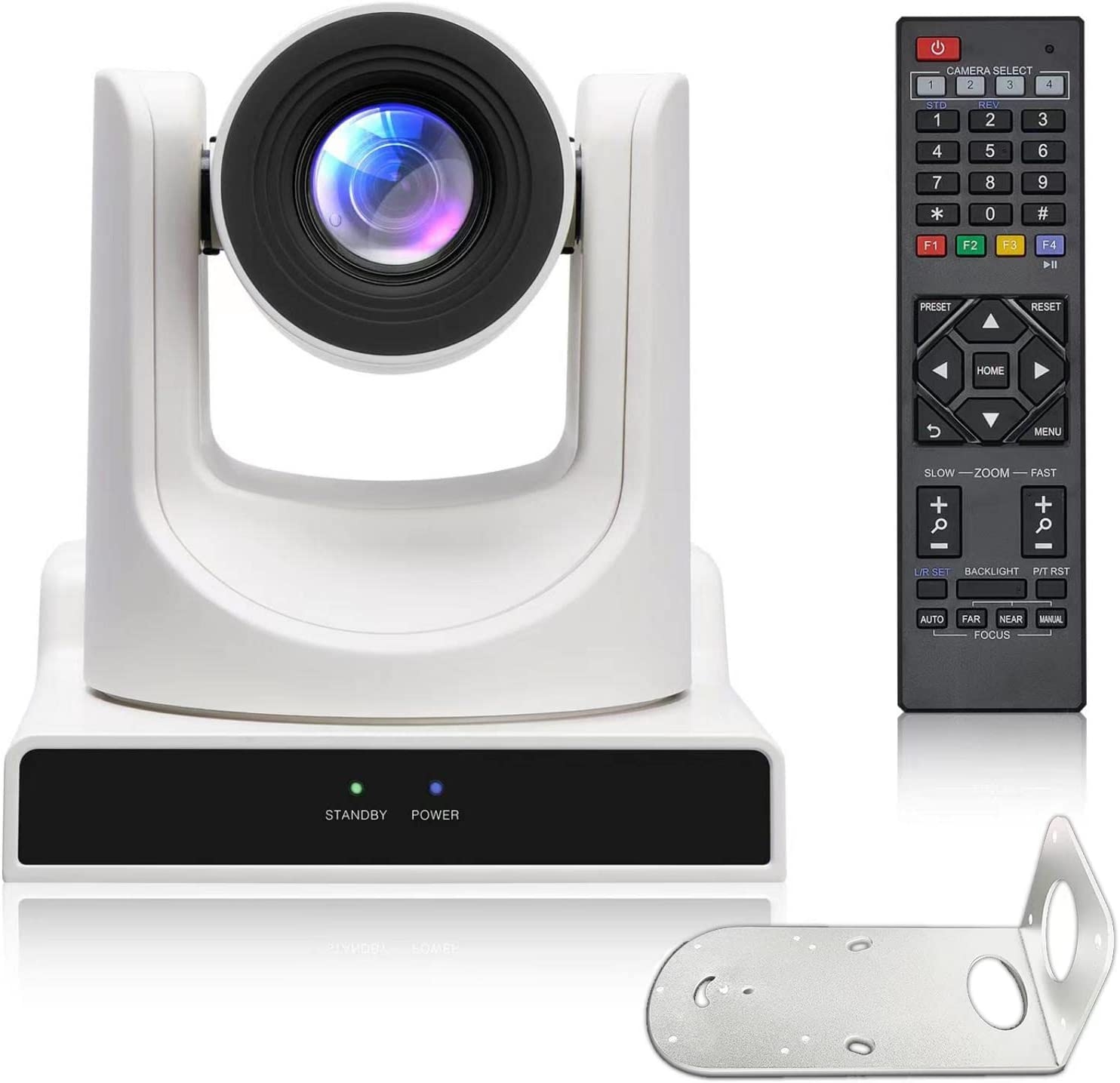

Different Installations: Different mounts(wallmount, tripod mount and ceiling mount) to meet your different needs.

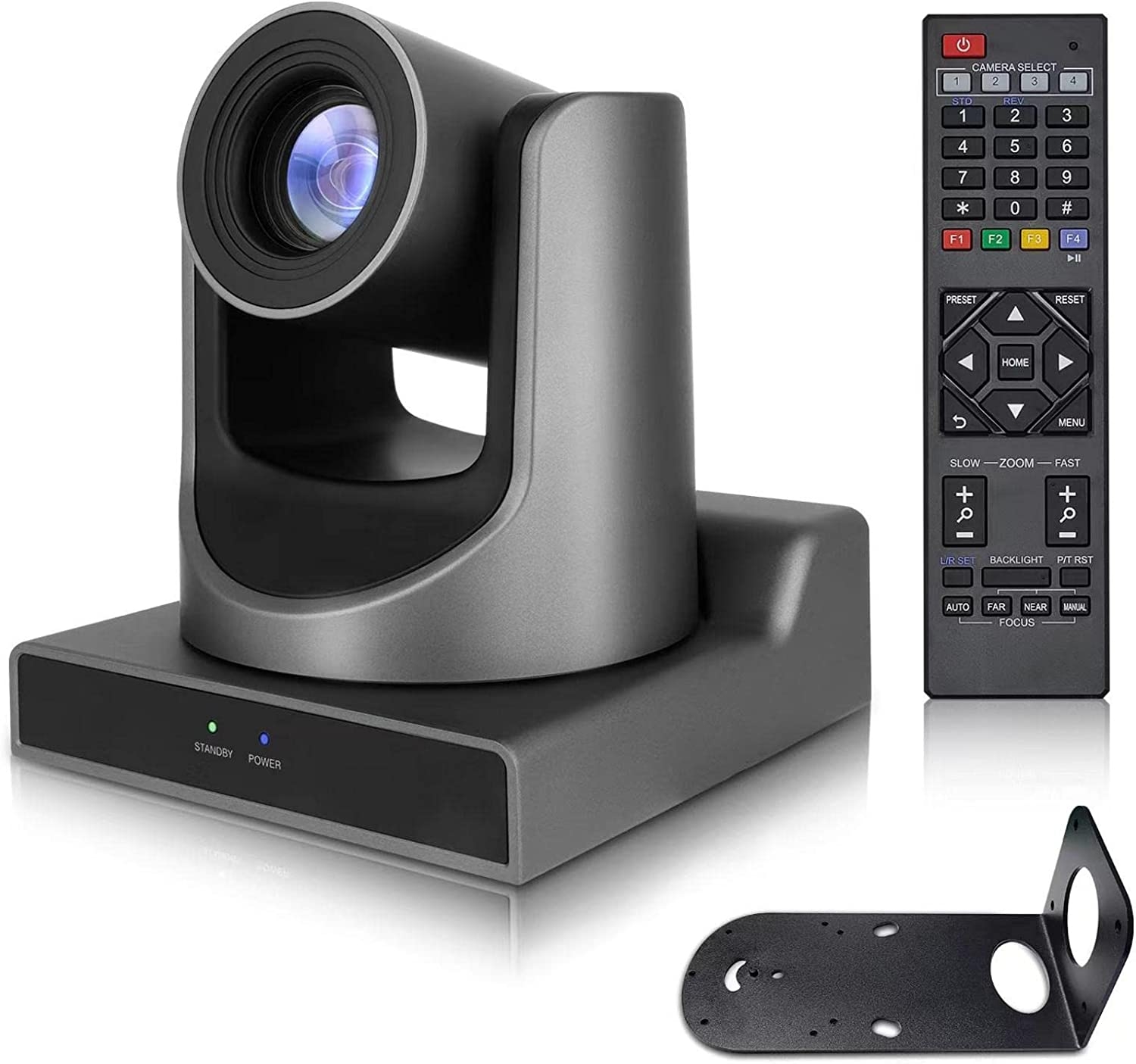

  • Package Item:
  • 1x 4K PTZ Camera NDI
  • 1x IR Remote Control
  • 1x RS232 Cable
  • 1x AC Adapter+Power Cable

Wide Applications for Variety of Scenarios

4K HDMI camera

Meeasier 4K Video Camera is applied to different scenarios. PTZ 4K 20X Camera is perfect option for Church live streaming, live sports events, video conference, onlike teaching eduction, medical broadcast, live shopping etc.

Meeasier 4K PTZ Camera Specs (20x Zoom)

Sensor 1/1.8″ Imported CMOS – 842Million Pixel
Resolution & Frame Rates Main Stream-3840×2160 (4K UHD) ,Sub Stream 1080p/720p — 60/50/30/25 frames @ any resolution
Lens & Aperture 20xOptical Zoom,16xDigital Zoom, f=6.25mm~125mm,F1.58~F3.95
Shutter Speed 1/30s~1/10000s
Field of View (Horizontal)60°~3.5°, (Vertical)35.7°~2.0°
Min Lux 0.5Lux@(F1.8,AGC ON)
SNR ≥55dB
Noise Reduction 2D/3D Digital Noise Reduction
Video Output HDMI 2.0 / USB 3.0 /3G-SDI / IP
Support protocols TCP/IP, HTTP, RTSP, RTMP/RTMPS,SRT, Onvif, DHCP, Multicast, GB/T28181,etc.
Video Compression H.265/H.264/MJEPG
Audio Compression AAC, G711
Video Bit Rate 32kbps~51200kbps

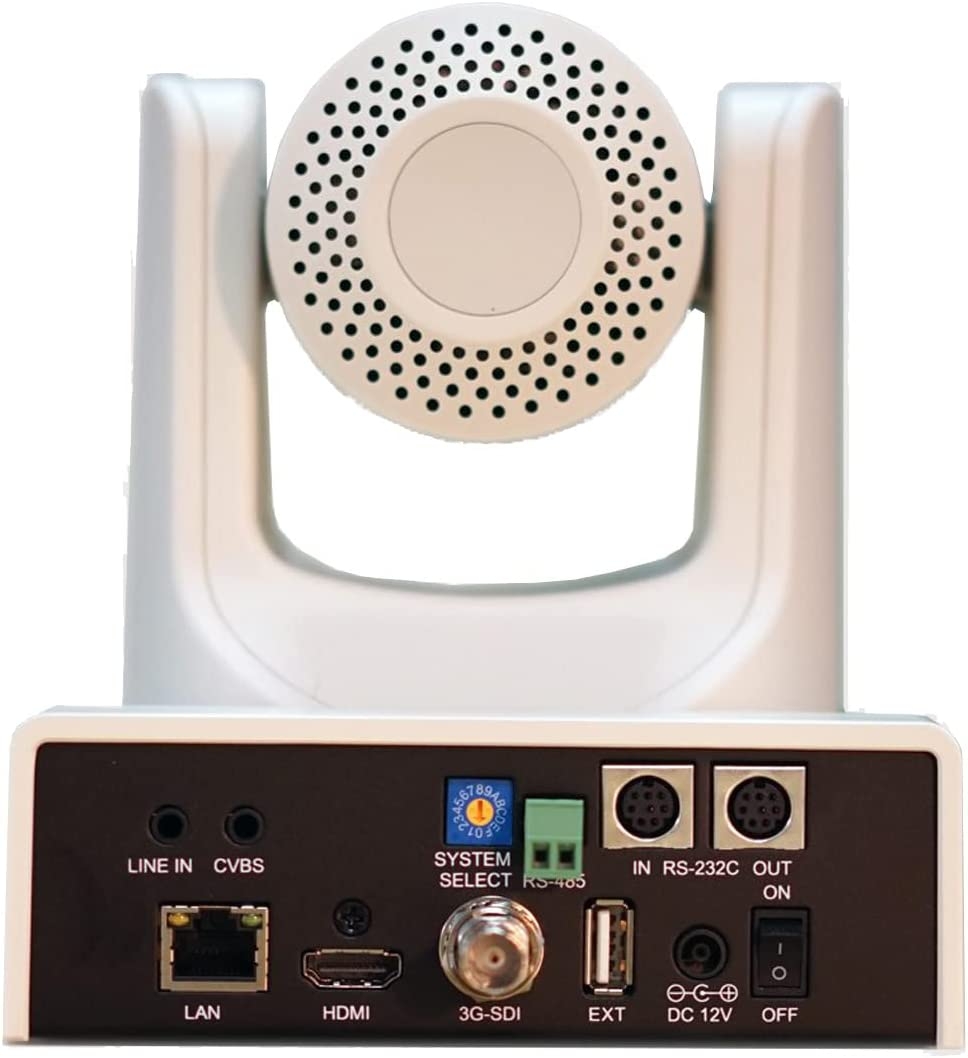

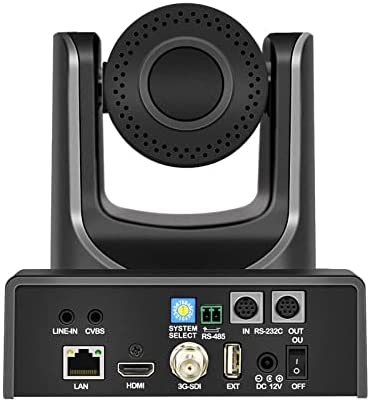

Communication Interface 1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN)
PoE Support
Backlight Compensation Support

Additional information

Weight 7.63 kg
Dimensions 11.5 × 9.75 × 9.75 cm
Package Dimensions

11.5 x 9.75 x 9.75 inches

Item Weight

7.63 pounds

ASIN

B0B6TXKJ7B

Item model number

M4K-20X-NDI

Date First Available

April 7, 2022

Country of Origin

‎China

Manufacturer

Meeasier INC
