FoMaKo NDI Camera 20X Optical Zoom NDI PTZ Camera HDMI 3G-SDI IP Live Streaming PTZ Camera for Church Worship Education

(10 customer reviews)


Brand FoMaKo
Connectivity Technology HDMI
Flash Memory Type SD
Color KN20A Black
Screen Size 2.7 Inches
Optical Zoom 20 x
Photo Sensor Technology CMOS
Camcorder type Video Camera
Model Name KN20A
Included Components PTZ Camera
  • FoMaKo NDI Camera with 20x Optical Zoom ,3G-SDI HDMI Live Streaming Camera. NDI camera for Church, education, Live Streaming, Broadcast and houses of worship.
  • NDI Camera with HDMI. Compatible with blackmagic and PTZ IP controller, Compatible with vMix/OBS and other Live Video Streaming Software, Multi-cameras video production for live streaming to YouTube and facebook.
  • 20x Optical Zoom and True to Life Colors. Video formats 1080P60/59.94/50, 1080i60/59.94/50, 1080P30/29.97/25, 720P60/59.94/50, 720P30/29.97/25. Support H.264/H.265 video compression.
  • Simultaneous NDI IP 3G-SDI HDMI Streaming, PoE(802.3af) supported. Supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions. High SNR CMOS combined with 2D &3D noise reduction ensure High performance in low light scenarios.
  • 30 Day money back guaranty for No reason. 1 Year Limited Warranty.






From the brand

Product Description

FoMaKo NDI Camera 20X/30X Optical Zoom NDI PTZ Camera HDMI 3G-SDI IP NDI Live Streaming PTZ Camera for Church Worship Education Conference Events,PoE, 1080P 60FPS

Focus your streaming

NDI Camera for Church Live Streaming

NDI/HDMI /SDI Video Camera for Church Live streaming and Broadcasting.

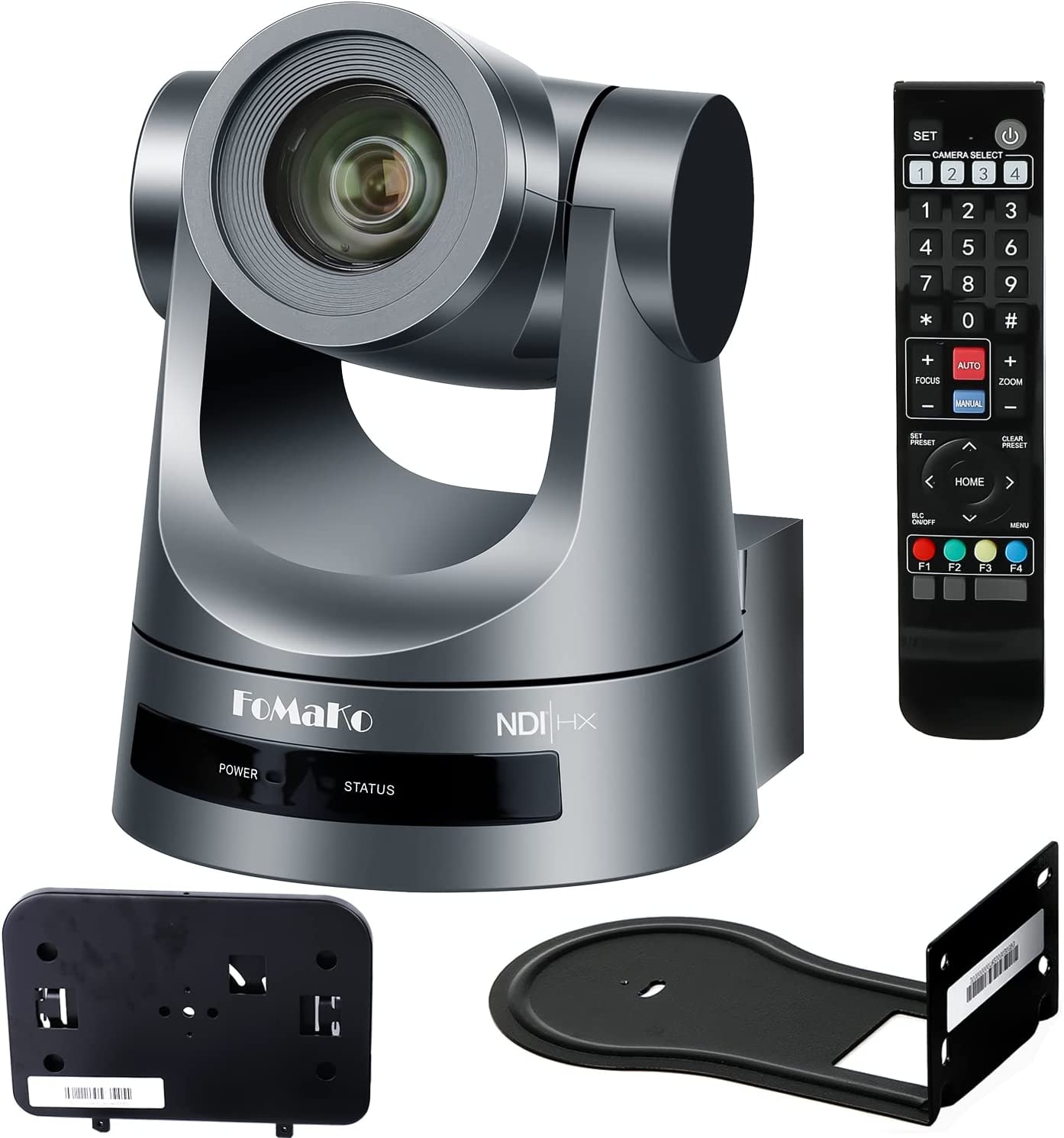

FoMaKo NDI PTZ Camera



Key Features of FoMaKo NDI PTZ Camera

  • Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps. Field of View: 65.1 degree wide-angle lens.
  • Compatiable with vMix, OBS, Zoom, Skype and other software which supports NDI HX, you can power, control, set up and preview this camera. Visca control via RS485 or RS232 or IP, Compatible with ptzoptics App.
  • Multiple Application: NDI Camera for Church, Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
  • Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
  • Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity. The video is clean even under low light conditions.

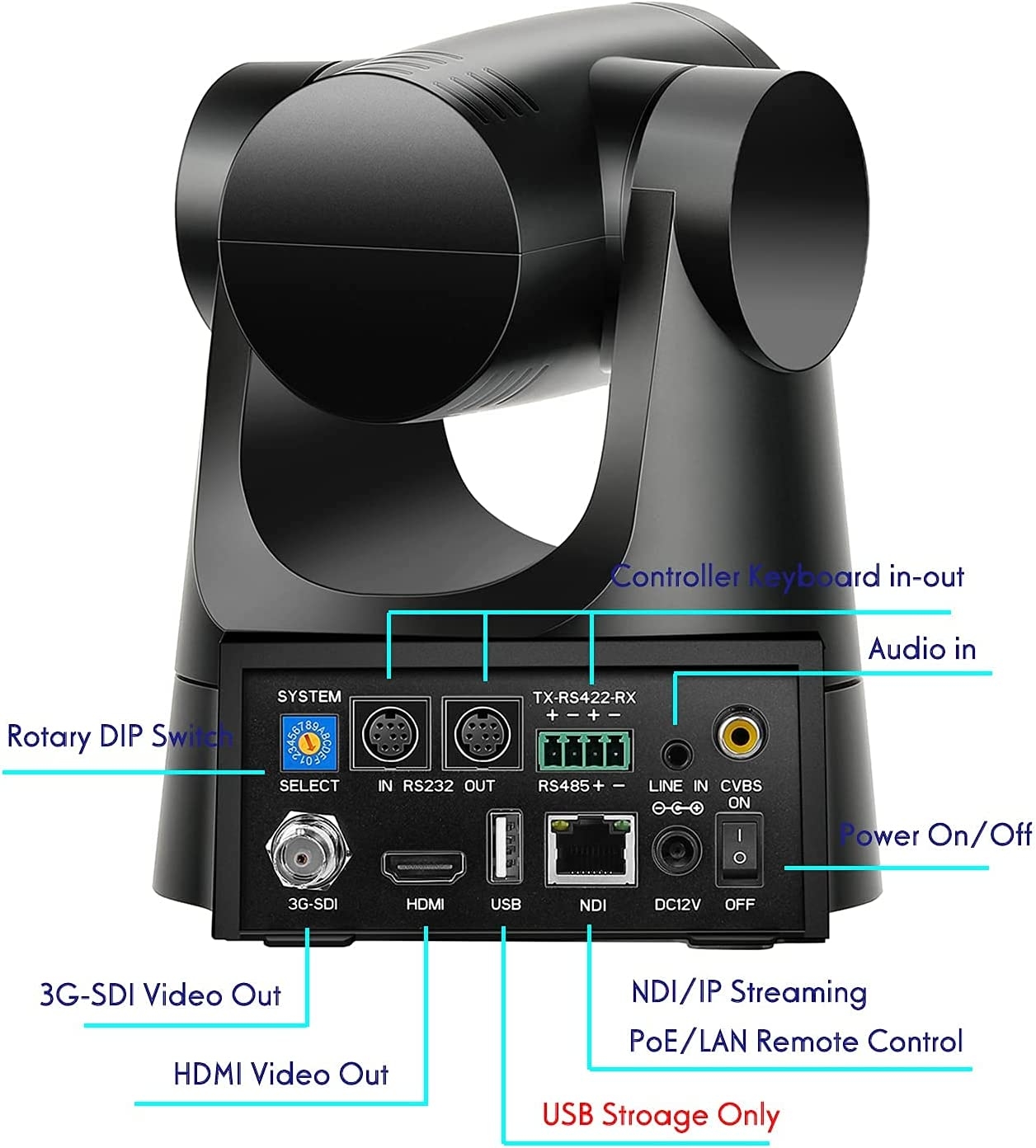

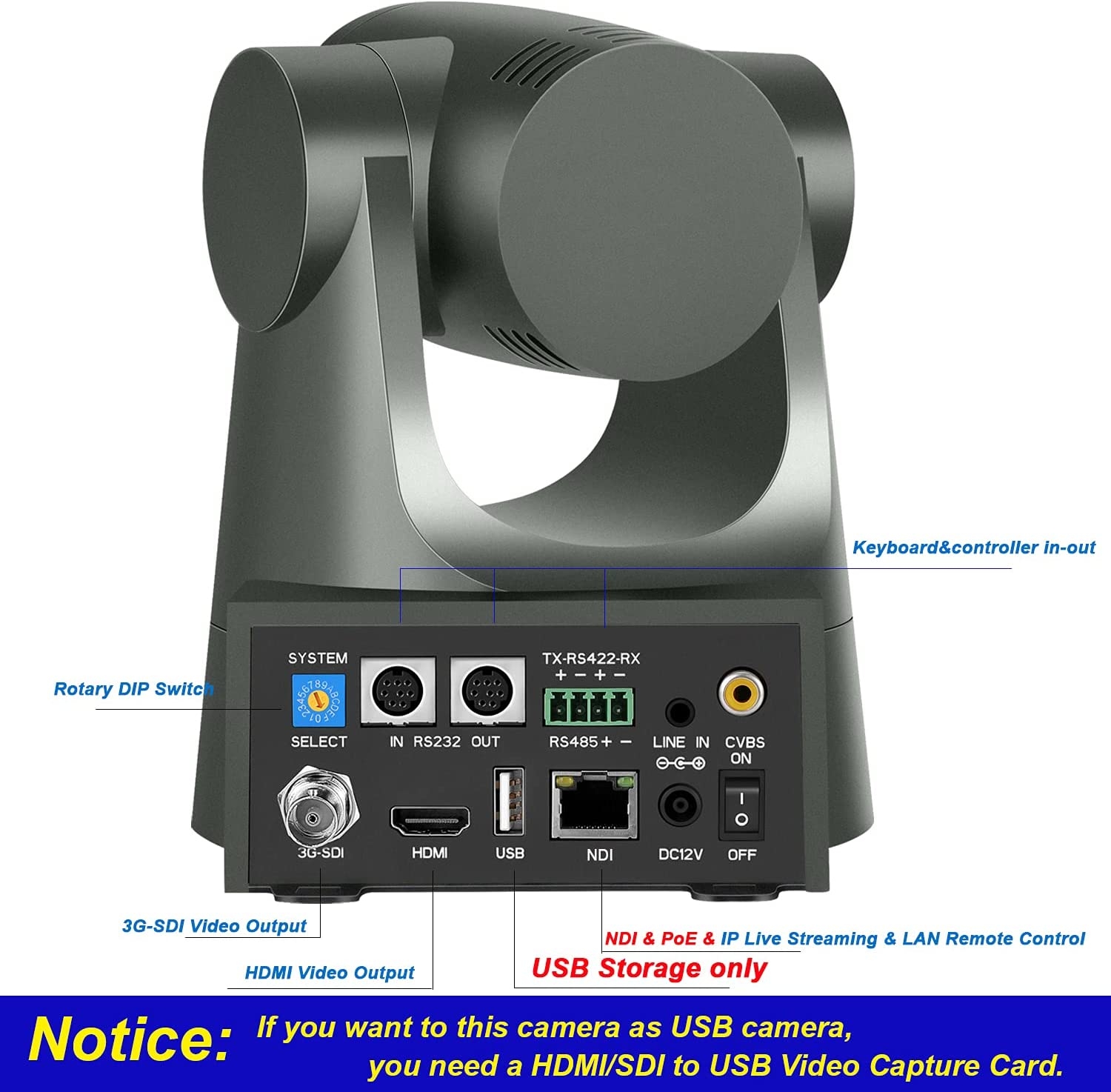

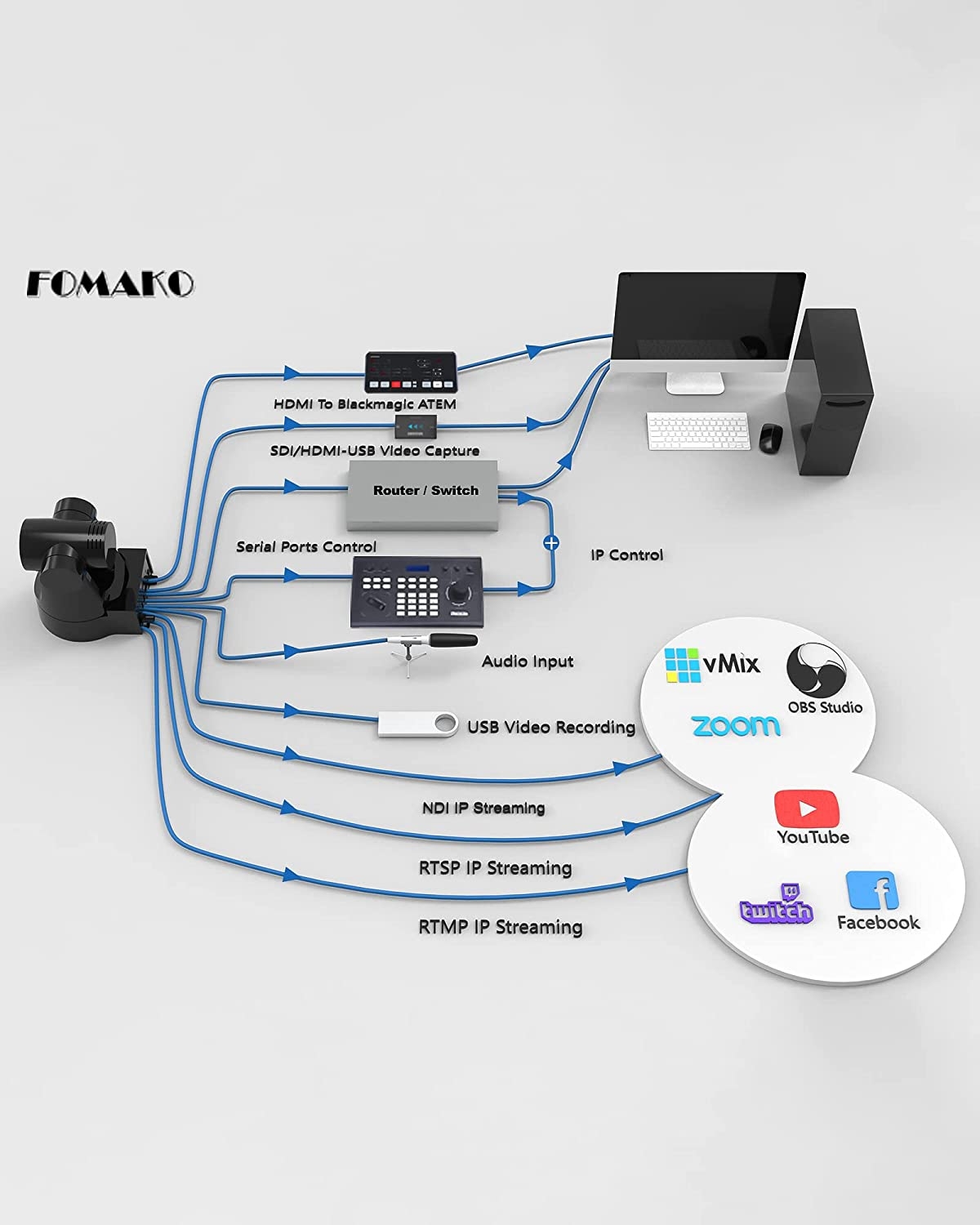

  • Multiple Video Output Interfaces: NDI ,HDMI, 3G-SDI, CVBS, LAN ; Simultaneously output audio and video signal via HDMI, SDI and LAN; SDI output could up to 150M with 1080P@60fps
  • Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920×1080 resolution 60fps; support AAC, MP3 and G.711A audio compression, 16000, 32000, 44100, 48000 sampling frequency
  • Built-in Gravity Sensor: Support PTZ auto-flip function and easy installation.

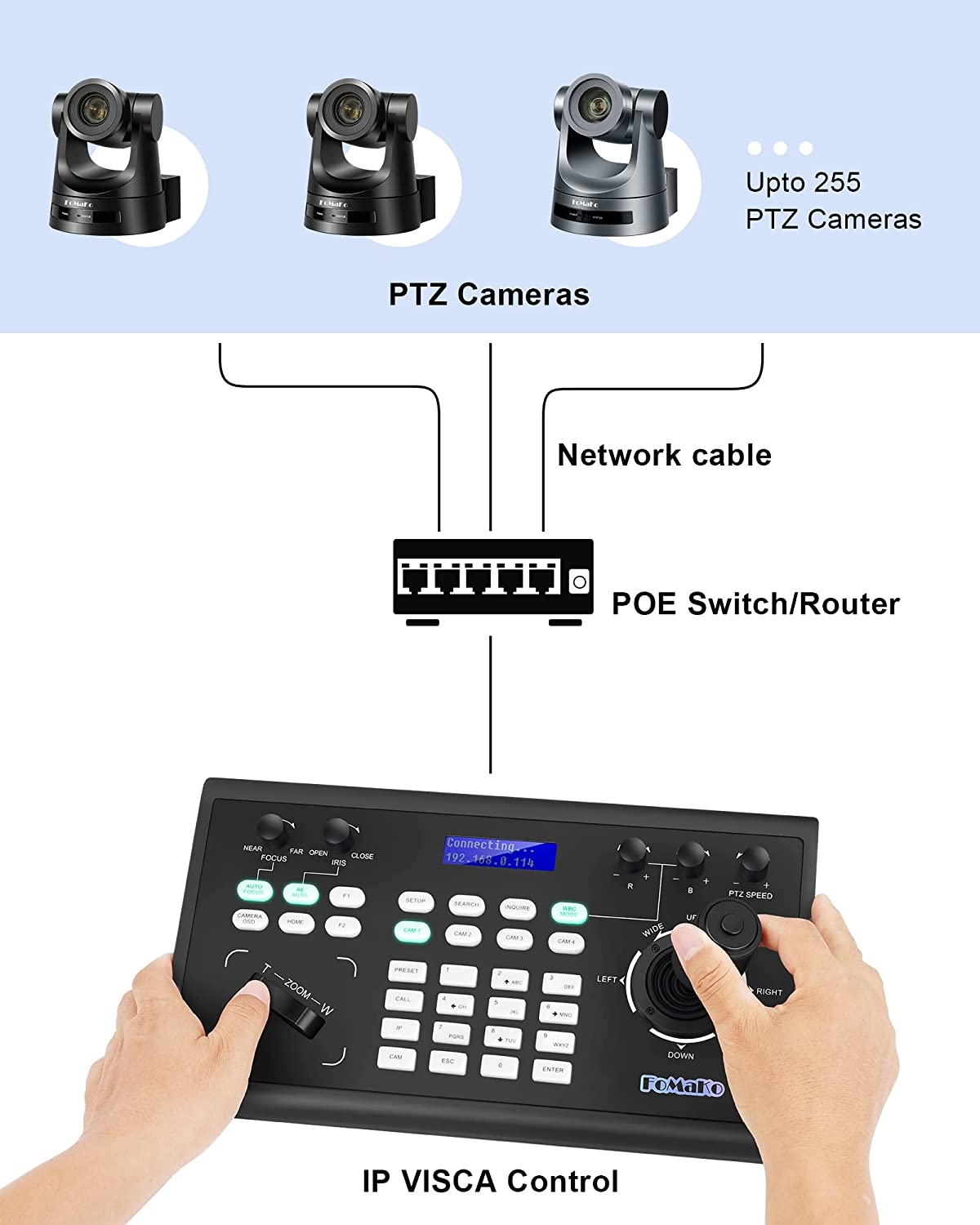

  • Multiple Network Protocol: Support GB28181, RTSP, RTMP,VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza,FMS); Support RTP multicast mode; Support network full command VISCA control protocol.
  • Important! Pan/Tilt/Zoom Speed Adjustable, Preset Speed Adjustable as well, Change IP through MENU button and Faster Auto Focus.

Important information

Visible screen diagonal

3″ / 7 cm

Additional information

Dimensions 6.93 × 6.65 cm
Brand Name


Item Weight

‎7.46 pounds

Product Dimensions

‎5.63 x 6.93 x 6.65 inches

Item model number


Color Name

‎KN20A Black



Date First Available

April 13, 2021



10 reviews for FoMaKo NDI Camera 20X Optical Zoom NDI PTZ Camera HDMI 3G-SDI IP Live Streaming PTZ Camera for Church Worship Education

  1. Mark S.

    Impressed at initial installWe just installed this in our church sanctuary. I stumbled a little with the initial network connectivity and would recommend making sure you use an HDMI cable for initial setup to get to the menu on the camera and set it to DHCP for your network. If you plan to just use NDI, you can disconnect it the HDMI cable after the initial setup. The documentation struggled a bit I think with translation. Aside from that, I’m impressed so far.Pros:* Much cheaper that our first PTZ camera from PTZOptics.* Picture quality is just as good as our other PTZOptics camera.* It automatically detected that it was mounted upside down and adjusted both the picture and the joystick controls (for up/down/left/right)* Once the IP Address on it was set for our network, our joystick controller found it without any need to change the other default configuration on the camera.* Seems to have a wider range of speeds for pan/tilt and zoom compared to our other PTZOptics camera.Cons:* Only one I found so far: When panning/tilting, I see what looks like very minor jerks in the picture. It’s not a huge deal for us, but might be for others.Fingers crossed that it holds up over time without issue, but right now, I’m quite happy.

  2. Jeff

    I love this camera. It makes our meeting broadcast so much nicer.This camera works great for our needs.We set up the camera so that the audio input is plugged into the back of the camera, which keeps the audio and video in sync, and the feed is over our local network, accessible via WiFi. The power over ethernet works well. On my laptop, I simply fire up the NDI Tools, select NDI Webcam Input, and use that to send the camera feed to Zoom.The reason for 4 stars, instead of 5, is because the video feed from the camera isn’t working when we check first thing in the morning. We fix this each time by shutting it down using the physical switch, and starting it back up a few seconds later. It’s good to go after that.I also wish that doing a firmware update was simpler, but it’s not a big deal.

  3. J. Lewin

    For live stream set upPurchased two for live streaming religious services in the synagogue. Excellent camera for remove controlling off site.

  4. Melvin

    For Streaming Church serviceBought a couple of these for my church to use for streaming services. The AV team seams to be real happy with them.


    Me funciono muy bien para las transmisiones en vivo.Fue fácil instalar a través de cable de red, se alimenta de corriente por el mismo cable de red. muy buena la calidad de imagen, se puede controlar a través de un programa los movimientos.

  6. AJ Theunissen

    Excellent camera for a great priceHaving never heard of Fomako, I felt like I was taking a risk in ordering this camera. The price was almost too good to be true – half of that of other brands offering the same features. But for the price I was willing to accept a few compromises.I am very pleased to say that this is a excellent buy! The quality of the image is outstanding, even in low light situations. Installation and setup was a breeze, nothing too complicated.I had a few questions which was promptly answered via email.

  7. James

    Great Buy for the moneyGreat PTZ camera for the money. Easy to uses for our volunteers at the church. Looks great on our streaming platforms.

  8. barb

    No NDIMy friend bought this camera for me while I was out of town. This camera was Very hard to set up IP, tried everything and failed. Can’t get NDI feed from monitor and obs. Fake NDI!

  9. Lars

    Bisher sehr zufriedenIch bin momentan sehr zufrieden, ich hoffe das bleibt so.


    ConfigurazioneLa camera si presenta bene.La configurazione per utilizzarla tramite NDI collegata semplicemente con il cavo di rete al PC e vMix non è semplicissima, almeno per me.Una volta configurata mi sento di dire che la qualità è buona e, sempre con NDI non ho notato latenza.Il problema è stato il seguente: ho provato a fare qualche modifica tramite browser ma non sicuro di aver fatto bene ho fatto un reset e a questo punto non sono più riuscito a farla rilevare a vMix.Ho fatto tantissime prove riconfigurando IP e dopo tanti tentativi sono riuscito a vedere la camera tramite browser ma non su vMix.Dopo il reset praticamente si disattiva la funzione NDI, quindi riattivandola manualmente vMix ha rilevato la camera e tutto è tornato a funzionare.Spero possa essere utile questa mia recensione.
