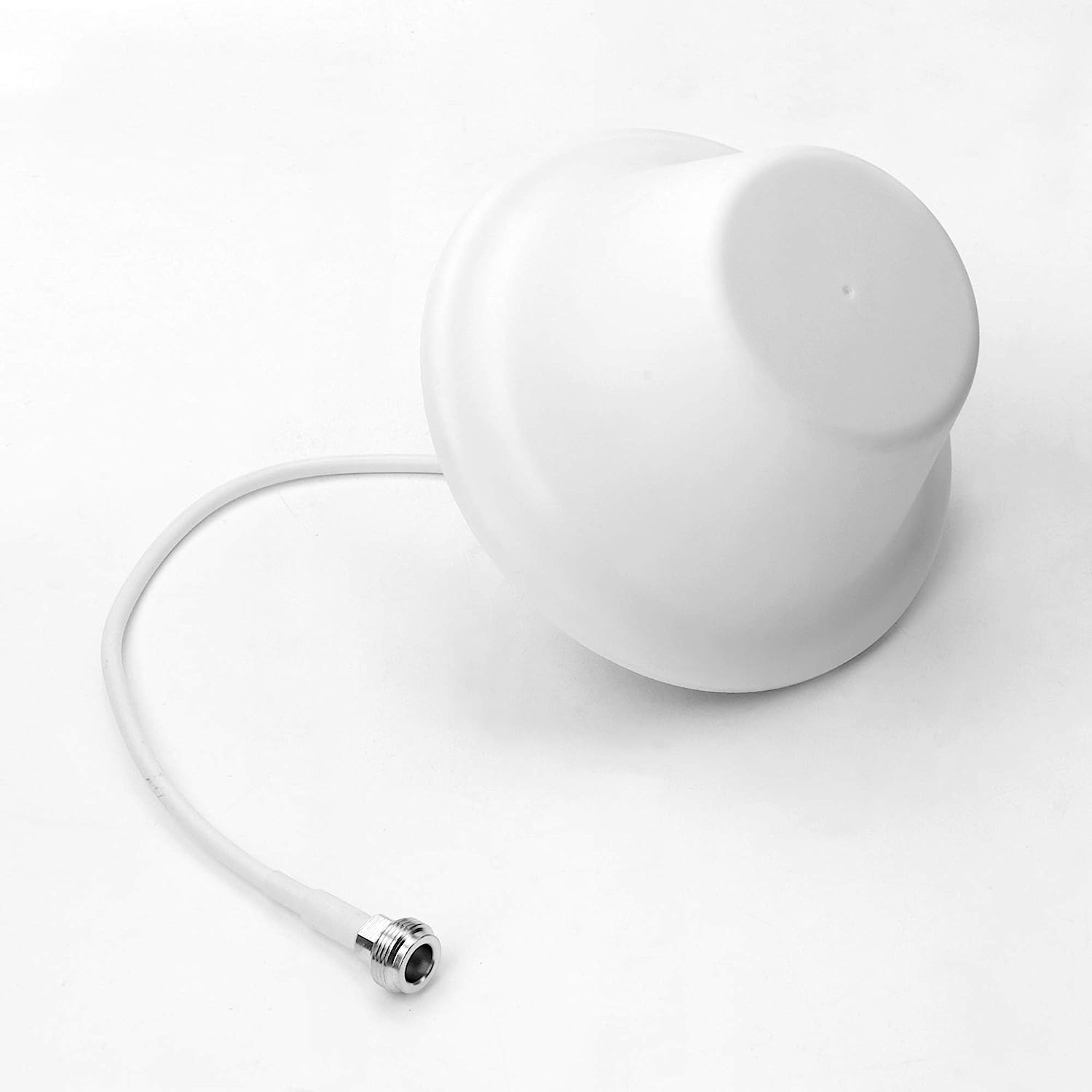

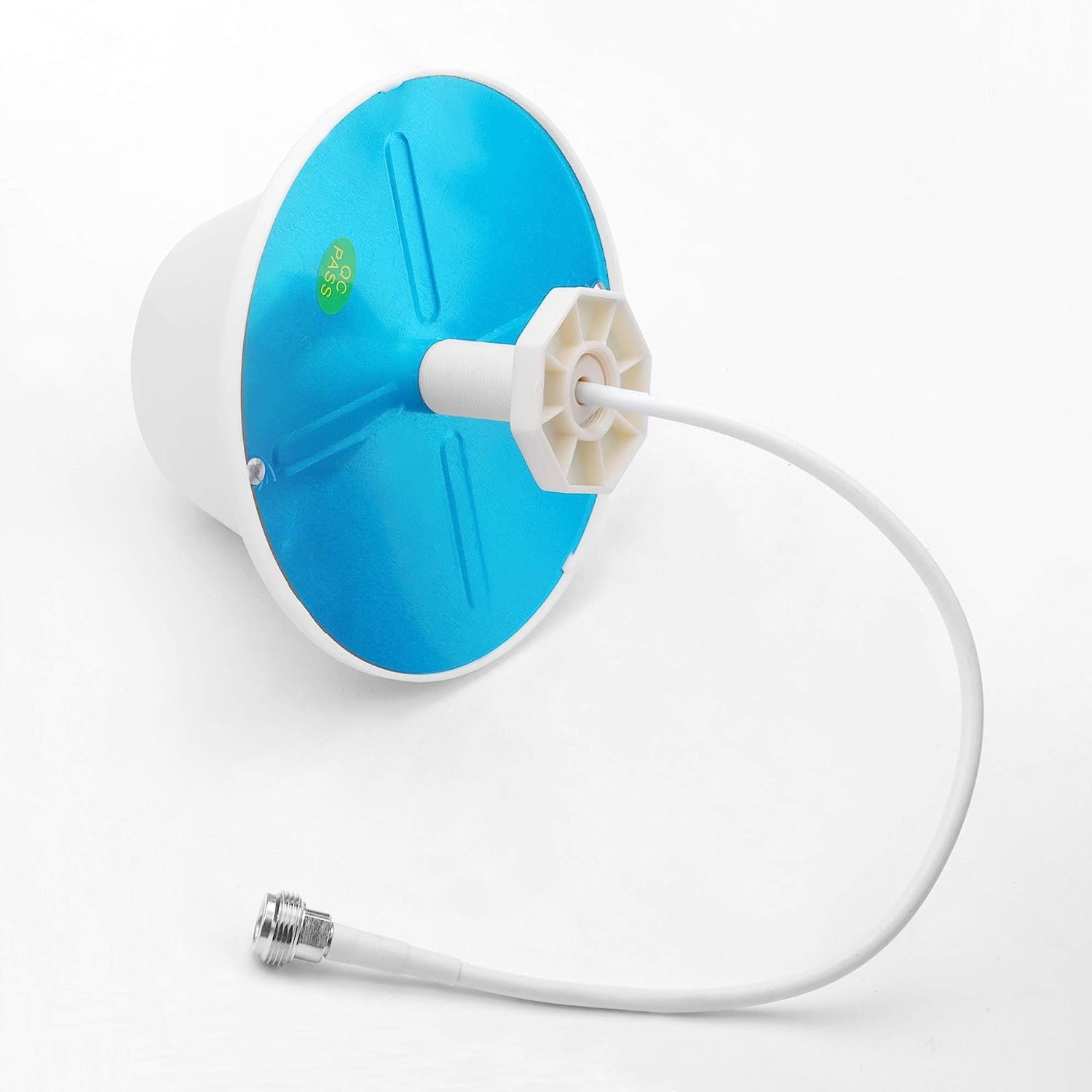

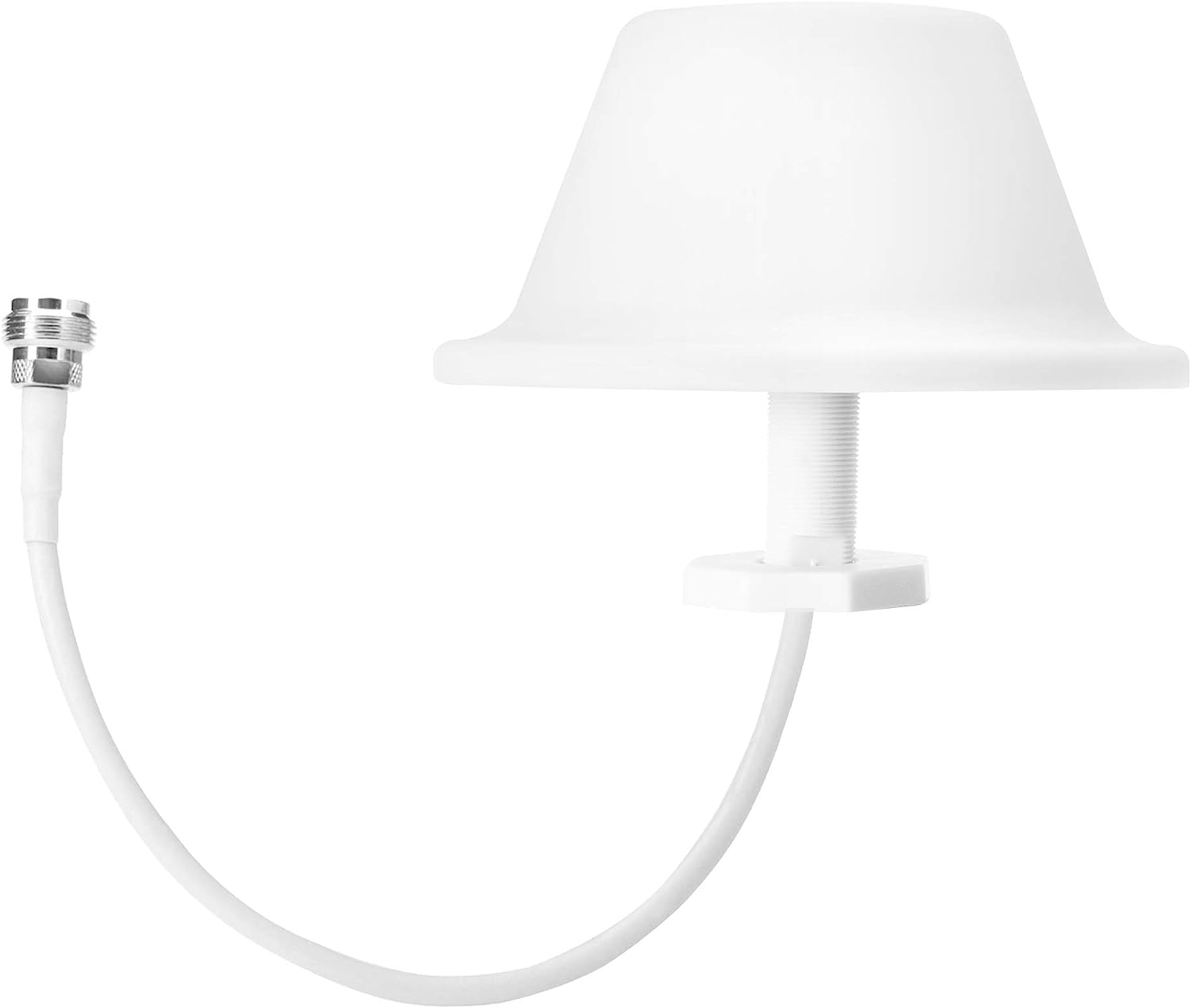

Dome Ceiling Antenna, Omni-Directional Indoor Antenna, Wide Band Dome Antenna with N-Female Connector for Cell Phone Signal

Description:

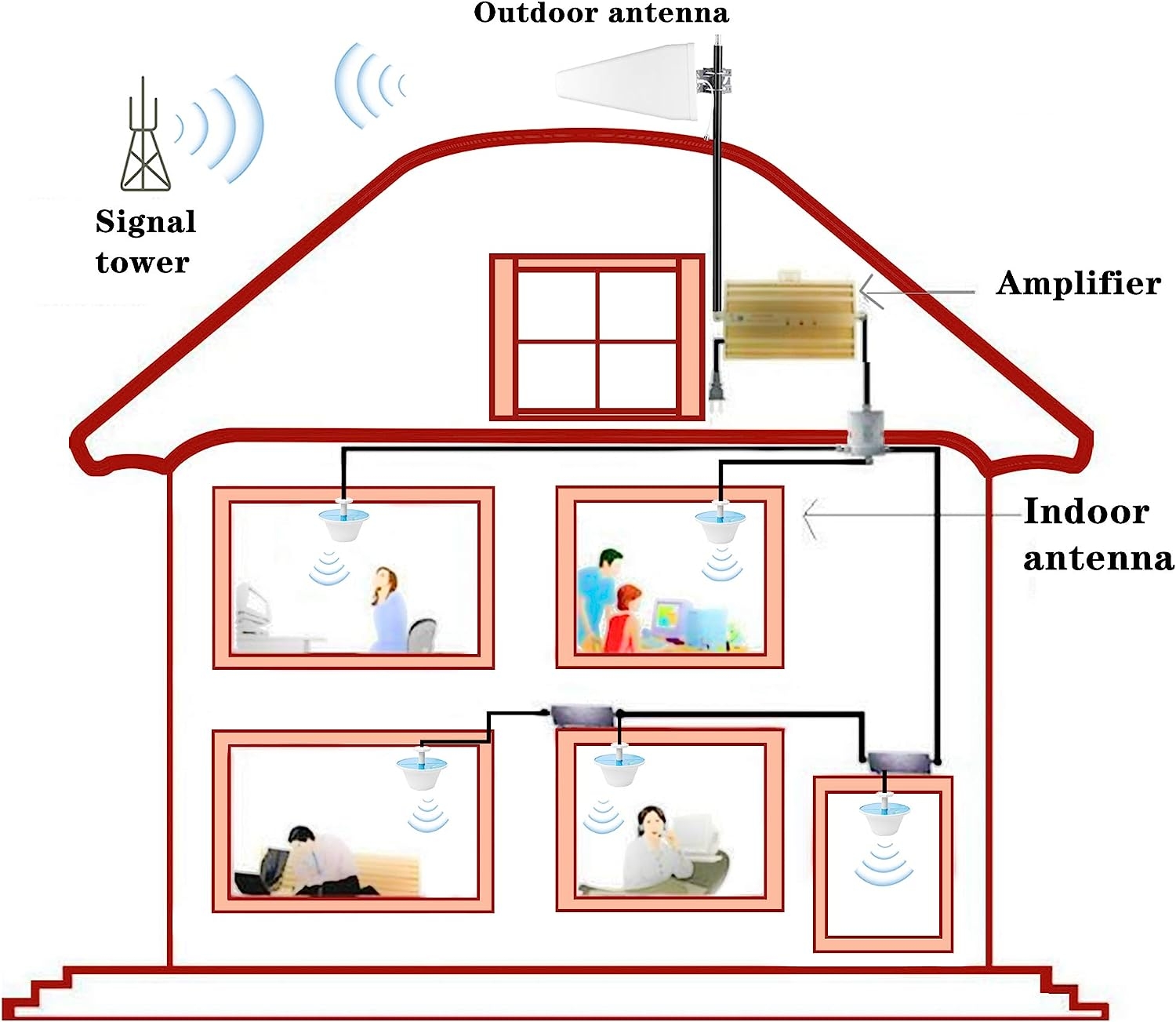

This ceiling antenna adopts high-gain 2/5dBi 698-960, 1710-4000MHz to boost your cell phone signal to make wifi cover your whole house. Gives you a smooth and stable experience of surfing the internet. It is widely suitable for GSM, CDMA, PCS, 3G ,4G ,5G and WLAN, which makes your wifi diversified. And high-gain 5dBi makes signal super strong to gives you a super smooth internet with no stuck or cut.

698-960, 1710-4000MHz omni ceiling antenna

Port Indoor 2/5 Omni Antenna

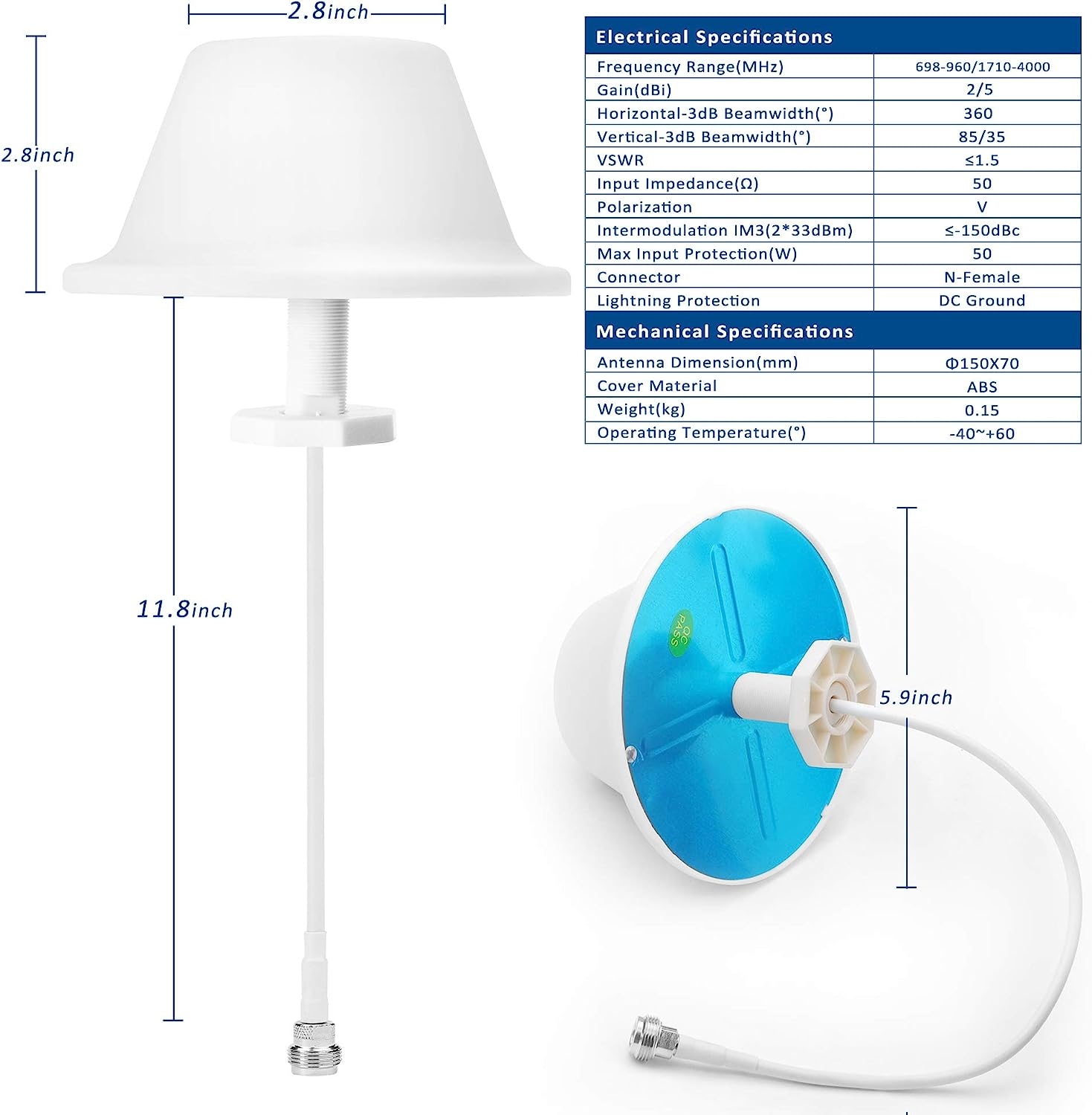

Frequency Range(MHz):698-960, 1710-4000

Gain(dBi):2, 5

Horizontal-3dB Beamwidth(°):360

Vertical-3dB Beamwidth(°):85/35

VSWR:≤1.5

Input Impedance(Ω):50

Polarization:V

Intermodulation IM3(2*33dBm):≤-150dBc

Max Input Protection(W):50

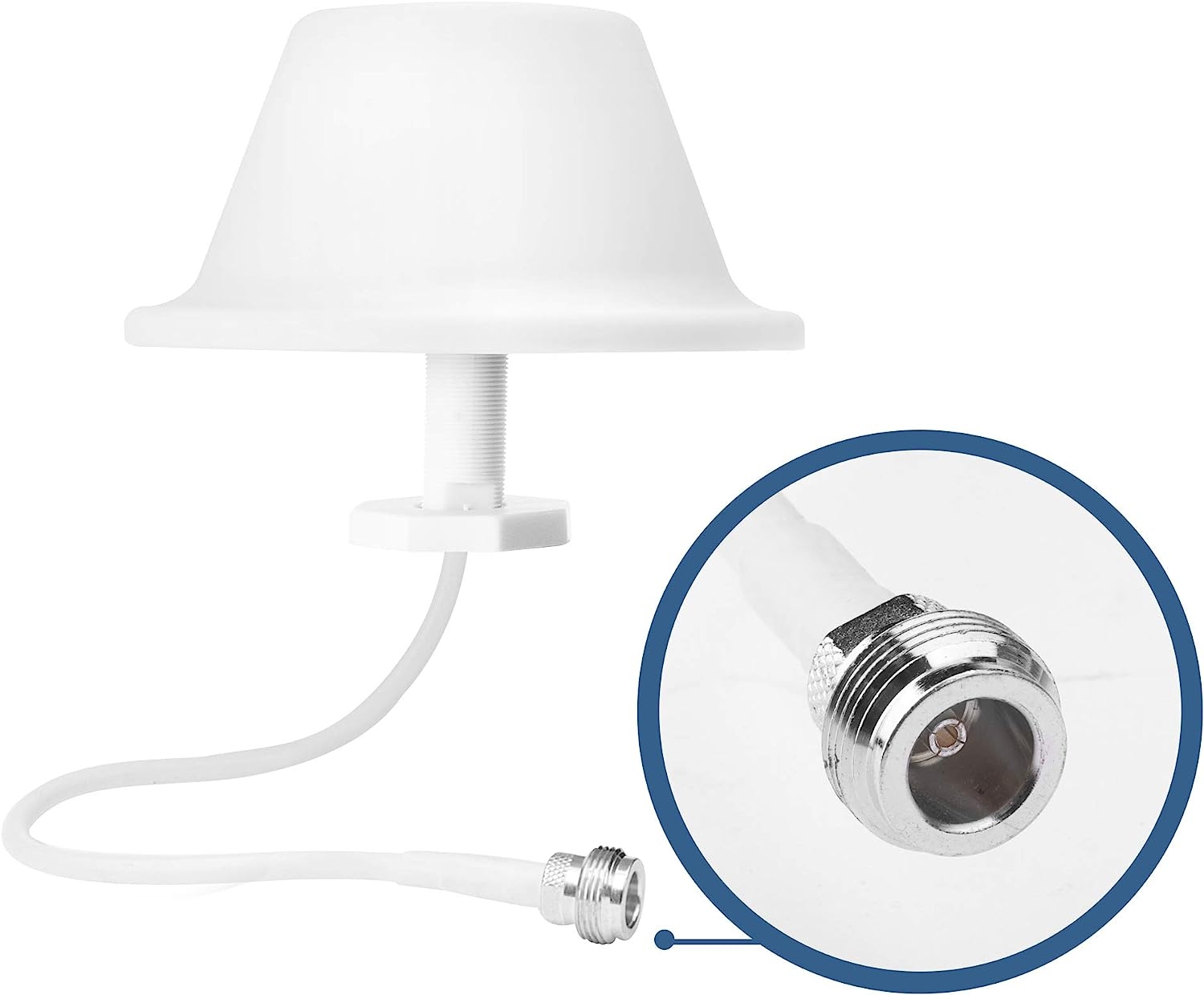

Connector:N-Female

Lighting Protection:DC Ground

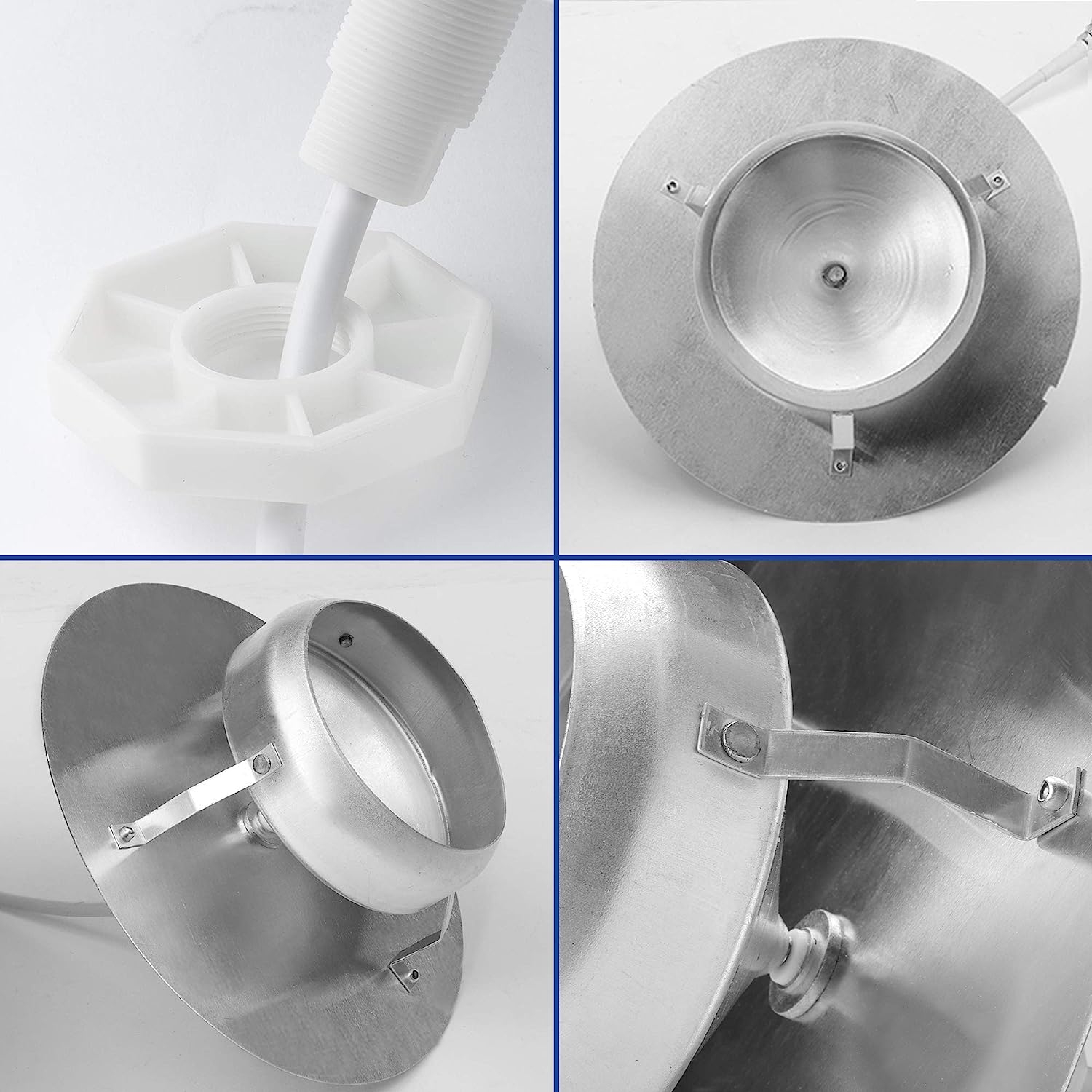

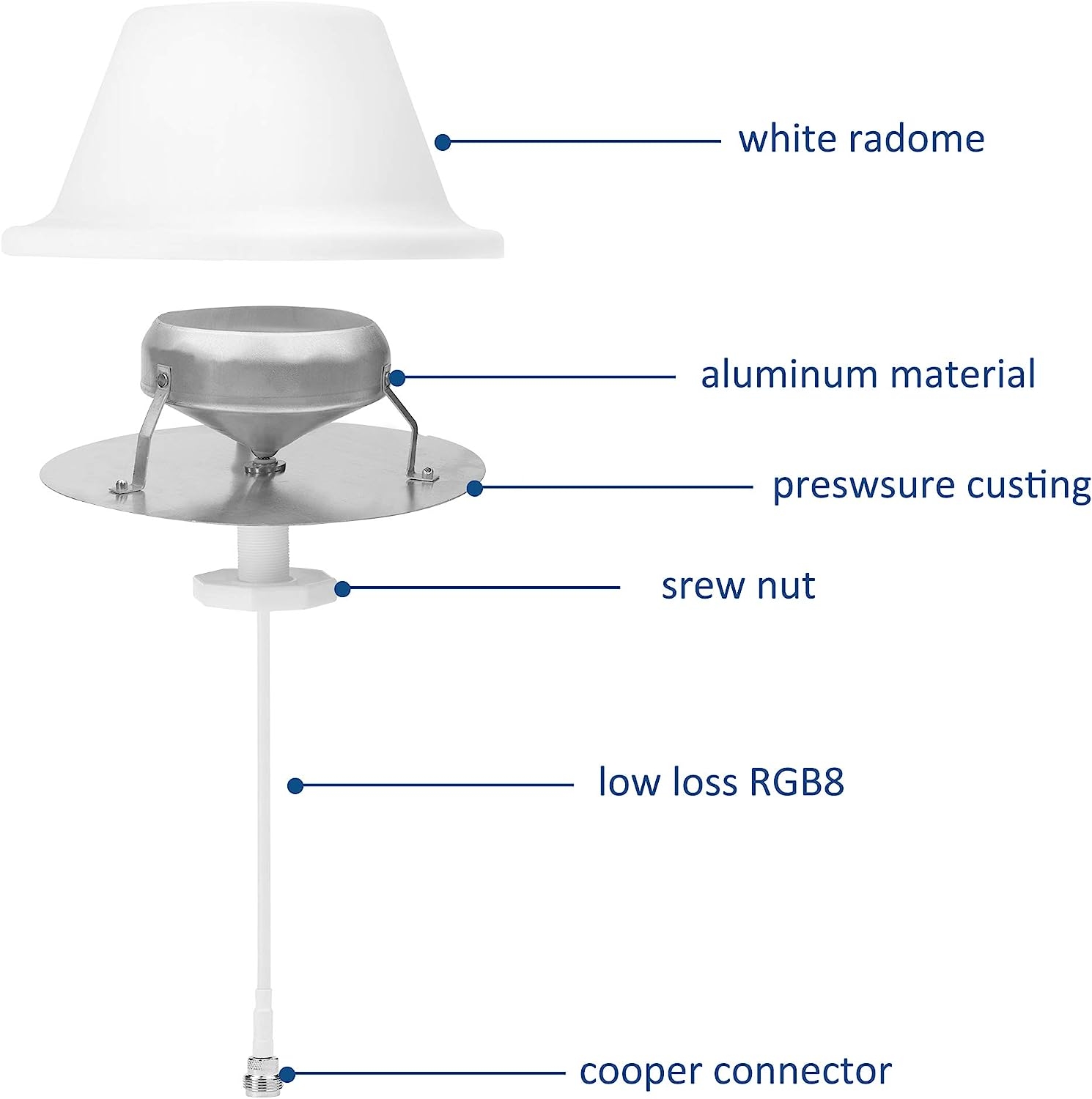

Mechanical parameter

Antenna Dimension(mm):Φ140X70

Cover Material:ABS

Weight(kg):0.15

Operating Temperature(°):40~+60

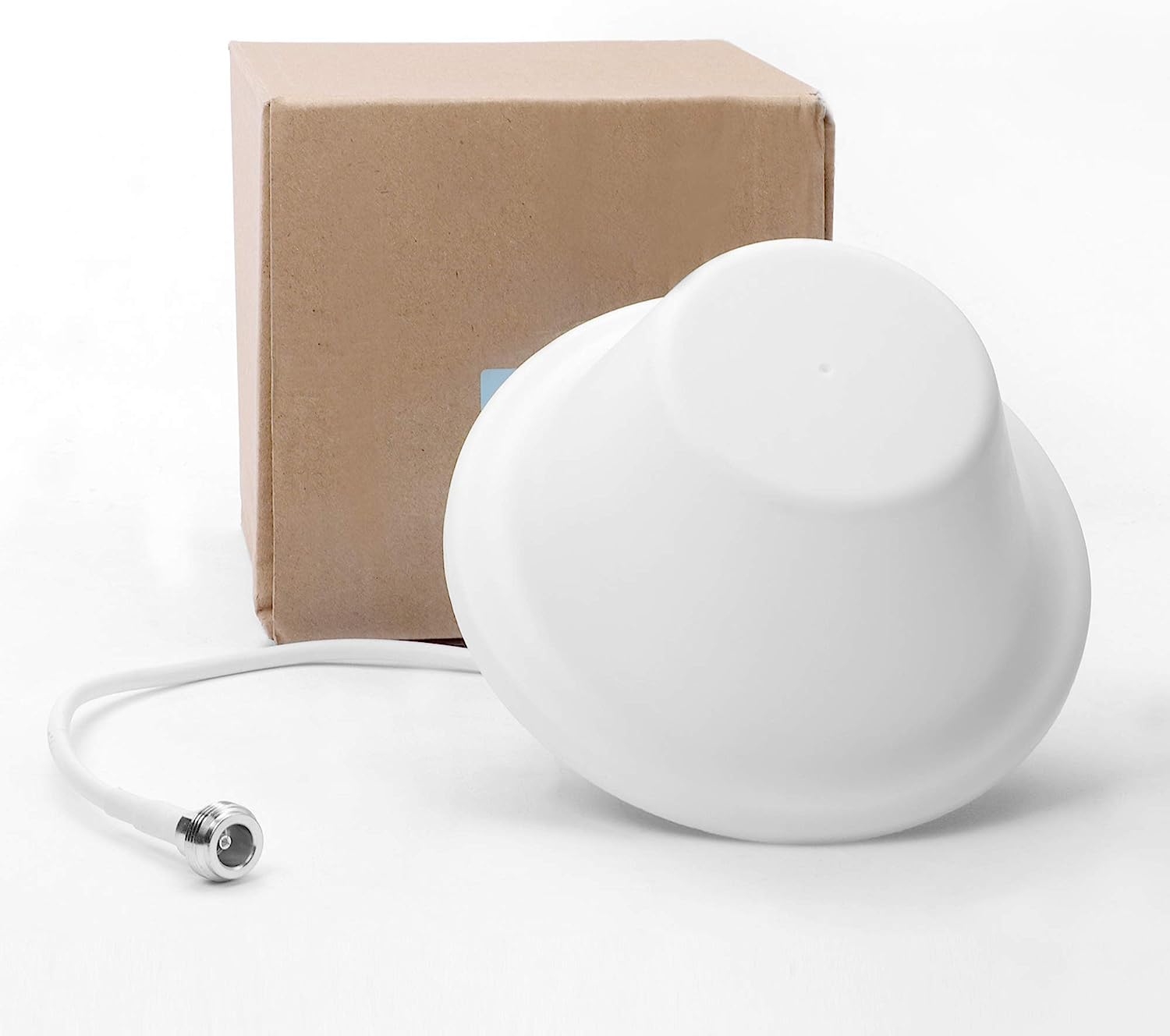

PACKAGE INCLUDED:

N-female Ceiling Antenna x 1
