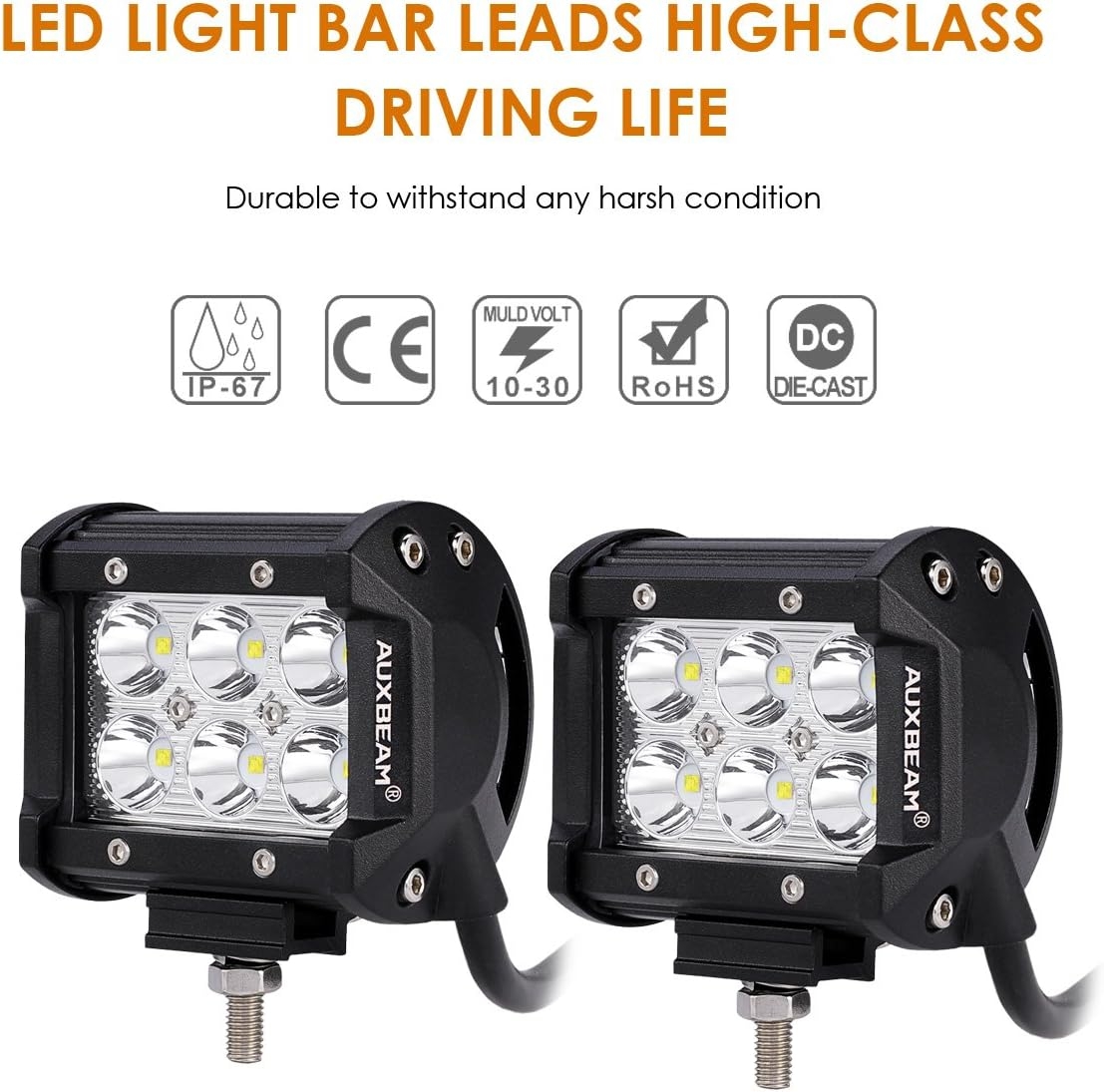

Auxbeam LED Light Bar 4 inch 18W LED Pods 1800lm Spot Beam Driving light Offroad lights with Wiring Harness (Pack of 2)

(10 customer reviews)



High quality 6063 aluminum body, durable to withstand any harsh condition
Low current draw- no harms to battery and save gas
Longer valid irradiation distance than normal halogen bulb

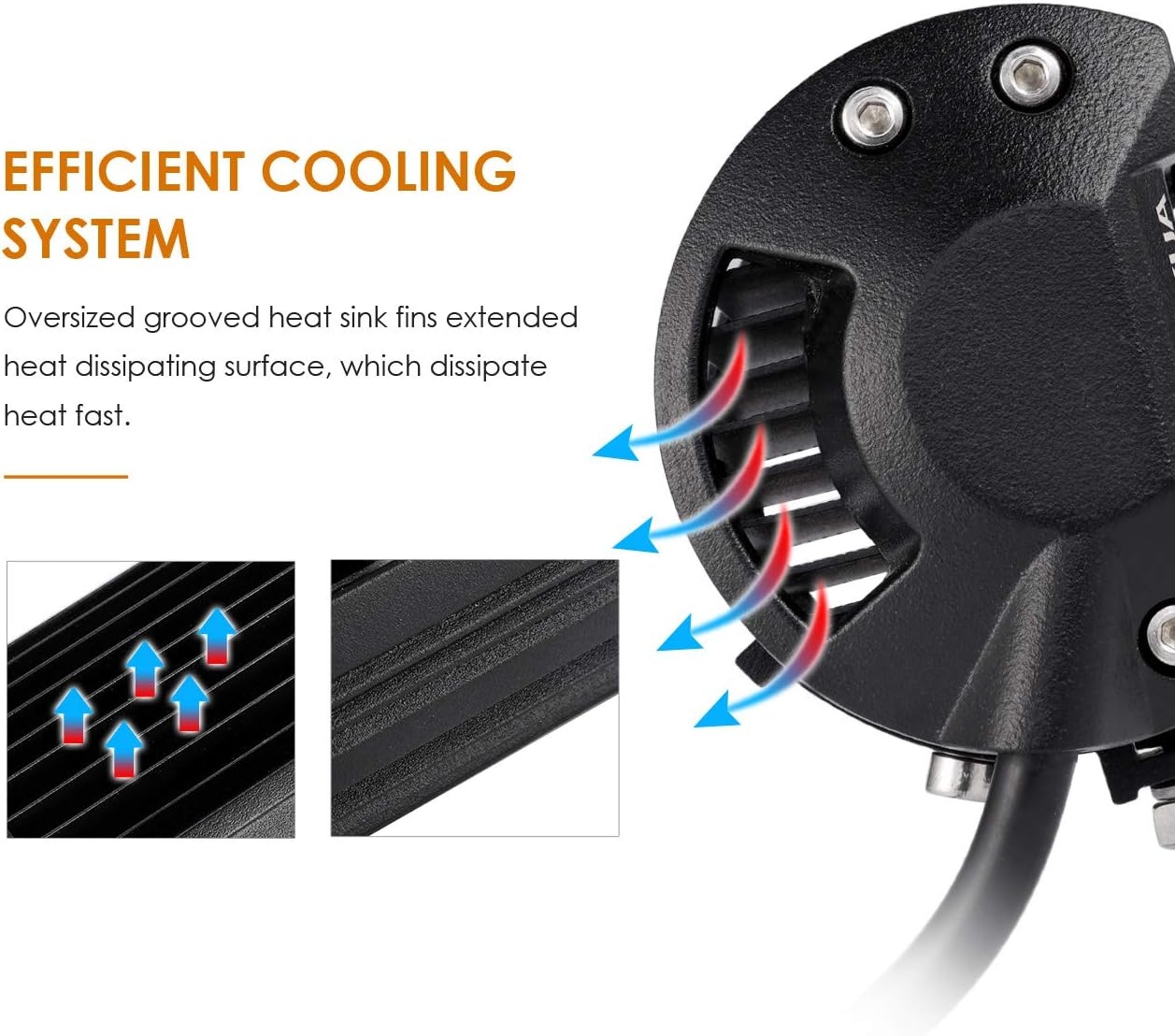

Suitable vertical fins design for better cooling
Great performance of waterproof, dustproof, shockproof, Anti-corrosion

Technical Specification:
Power: 18W
Number of chips: 6pcs 3w led chips
Voltage: 9 ~ 32V
Lumen: 1800lm
Beam: 30 degree (spot beam pattern)
Working Temperature: -40 ~ 85 degree Celsius

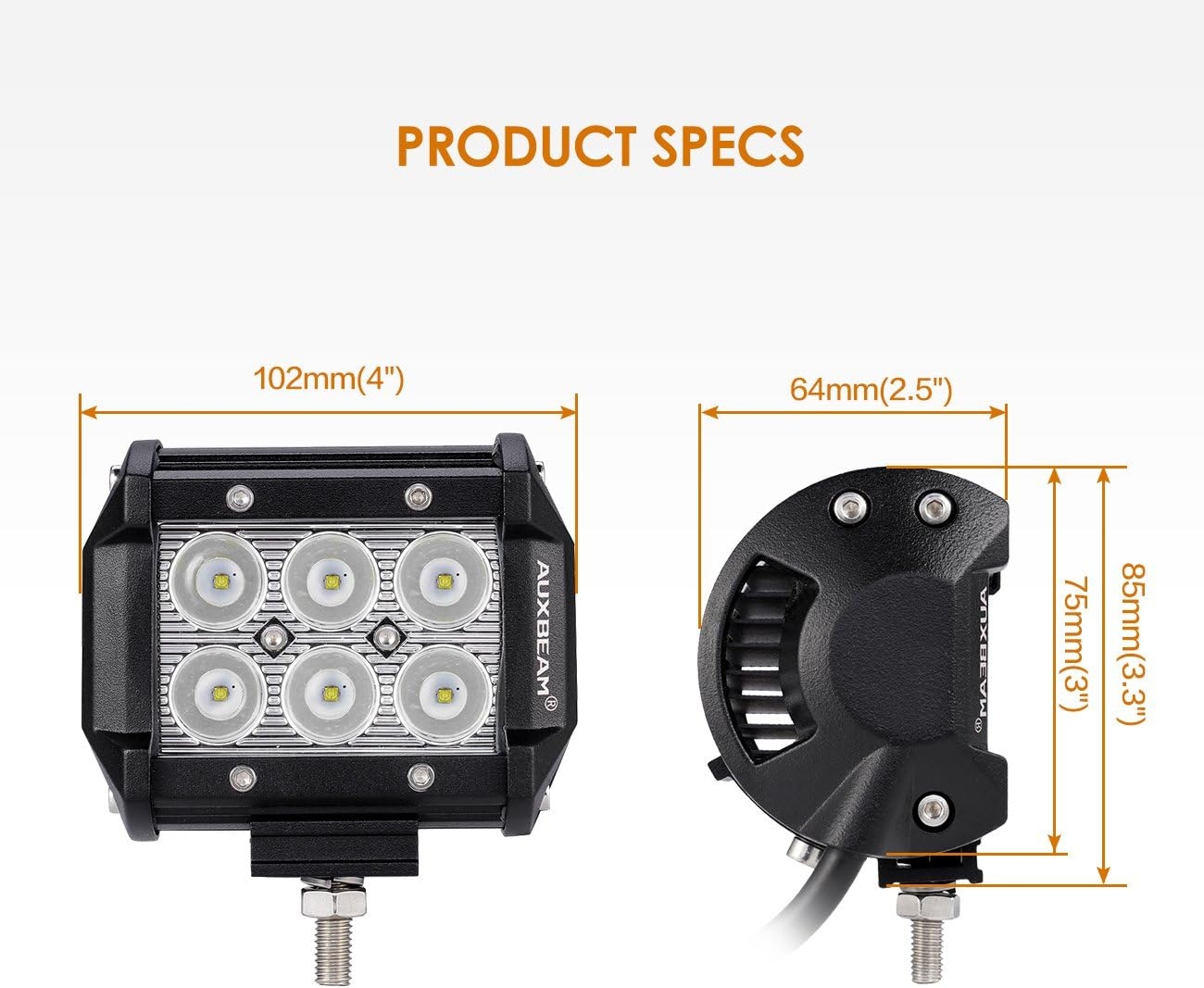

Size (with bracket): 99*73*107mm/ 3.9*2.87*4.2inch approx.
Protection Rate: IP67

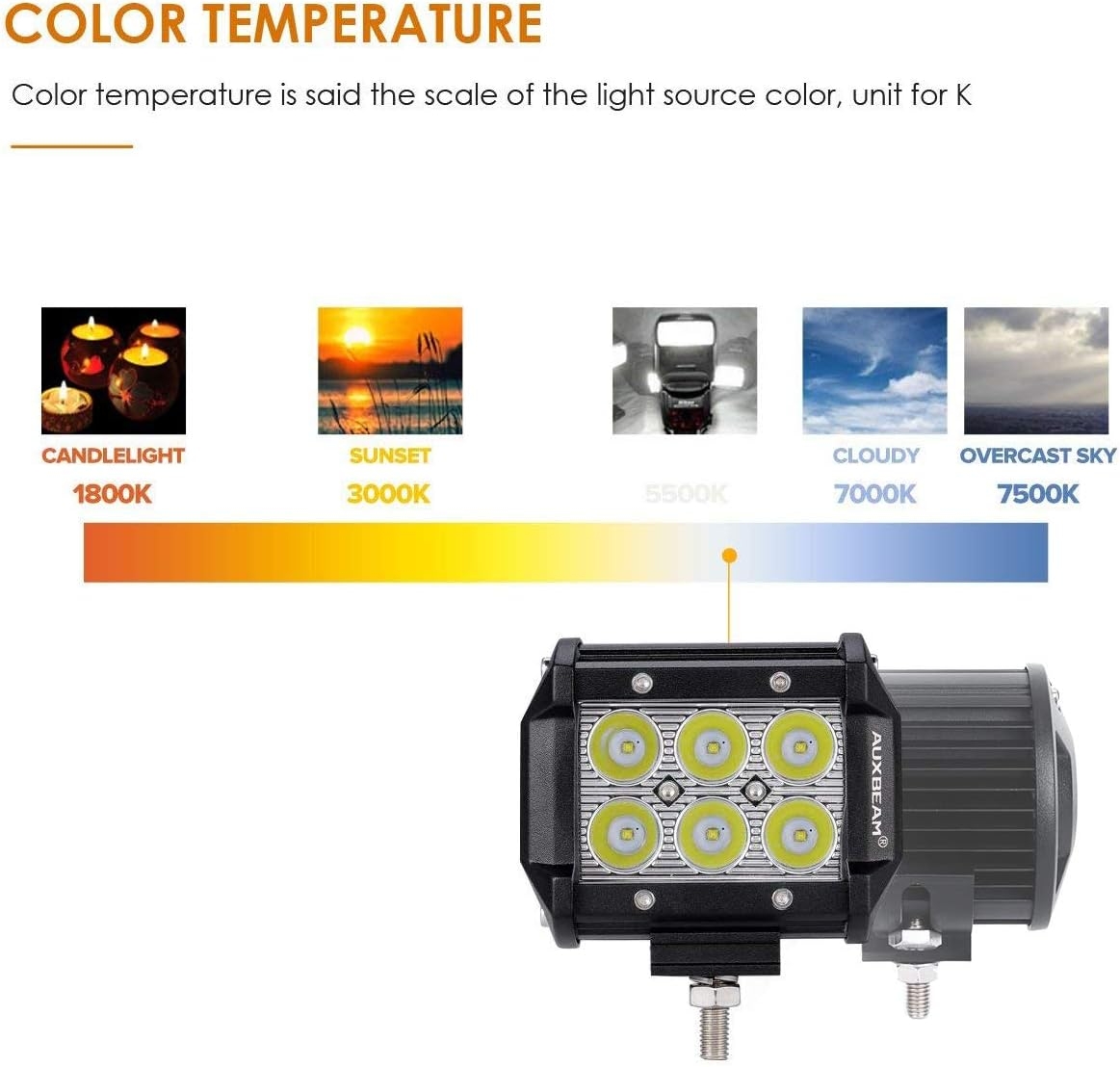

Color Temperature: 6000K
Material: 6063 aluminum profile, stainless steel bracket, PC Lens
Working Life: 50,000 hours above
Certified by CE & RoHs

Wide operating voltage range:

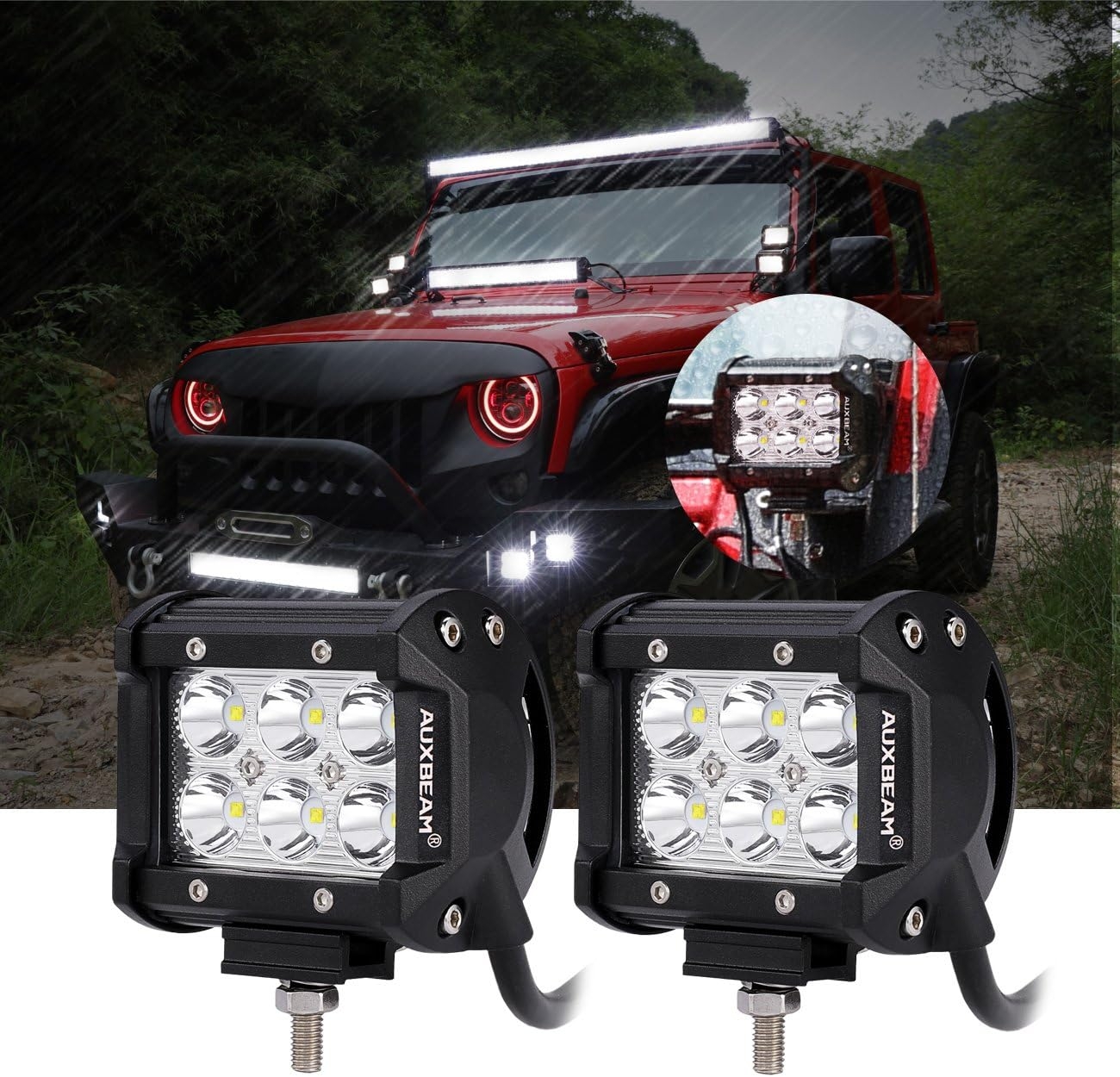

It can apply to different types of trucks, Off-road vehicles, 4×4, Military
Mining, Boating, Farming and Heavy Equipment etc

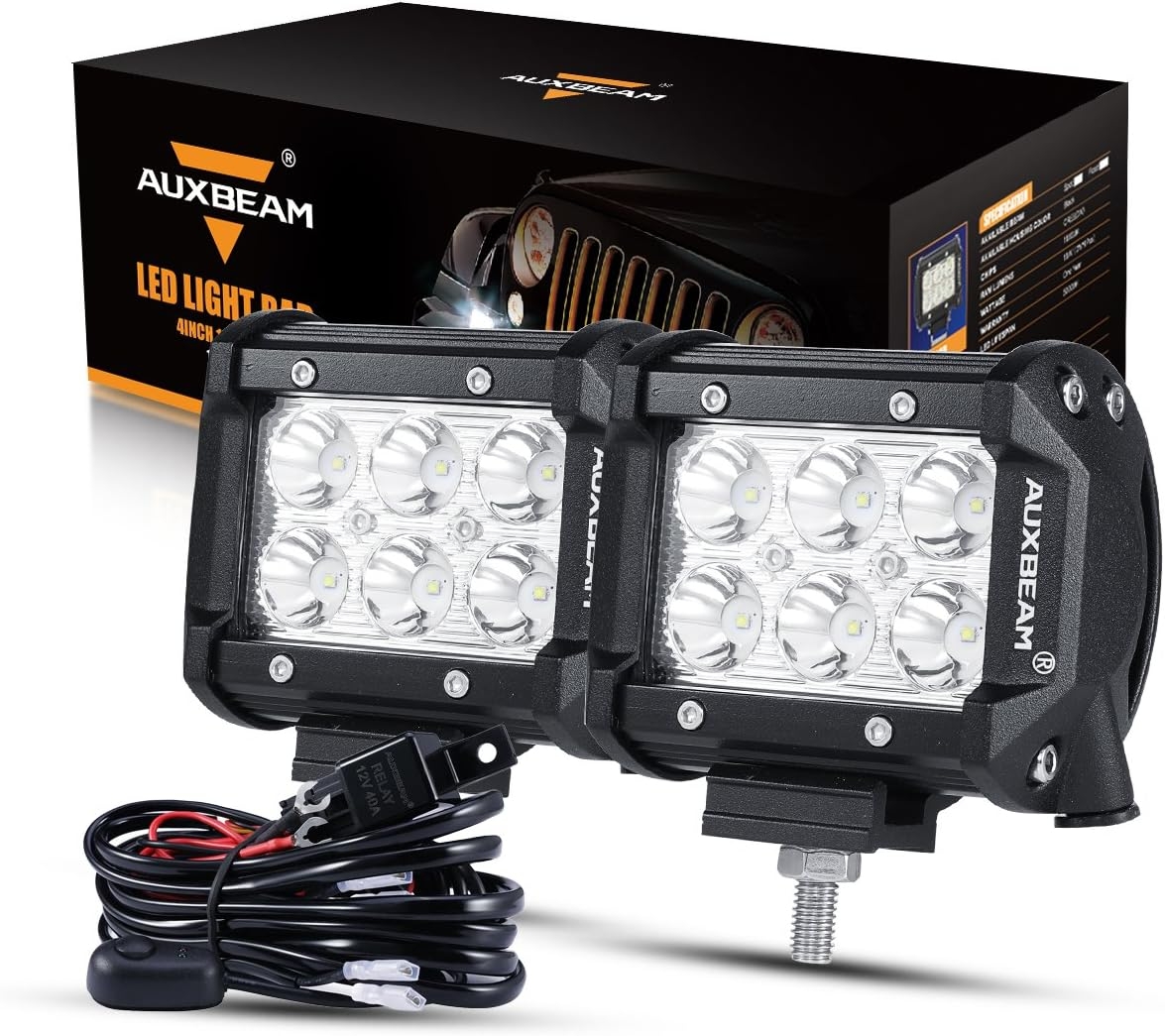

Package Included:
A Pair 4 inch 18W LED Work Light Bar

This product has been upgraded.
New mounting brackets will replace the old ones. During this time, you may receive two kinds of mounting brackets.
Please rest assured to use. They are both certified Auxbeam product, and both have same good quality.

Additional information

Weight 1.13 kg
Dimensions 16.61 × 11.1 cm


Package Dimensions

‎45.59 x 16.61 x 11.1 cm; 1.13 Kilograms

Item model number


Manufacturer Part Number





‎white light

Bulb Type



‎12 Volts (DC)


‎3 watts

Item Weight

‎1.13 kg



Date First Available

24 November 2016



10 reviews for Auxbeam LED Light Bar 4 inch 18W LED Pods 1800lm Spot Beam Driving light Offroad lights with Wiring Harness (Pack of 2)

  1. doog

    Makes my headlights look like cheap half-dead flashlights.

  2. Ryan Weaver

    Great lights for the money
    Super bright lights that come with mostly everything you need. They seem like they are decent quality, time will tell how they hold up to the elements. Much brighter than I expected from 18w lights. The only reason I knocked off a star is because of 2 things… 1. The wires going to the fog lights and the ground wire were way too short for almost any car application. This is easily fixed but why not add a little length to the harness so you can use it out of the box without taking the extra time to modify the harness which was included for convenience in the first place?. 2. The included switch has power running to it all the time to illuminate an indicator light for on AND off. Why?! Even though it’s just a small LED and won’t use much power, it will still put a small drain on your battery while the car is sitting which I didn’t like. To fix this I removed the switch and wired the relay trigger to my headlight wires so the auxiliary lights go on with my headlights. All in all everything else was great and I would by another pair.

  3. charles deschenes

    ON/OFF SWITCH burnt instantly …
    I just plug it in to try, didnt even have time to press the ON button that the switch was fried …. I just emailed the company . lets see what they do about it … ill edit my review then .EDIT ; So I played around a bit with the wiring to find out it was wrong and thats why the switch instantly fried . I went to local store to buy a new switch properly wired it , and now I got it working . I emailed the company they were pretty good about it a told them the switch burnt , I bought a new switch and now I got it working and they just refund me the money for the switch I bought at the store .Which is great . I understand not everybody knows how to do simple electricity you expect it to be plug and play when it comes with the harness but it is not .. maybe something to consider if you buy the 4inch POD . VERY bright and good for trails riding . Once the wiring is sorted out its a great buy !

  4. Tono Lopez

    Buena iluminación
    Es de buen material no es plástico.

  5. Jerryn Smith

    Unbeatable for the price. Highly recommend.
    Installed these on my 2014 Ducati Hypermotard.First off, I took a star off because if you buy this light+harness kit, the lights should already come with connectors so it’s plug and play or at least have connectors in the box. Not a huge deal, but worth a star for a slight inconvenience.On to the lights and harness themselves.For the price I don’t think you’ll find lights with a better build quality or light output. You’ll have to spend 5-10x the price of these on that one name brand light company for more light output.The “spot” beam seems to be a mix between spot and flood, at least on a motorcycle. They don’t cast light super far but far enough and bright enough to be very helpful.So far I’ve tested these on pitch black twisty canyon roads and in the middle of the desert on a dirt road and even by themselves without my led headlight they are pretty bright. Actually more useable light than my headlight. My headlight just casts light farther.While in the desert I laid the bike down twice in deep sand and both times the right side light was crammed into the dirt/sand. A few scuffs and slightly tweaked bracket but nothing broken and the lights still work perfect.The wiring harness is a bit long for motorcycles, obviously these are intended for cars/trucks, but very easy to install and the harness seems just as well made and durable as the lights.I would definitely recommend these for someone who wants to add some more light output to their vehicle while also being budget friendly.

  6. D. Glass

    Replaced golf cart headlights, love them!
    First, the lights are bright enough for our evening golf cart runs in our retirement community. Second, the excellent wiring harness alone is worth much of the price.I gave these lights 4 stars for “Easy to Install” because the wiring harness has shielded, female spade lugs on the wiring harness for the two light connections, but the lamp leads are only bare wire coming out of a nice vinyl shield. I had some spare male lugs, soldered them to the light leads (hint: make sure you drill the hole for the lamp cable just large enough to allow the lugs to pass through — I had to clip the sides of the lugs before soldering, to reduce the lug width to pass through a hole sized for the cable shield), and the rest was easy.I think they’re bright enough for 4-wheelers and utility off-road vehicles, but not for driving. For our use on the streets of our community, once I had them aimed right, they are excellent.The lens, housings, wire quality, and adjustments are very good, and I recommend these lights.

  7. miguel quijada

    Funcionan simplemente bien, no son maravillosas
    Lo mejor: fácil de instalar, incluye todo lo necesario, los tornillos venían bien apretados y los cables impecables.No a favor: a pesar de que eran spot la luz no alcanza mucha distancia y difusa, alcanza aprox 30 metros, no son para ti si andas buscando algo que alumbre más lejos.Después de instalarlas les puse película amarilla y funcionan perfectamente para neblina o lluvia.

  8. Compa

    Bright enough
    Mounted these on my A-pillars of Jeep JK. Easy to mount and come with wiring/switch. Bright and clear for the price.

  9. malcom barré

    not very good
    The media could not be loaded.

     la qualité de la lumière est super bonne. facile d’installation et ume bonne luminosité ma grande bar LED 36 pouce aussi est une AUXBEAM ca fait 2 ans quelle est la et jai aucun problème tout va bien !! j’ai modifié mon commentaire, car après 2-3 mois d’achats l’eau entre dedans et il flash quand on les allume je suis déçu car au début tout etais bien 🙁

  10. H. Elliott

    Nice, bright lights….BUT!
    They came fast. Instructions are a little confusing at best. No instructions whatsoever on how to wire with the included wiring harness. So, when I was hooking them up I hooked up black to black, white to red. Didn’t work. Went through and took off all of my shrink wrapped connections and made sure I had black to black, white to white. Put back together, and still wouldn’t work. Suspected included relay, replaced, still no good. Fuse checked out ok. Suspected the included switch, replaced, still no good.Last ditch effort was to change the positive lead to the negative and vice versa…..that did it. The lights were WIRED BACKWARDS.
