Arducam M12 Lens Kit for Raspberry Pi HQ Camera (Type 1/2.3), 20 to 180 Degrees Telephoto, Wide Angle, Fisheye Lenses with M12


Brand Arducam
Lens Type Fisheye
Compatible Mountings CS-Mount
Maximum Focal Length 20 Millimeters
Minimum Focal Length 20 Millimeters

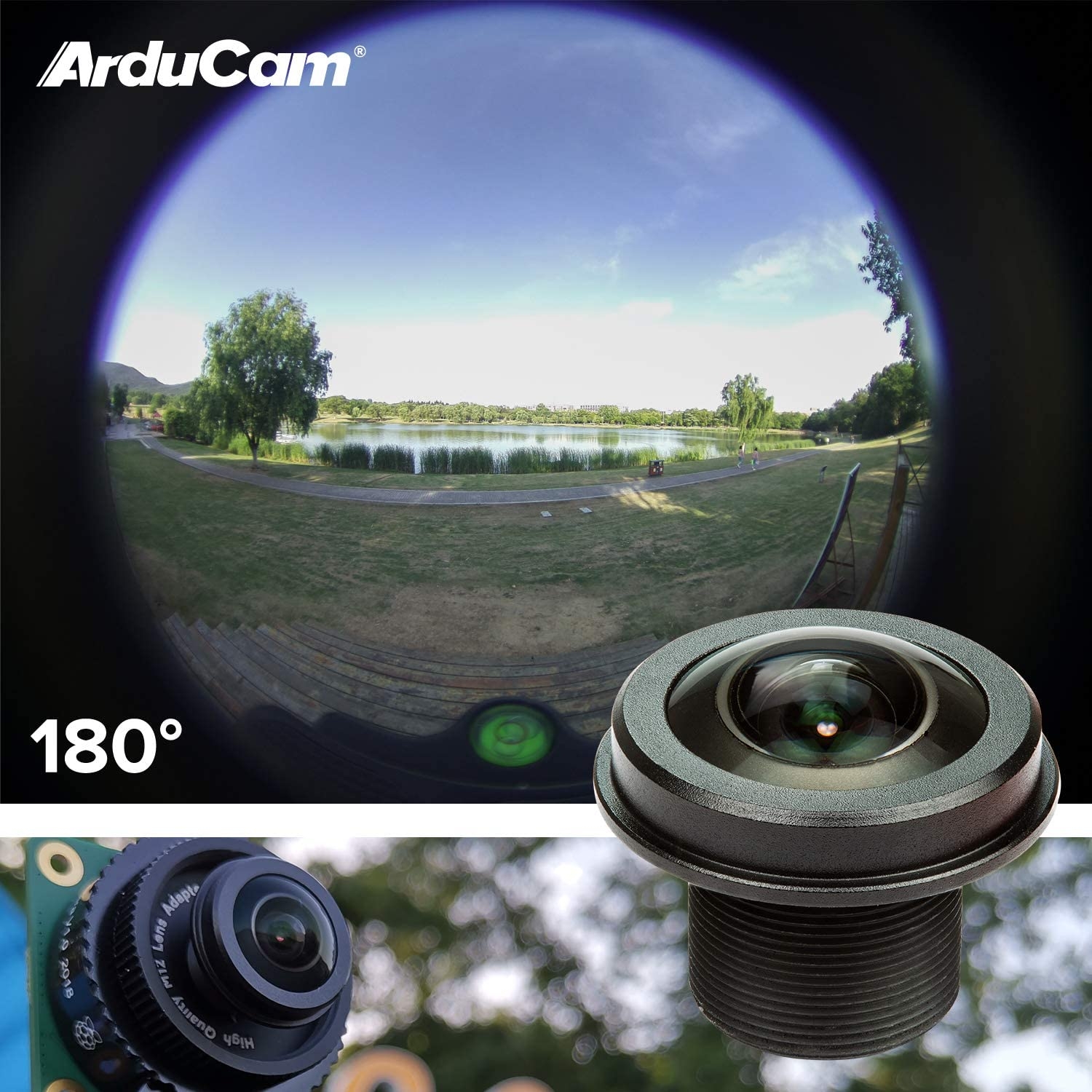

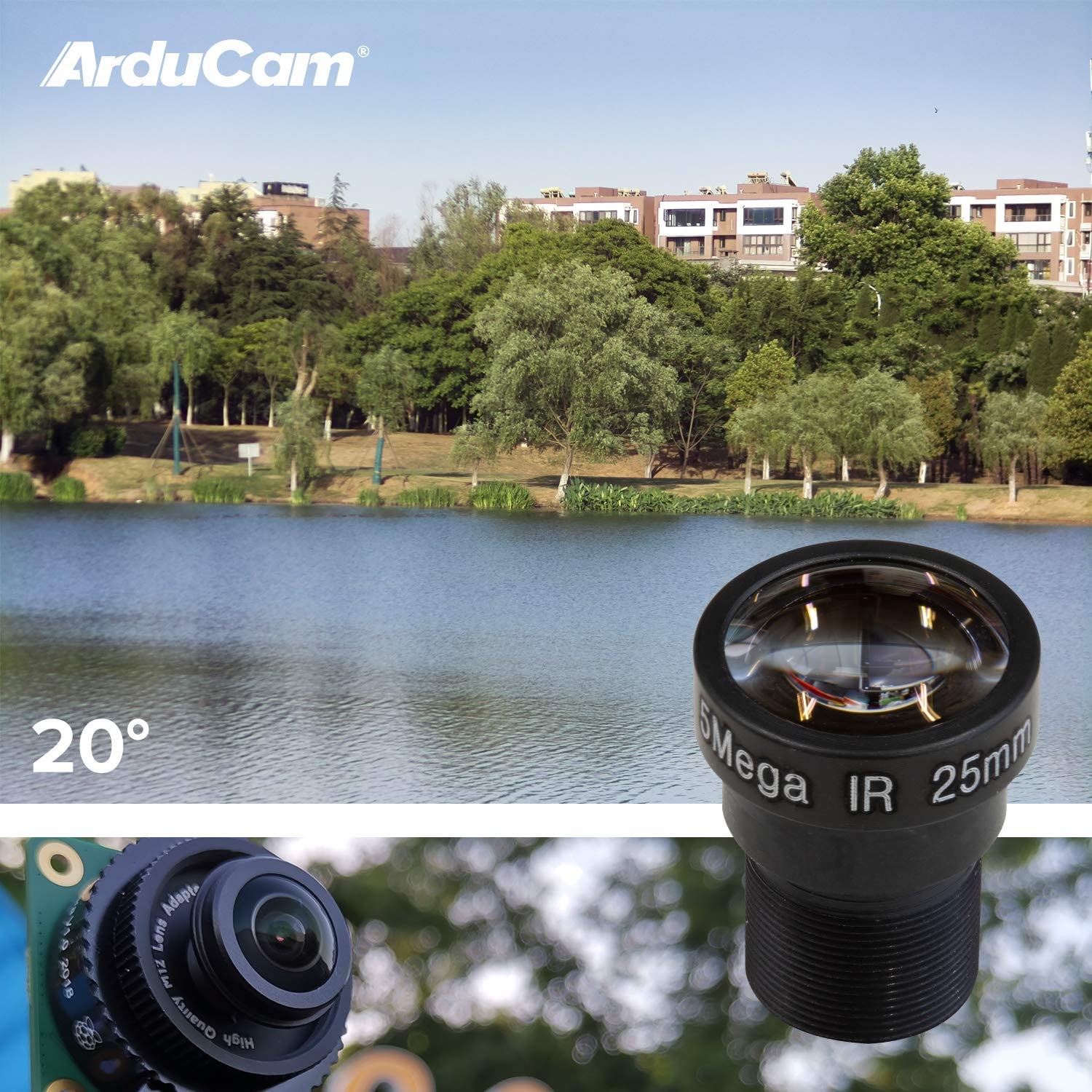

  • What’s special – Adapt the CS-Mount of the Raspberry Pi High Quality Camera to access compact and cost-effective M12 lenses, and 6 are included in this box – 20/50/70/90/140/180 degrees horizontal Field of View respectively on the 12MP IMX477.
  • Why it’s better – Arducam selected from a bunch of lenses to present those six. Decent quality, FoV labeled. No more guessing and testing because we’ve already done the work for you. They just work.
  • How to use – Screw the M12 to CS-Mount adapter into the back focus adjustment ring on the HQ camera, and pick among the six lenses until you find the desired one. Include cleaning cloth to wipe out dust or fingerprints, and locking ring to fix the lens when in focus.
  • Applications – Drones where C/CS mount lenses are too heavy for flying, or other applications that require a compact size. Also optical testing where a bunch of lenses with different focal lengths are needed.
  • Note – Two lens holders are included with 18/20mm hole spacings in case you want to mount them on other 1/2.3″ board cameras. Do NOT use it on the HQ camera board because they won’t match. And this lens kit does not come with an IR filter.


Product Description

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to fisheye for shooting on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.


Additional information

Weight 4.8 kg
Dimensions 4.96 × 3.39 × 1.65 cm
Package Dimensions

4.96 x 3.39 x 1.65 inches

Item Weight

4.8 ounces



Date First Available

May 9, 2020
