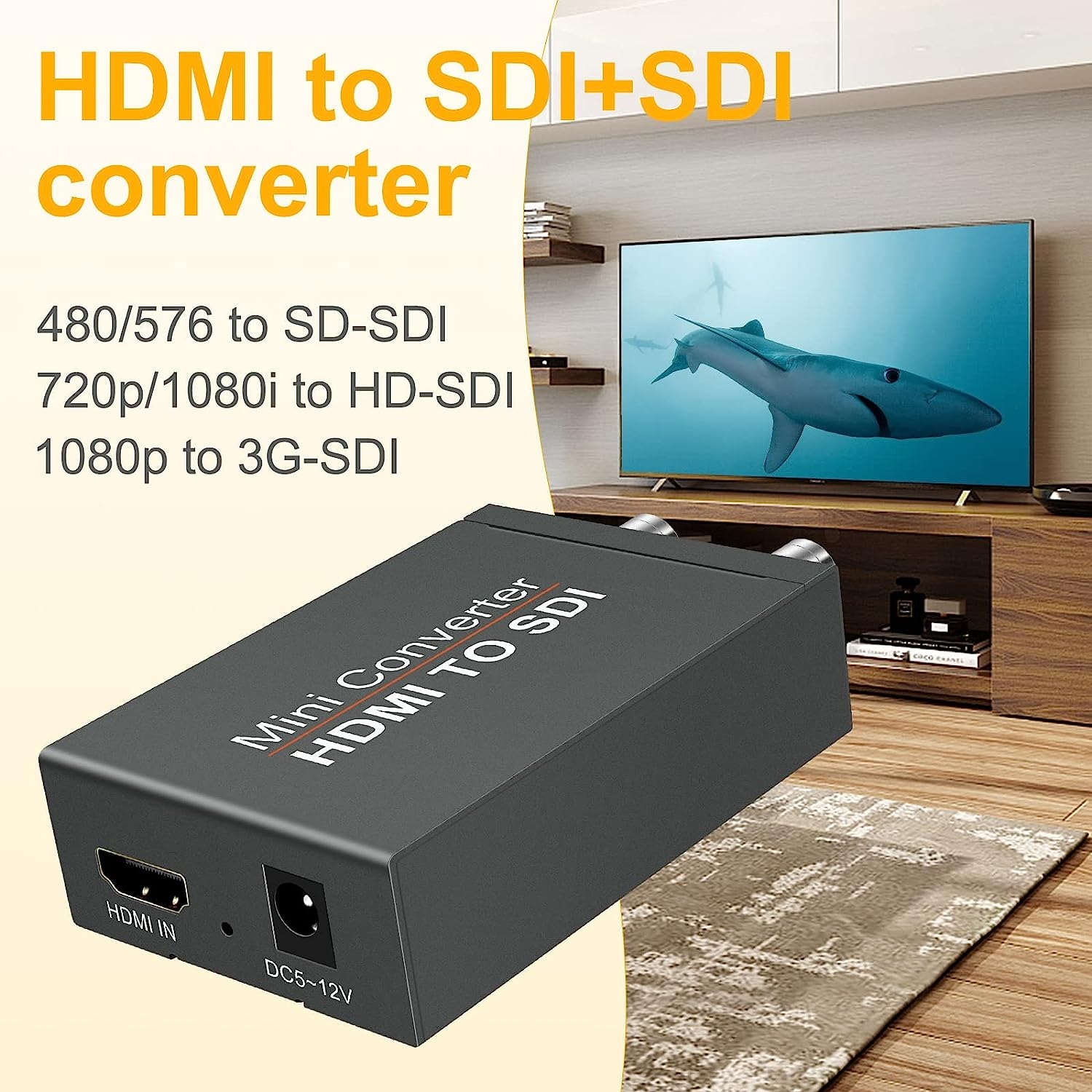

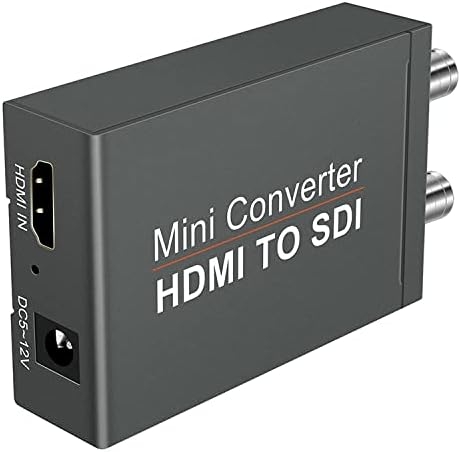

3G HD SD 2 HDMI to 2 SDI Converter Box for Driving Monitor HDTV Adapter 1080P 720P

(2 customer reviews)

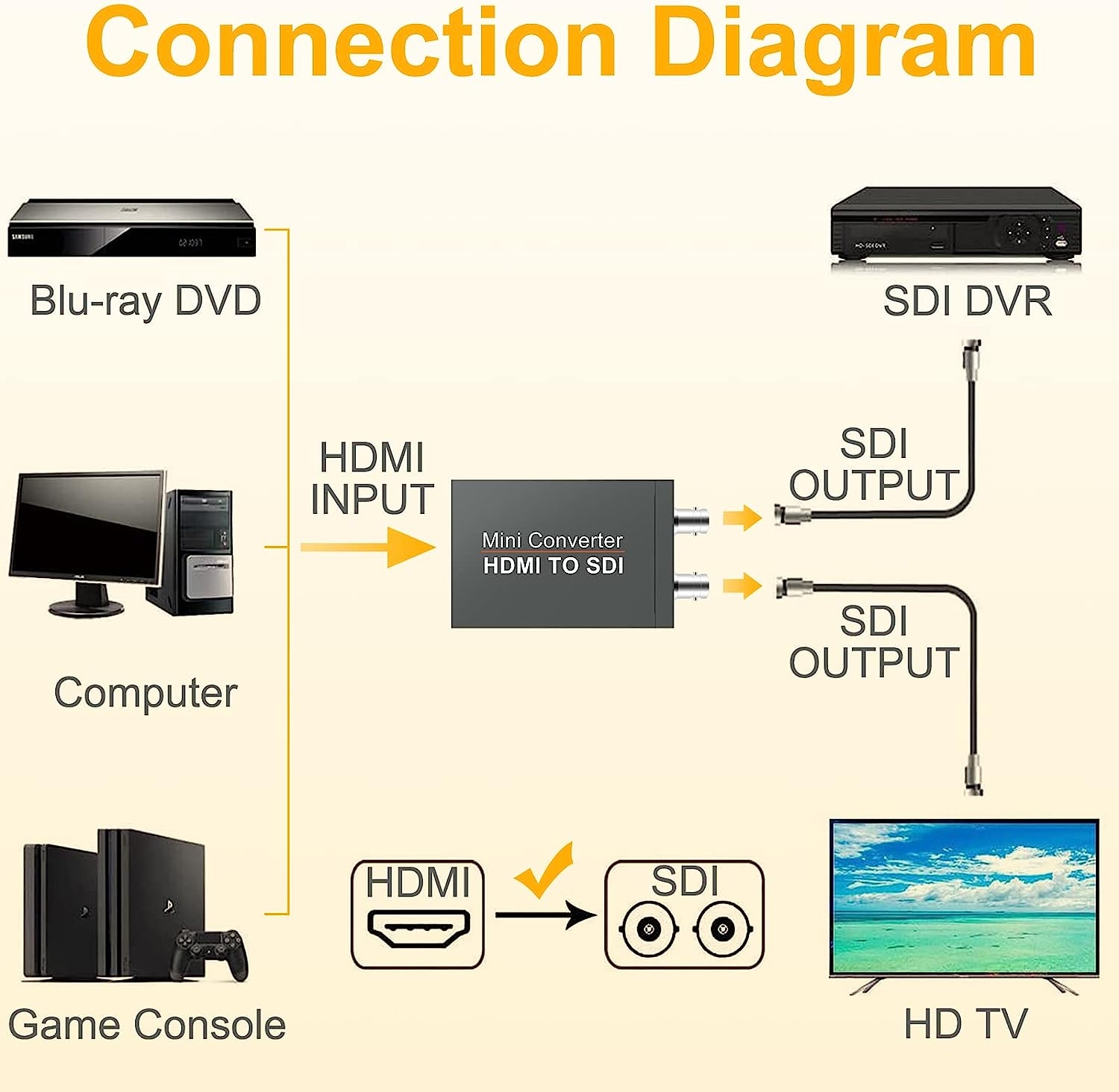

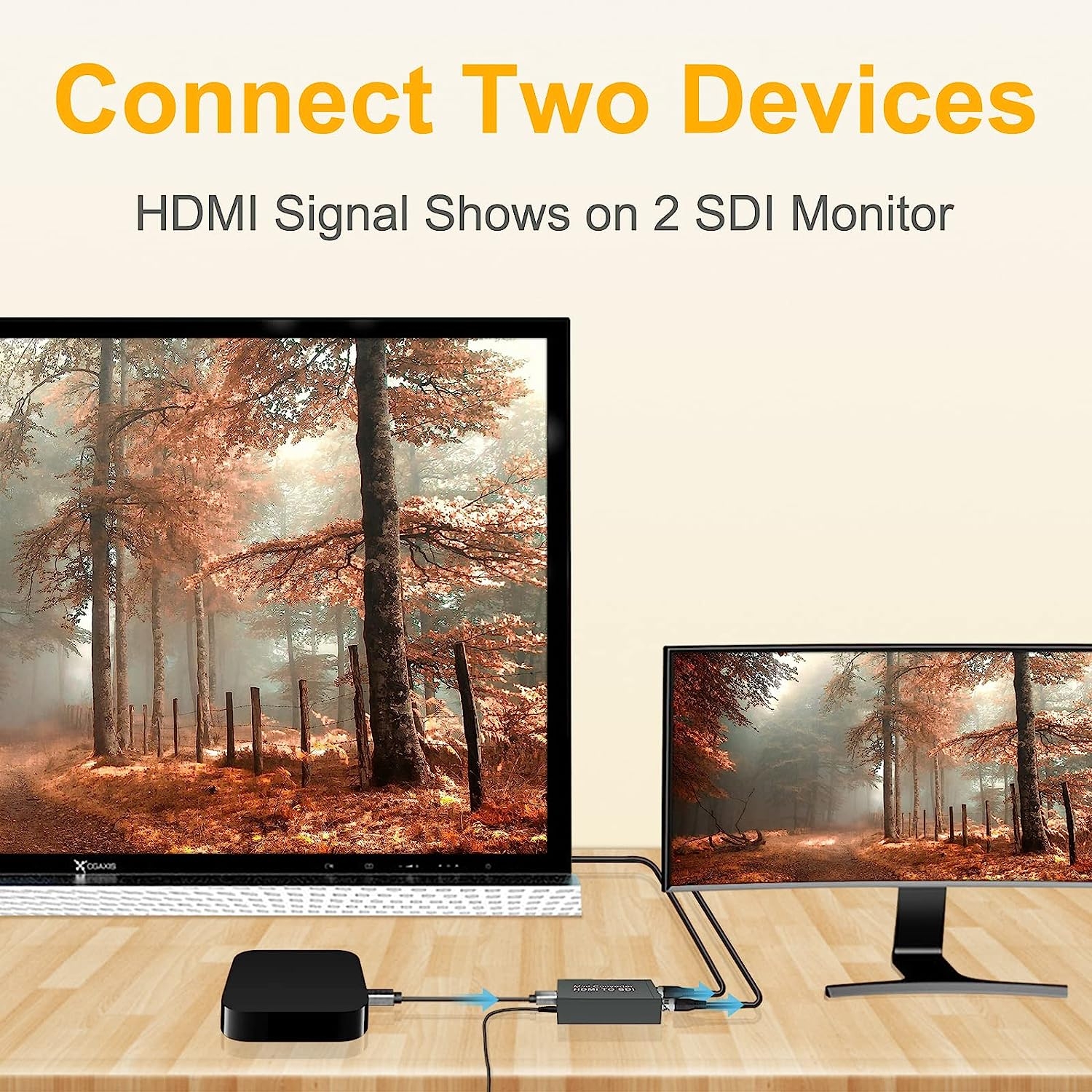

HDMI TO SDI Converter converts HD/SD HDMI signal to HD/SD SDI signal output. At the same time, it can separate the audio signal in advance, and then embed it into the SDI mode. What’s more , in this process, the audio and picture without any loss.And also it supports 2 ports of HDMI input,2 ports of SDI output to implement 2 kinds of HDMI signals into 2 ports of SDI signal output (such as:port 1 connect a SDI monitor,port 2 connect the SDI VCR).

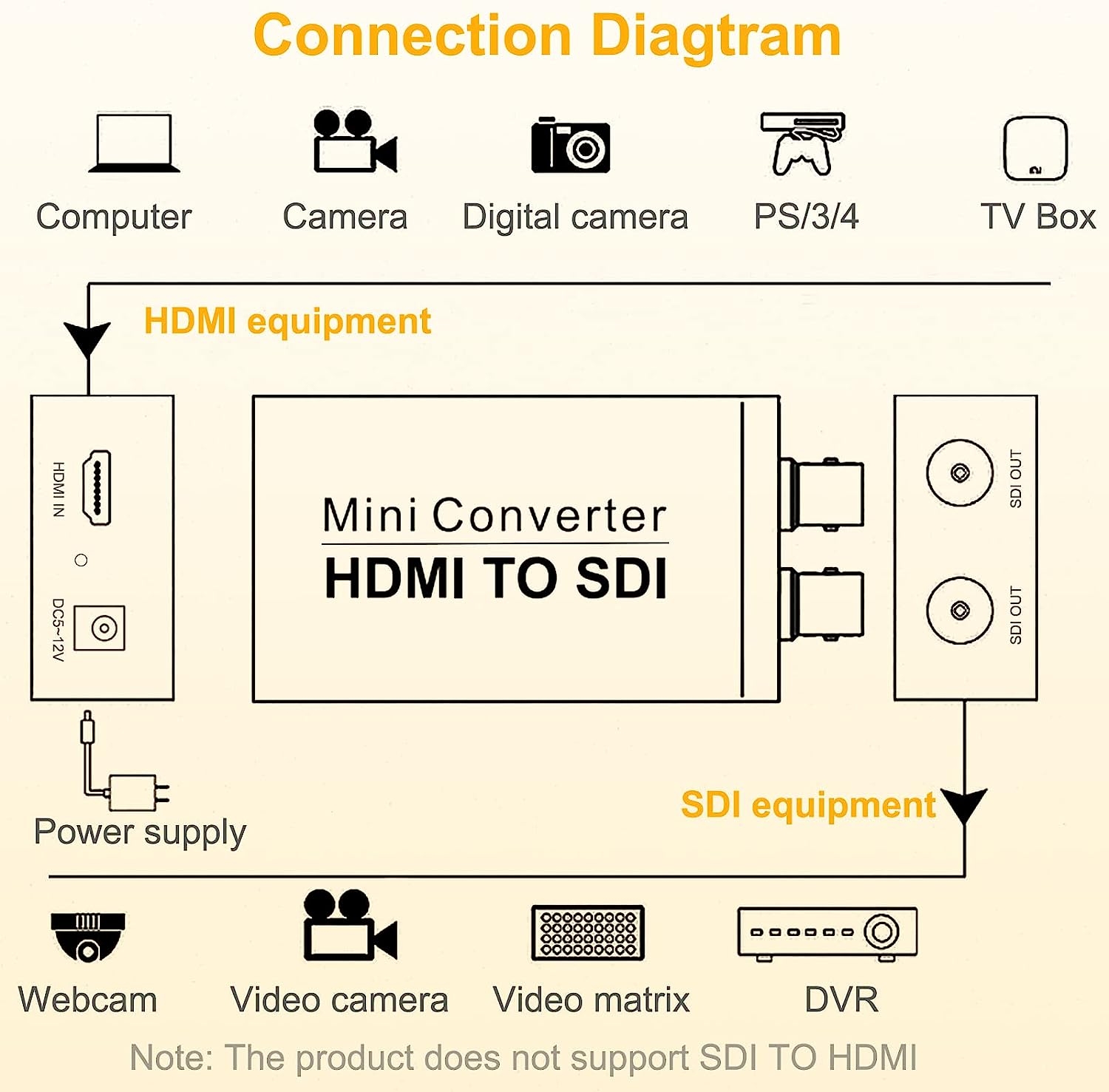

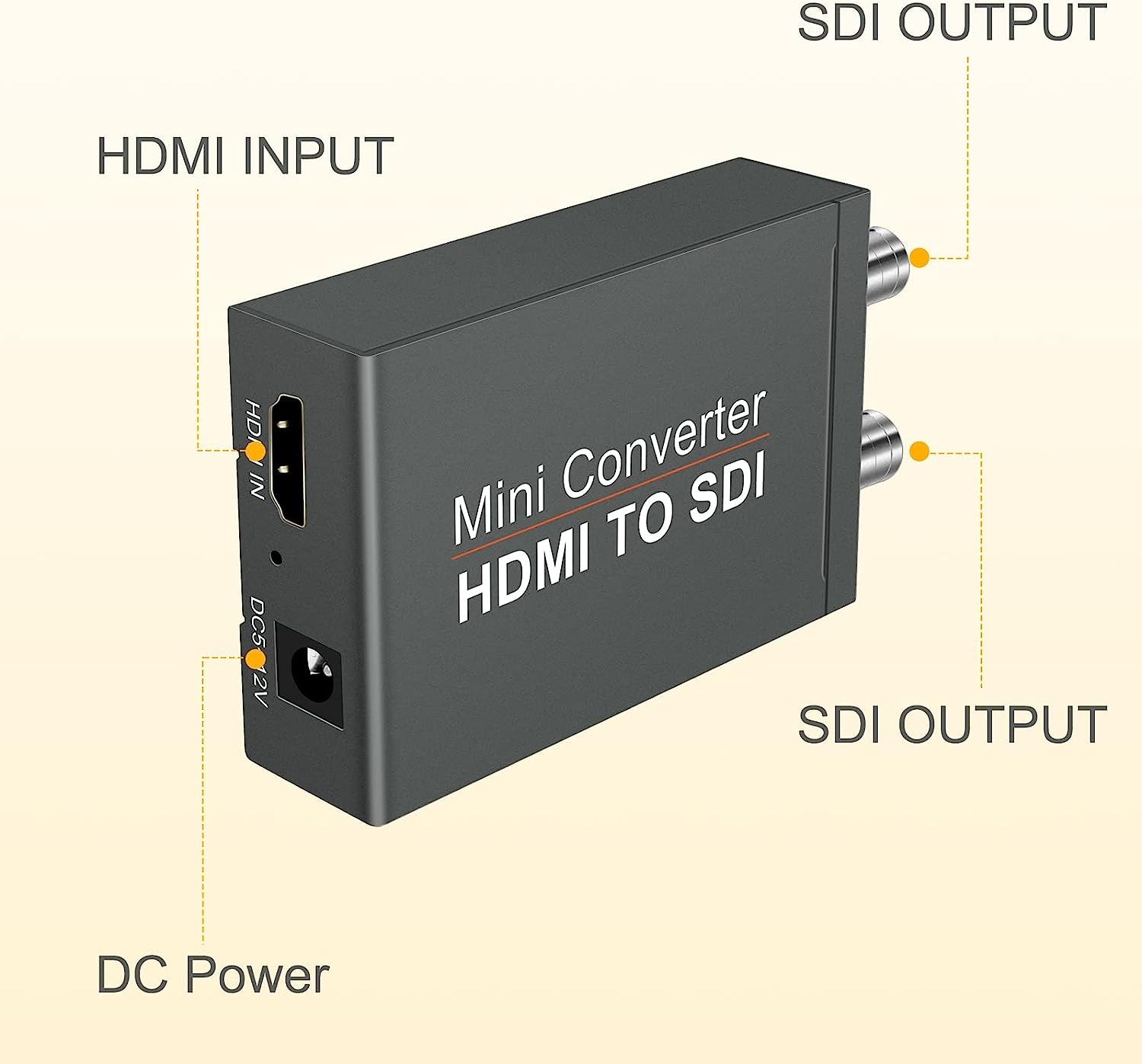

-HDMI-IN: This slot is where you connect the HDMI source with HDMI cable.
SDI-OUT: This slot is where you connect the SDI display with coaxial cable.
-POWER LED: This red LED illuminate when the device is connected with power supply.
-DC IN: Plug the 5V DC power supply into the unit.

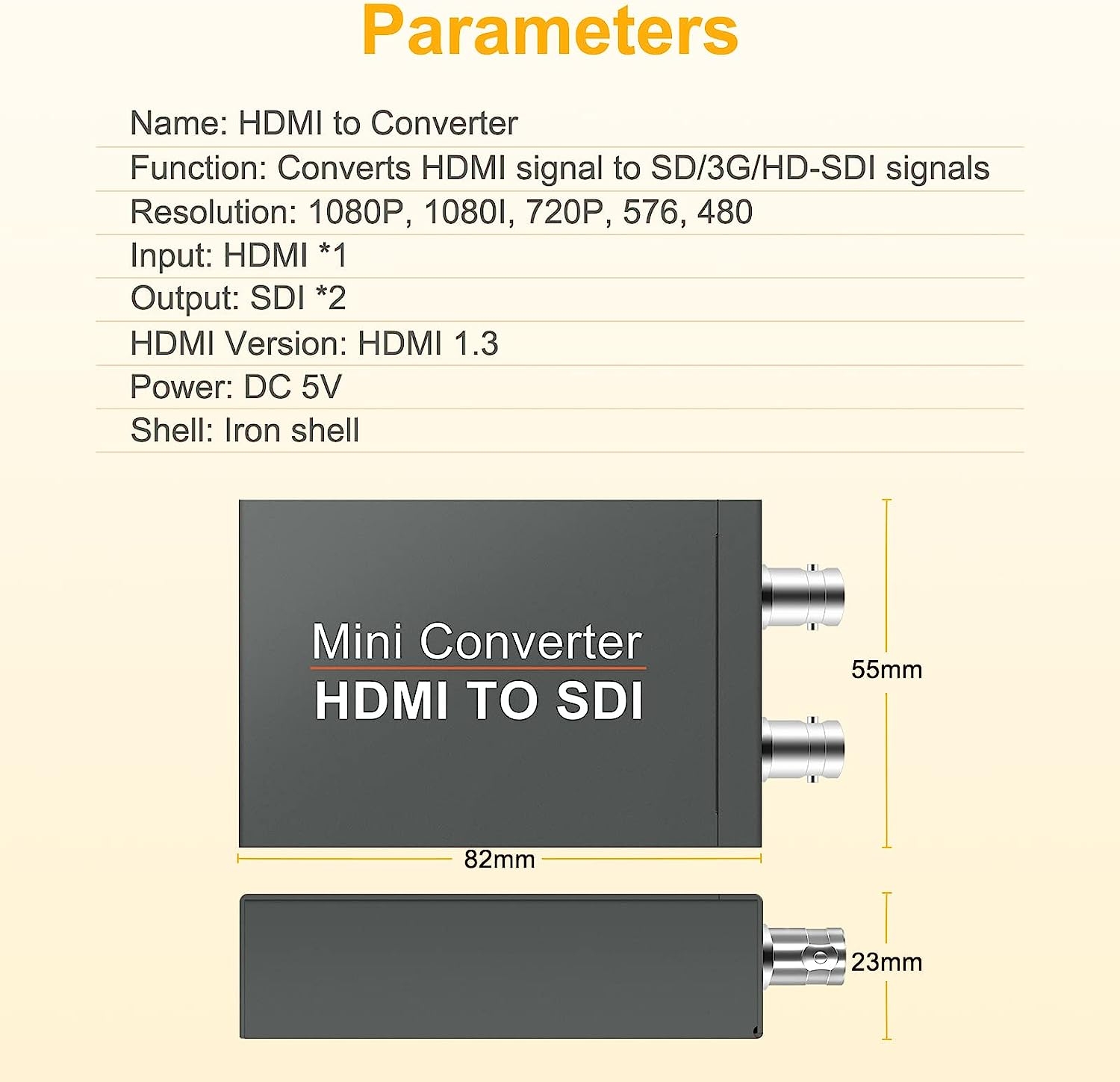

-Color depth: 12 bit Max
-HDMI Input: 480i, 576i, 720p@50/59.94/60,1080i@50/59.94/60;1080p@23.98/24/25/29.97/30/50/59.94/60.
-SDI Output Format: 3G-SDI(SMPTE 424M); HD-SDI(SMPTE 292M); SD-SDI(SMPTE 259M).
-SDI Output Resolution:480i, 576i, 720p@50/60,1080i@50/60, 1080p@23.98/24/25/29.97/30/50/60.
-Transmission distance of SDI output: 80m-100m(3G-SDI); 150m-200m(HD-SDI); 250m-300m(SD-SDI)
-Operating Temperature Range: -5 to +35 Degrees(+23F to +95F)
-Operating Humidity Range: 5 to 90 % RH(no condensation)
-Video amplifier bandwidth: 3.4 GHz Max

Package list:
1* HDMI to 3G SDI Converter
1* 5V DC US Power Supply Adaptor
1* User Manual

Additional information

Weight 295 kg
Dimensions 10.92 × 6.1 cm


Part Number



5 Volts

Power source type


Batteries Included


Batteries Required


Number of Ports


Manufacturer reference


Package Dimensions

‎15.24 x 10.92 x 6.1 cm; 295 Grams



Date First Available

8 April 2016


‎BTS VIDEO, ‎Wiistar

2 reviews for 3G HD SD 2 HDMI to 2 SDI Converter Box for Driving Monitor HDTV Adapter 1080P 720P

  1. Bill764

    Easy to use, works as advertised..

  2. Peter Gaed

    I’m sorry
    Not working with my source
