Description

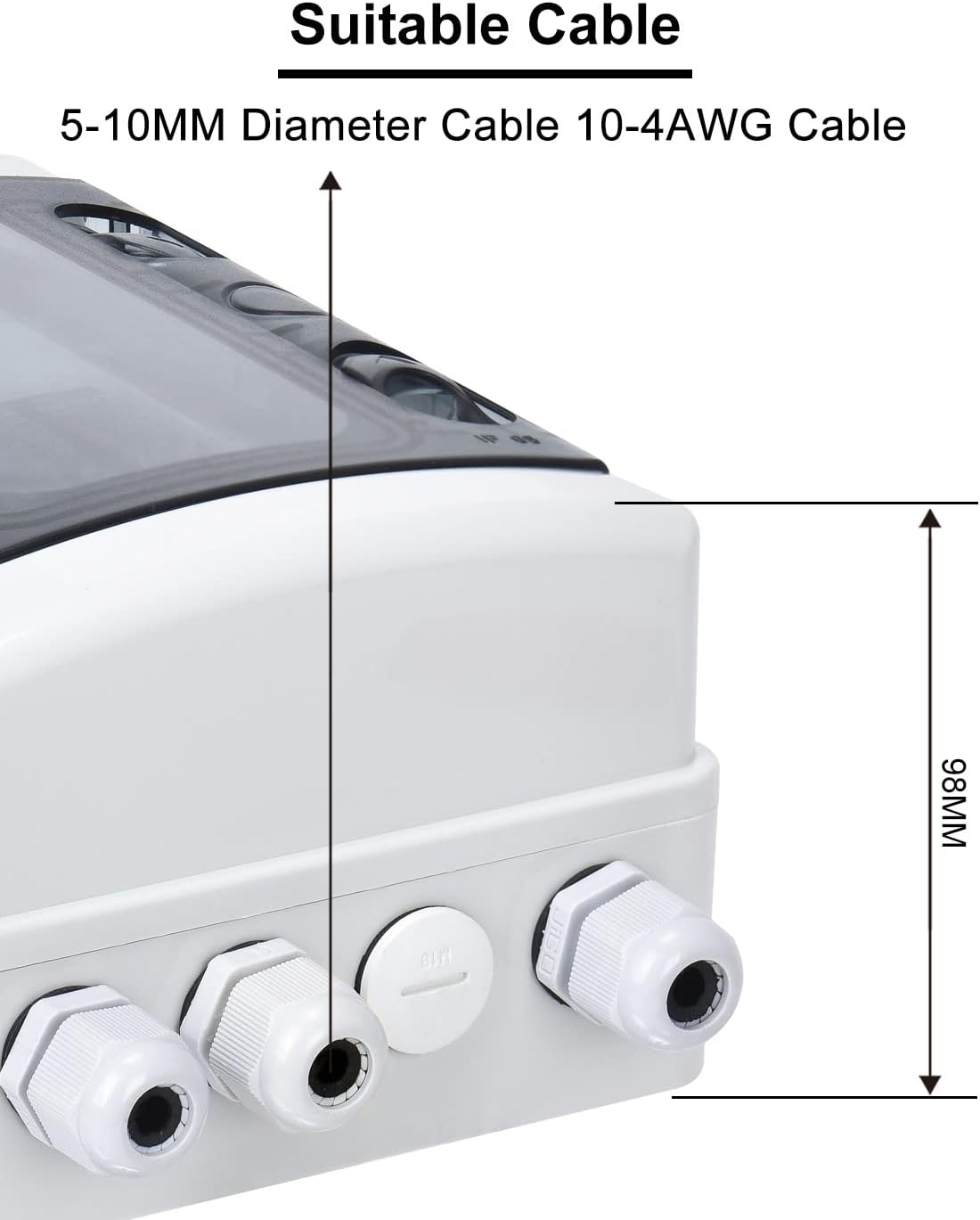

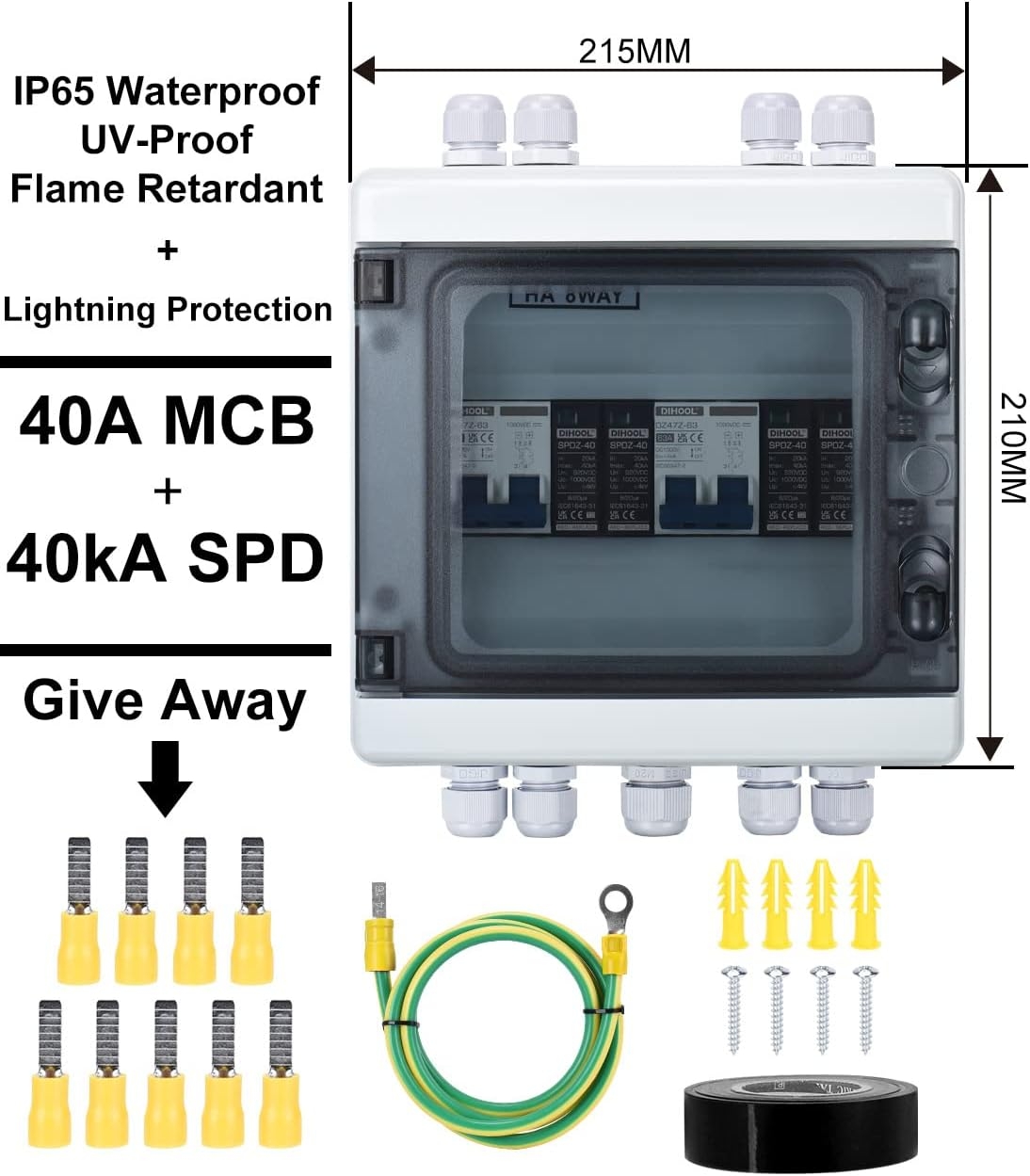

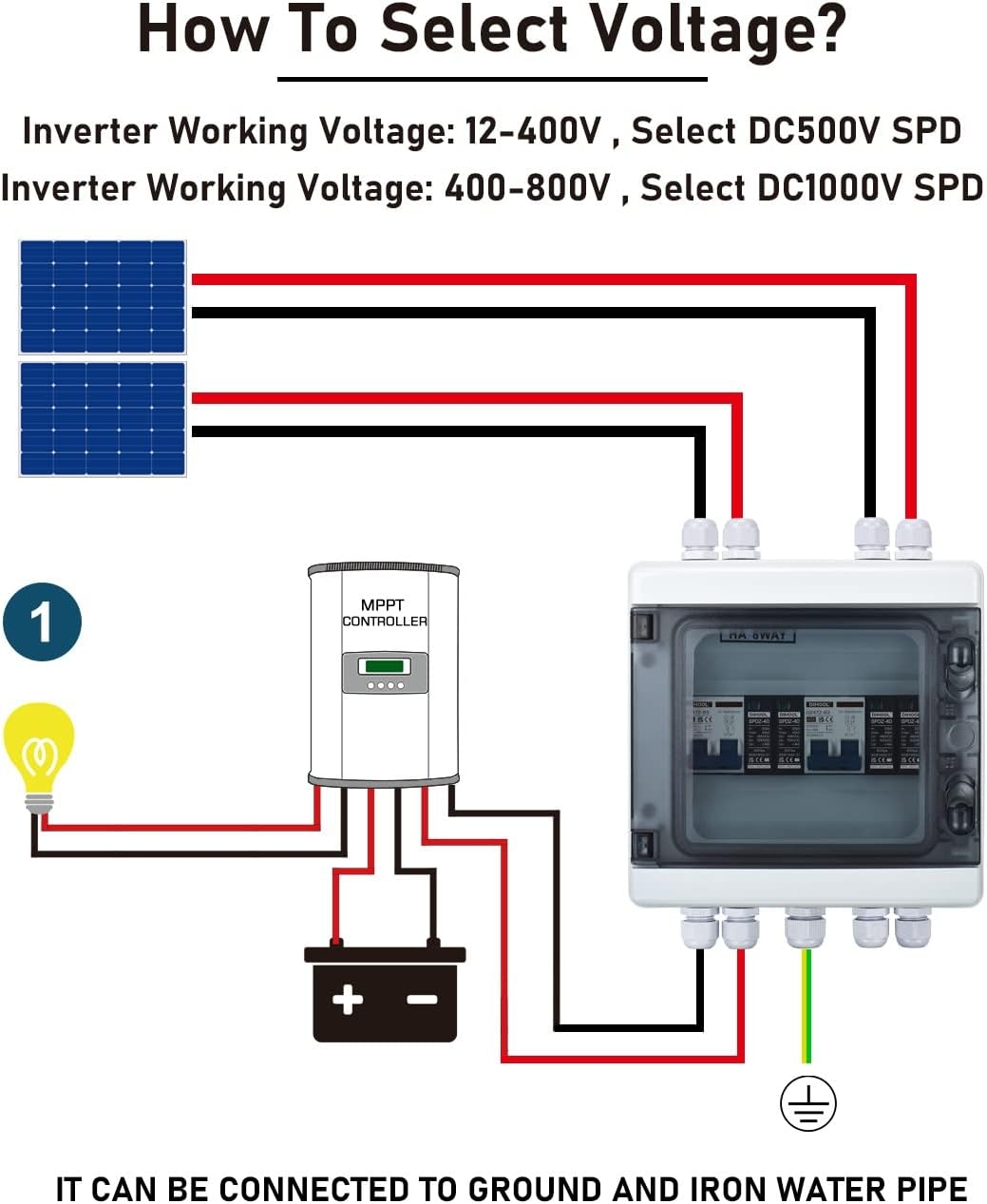

HA4-SPD Miniature circuit breaker with SPD used for DC circuit. It is suitable for circuit equipment with voltages of DC12~400V and DC400-800V, and is often used to protect the circuit between the solar panel and controller. This product is composed of a waterproof box, cable gland and circuit breaker. It has the function of IP65 waterproof and dustproof, and is safer to use. It is suitable for indoor, outdoor eaves, distribution board, under the solar panel, warehouse, etc. place. Adapter Cable: 5-10MM Diameter Cable, 10-4 AWG Cable
—— Specifications
Model: HA4 SPD
Rated Operating Voltage : DC12~400V
Poles: 2P
Rated Current: 40A
Breaking Capacity: 4 kA Ics=Icu
Trip Curve: C
Mechanical Life: 10,000 times
Electrical Life: 4,000 times
Installation Method: 35MM DIN Rail
Standard: IEC60898 / GB10936
Operating Temperature: -30°C to +80°C
Operating Altitude: 2000 Meter
