Description
HDMI Switch 2×2, 2 Ports HDMI Switch Splitter 2 in 2 Out with IR Remote Control, Support HDMI 2.0, HDCP 2.2, Ultra HD, 4K x 2K@60Hz, 3D, 1080P

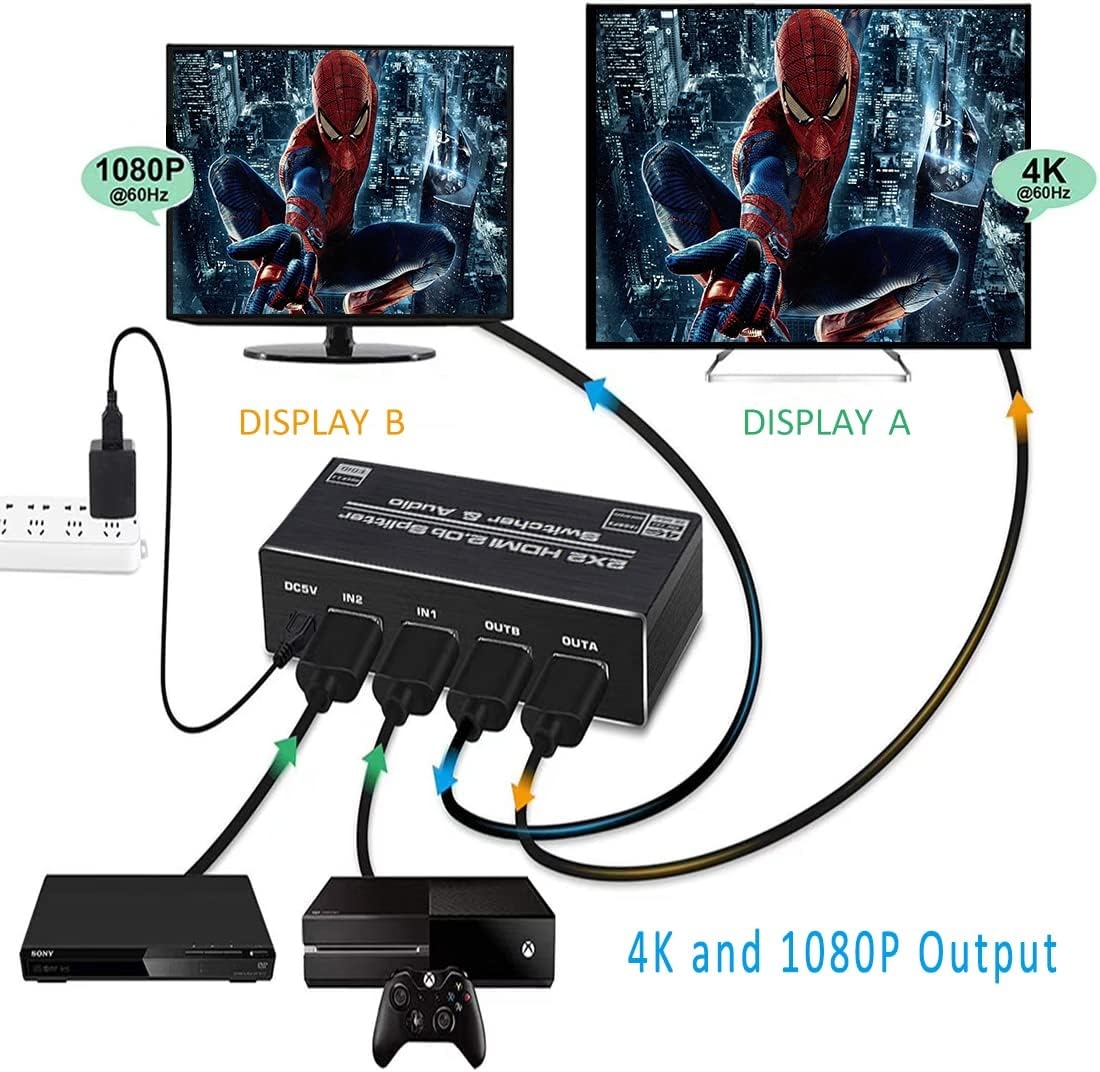

This 2 in 2 Out HDMI switch splitter easily streams video and audio from 2 HDMI devices to 2 HDMI display simultaneously. And it can amplify your HDMI signals at the same time. This two singal sources can be switched freely via button or remote control.
Specifications

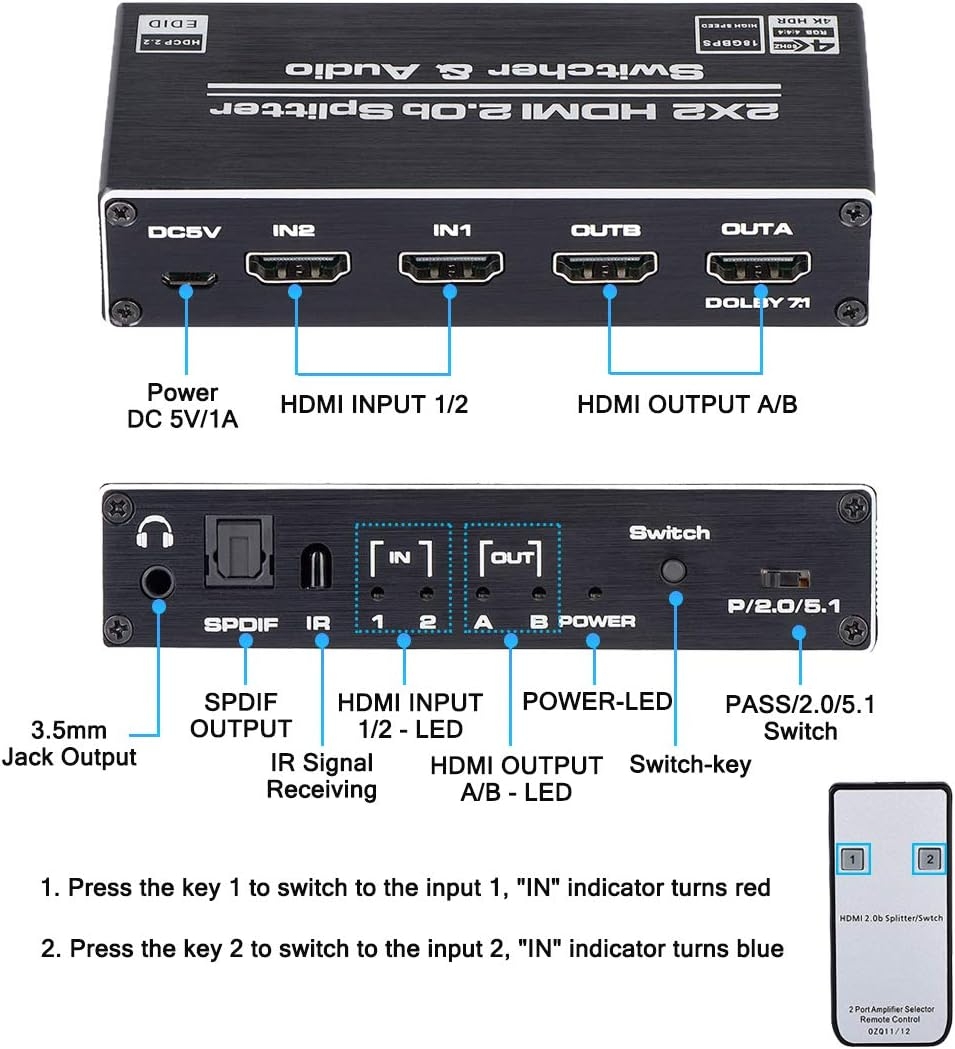

– Product Type: HDMI Switch Splitter 2×2

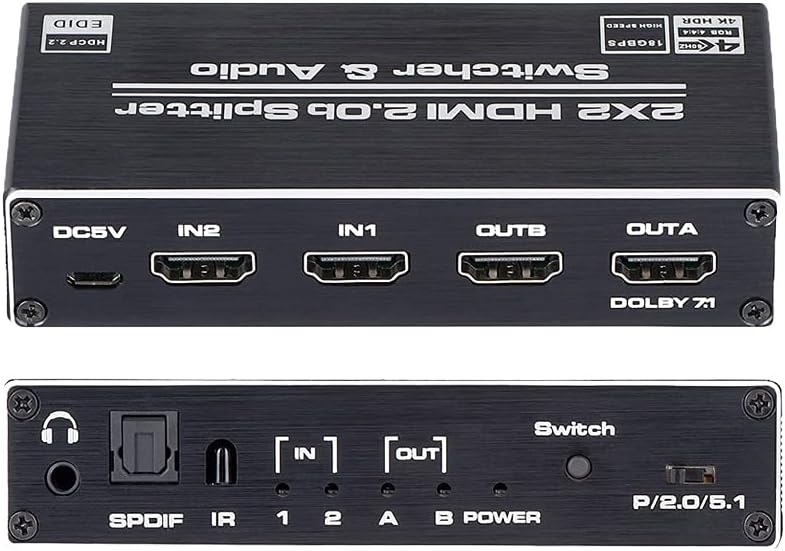

– Interface Type: 2 HDMI in, 2 HDMI out
– Power Supply: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V / 1A
– Dimension ( Lx Wx H ): 128x 53x 20 (mm)
Features
– Support HDMI 2.0 / HDCP 2.2
– Support 3D video format
– Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4

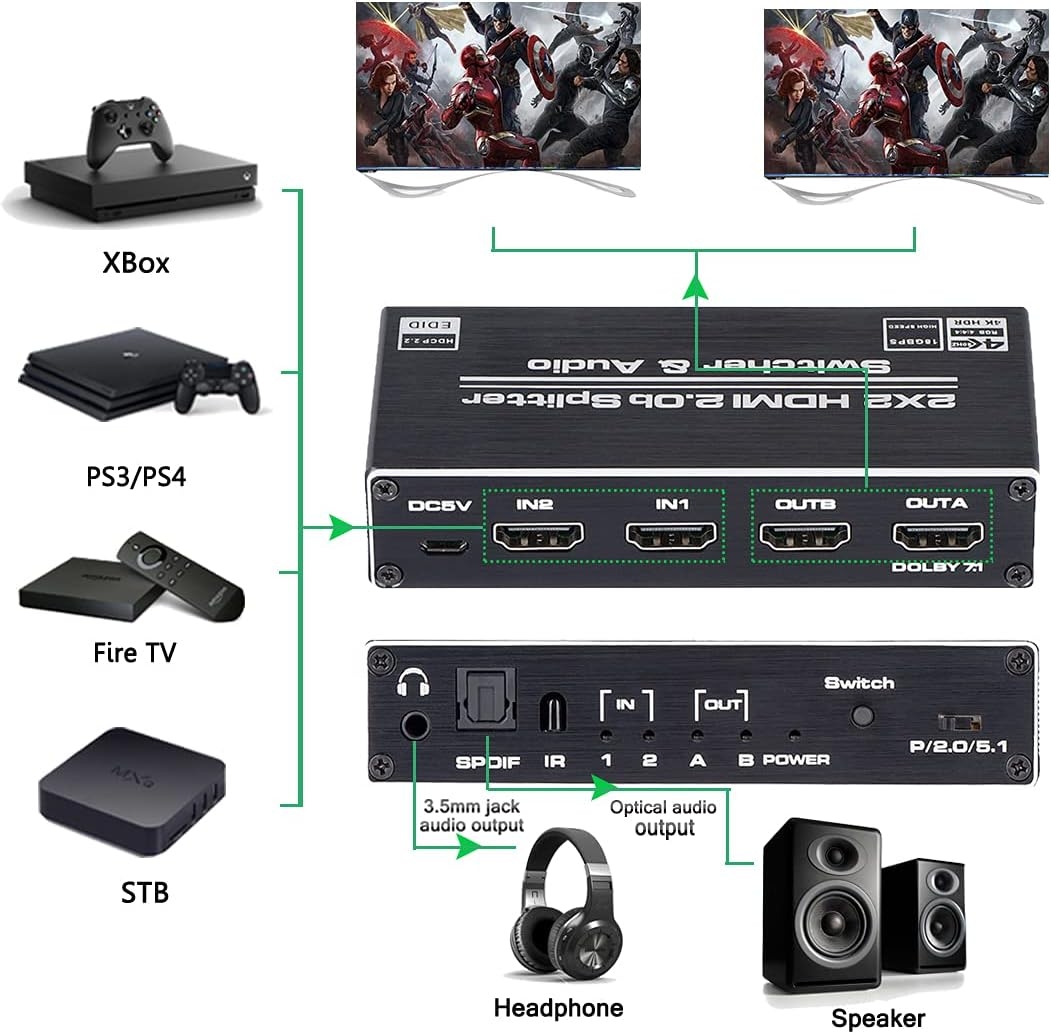

– Support 3.5mm earphone jack and optical audio output
– Support 6Gbps data rate and tmds clock up to 600mhz
– Support video format: 8 / 10 / 12 bit deep color
– Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD

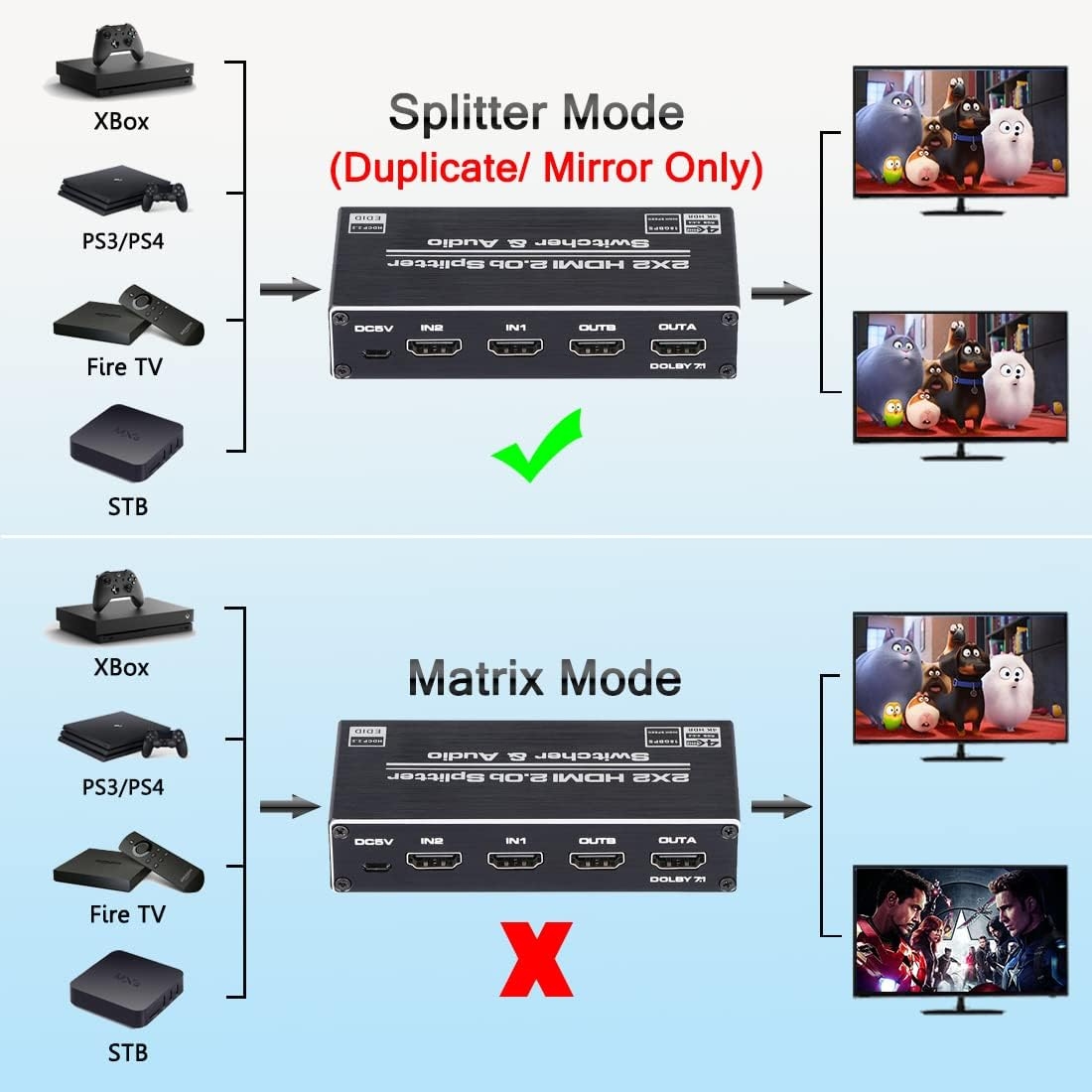

– Downscaling ( can output 4K and 1080p at the same time )
– Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Package contents
1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual
NOTE
1. Choose optical audio out, you can enjoy 5.1CH or 2CH or audio copy. Choose 3.5mm audio out, you can enjoy 2CH or audio copy.
2. If your HDMI Source Device supports 4K, please use HDMI 2.0 cable to connect All devices ( HDMI 1.4 cable or below HDMI 1.4 isn’t enough to support the resolution of 4K ).
Dadsbad202 –
Understanding this switch
The media could not be loaded.
You have two in feeds and 2 outfeeds in the back of the splitter you don’t select the one coming in that is determined by which console is on ( or component you have plugged in to the infeed so only turn on the one you want not both)you can only choose what screen to watch with the out control button the splitter allows you to switch your screen choice going out. I found that the PlayStation five is unable to use its own cool features to automatically go on when you hit your controller PS five button so I had to revert back to plugging the PS five directly into the back of the TV’s HDMI port to get the features of the PS five to work correctly but what I use the switch for now is I go to my big screen or redirect to my little 32 inch screen which is place behind me for my children to play video games, if I’m not watching television or anything I’ll let them play on the big screen and then all I have to do is hit the screen select button on the splitter
Woody –
Doesn’t support HDR as it claims, bad power connector. Micro-USB is terrible
This device does what it’s supposed to when it works, but it doesn’t pass through the HDR signal as it claims it does. I noticed my colors were off, and when I opened the settings on my PS5, it said my TV doesn’t support HDR. I know for a fact that it does because it’s one reason why I bought it. To test my theory, I plugged the PS5 straight into the TV. HDR came back on. I also hooked it up to another HDMI switch that also supports HDR. It also worked just fine. Either this unit is defective, or it never supported HDR to begin with. That’s a deal breaker for me, so it’s going back. Also, the power connector inside the box was really poorly mounted. The signal would flicker on and off. It would work fine if you push the connector in really hard…like enough to break it. Something wrong there. A decent device wouldn’t be using a Micro-USB anyway.
S. Cripe –
Works as intended. Optical out for pure sound.
I have an older amplifier for 1080p and a 4k TV. I needed a splitter to seprate audio for the amp and send the 4k signal to the TV. This compact item saved me $250 by avoiding the purchase of a new 4k amplifier. I am using the optical out. Perfect setup for now. The amp runs audio perfectly and I gained 4k TV again. Used for Roku, PC games, Blu-ray with HDMI. Never needed the remote as the signal self selected between the sources.
William C. –
works perfect just what i needed
has the headphone output
Charles H. –
Stoped working, amazon wont giveu the seller adress
Stoped working all of the suden, no more signal coming out, dont know how to contact the seller, is under warranty
Nathanial Larkin –
Ehhhhh
Is a bit weird to use, but does the job well. Overall ok product
A. Ross –
Needed one with audio, works great
I needed a splitter that would split video and audio. Can’t beat it for the price. Works wonderfully.
Osmar Escalona –
Funciona a la perfeccion
Trabajo excelente
Daniel –
Don’t buy it if you need 1080p
I purchased this splitter to connect my tv to my pc and this was advertised to work with both 4k and 1080p but when I hooked my monitor back up it wouldn’t work. The splitter kept trying to upscale the picture to 4k but my monitor can only do 1080p.
Ryan U. –
Stopped working after 15 days
Thing stopped working after 15 days tried many troubleshooting steps but to no avail disappointing.
