GERSIK Circuit Breaker Box 5 Power Distribution Protection Box with 63A AC Miniature Circuit Breaker


Current Rating 63 Amps
Voltage 400 Volts
Circuit Breaker Type Standard
Mounting Type DIN Rail Mount
  • 【High Quality Material】:Both the breaker and the breaker box are made of ABS plastic. the sealing ring of box is made of silicon rubber, and the guide rail is made of tin plate.Durable and sturdy with grey color.
  • 【IP65 Grade Breaker Box】: Waterproof & weather designed, effectively block splashing water, rain, dust, snow, oil, UV, etc. This distribution box is designed for 5 ways circuit breaker, can be widely used for both indoor and outdoor applications.
  • 【Number of levels for Circuit Breaker】: bipolar;For AC 50 Hz or 60 Hz; rated current: 20A; rated voltage: 400V.rated power:4500w

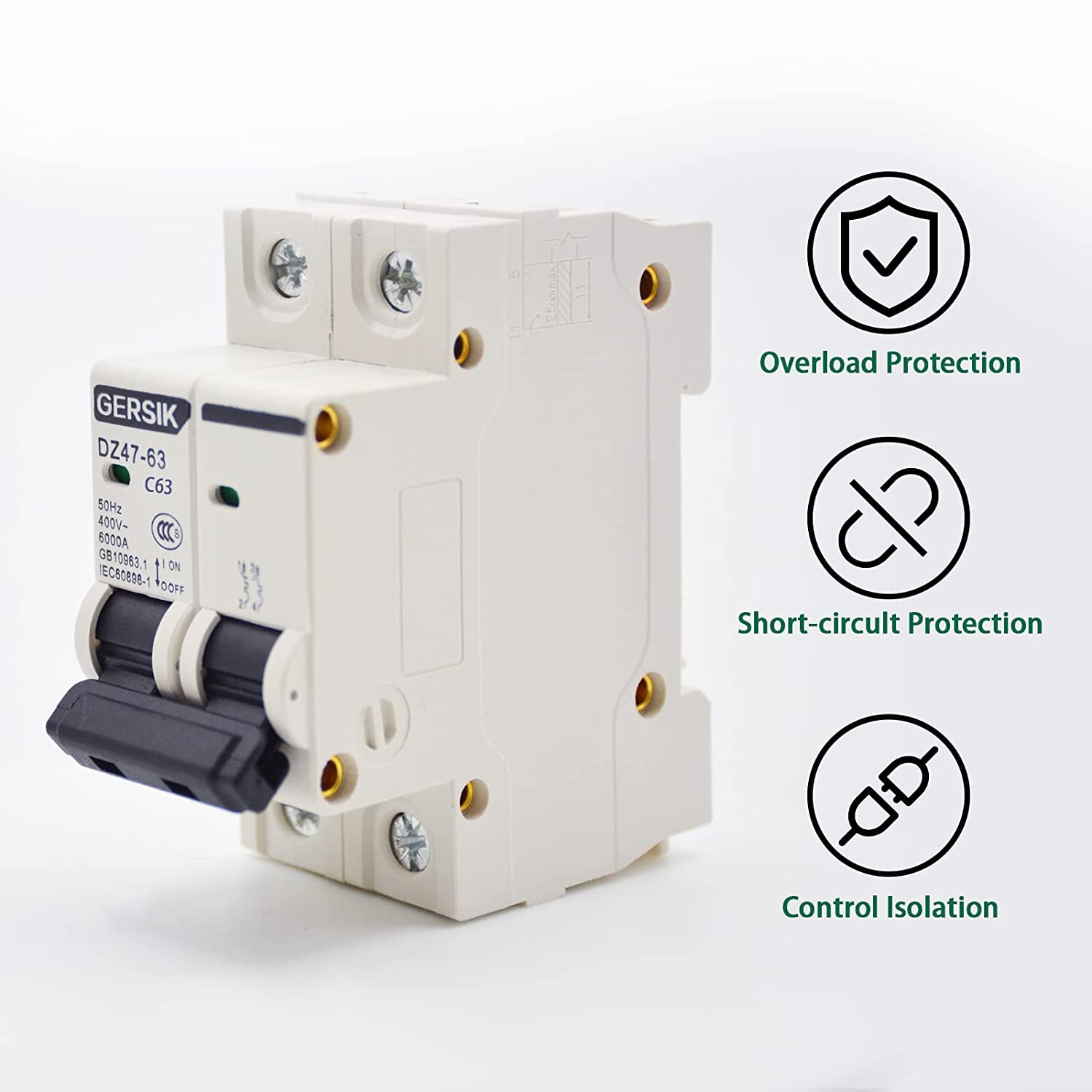

  • 【Functions】: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.

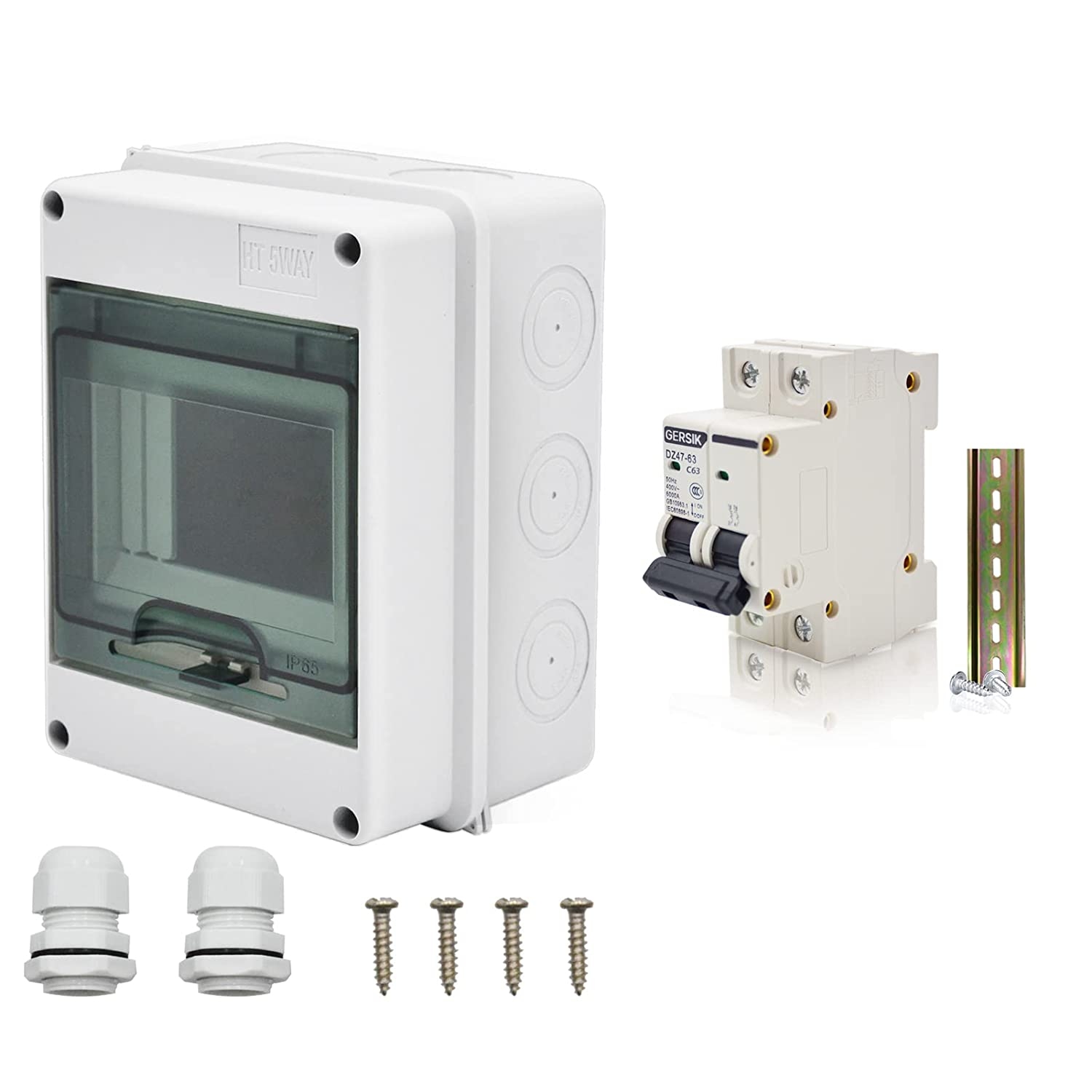

  • 【Package includes】:1 x 5 way circuit breaker Box with 1 x 63A AC miniature circuit breaker

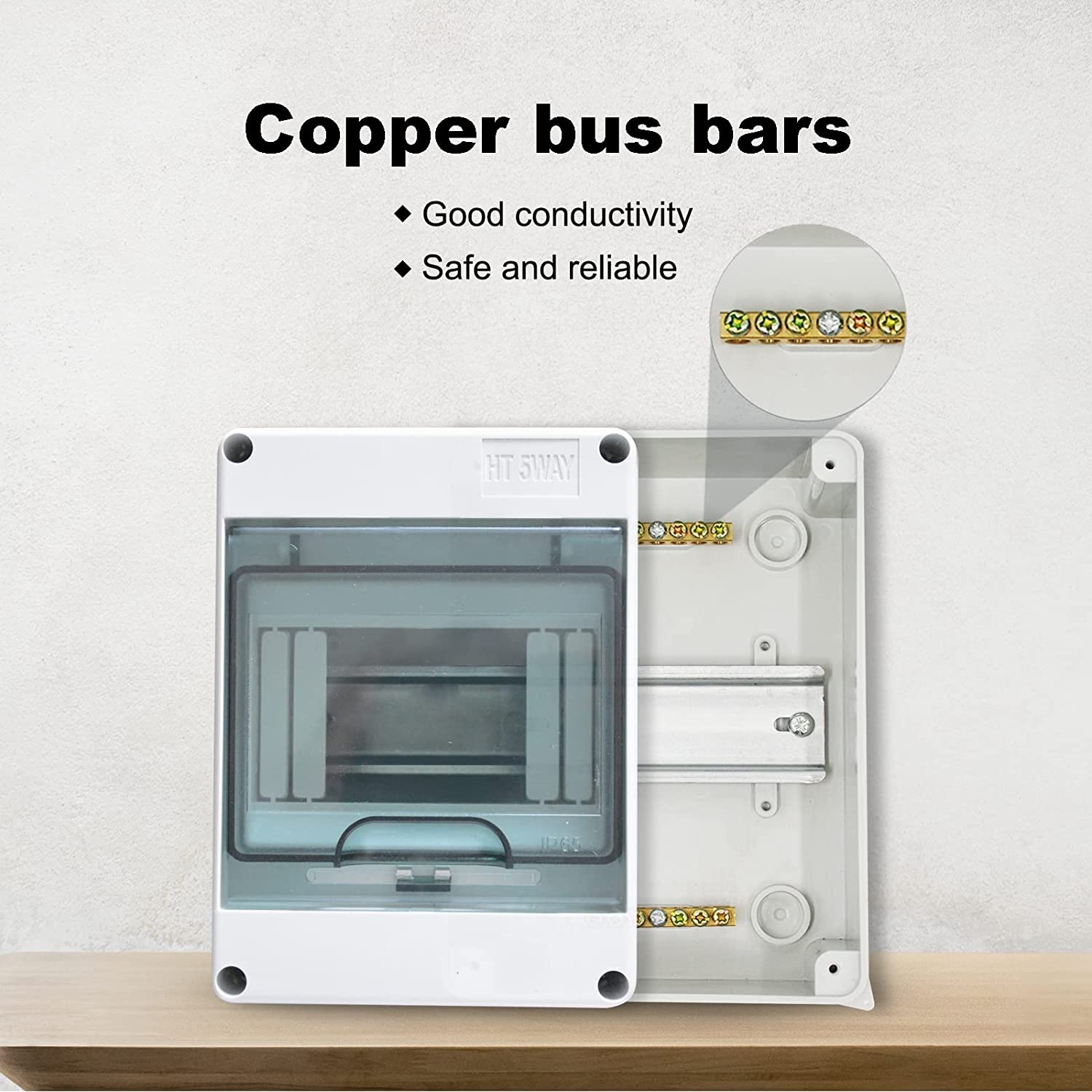

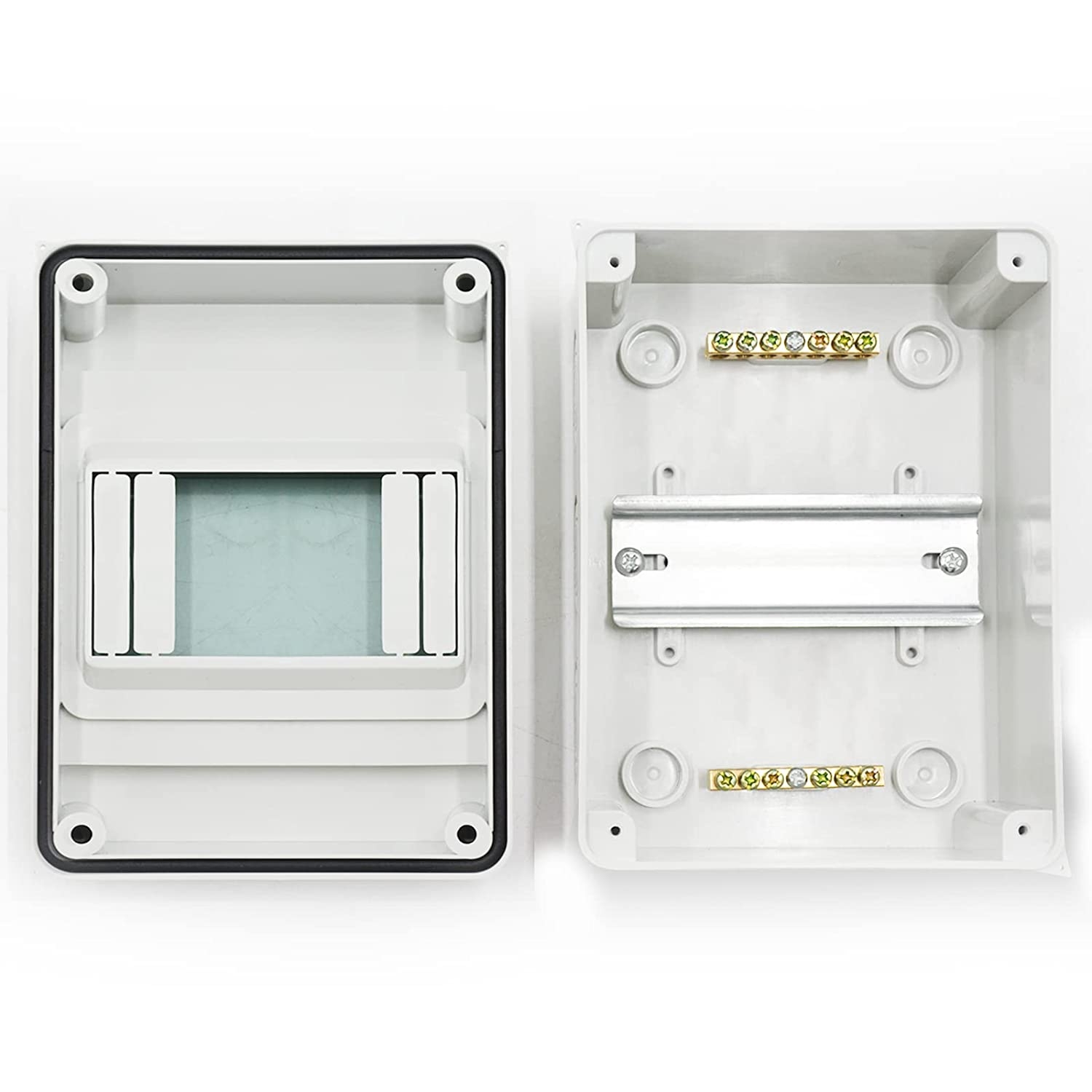

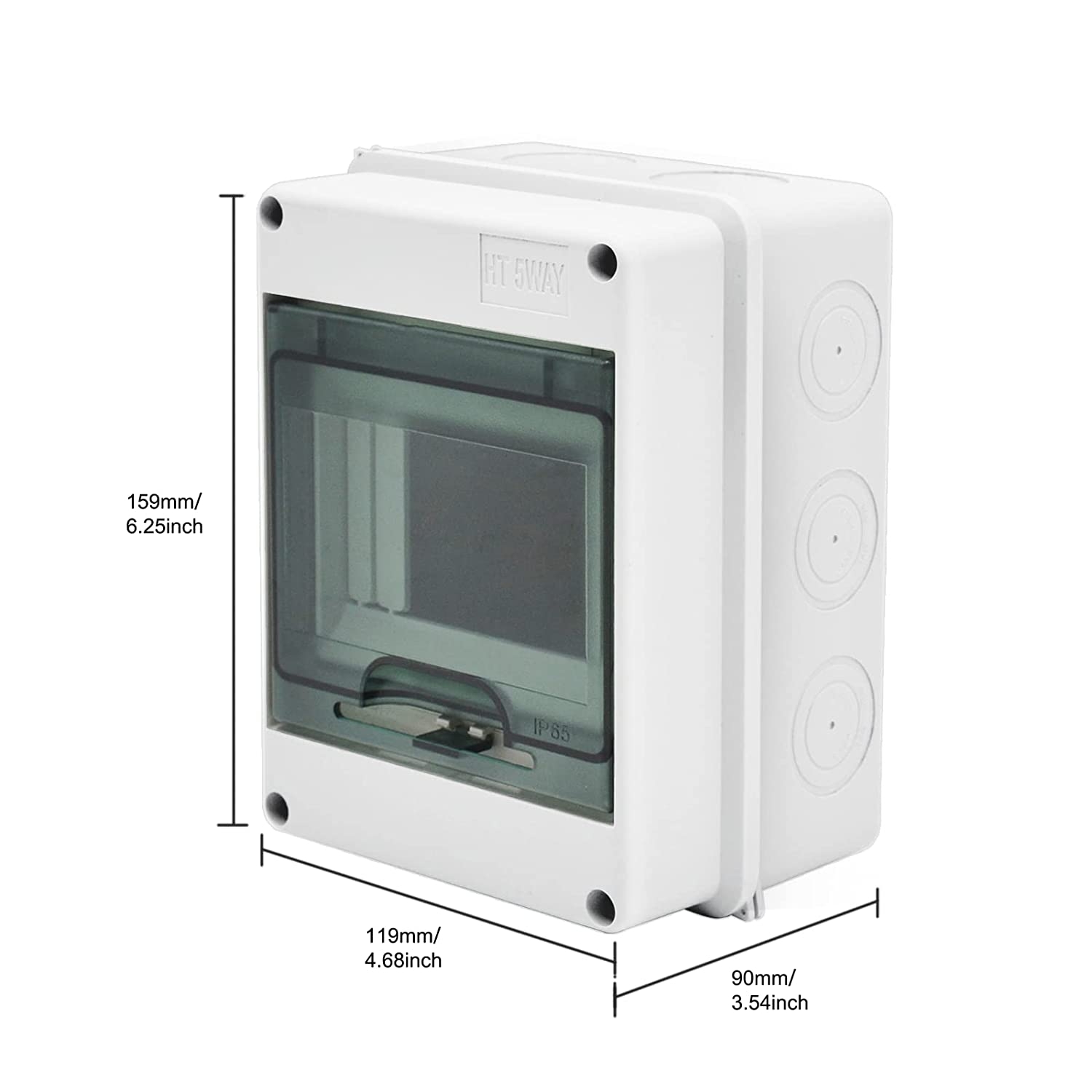

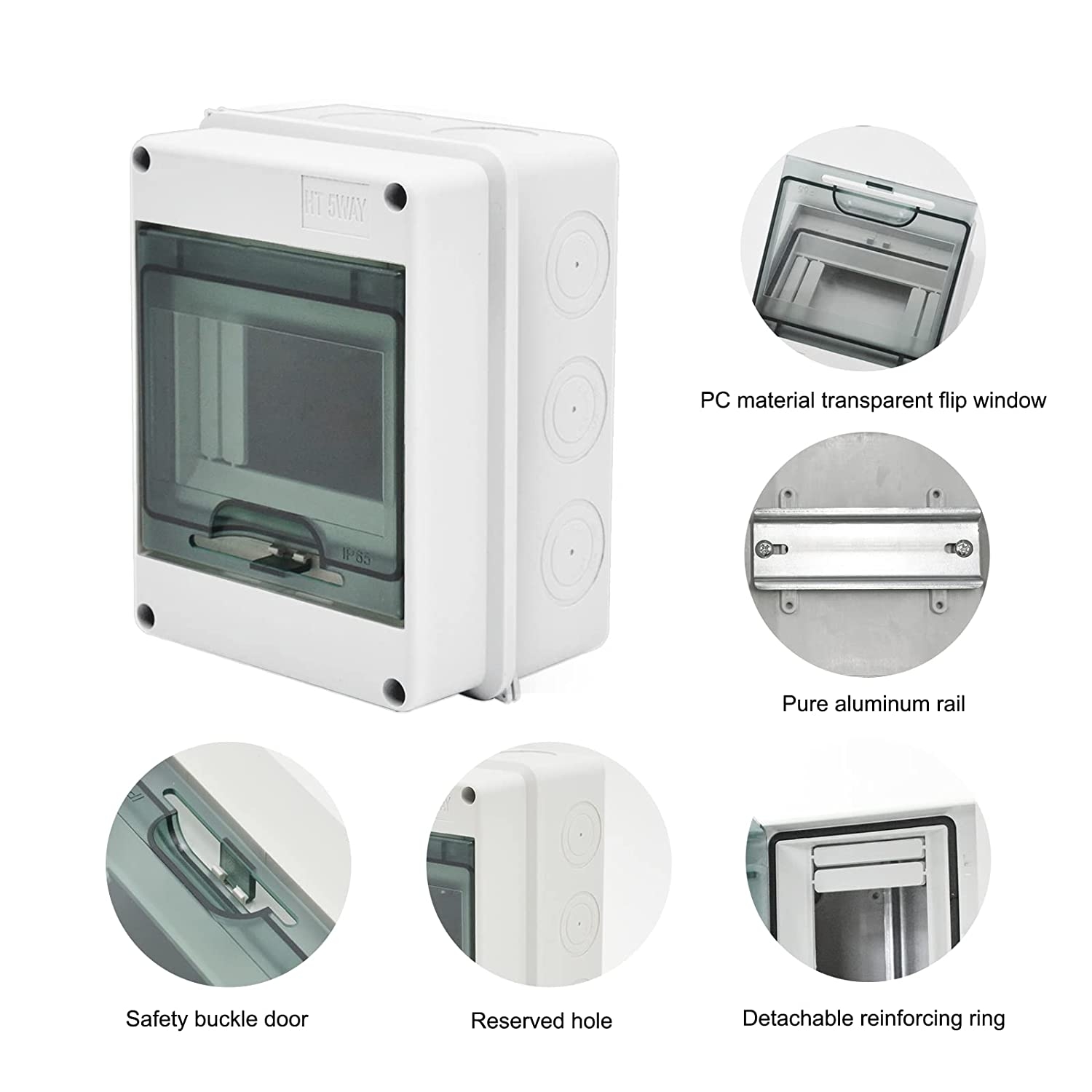

GERSIK Distribution Protection Box Specifications Product Name: GERSIK Distribution Protection Box Main Color: Gray Waterproof Rating: IP65 Housing Material : ABS Plastic Housing PC Cover Model: HT-12/HT-8/HT-5 Outer Size HT5:119 x 159 x 90mm/4.68 x 6.25 x 3.54inch HT8:201 x 155 x 90mm/7.9 x 6.1 x 3.54inch HT12:255 x 198 x 108mm/10.03 x 7.79 x 4.25inch Description Made of high quality plastic material, this distribution box is durable and sturdy.The cover is transparent so you can easily check circuit breaker state without open it. It is easy to install and convenient to use, simply mount it on your wall. Great to mount indoors, widely used for home, hotel shop and many other places. Package Contents 1PCS x power distribution protection box; 1PCS x35mm guide rail; 4PCS x stainless steel self-tapping screws; 2PCS-M20x1.5 waterproof connector; GERSIK AC Miniature Circuit Breaker Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 400V AC Rated current [In]:20 A / 32 A / 40 A / 63 A (optional) Poles:2P Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6 kA Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13°F(-25℃) ~ 140°F(60℃) Mounting support: 10 cm DIN rail Package includes 1 x AC miniature circuit breaker (2P with 1 x DIN rail and 2 x screws)
