Description

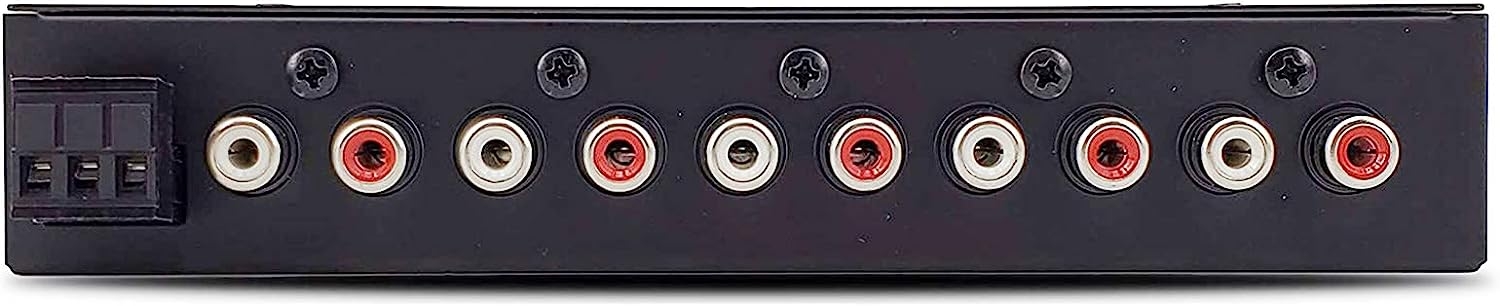

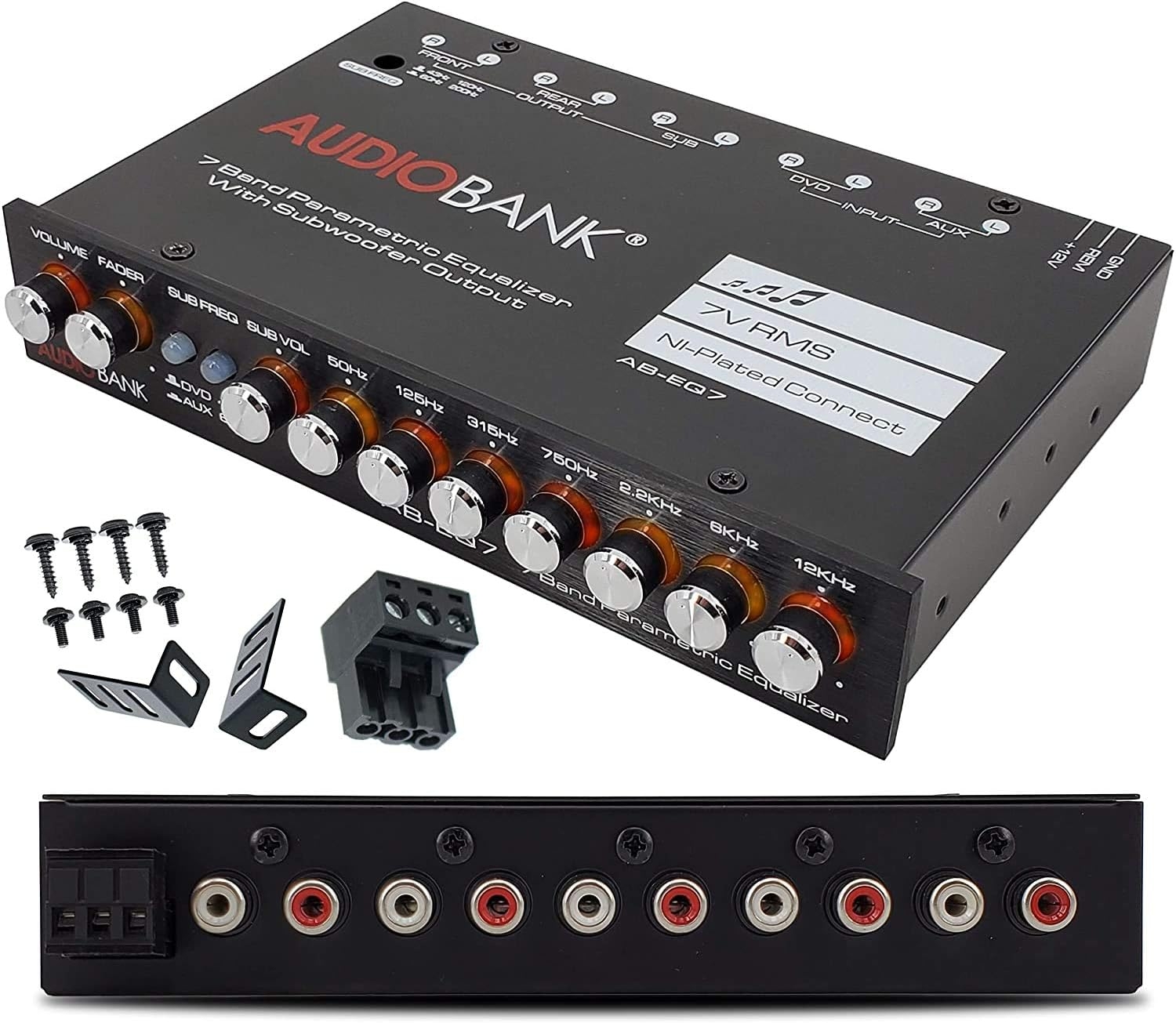

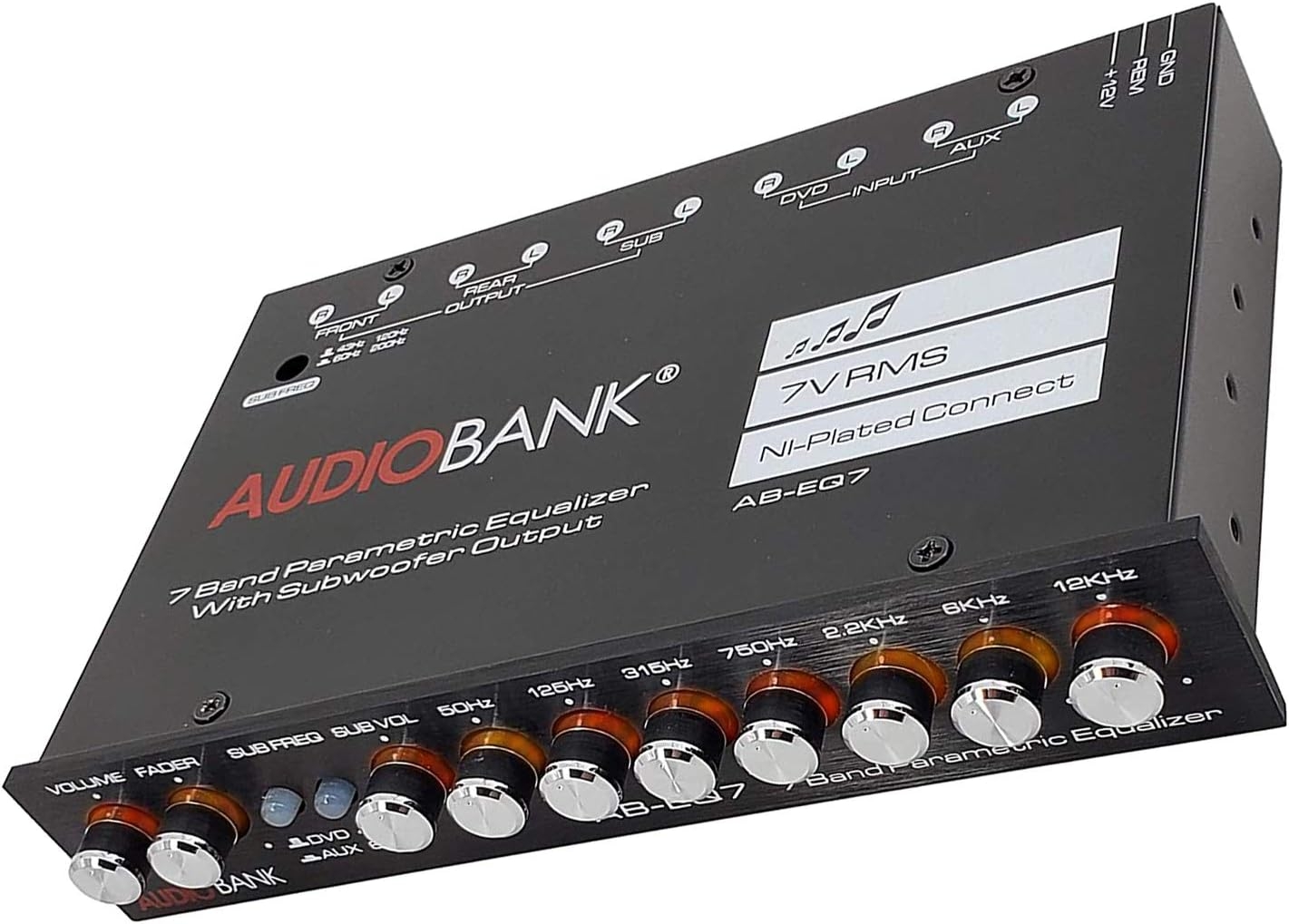

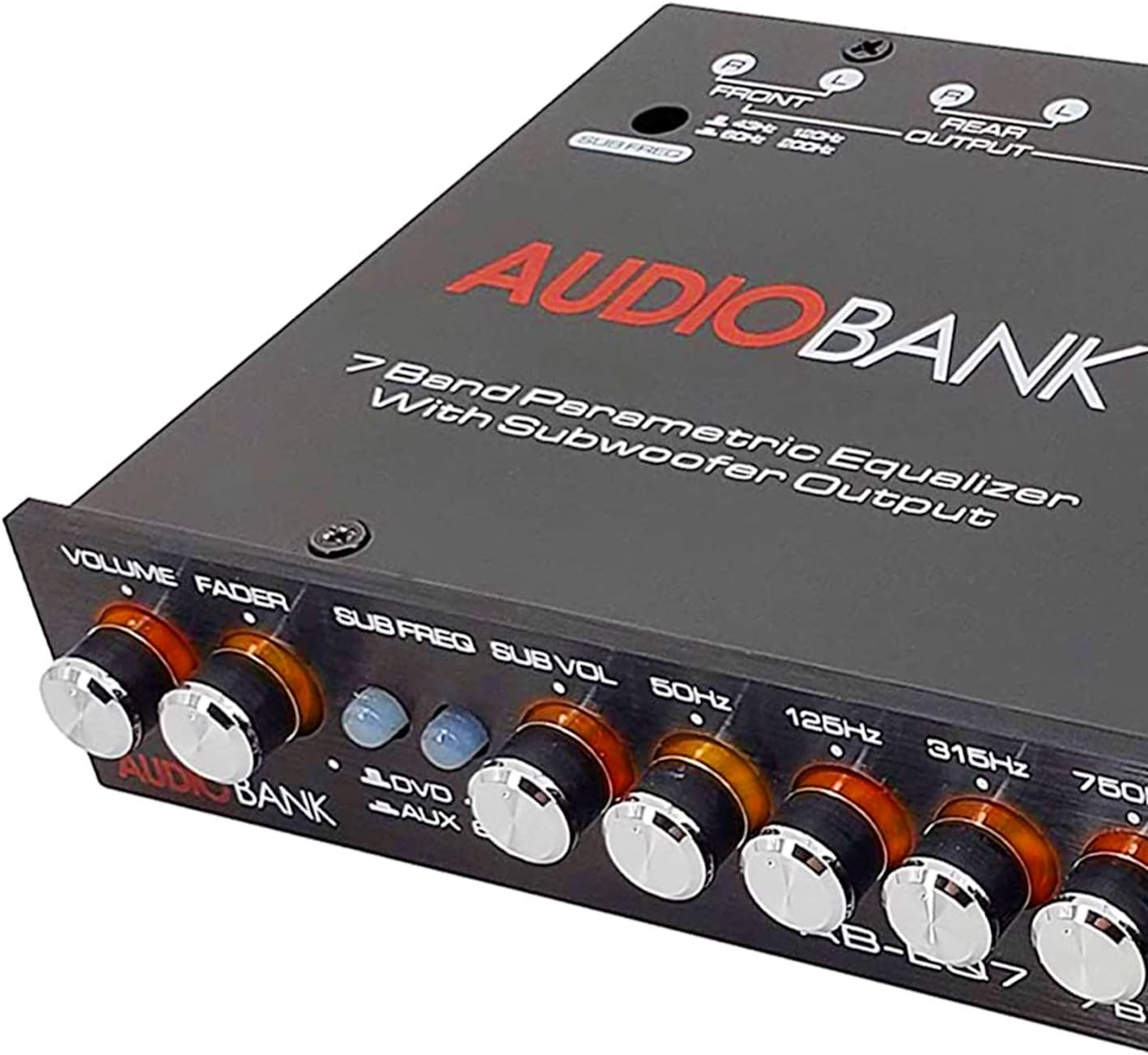

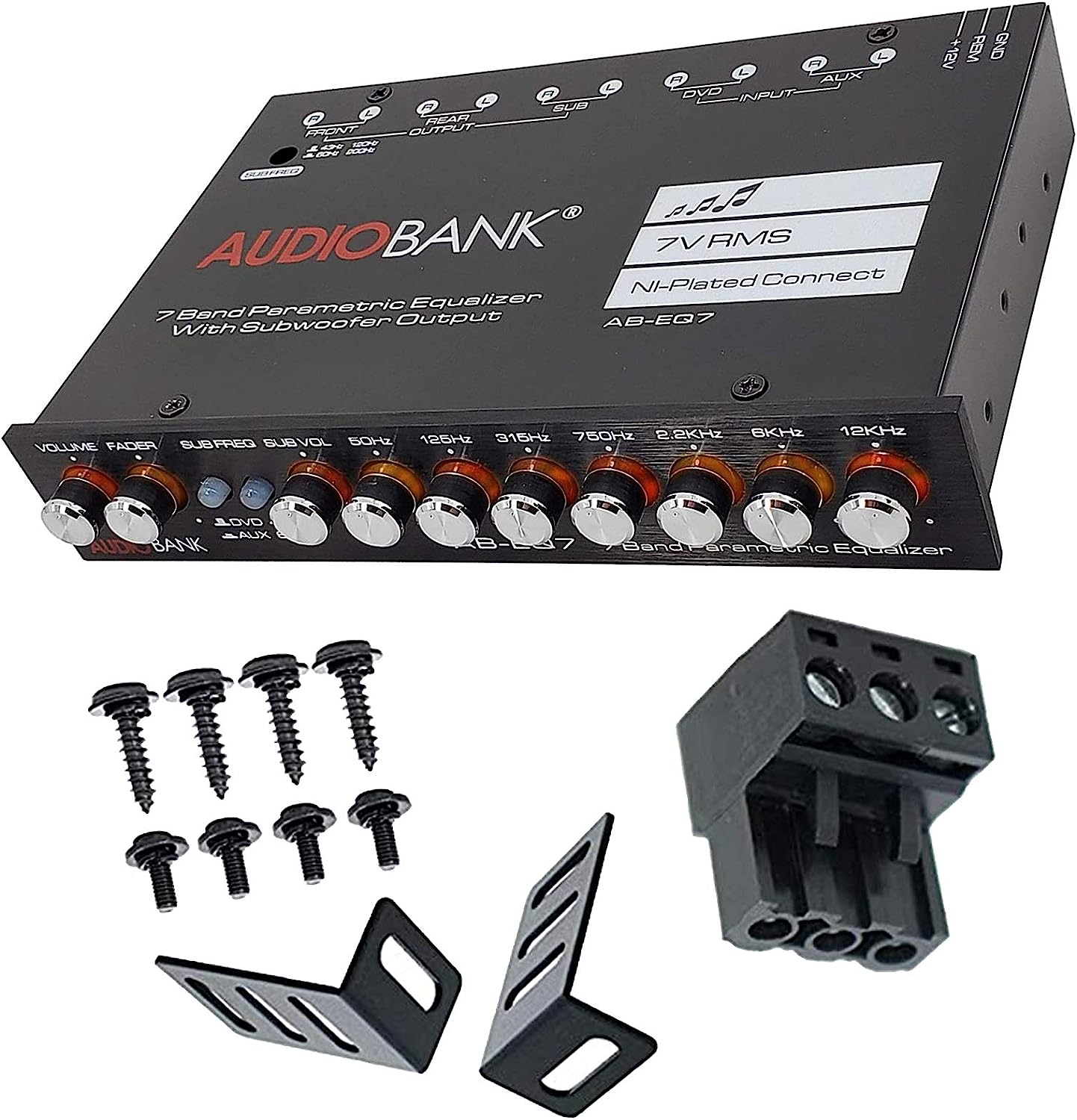

This equalizer is a 7-band stereo equalizer / crossover specifically created for the mobile environment. It provides powerful features in a compact size: – Seven equalization bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 12kHz), each frequency is adjustable from -12 to + 12dB (-15 to +15dB for subwoofer frequencies) – Subwoofer output uses a built-in 43-120Hz, 60-200Hz – Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers – An auxiliary stereo RCA input for use with portable devices, such as an MP3 Player or DVD player – Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of main or auxiliary inputs – RCA connectors to ensure the best audio signal output – ISO mounting holes and removable trim ring for custom installation Technical Details: Graphic Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 12kHz Boost/Cut: 12dBS/N Ratio: 90dB Frequency Response: 15Hz ~ 30kHz +/-3dB Maximum Output Voltage: 7V RMS THD: 0.005% Input Impedance: 10kOhms Stereo Separation: 70dB Operating Voltage: 11V ~ 15V Negative Ground Size: 7 x 4 1/8″ x 1 inches Package Contents: 1 * EQ7 Equalizer 1 * Power Adapter Connector 2 * Bracket 8 * Screws 1 * Manual
Important information
Visible screen diagonal
7″ / 18 cm
moises –
great equalizer
this is the best eq i have ever got. it gives a clear and low output and specially it does not have any engine noise or cellular interferences not like other that i have got in the past. I highly recommend this product, you can’t go wrong.
Monica Johnson –
Audiobank EQ7 Apartment Install
I have the EQ7 installed in my apartment kitchen. All the parts came from Amazon. The 90 Watt Pyle Amp drives a pair of Bose 161 speakers that are on a pair of speaker stands also from Amazon. The EQ7 is driven by one of four computers; currently, my trusty, all be it old, Sony Vio. The output of the EQ7 goes to the Pyle amp, which in turn drives the speakers. My system IS NOT designed to be a ‘blaster’ type of system. As mentioned earlier, I live in an apartment with rather thin walls.Other components: Power supply – 12 volts/3A Rocker Switch Power Socket – BIQU 15A 250V HiLetgo DC 6.5-100V 0-20A LCD Display Digital Ammeter Voltmeter (built in shunt!!! Amen!) Cable Matters (1/8 Inch) 3.5mm to XLR Cable (XLR to 3.5mm Cable) Male to Female 15 Feet (3.5 mm male connects to four position audio switch)Monoprice 1.5ft Premium 2 RCA Plug/2 RCA Plug M/M 22AWG Cable – Black (interconnect between amp and EQ7)SiYear XLR Male to 2 x Phono RCA Plug Adapter Y Splitter Patch Cable (XLR Male to RCA)Any solder work is done by myselfPhotos by Nikon CoolPix 500 (Which also came from Amazon)bon appetit
Don’t worry be happy –
I love it!! Disappointing to see that lights were not red they are orange
I love it!! Disappointing to see that lights were not red they are orangeUmm man i thought i was getting some red led lights on the knobs. They are orange are u kidding me!!!I didn’t order the other one brands because they were blue. This brand was supposed to be red per the images. Well they are orange. 😔Not what i expected. Quality is fine led not ok
Carlos Alonso –
Buen producto
Funciona correctamente, por su precio me parece muy buena compra.Lo bueno:Agradable aspecto, materiales.Muy útil que tenga salidas para frontales, traseros y subwoofer.Iluminación agradable.Lo no bueno.La calidad de sonido me parece mediana, no tiene agudos brillantes.El subwoofer se escucha mejor usando el filtro.Si se usan los controles de frecuencias es un sonido grave, muy simple.Recomendable para un sonido justo, sencillo, sin ser especialmente bueno, el precio es acorde a lo que se obtiene.
Joshua Robinson –
Cheap but works
I’m using this in my car and the orange light matches my Mercedes’ orange lights which helps to tie it in and look natural. The sound is good but could probably be better with a much more expensive EQ. I was not interested in that on a 20+ year old car. Only gripe I have is that the knobs are tight when it’s cold and feels like they’re going to eventually break so if you forget to turn the volume down when you got out last time, it’s going to be loud and is not far to turn down when it’s cold.
Dane j –
Works fine
Did what I bought it to do
Daniel Carrasco –
Great at first
The product works great at first. The only immediate downside is the power supply creates a pop for the Onoff. The other audio components in my system had none of this. After I added this it created an on off noise. Yes I know you can use a relay to delay this in the Power order and allow the amps to shut off first.Second the volume control quit working or became staticky after 1 month of use. I would have to twist the knob quickly to restore function, not sure what the cause is.Sound quality was clear and boosted all the RCA voltage.Overall it was worth the $20-$30 I spent but it was not problem free.
Jorge –
Best Bang For The Money
I decided to go old school in my small system and picked up an old favorite cassette deck. Having two amps, one for 6.5s and other for bass, I needed an EQ to make adjustments since that old 1994 cassette deck has basicsettings.UPDATE: 8-9-2021Switched out decks and went with an old school Kenwood. Sounds fantastic with the EQThis EQ is awesome as I’m able to control my mids and highs plus manage my lows.For the money it’s an incredible EQ.
Jimmy james –
Great value
Works great at the moment, improve sound quality. Only time will tell
carlos –
Excelente para su precio
Todo bien, es mejor de lo que esperaba
