(2 customer reviews)


  • Light Source: 1 x 100W Cold White LED (7600˚K, 50, 000 hr. ) 1 x 3W UV LED
  • Features: Motorized Focus Manual Zoom knob on head: 16 ~ 19 degree beam angle Fan cooled Strobe/Pulse effect; random strobe slow to fast UC IR compatable (sold seperate)
  • Color Wheel: 8 Colors + White & Split Colors, GOBO Wheel: 6 Rotating, replaceable Gobos + Spot Gobo Size: Outer: 23mm/Inner: 19mm/Thickness: 0. 5mm Gobo Indexing EZ Gobo replacement with hinged head cover Gobo Shake effect
  • Prism Wheel: 6-facet circular prism 6-facet linear prism
  • Control: 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled Master / Slave-able 4 Built-in lighting shows 16 & 18 DMX channel modes Electronic Dimming: 0% – 100% 5 Dimmer Curves 4-Button DMX LED menu Stepper motors with micro stepping With Wired Digital Communication Network

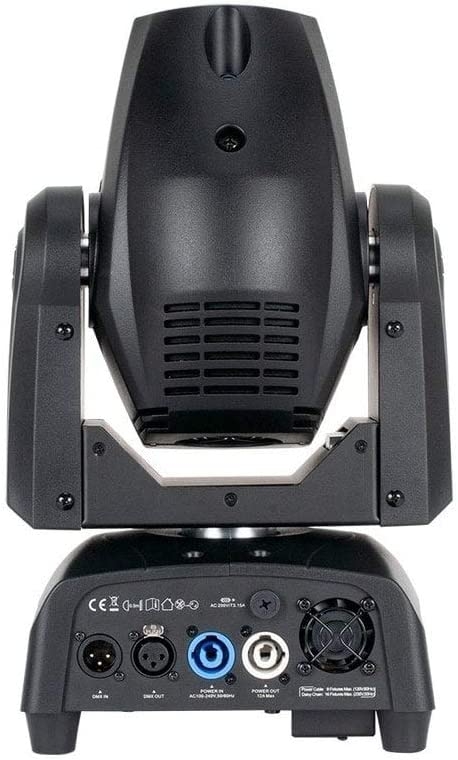

  • Connections: 3-pin DMX In/Out Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
  • Pan/Tilt: Fast and precise Pan/Tilt Movements 16-Bit Fine Pan/Tilt control Pan: 540-degree Tilt: 270-degree Pan/Tilt Invert Mode 4, Built-In, Pan/Tilt Target Modes
  • Electrical: Multi-voltage Operation: 100-240V, 50Hz/60Hz Power Consumption: 180W
  • Dimensions / Weight: Dimensions (LxWxH): 9. 33” x 9. 10” x 15. 15”/ 237 x 231 x 385mm Weight: 14. 5 lbs. / 6. 5 kgs.
  • What’s Included: Includes Omega bracket for truss mounting Includes USA Edison power cable


The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included. It features two prism effects (6-facet circular prism and 6-facet linear prism), 6 rotating, replaceable Gobos + Spot, 8 colors + spot & split colors and an easy to replace GOBO system.

From the manufacturer

Focus Spot 2X photo and info


Focus Spot 2X prisim

Focus Spot 2X linear prism

Gobo Replacement

Manual Zoom

Circular Prism

The Focus Spot 2X features a 6-facet circular prism.

Linear Prism

The Focus Spot 2X features a 6-facet linear prism.

Gobo Replacement

ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel.

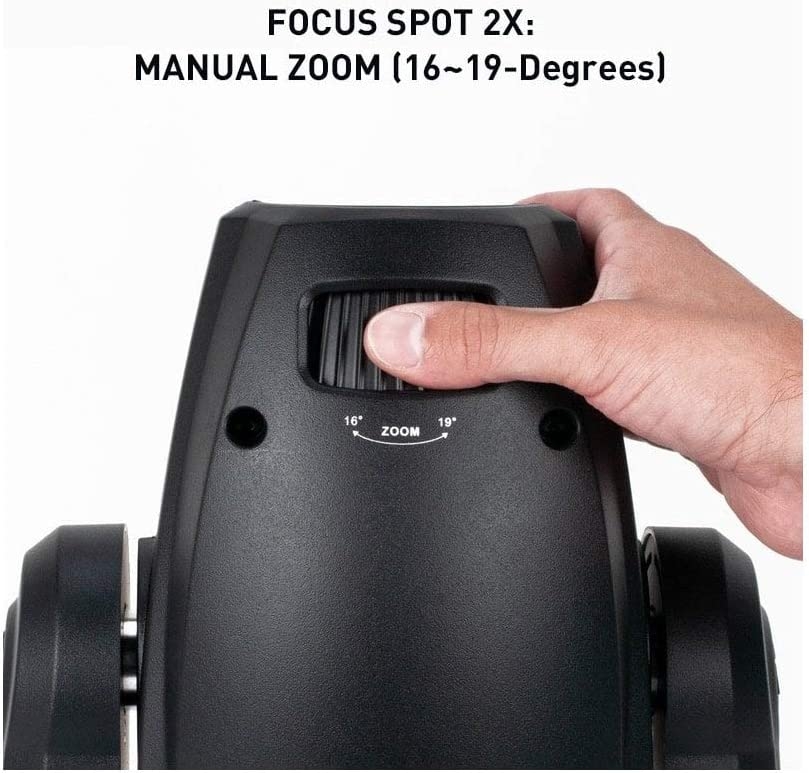

Manual Zoom

Manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

Focus Spot 2X photo and info

Focus Spot 2X photo and info

Additional information

Weight 19.41 kg
Item Weight

19.41 pounds

Country of Origin




Item model number


Date First Available

December 2, 2019

Color Name


Power Source

Corded Electric


ADJ Products

2 reviews for ADJ FOCUS SPOT 2X 100W UV LED Moving Head

  1. Carlos

    PerfetoLlego en perfecto estado funciona igual. Son perfectas para lo que busco algo intermedio no tan chico y no tan pesado como equipos más grandes

  2. Herb Mcnalty

    Small but exceptionally bright.This is a feature packed moving head with 2 prisms, 7 gobos 8 colors with split colors motorized focus and something that is really cool a manual zoom that allows you to increase or decrease the beam angle so for shorter throws you can fatten the beam and longer throws you can make it more narrow. The 100 watt LED source is brighter than you think. Great multi purpose fixture.
