Description
Our circuit breaker box is made of PC+ABS material.
95% of plastic boxes on the market are made of ABS material, which cannot be UV-proof and have no flame retardant effect.
Our circuit breaker box has V1 flame retardant grade, with UV protection, can be used outdoors, the box will not be damaged by the sun for about 2 years

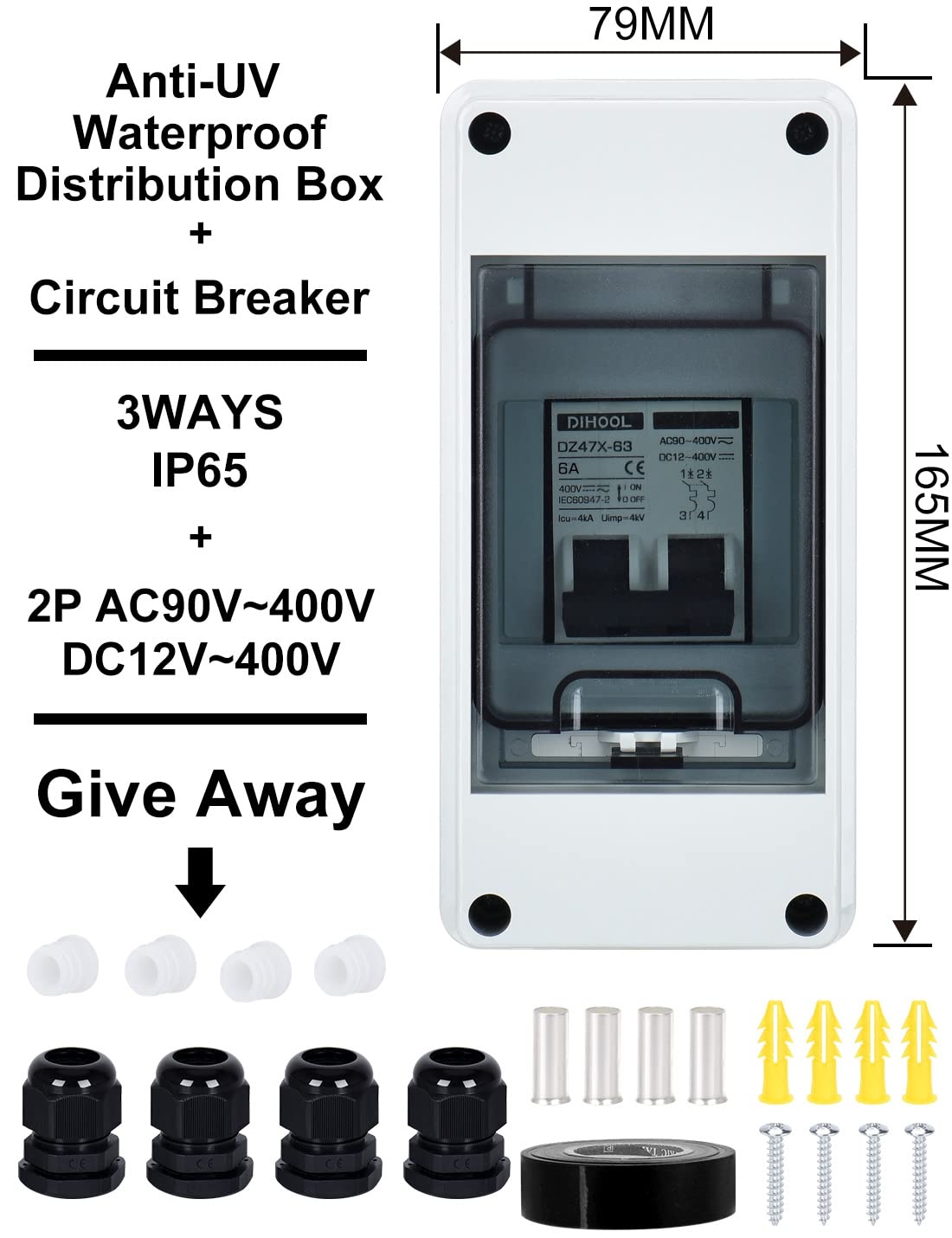

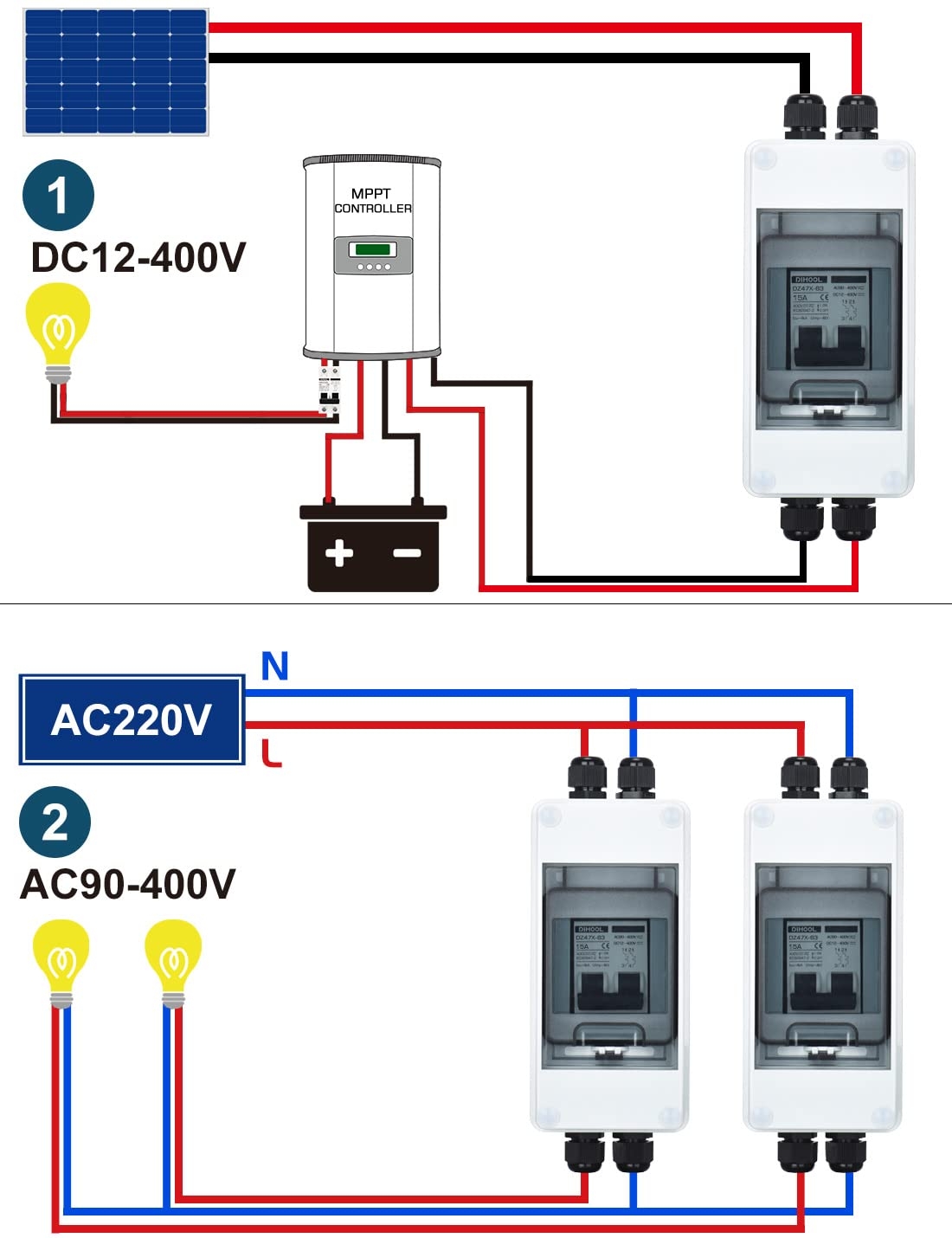

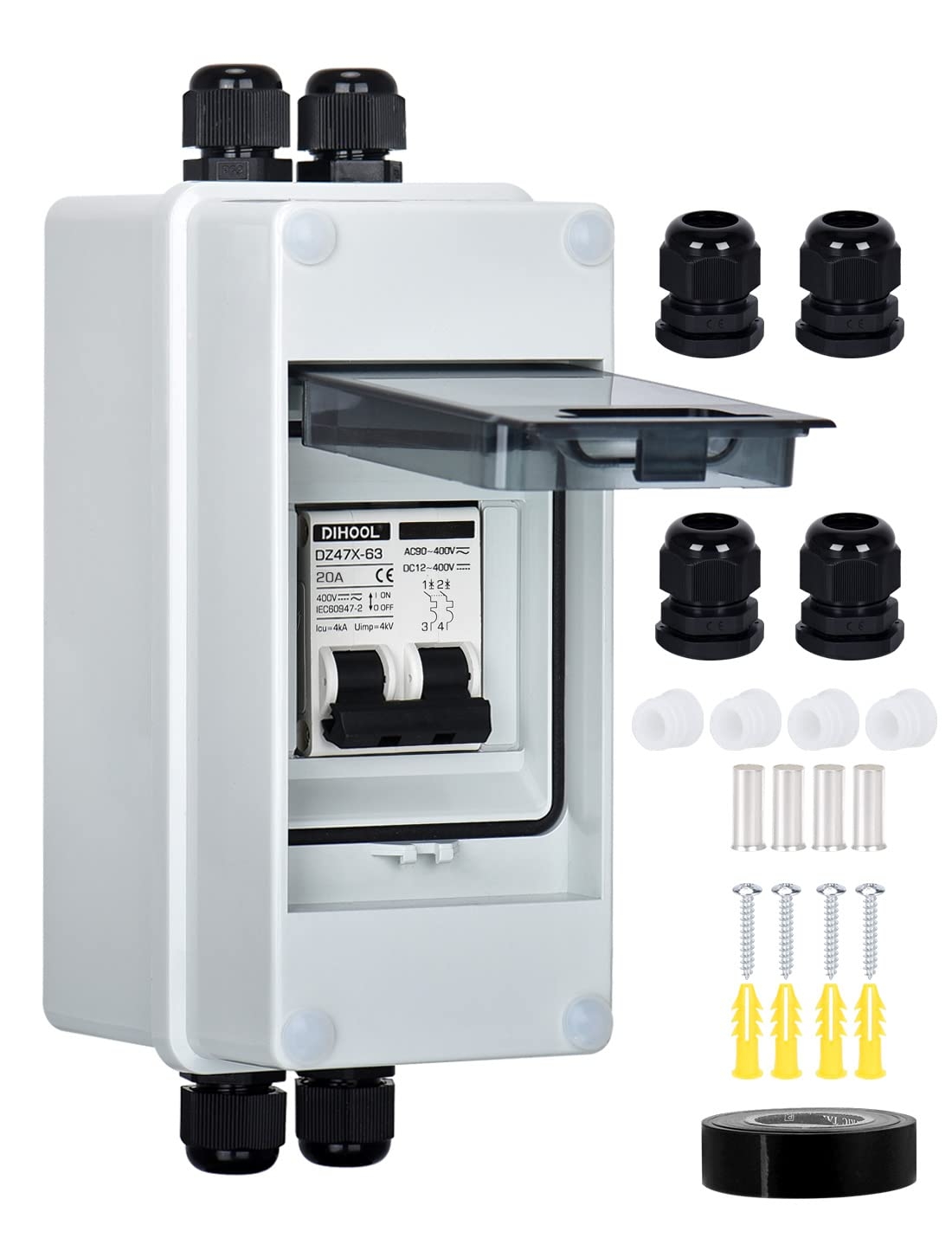

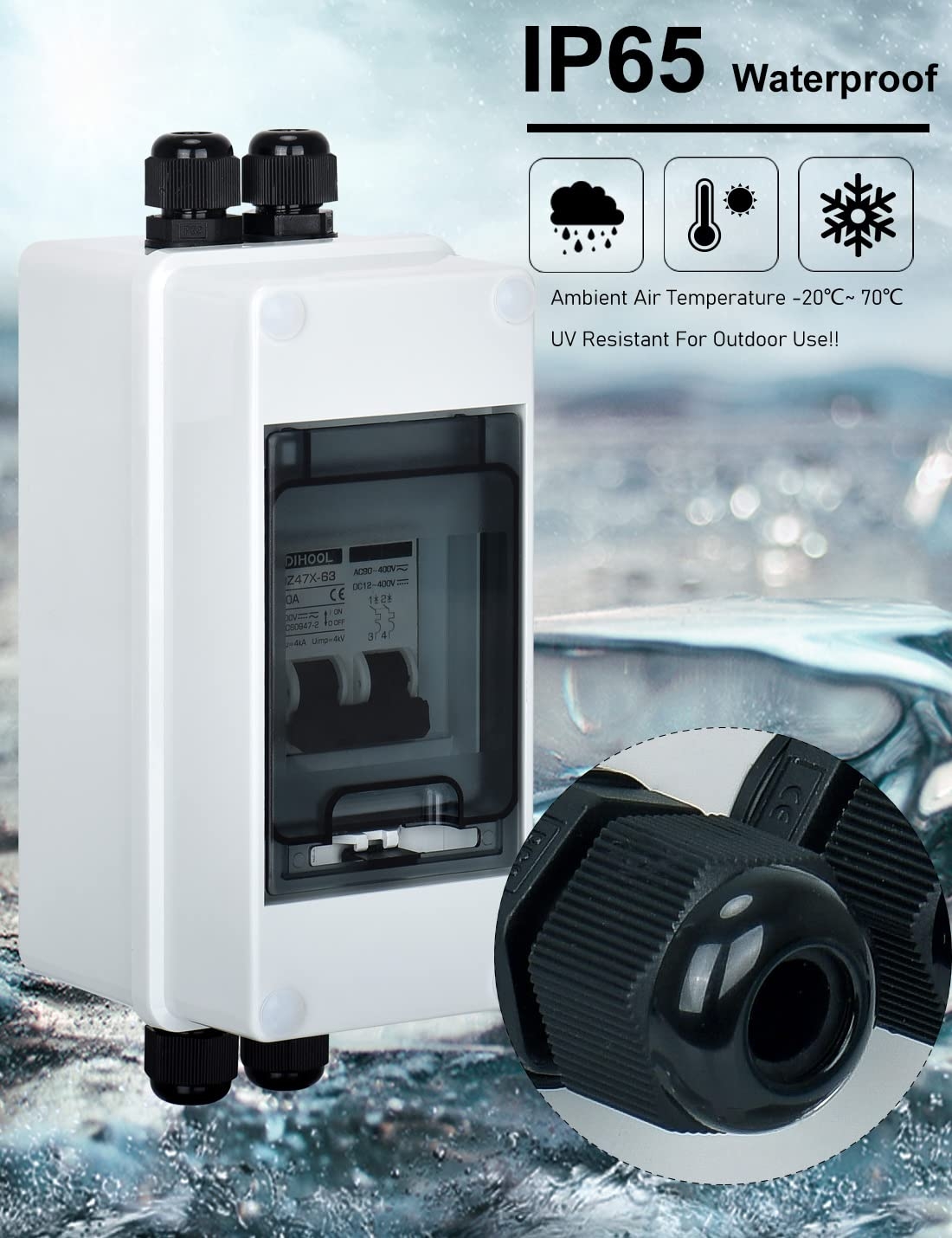

DZ47X miniature circuit breaker (solar disconnect switch) is used for AC and DC circuit. It is suitable for circuit equipment with voltages of DC12~400V and AC90~400V, and is often used to protect the circuit between the solar panel and controller. This product is composed of a waterproof box, cable gland and circuit breaker. It has the function of IP65 waterproof and dustproof, and is safer to use. It is suitable for indoor, outdoor eaves, distribution board, under the solar panel, warehouse, etc. place.

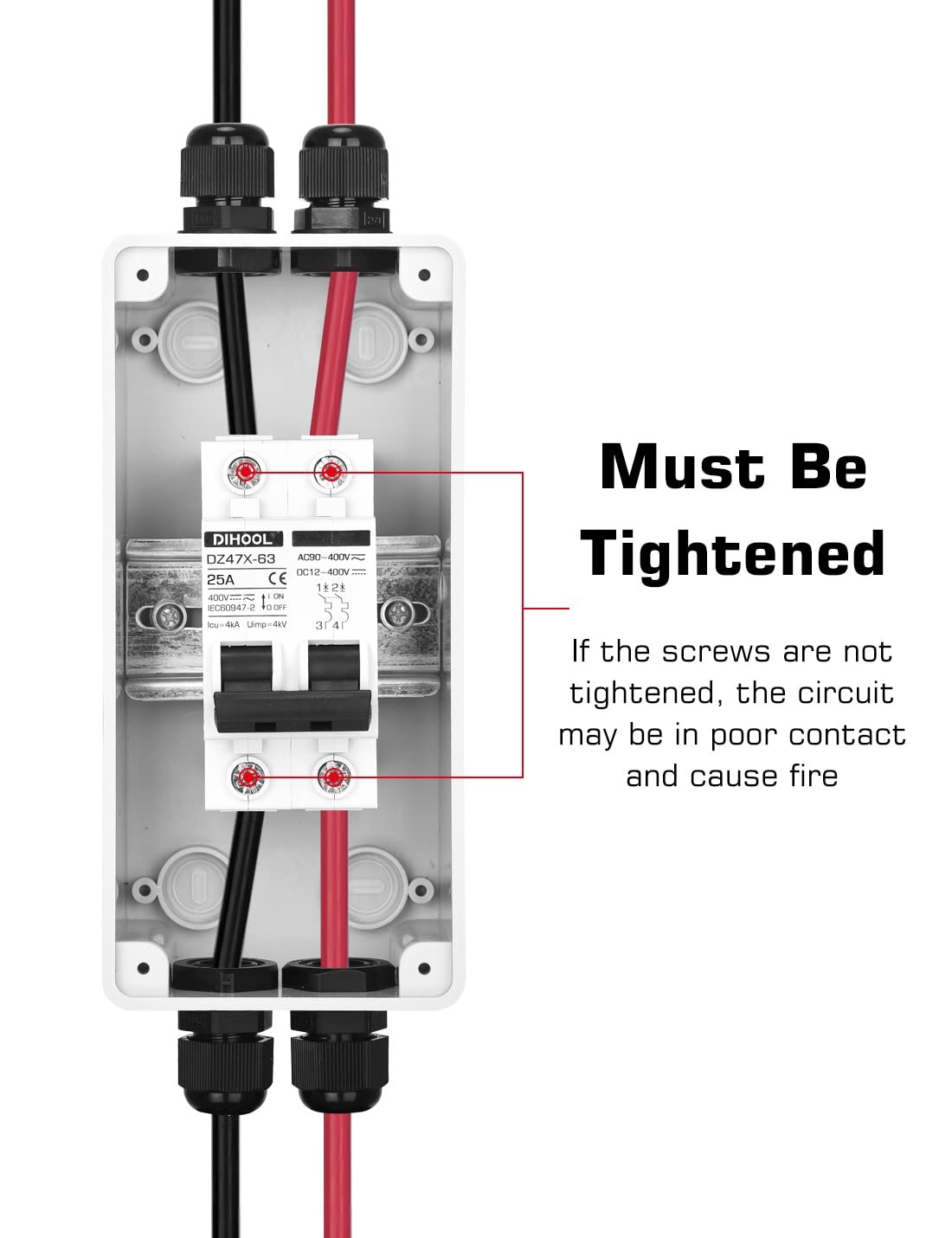

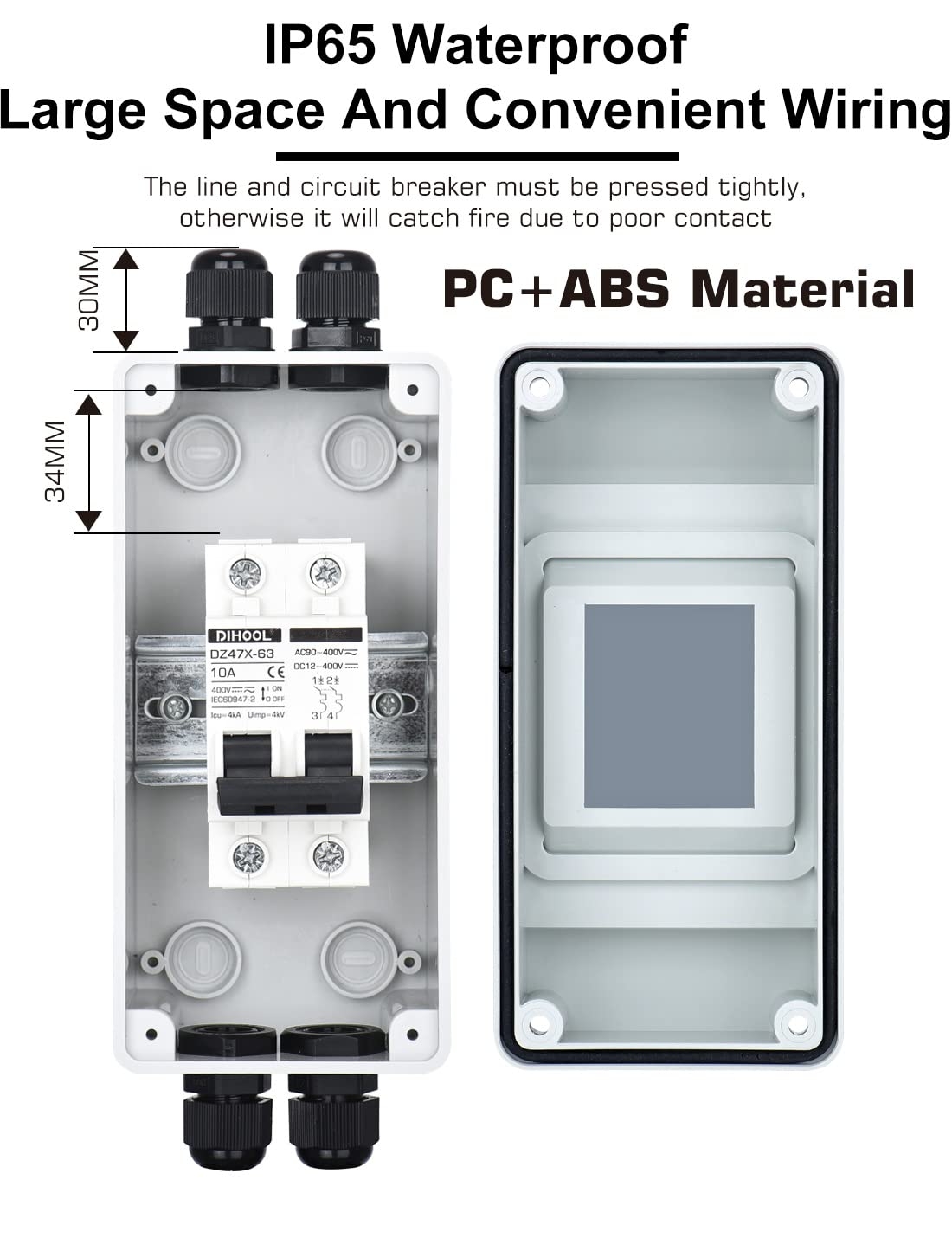

After the dc circuit breakeris improved, the internal wiring space is increased. If you need more wiring space, choose HA4-DZ47X series products
Adapter Cable: 4-9MM Diameter Cable, 11-5 AWG Cable
—— Specifications
Model: HT3S-60A
Rated Operating Voltage : AC90~125V / DC12~400V
Poles: 2P
Rated Current: 60A
Working Frequency: 50/60Hz
Breaking Capacity: 4 kA Ics=Icu
Trip Curve: B
Mechanical Life: 10,000 times
Electrical Life: 4,000 times
Installation Method: 35MM DIN Rail
Standard: IEC60898 / GB10936
Operating Temperature: -30°C to +80°C
Operating Altitude: 2000 Meter
Garrett Henderson –

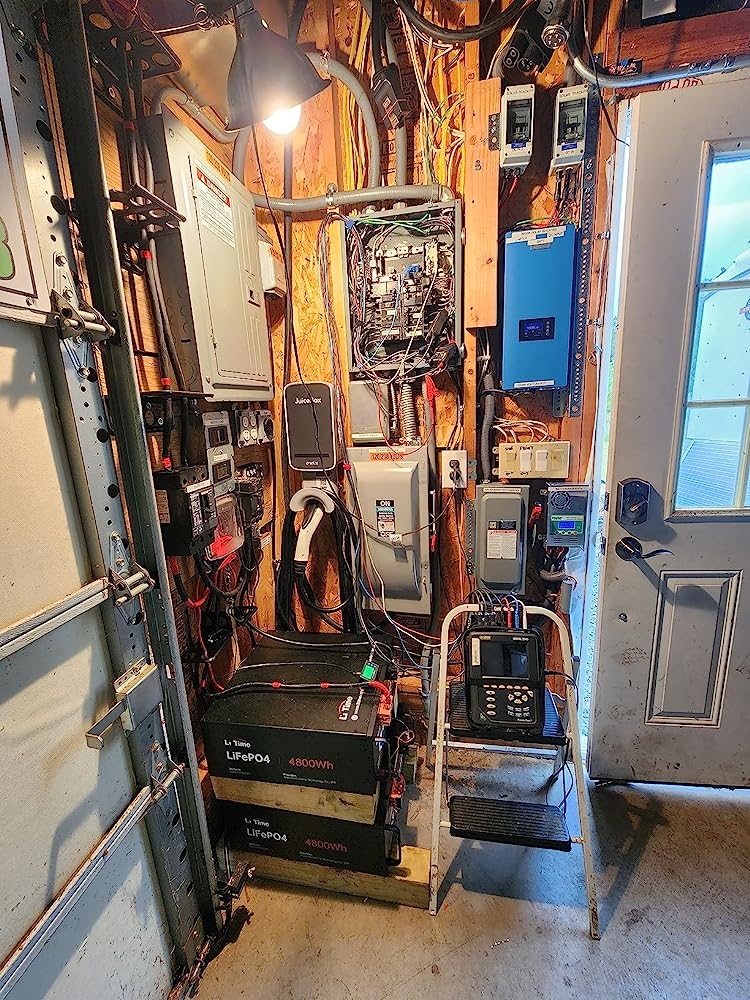

Pv in disconnect
