Aja 3G-SDI 4-Channel Analog Balanced Audio Embedder/Disembedder Mini-Converter

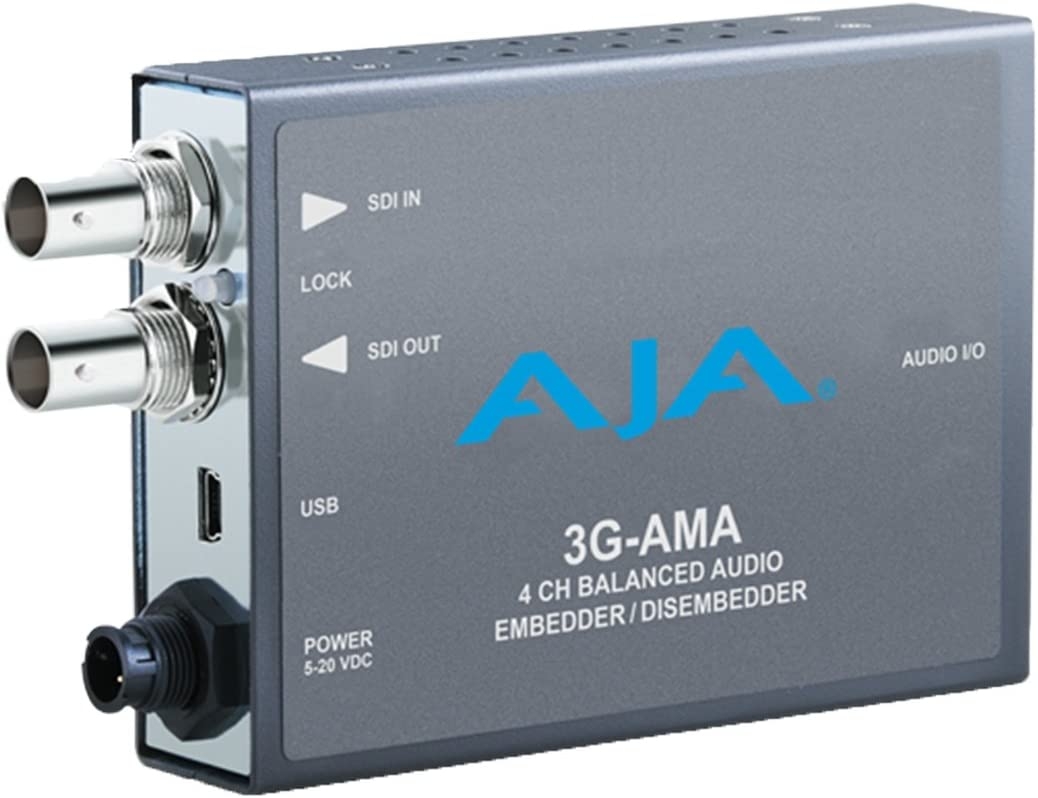

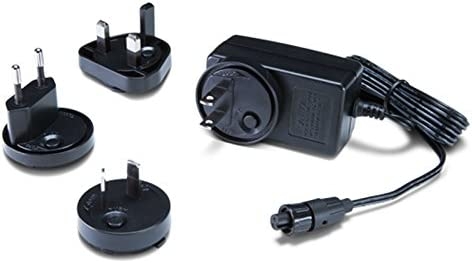

The 3G-AMA is a 4-channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p-60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel-pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard. Features 3G-SDI Embedder/Disembedder 4-Channel Balanced Analog Audio I/O Supplied XLR breakout cable USB connectivity via AJA MiniConfig software Dipswitch configuration 5-20VDC Power Supplied Breakout Cable Additional connections on included breakout cable. USB and MiniConfig Support AJA’s free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality. Universal Power Supply All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world. Compact and Portable AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or
